Toyota Passo Sette
2008-12 → 2012-03 · chassis M502E,M512E · catalogue 119120 · Japan
Supported model
Data version 2012-04

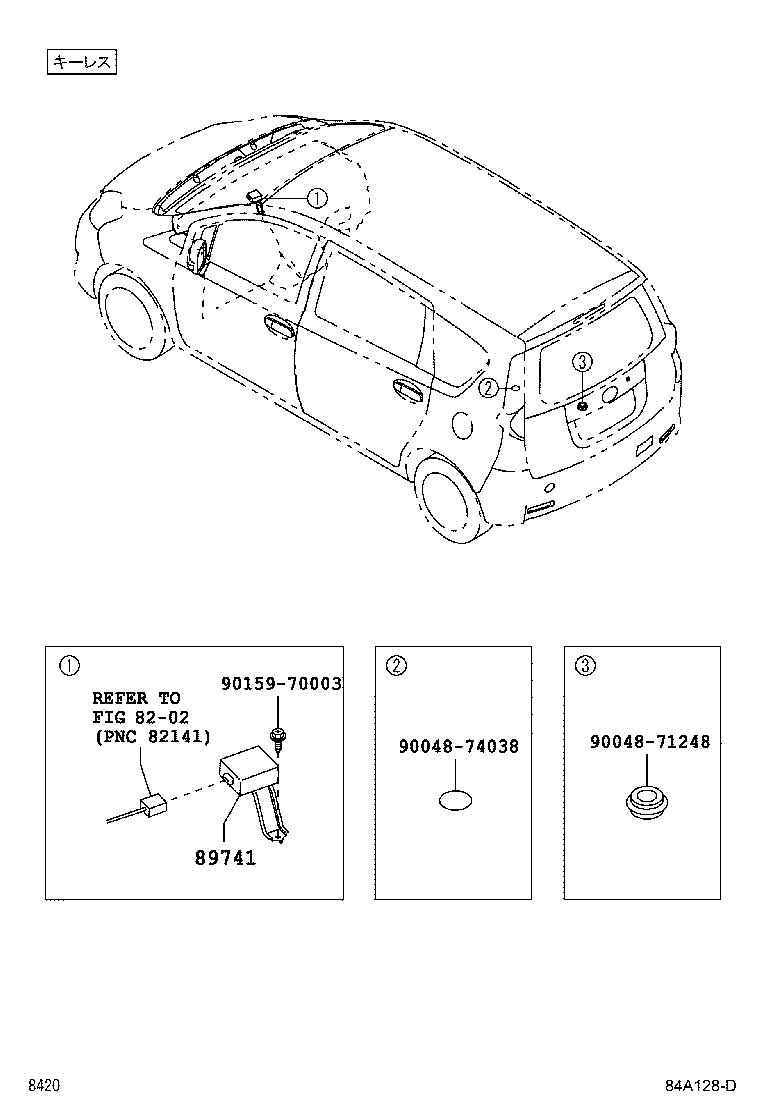

Wireless Door Lock
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 84930D | Switch, Door Control |
| 84947 | Cover, Door Electrical Key Switch |
| 89741 | Receiver, Door Control |
| 89990A | Computer Assy, Smart Key |
| 89997A | Antenna, Electrical Key, NO.2 |
| 899A0 | Antenna Assy, Indoor Electrical Key, NO.1 |
| 899A0A | Antenna Assy, Indoor Electrical Key, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
