Toyota Passo Sette

2008-12 → 2012-03 · chassis M502E,M512E · catalogue 119120 · Japan

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

22 part groups · 3 illustrations

Illustrations

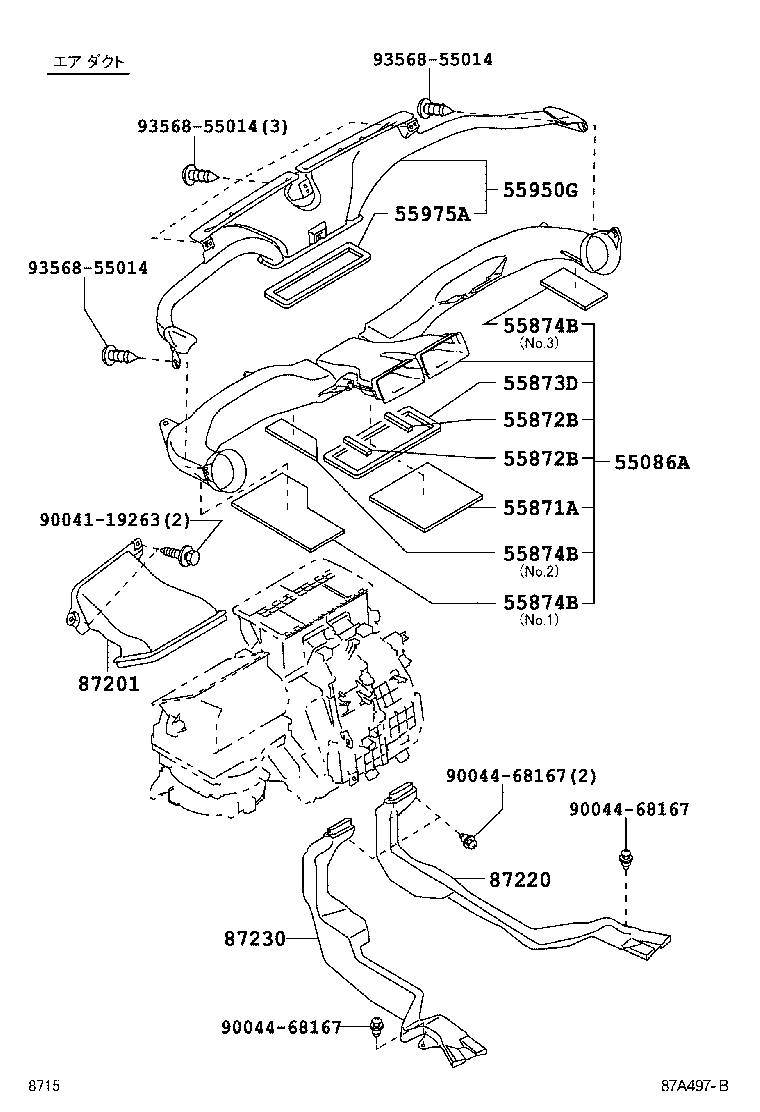

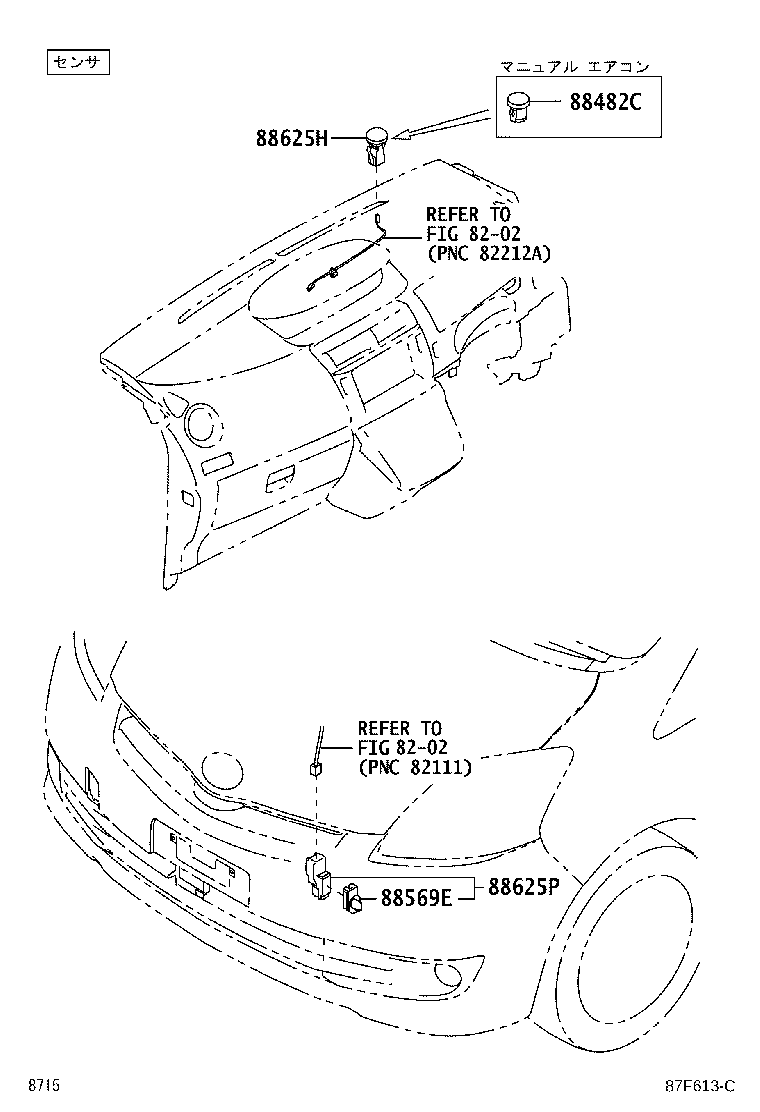

Figure 87F612 87F612 2008-12 → — Figure 87A497B 87A497B 2008-12 → — Figure 87F613C 87F613C 2008-12 → —

Part groups

PNCDescription
55086A Duct Sub-assy, Heater TO Register, Center
55871A Seal, Air Duct, NO.1
55872B Seal, Air Duct,NO.2
55873D Seal, Air Duct, Center
55874B Seal, Air Duct, NO.4
55901 Base Sub-assy, Heater Control
55902B Control Sub-assy, Heater
55905B Knob, Heater Control, NO.2
55906A Cable Sub-assy, Defroster Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909C Cable Sub-assy, Airmix Damper Control
55910B Bulb, Heater Control
55910R Control Assy, Heater
55950G Nozzle Assy, Defroster
55975A Seal, Defroster Nozzle, NO.1
87201 Duct Sub-assy, Air, NO.1
87220 Duct Assy, Air
87230 Duct Assy, Air, Heater
88482C Cap, Cooler
88569E Clamp (FOR COOLER THERMISTOR)
88625H Thermistor, Cooler (SOLAR SENSOR)
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
