Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

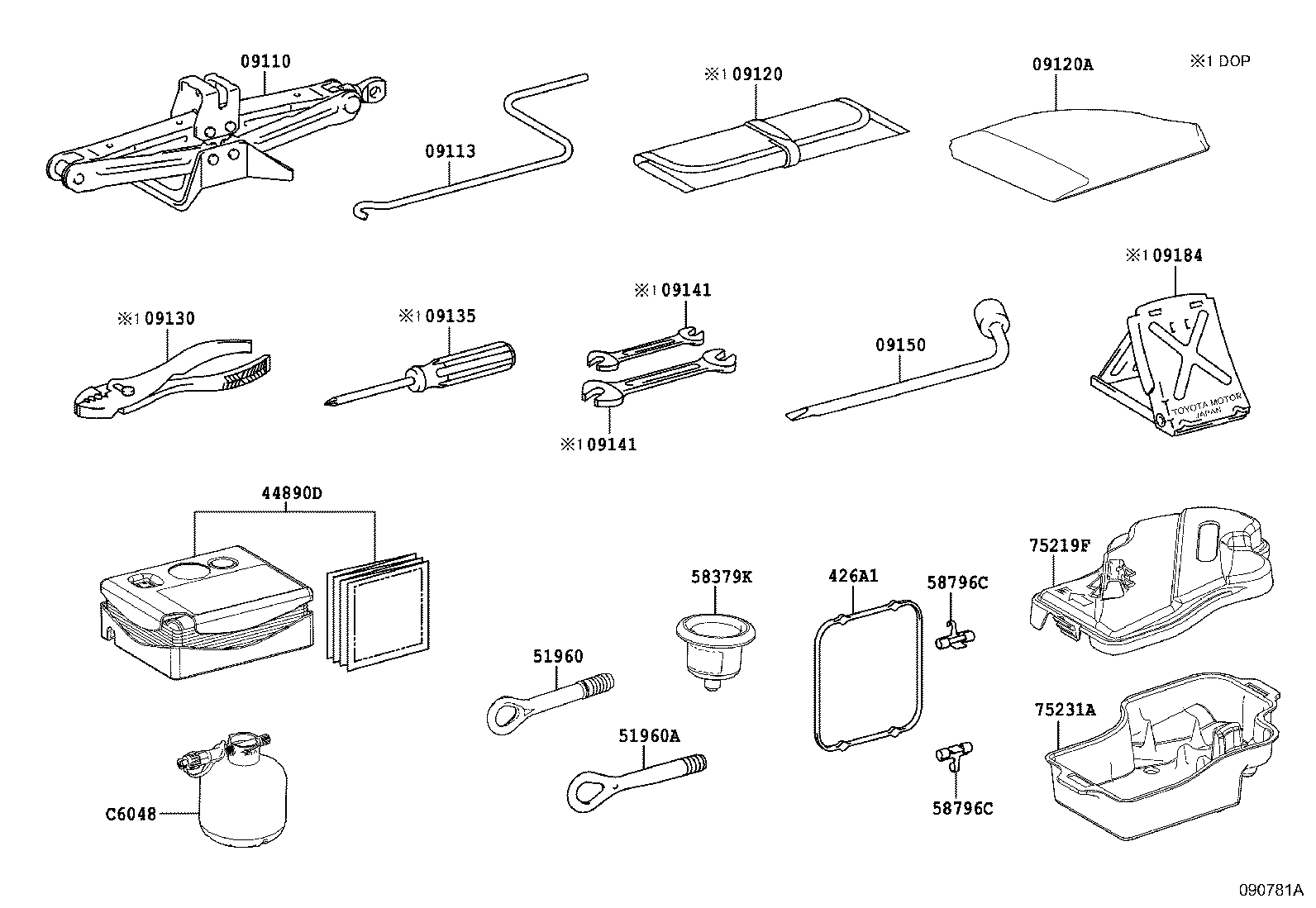

Exploded illustration 090781A 09110 — JACK ASSY (2 parts) 09130 — PLIERS (2 parts) 09141 — SPANNER (4 parts) 09141 — SPANNER (4 parts) 09184 — STOPPER, WHEEL (2 parts) 51960 — HOOK ASSY, FRONT (3 parts) 51960A — HOOK ASSY, REAR (2 parts) 58379K — PROTECTOR, BODY LOWER BACK (2 parts) 09150 — WRENCH, HUB NUT BOX (2 parts) 09135 — DRIVER, SCREW (2 parts) 09120 — BAG, TOOL (2 parts) 09120A — CASE, TOOL (2 parts) 44890D — COMPRESSOR ASSY, AIR (3 parts) 09113 — HANDLE, JACK (3 parts) C6048 — REPAIR SET, TIRE (3 parts) 426A1 — BAND, TIRE REPAIR KIT (2 parts) 58796C — HOOK, JACK CLAMP (2 parts) 58796C — HOOK, JACK CLAMP (2 parts) 75219F — COVER, TOOL BOX (2 parts) 75231A — BOX, TOOL BAG (2 parts)
090781A · 20 callouts Full size ↗
42 parts on this figure
Part number Description Fitment Price
09110 — Jack Assy
09111-72020 Jack Assy
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥5,900
09111-72020 Jack Assy
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥5,900
09113 — Handle, Jack
09113-20050 Handle, Jack
2015-06 → 2017-05 ended
NCP175,NHP170,NSP17# ¥450
09113-52060 Handle, Jack
2017-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥450
09113-52060 Handle, Jack
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥450
09120 — Bag, Tool
09120-16030 note Bag, Tool
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥450
09120-16030 note Bag, Tool
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥450
09120A — Case, Tool
09120-52080 Case, Tool
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥700
09120-52080 Case, Tool
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥700
09130 — Pliers
99913-11500 note Pliers
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥400
99913-11500 note Pliers
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥400
09135 — Driver, Screw
99915-10700 note Driver, Screw
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥460
99915-10700 note Driver, Screw
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥460
09141 — Spanner
99914-10810 note Spanner
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥240
99914-11214 note Spanner
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥400
99914-10810 note Spanner
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥240
99914-11214 note Spanner
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥400
09150 — Wrench, Hub Nut Box
09150-40010 Wrench, Hub Nut Box
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,150
09150-40010 Wrench, Hub Nut Box
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,150
09184 — Stopper, Wheel
09184-00010 note Stopper, Wheel
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥770
09184-00010 note Stopper, Wheel
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥770
426A1 — Band, Tire Repair Kit
426A1-52010 Band, Tire Repair Kit
2015-06 → 2018-09 ended
NCP175,NSP172 ¥200
426A1-52010 Band, Tire Repair Kit
2018-09 → 2022-07 ended
NCP175,NSP172 ¥200
44890D — Compressor Assy, Air
42680-52020 Compressor Assy, Air
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥9,500
42680-52020 Compressor Assy, Air
2018-09 → 2020-09 ended
NCP175,NHP170,NSP17# ¥9,500
42680-52021 Compressor Assy, Air
2020-10 → 2022-07 ended
NCP175,NHP170,NSP17# ¥9,500
51960 — Hook Assy, Front
51961-12020 Hook Assy, Front
2017-11 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,720
51961-42040 Hook Assy, Front
2015-06 → 2017-11 ended
NCP175,NHP170,NSP17# ¥3,040
51961-12020 Hook Assy, Front
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,720
51960A — Hook Assy, Rear
51961-12021 Hook Assy, Rear
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,720
51961-12021 Hook Assy, Rear
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,720
58379K — Protector, Body Lower Back
58379-52050 Protector, Body Lower Back
2015-06 → 2018-09 ended
NSP172 ¥1,300
58379-52050 Protector, Body Lower Back
2018-09 → 2022-07 ended
NSP172 ¥1,300
58796C — Hook, Jack Clamp
58796-33030 Hook, Jack Clamp
2015-06 → 2018-09 ended
NCP175,NSP172 ¥520
58796-33030 Hook, Jack Clamp
2018-09 → 2022-07 ended
NCP175,NSP172 ¥520
75219F — Cover, Tool Box
75219-52020 Cover, Tool Box
2015-06 → 2018-09 ended
NCP175,NSP172 ¥2,000
75219-52020 Cover, Tool Box
2018-09 → 2022-07 ended
NCP175,NSP172 ¥2,000
75231A — Box, Tool Bag
75231-52020 Box, Tool Bag
2015-06 → 2018-09 ended
NCP175,NSP172 ¥1,970
75231-52020 Box, Tool Bag
2018-09 → 2022-07 ended
NCP175,NSP172 ¥1,970
C6048 — Repair Set, Tire
C6048-52050 Repair Set, Tire
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,200
C6048-52050 Repair Set, Tire
2018-09 → 2020-09 ended
NCP175,NHP170,NSP17# ¥2,200
C6048-52051 Repair Set, Tire
2020-10 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,200
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
