Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

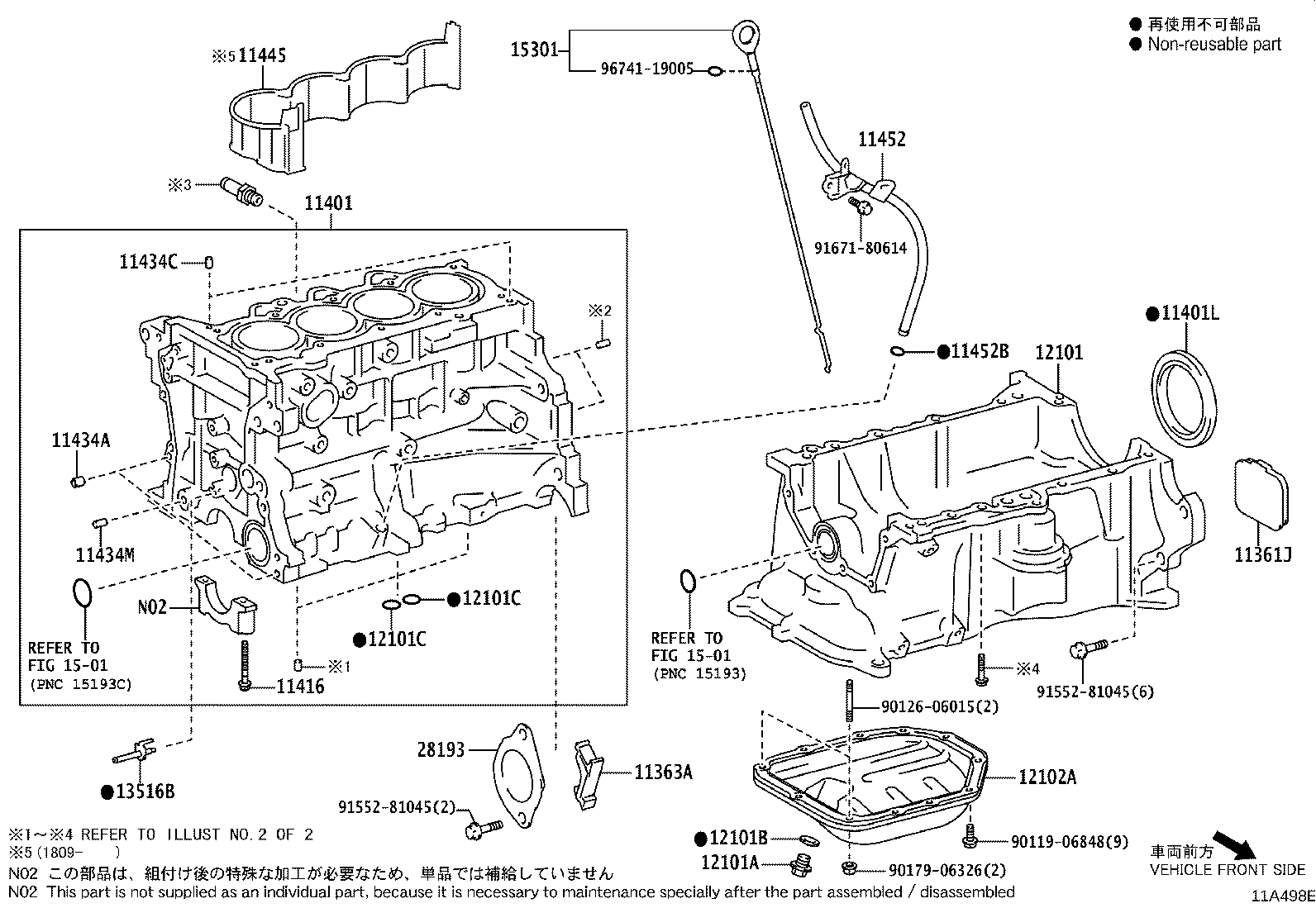

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11361J — Cover, Flywheel Housing Under | ||||
| 11361-21011 |
Cover, Flywheel Housing Under
2015-06 → 2018-09
ended
|
1NZ# NCP175,NHP170 | ¥490 | |
| 11361-21011 |
Cover, Flywheel Housing Under
2018-09 → 2022-07
ended
|
1NZ# NCP175,NHP170 | ¥490 | |
| 11363A — Cover, Flywheel Housing Side | ||||
| 11363-21010 note |
Cover, Flywheel Housing Side
2015-06 → 2018-09
ended
|
1NZFE NCP175 | ¥350 | |
| 11363-21020 |
Cover, Flywheel Housing Side
2015-07 → 2018-09
ended
|
1NZFXE NHP170 | ¥250 | |
| 11363-33010 note |
Cover, Flywheel Housing Side
2015-06 → 2018-09
ended
|
1NZFE NCP175 | ¥200 | |
| 11363-40010 |
Cover, Flywheel Housing Side
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥270 | |
| 11363-21010 note |
Cover, Flywheel Housing Side
2018-09 → 2022-07
ended
|
1NZFE NCP175 | ¥350 | |
| 11363-21020 |
Cover, Flywheel Housing Side
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥250 | |
| 11363-33010 note |
Cover, Flywheel Housing Side
2018-09 → 2022-07
ended
|
1NZFE NCP175 | ¥200 | |
| 11363-40010 |
Cover, Flywheel Housing Side
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥270 | |
| 11401 — Block Sub-assy, Cylinder | ||||
| 11401-29868 |
Block Sub-assy, Cylinder
2015-06 → 2015-12
ended
|
1NZFE NCP175 | ¥182,000 | |
| 11401-80804 |
Block Sub-assy, Cylinder
2015-07 → 2015-12
ended
|
1NZFXE NHP170 | ¥182,000 | |
| 11401-80882 |
Block Sub-assy, Cylinder
2015-12 → 2018-09
ended
|
1NZFE NCP175 | ¥114,000 | |
| 11401-80883 |
Block Sub-assy, Cylinder
2015-12 → 2018-09
ended
|
1NZFXE NHP170 | ¥114,000 | |
| 11410-49075 |
Block Sub-assy, Cylinder
2015-06 → 2016-10
ended
|
2NRFKE NSP17# | ¥183,000 | |
| 11410-49076 |
Block Sub-assy, Cylinder
2016-10 → 2018-09
ended
|
2NRFKE NSP17# | ¥136,000 | |
| 11401-80882 |
Block Sub-assy, Cylinder
2018-09 → 2022-07
ended
|
1NZFE NCP175 | ¥114,000 | |
| 11401-80883 |
Block Sub-assy, Cylinder
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥114,000 | |
| 11410-49076 |
Block Sub-assy, Cylinder
2018-09 → 2020-02
ended
|
2NRFKE NSP17# | ¥136,000 | |
| 11410-49085 |
Block Sub-assy, Cylinder
2020-03 → 2022-07
ended
|
2NRFKE NSP17# | ¥103,000 | |
| 11401L — Seal, Engine Rear Oil | ||||
| 90311-75019 |
Seal, Engine Rear Oil
2015-06 → 2016-03
ended
|
1NZ# NCP175,NHP170 | ¥1,390 | |
| 90311-75022 |
Seal, Engine Rear Oil
2016-04 → 2018-09
ended
|
1NZ# NCP175,NHP170 | ¥1,390 | |
| 90311-78004 |
Seal, Engine Rear Oil
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥1,390 | |
| 90311-75022 |
Seal, Engine Rear Oil
2018-09 → 2022-07
ended
|
1NZ# NCP175,NHP170 | ¥1,390 | |
| 90311-78004 |
Seal, Engine Rear Oil
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥1,390 | |
| 11416 — Bolt(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02125 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2015-06 → 2018-09
ended
|
1NZ# NCP175,NHP170 | ¥220 | |
| 90910-02175 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥190 | |
| 90910-02125 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2018-09 → 2019-03
ended
|
1NZ# NCP175,NHP170 | ¥220 | |
| 90910-02175 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥190 | |
| 90910-02207 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2019-04 → 2022-07
ended
|
1NZ# NCP175,NHP170 | ¥160 | |
| 11434A — Pin, Straight(FOR TIMING GEAR COVER SET) | ||||
| 90250-04097 note |
Pin, Straight(FOR TIMING GEAR COVER SET)
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥50 | |
| 90253-08003 note |
Pin, Straight(FOR TIMING GEAR COVER SET)
2015-07 → 2018-09
ended
|
1NZFXE NHP170 | ¥80 | |
| 90250-04097 note |
Pin, Straight(FOR TIMING GEAR COVER SET)
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥50 | |
| 90253-08003 note |
Pin, Straight(FOR TIMING GEAR COVER SET)
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥80 | |
| 11434C — Pin, Straight (FOR CYLINDER HEAD SET) | ||||
| 90250-08120 note |
Pin, Straight (FOR CYLINDER HEAD SET)
2015-06 → 2018-09
ended
|
1NZ# NCP175,NHP170 | ¥140 | |
| 90250-08120 note |
Pin, Straight (FOR CYLINDER HEAD SET)
2018-09 → 2022-07
ended
|
1NZ# NCP175,NHP170 | ¥140 | |
| 11434M — Pin, Straight(FOR CHAIN TENSIONER) | ||||
| 90250-10030 |
Pin, Straight(FOR CHAIN TENSIONER)
2015-06 → 2018-09
ended
|
1NZ# NCP175,NHP170 | ¥160 | |
| 90250-10030 |
Pin, Straight(FOR CHAIN TENSIONER)
2018-09 → 2022-07
ended
|
1NZ# NCP175,NHP170 | ¥160 | |
| 11445 — Spacer, Cylinder Block Water Jacket | ||||
| 11445-47020 note |
Spacer, Cylinder Block Water Jacket
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥2,250 | |
| 11445-47030 note |
Spacer, Cylinder Block Water Jacket
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥1,840 | |
| 11445-21010 |
Spacer, Cylinder Block Water Jacket
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥3,180 | |
| 11445-47020 note |
Spacer, Cylinder Block Water Jacket
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥2,250 | |
| 11445-47030 note |
Spacer, Cylinder Block Water Jacket
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥1,840 | |
| 11452 — Guide, Oil Level Gage | ||||
| 11409-47012 |
Guide, Oil Level Gage
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥1,610 | |
| 11452-21030 |
Guide, Oil Level Gage
2015-06 → 2018-09
ended
|
1NZFE NCP175 | ¥1,300 | |
| 11452-21060 |
Guide, Oil Level Gage
2015-07 → 2018-09
ended
|
1NZFXE NHP170 | ¥1,810 | |
| 11409-47012 |
Guide, Oil Level Gage
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥1,610 | |
| 11452-21030 |
Guide, Oil Level Gage
2018-09 → 2022-07
ended
|
1NZFE NCP175 | ¥1,300 | |
| 11452-21041 |
Guide, Oil Level Gage
2020-12 → 2022-07
ended
|
1NZFXE NHP170 | ¥1,630 | |
| 11452-21060 |
Guide, Oil Level Gage
2018-09 → 2020-12
ended
|
1NZFXE NHP170 | ¥1,810 | |
| 11452B — Ring, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 96721-19010 |
Ring, O(FOR OIL LEVEL GAGE GUIDE)
2015-06 → 2018-09
ended
|
1NZ# NCP175,NHP170 | ¥190 | |
| 96741-19010 |
Ring, O(FOR OIL LEVEL GAGE GUIDE)
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥250 | |
| 96721-19010 |
Ring, O(FOR OIL LEVEL GAGE GUIDE)
2018-09 → 2022-07
ended
|
1NZ# NCP175,NHP170 | ¥190 | |
| 96741-19010 |
Ring, O(FOR OIL LEVEL GAGE GUIDE)
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥250 | |
| 12101 — Pan Sub-assy, Oil | ||||
| 12101-47160 |
Pan Sub-assy, Oil
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥25,000 | |
| 12111-21033 |
Pan Sub-assy, Oil
2015-06 → 2018-09
ended
|
1NZFE NCP175 | ¥42,200 | |
| 12111-21070 |
Pan Sub-assy, Oil
2015-07 → 2018-09
ended
|
1NZFXE NHP170 | ¥46,400 | |
| 12101-47160 |
Pan Sub-assy, Oil
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥25,000 | |
| 12111-21033 |
Pan Sub-assy, Oil
2018-09 → 2022-07
ended
|
1NZFE NCP175 | ¥42,200 | |
| 12111-21070 |
Pan Sub-assy, Oil
2018-09 → 2021-07
ended
|
1NZFXE NHP170 | ¥46,400 | |
| 12111-21090 |
Pan Sub-assy, Oil
2021-07 → 2022-07
ended
|
1NZFXE NHP170 | ¥42,200 | |
| 12101A — Plug(FOR OIL PAN DRAIN) | ||||
| 90341-12012 |
Plug(FOR OIL PAN DRAIN)
2015-06 → 2018-09
ended
|
1NZ# NCP175,NHP170 | ¥160 | |
| 90341-12032 |
Plug(FOR OIL PAN DRAIN)
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥190 | |
| 90341-12012 |
Plug(FOR OIL PAN DRAIN)
2018-09 → 2022-07
ended
|
1NZ# NCP175,NHP170 | ¥160 | |
| 90341-12032 |
Plug(FOR OIL PAN DRAIN)
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥190 | |
| 12101B — Gasket(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
Gasket(FOR OIL PAN DRAIN PLUG)
2015-06 → 2018-09
ended
|
1NZ#,2NRFKE NCP175,NHP170,NSP17# | ¥90 | |
| 90430-12031 |
Gasket(FOR OIL PAN DRAIN PLUG)
2018-09 → 2022-07
ended
|
1NZ#,2NRFKE NCP175,NHP170,NSP17# | ¥90 | |
| 12101C — Ring, O(FOR OIL PAN) | ||||
| 90301-09031 note |
Ring, O(FOR OIL PAN)
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥200 | |
| 90301-19023 note |
Ring, O(FOR OIL PAN)
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥170 | |
| 96722-24020 |
Ring, O(FOR OIL PAN)
2015-06 → 2018-09
ended
|
1NZ# NCP175,NHP170 | ¥140 | |
| 90301-09031 note |
Ring, O(FOR OIL PAN)
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥200 | |
| 90301-19023 note |
Ring, O(FOR OIL PAN)
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥170 | |
| 96722-24020 |
Ring, O(FOR OIL PAN)
2018-09 → 2022-07
ended
|
1NZ# NCP175,NHP170 | ¥140 | |
| 12102A — Pan Sub-assy, Oil, NO.2 | ||||
| 12102-21010 |
Pan Sub-assy, Oil, NO.2
2015-06 → 2018-09
ended
|
1NZ# NCP175,NHP170 | ¥3,780 | |
| 12102-21010 |
Pan Sub-assy, Oil, NO.2
2018-09 → 2022-07
ended
|
1NZ# NCP175,NHP170 | ¥3,780 | |
| 13516B — Jet, Oil | ||||
| 13516-21011 |
Jet, Oil
2015-06 → 2018-09
ended
|
1NZ# NCP175,NHP170 | ¥360 | |
| 13516-21011 |
Jet, Oil
2018-09 → 2022-07
ended
|
1NZ# NCP175,NHP170 | ¥360 | |
| 15301 — Gage Sub-assy, Oil Level | ||||
| 15301-21050 |
Gage Sub-assy, Oil Level
2015-07 → 2016-12
ended
|
1NZFXE NHP170 | ¥1,200 | |
| 15301-21051 |
Gage Sub-assy, Oil Level
2017-01 → 2018-09
ended
|
1NZFXE NHP170 | ¥750 | |
| 15301-21060 |
Gage Sub-assy, Oil Level
2015-06 → 2017-03
ended
|
1NZFE NCP175 | ¥1,000 | |
| 15301-21061 |
Gage Sub-assy, Oil Level
2017-04 → 2017-05
ended
|
1NZFE NCP175 | ¥1,000 | |
| 15301-21062 |
Gage Sub-assy, Oil Level
2017-06 → 2018-09
ended
|
1NZFE NCP175 | ¥750 | |
| 15301-47080 |
Gage Sub-assy, Oil Level
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥750 | |
| 15301-21051 |
Gage Sub-assy, Oil Level
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥750 | |
| 15301-21062 |
Gage Sub-assy, Oil Level
2018-09 → 2022-07
ended
|
1NZFE NCP175 | ¥750 | |
| 15301-47080 |
Gage Sub-assy, Oil Level
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥750 | |
| 28193 — Insulator, Starter Hole | ||||
| 28193-21020 |
Insulator, Starter Hole
2015-07 → 2018-09
ended
|
1NZFXE NHP170 | ¥580 | |
| 28193-21020 |
Insulator, Starter Hole
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥580 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
