Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

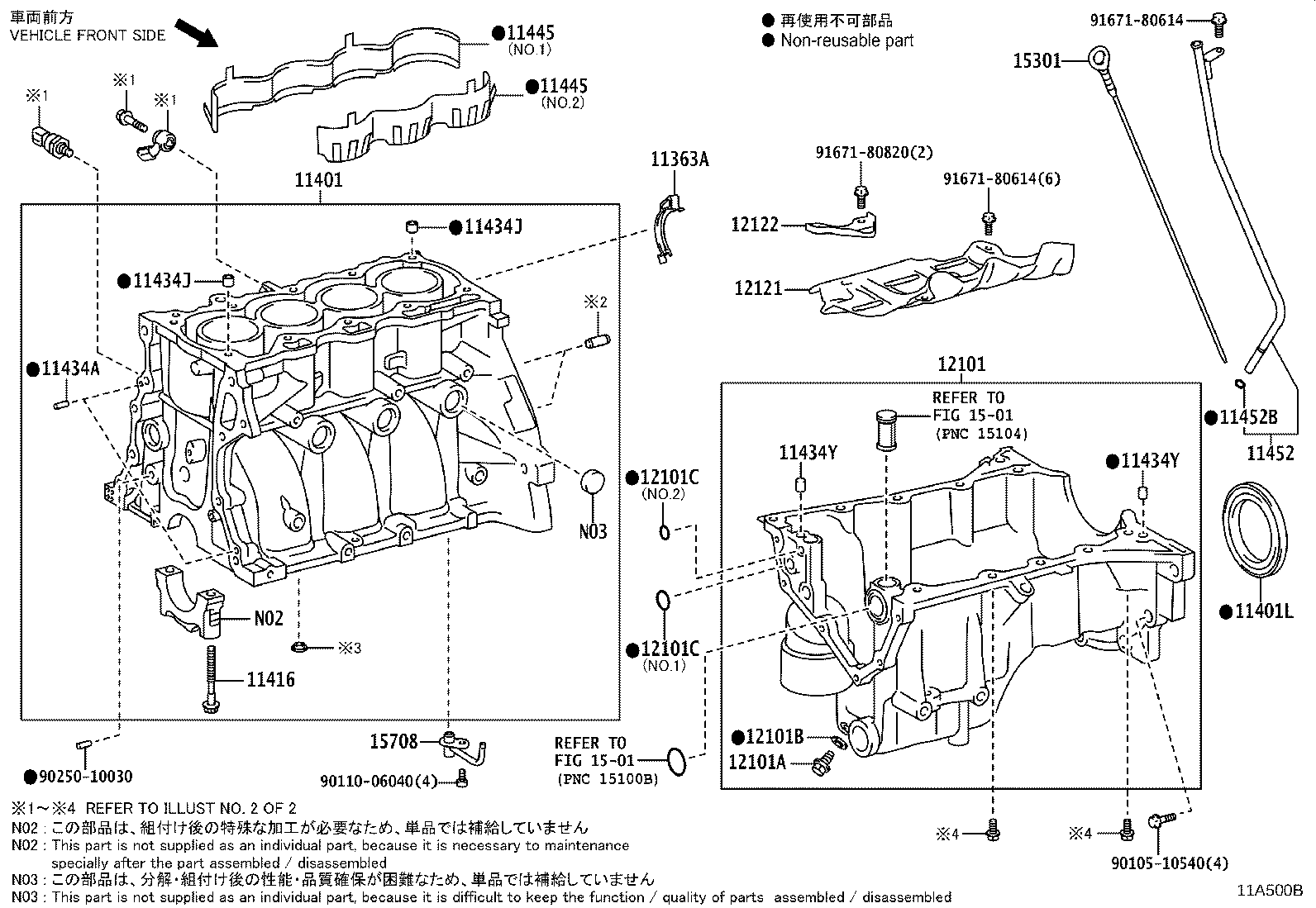

Exploded illustration 11A500B 11445 — SPACER, CYLINDER BLOCK WATER JACKET (5 parts) 11445 — SPACER, CYLINDER BLOCK WATER JACKET (5 parts) 12101C — RING, O(FOR OIL PAN) (6 parts) 12101C — RING, O(FOR OIL PAN) (6 parts) 11452B — RING, O(FOR OIL LEVEL GAGE GUIDE) (4 parts) 15301 — GAGE SUB-ASSY, OIL LEVEL (9 parts) 9011006040 — not listed in this catalogue 9025010030 — not listed in this catalogue 9167180614 — not listed in this catalogue 11434A — PIN, STRAIGHT(FOR TIMING GEAR COVER SET) (4 parts) 11434J — PIN, RING (FOR CYLINDER HEAD SET) (2 parts) 11434J — PIN, RING (FOR CYLINDER HEAD SET) (2 parts) 11416 — BOLT(FOR CRANKSHAFT BEARING CAP SET) (5 parts) 11363A — COVER, FLYWHEEL HOUSING SIDE (8 parts) 11452 — GUIDE, OIL LEVEL GAGE (7 parts) 15708 — NOZZLE SUB-ASSY, OIL, NO.1 (3 parts) 12121 — PLATE, OIL PAN BAFFLE, NO.1 (2 parts) 12122 — PLATE, OIL PAN BAFFLE, NO.2 (2 parts) 9167180614 — not listed in this catalogue 9167180820 — not listed in this catalogue 9010510540 — not listed in this catalogue 1501 — not listed in this catalogue 11401L — SEAL, ENGINE REAR OIL (5 parts) 12101 — PAN SUB-ASSY, OIL (7 parts) 11434Y — PIN, STRAIGHT(FOR OIL PAN) (2 parts) 12101A — PLUG(FOR OIL PAN DRAIN) (4 parts) 12101B — GASKET(FOR OIL PAN DRAIN PLUG) (2 parts) 1501 — not listed in this catalogue 11401 — BLOCK SUB-ASSY, CYLINDER (10 parts) 11434Y — PIN, STRAIGHT(FOR OIL PAN) (2 parts)
11A500B · 22 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
87 parts on this figure
Part number Description Fitment Price
11363A — Cover, Flywheel Housing Side
11363-21010 note Cover, Flywheel Housing Side
2015-06 → 2018-09 ended
1NZFE NCP175 ¥350
11363-21020 Cover, Flywheel Housing Side
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥250
11363-33010 note Cover, Flywheel Housing Side
2015-06 → 2018-09 ended
1NZFE NCP175 ¥200
11363-40010 Cover, Flywheel Housing Side
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥270
11363-21010 note Cover, Flywheel Housing Side
2018-09 → 2022-07 ended
1NZFE NCP175 ¥350
11363-21020 Cover, Flywheel Housing Side
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥250
11363-33010 note Cover, Flywheel Housing Side
2018-09 → 2022-07 ended
1NZFE NCP175 ¥200
11363-40010 Cover, Flywheel Housing Side
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥270
11401 — Block Sub-assy, Cylinder
11401-29868 Block Sub-assy, Cylinder
2015-06 → 2015-12 ended
1NZFE NCP175 ¥182,000
11401-80804 Block Sub-assy, Cylinder
2015-07 → 2015-12 ended
1NZFXE NHP170 ¥182,000
11401-80882 Block Sub-assy, Cylinder
2015-12 → 2018-09 ended
1NZFE NCP175 ¥114,000
11401-80883 Block Sub-assy, Cylinder
2015-12 → 2018-09 ended
1NZFXE NHP170 ¥114,000
11410-49075 Block Sub-assy, Cylinder
2015-06 → 2016-10 ended
2NRFKE NSP17# ¥183,000
11410-49076 Block Sub-assy, Cylinder
2016-10 → 2018-09 ended
2NRFKE NSP17# ¥136,000
11401-80882 Block Sub-assy, Cylinder
2018-09 → 2022-07 ended
1NZFE NCP175 ¥114,000
11401-80883 Block Sub-assy, Cylinder
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥114,000
11410-49076 Block Sub-assy, Cylinder
2018-09 → 2020-02 ended
2NRFKE NSP17# ¥136,000
11410-49085 Block Sub-assy, Cylinder
2020-03 → 2022-07 ended
2NRFKE NSP17# ¥103,000
11401L — Seal, Engine Rear Oil
90311-75019 Seal, Engine Rear Oil
2015-06 → 2016-03 ended
1NZ# NCP175,NHP170 ¥1,390
90311-75022 Seal, Engine Rear Oil
2016-04 → 2018-09 ended
1NZ# NCP175,NHP170 ¥1,390
90311-78004 Seal, Engine Rear Oil
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥1,390
90311-75022 Seal, Engine Rear Oil
2018-09 → 2022-07 ended
1NZ# NCP175,NHP170 ¥1,390
90311-78004 Seal, Engine Rear Oil
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥1,390
11416 — Bolt(FOR CRANKSHAFT BEARING CAP SET)
90910-02125 Bolt(FOR CRANKSHAFT BEARING CAP SET)
2015-06 → 2018-09 ended
1NZ# NCP175,NHP170 ¥220
90910-02175 Bolt(FOR CRANKSHAFT BEARING CAP SET)
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥190
90910-02125 Bolt(FOR CRANKSHAFT BEARING CAP SET)
2018-09 → 2019-03 ended
1NZ# NCP175,NHP170 ¥220
90910-02175 Bolt(FOR CRANKSHAFT BEARING CAP SET)
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥190
90910-02207 Bolt(FOR CRANKSHAFT BEARING CAP SET)
2019-04 → 2022-07 ended
1NZ# NCP175,NHP170 ¥160
11434A — Pin, Straight(FOR TIMING GEAR COVER SET)
90250-04097 note Pin, Straight(FOR TIMING GEAR COVER SET)
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥50
90253-08003 note Pin, Straight(FOR TIMING GEAR COVER SET)
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥80
90250-04097 note Pin, Straight(FOR TIMING GEAR COVER SET)
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥50
90253-08003 note Pin, Straight(FOR TIMING GEAR COVER SET)
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥80
11434J — Pin, Ring (FOR CYLINDER HEAD SET)
90253-13017 Pin, Ring (FOR CYLINDER HEAD SET)
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥140
90253-13017 Pin, Ring (FOR CYLINDER HEAD SET)
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥140
11434Y — Pin, Straight(FOR OIL PAN)
90250-08120 Pin, Straight(FOR OIL PAN)
2015-06 → 2018-09 ended
1NZ#,2NRFKE NCP175,NHP170,NSP17# ¥140
90250-08120 Pin, Straight(FOR OIL PAN)
2018-09 → 2022-07 ended
1NZ#,2NRFKE NCP175,NHP170,NSP17# ¥140
11445 — Spacer, Cylinder Block Water Jacket
11445-47020 note Spacer, Cylinder Block Water Jacket
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥2,250
11445-47030 note Spacer, Cylinder Block Water Jacket
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥1,840
11445-21010 Spacer, Cylinder Block Water Jacket
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥3,180
11445-47020 note Spacer, Cylinder Block Water Jacket
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥2,250
11445-47030 note Spacer, Cylinder Block Water Jacket
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥1,840
11452 — Guide, Oil Level Gage
11409-47012 Guide, Oil Level Gage
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥1,610
11452-21030 Guide, Oil Level Gage
2015-06 → 2018-09 ended
1NZFE NCP175 ¥1,300
11452-21060 Guide, Oil Level Gage
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥1,810
11409-47012 Guide, Oil Level Gage
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥1,610
11452-21030 Guide, Oil Level Gage
2018-09 → 2022-07 ended
1NZFE NCP175 ¥1,300
11452-21041 Guide, Oil Level Gage
2020-12 → 2022-07 ended
1NZFXE NHP170 ¥1,630
11452-21060 Guide, Oil Level Gage
2018-09 → 2020-12 ended
1NZFXE NHP170 ¥1,810
11452B — Ring, O(FOR OIL LEVEL GAGE GUIDE)
96721-19010 Ring, O(FOR OIL LEVEL GAGE GUIDE)
2015-06 → 2018-09 ended
1NZ# NCP175,NHP170 ¥190
96741-19010 Ring, O(FOR OIL LEVEL GAGE GUIDE)
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥250
96721-19010 Ring, O(FOR OIL LEVEL GAGE GUIDE)
2018-09 → 2022-07 ended
1NZ# NCP175,NHP170 ¥190
96741-19010 Ring, O(FOR OIL LEVEL GAGE GUIDE)
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥250
12101 — Pan Sub-assy, Oil
12101-47160 Pan Sub-assy, Oil
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥25,000
12111-21033 Pan Sub-assy, Oil
2015-06 → 2018-09 ended
1NZFE NCP175 ¥42,200
12111-21070 Pan Sub-assy, Oil
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥46,400
12101-47160 Pan Sub-assy, Oil
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥25,000
12111-21033 Pan Sub-assy, Oil
2018-09 → 2022-07 ended
1NZFE NCP175 ¥42,200
12111-21070 Pan Sub-assy, Oil
2018-09 → 2021-07 ended
1NZFXE NHP170 ¥46,400
12111-21090 Pan Sub-assy, Oil
2021-07 → 2022-07 ended
1NZFXE NHP170 ¥42,200
12101A — Plug(FOR OIL PAN DRAIN)
90341-12012 Plug(FOR OIL PAN DRAIN)
2015-06 → 2018-09 ended
1NZ# NCP175,NHP170 ¥160
90341-12032 Plug(FOR OIL PAN DRAIN)
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥190
90341-12012 Plug(FOR OIL PAN DRAIN)
2018-09 → 2022-07 ended
1NZ# NCP175,NHP170 ¥160
90341-12032 Plug(FOR OIL PAN DRAIN)
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥190
12101B — Gasket(FOR OIL PAN DRAIN PLUG)
90430-12031 Gasket(FOR OIL PAN DRAIN PLUG)
2015-06 → 2018-09 ended
1NZ#,2NRFKE NCP175,NHP170,NSP17# ¥90
90430-12031 Gasket(FOR OIL PAN DRAIN PLUG)
2018-09 → 2022-07 ended
1NZ#,2NRFKE NCP175,NHP170,NSP17# ¥90
12101C — Ring, O(FOR OIL PAN)
90301-09031 note Ring, O(FOR OIL PAN)
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥200
90301-19023 note Ring, O(FOR OIL PAN)
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥170
96722-24020 Ring, O(FOR OIL PAN)
2015-06 → 2018-09 ended
1NZ# NCP175,NHP170 ¥140
90301-09031 note Ring, O(FOR OIL PAN)
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥200
90301-19023 note Ring, O(FOR OIL PAN)
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥170
96722-24020 Ring, O(FOR OIL PAN)
2018-09 → 2022-07 ended
1NZ# NCP175,NHP170 ¥140
12121 — Plate, Oil Pan Baffle, NO.1
12121-47030 Plate, Oil Pan Baffle, NO.1
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥2,110
12121-47030 Plate, Oil Pan Baffle, NO.1
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥2,110
12122 — Plate, Oil Pan Baffle, NO.2
12122-47010 Plate, Oil Pan Baffle, NO.2
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥320
12122-47010 Plate, Oil Pan Baffle, NO.2
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥320
15301 — Gage Sub-assy, Oil Level
15301-21050 Gage Sub-assy, Oil Level
2015-07 → 2016-12 ended
1NZFXE NHP170 ¥1,200
15301-21051 Gage Sub-assy, Oil Level
2017-01 → 2018-09 ended
1NZFXE NHP170 ¥750
15301-21060 Gage Sub-assy, Oil Level
2015-06 → 2017-03 ended
1NZFE NCP175 ¥1,000
15301-21061 Gage Sub-assy, Oil Level
2017-04 → 2017-05 ended
1NZFE NCP175 ¥1,000
15301-21062 Gage Sub-assy, Oil Level
2017-06 → 2018-09 ended
1NZFE NCP175 ¥750
15301-47080 Gage Sub-assy, Oil Level
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥750
15301-21051 Gage Sub-assy, Oil Level
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥750
15301-21062 Gage Sub-assy, Oil Level
2018-09 → 2022-07 ended
1NZFE NCP175 ¥750
15301-47080 Gage Sub-assy, Oil Level
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥750
15708 — Nozzle Sub-assy, Oil, NO.1
15708-47080 Nozzle Sub-assy, Oil, NO.1
2015-06 → 2018-05 ended
2NRFKE NSP17# ¥1,030
15708-47081 Nozzle Sub-assy, Oil, NO.1
2018-05 → 2018-09 ended
2NRFKE NSP17# ¥820
15708-47081 Nozzle Sub-assy, Oil, NO.1
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥820
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
