Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

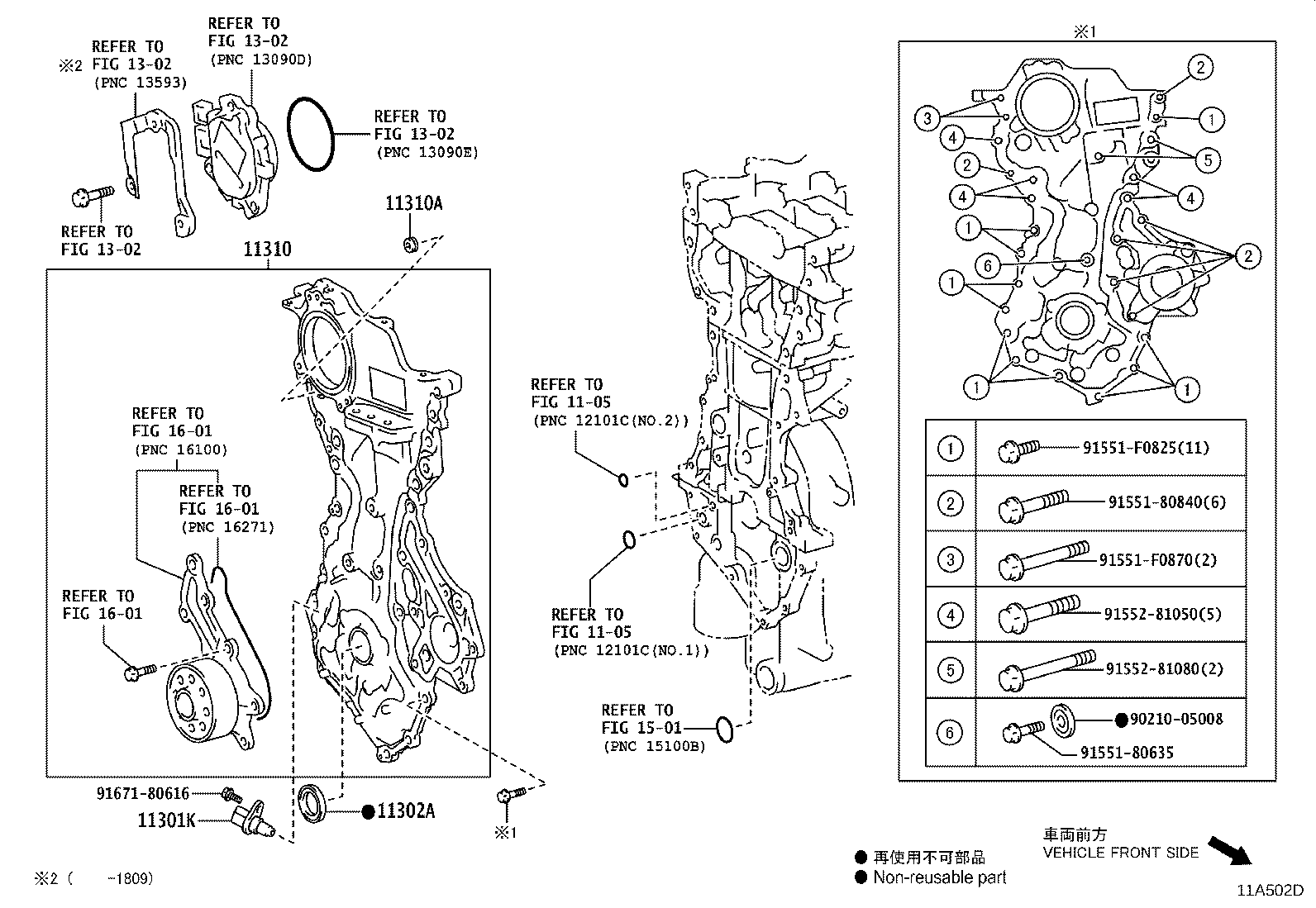

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11301K — Sensor, Crank Position | ||||
| 90919-05079 |
Sensor, Crank Position
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥4,130 | |
| 90919-05079 |
Sensor, Crank Position
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥4,130 | |
| 11302A — Seal, Oil(FOR TIMING CHAIN OR BELT COVER) | ||||
| 90311-36007 |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥350 | |
| 90311-36007 |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥350 | |
| 11310 — Cover Assy, Timing Chain | ||||
| 11310-47091 |
Cover Assy, Timing Chain
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥31,400 | |
| 11310-47100 |
Cover Assy, Timing Chain
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥23,700 | |
| 11310A — Plug, Taper Screw(FOR TIMING CHAIN COVER) | ||||
| 90344-53006 |
Plug, Taper Screw(FOR TIMING CHAIN COVER)
2015-06 → 2018-04
ended
|
2NRFKE NSP17# | ¥130 | |
| 90344-53008 |
Plug, Taper Screw(FOR TIMING CHAIN COVER)
2018-05 → 2018-09
ended
|
2NRFKE NSP17# | ¥110 | |
| 90344-53008 |
Plug, Taper Screw(FOR TIMING CHAIN COVER)
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥110 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
