Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

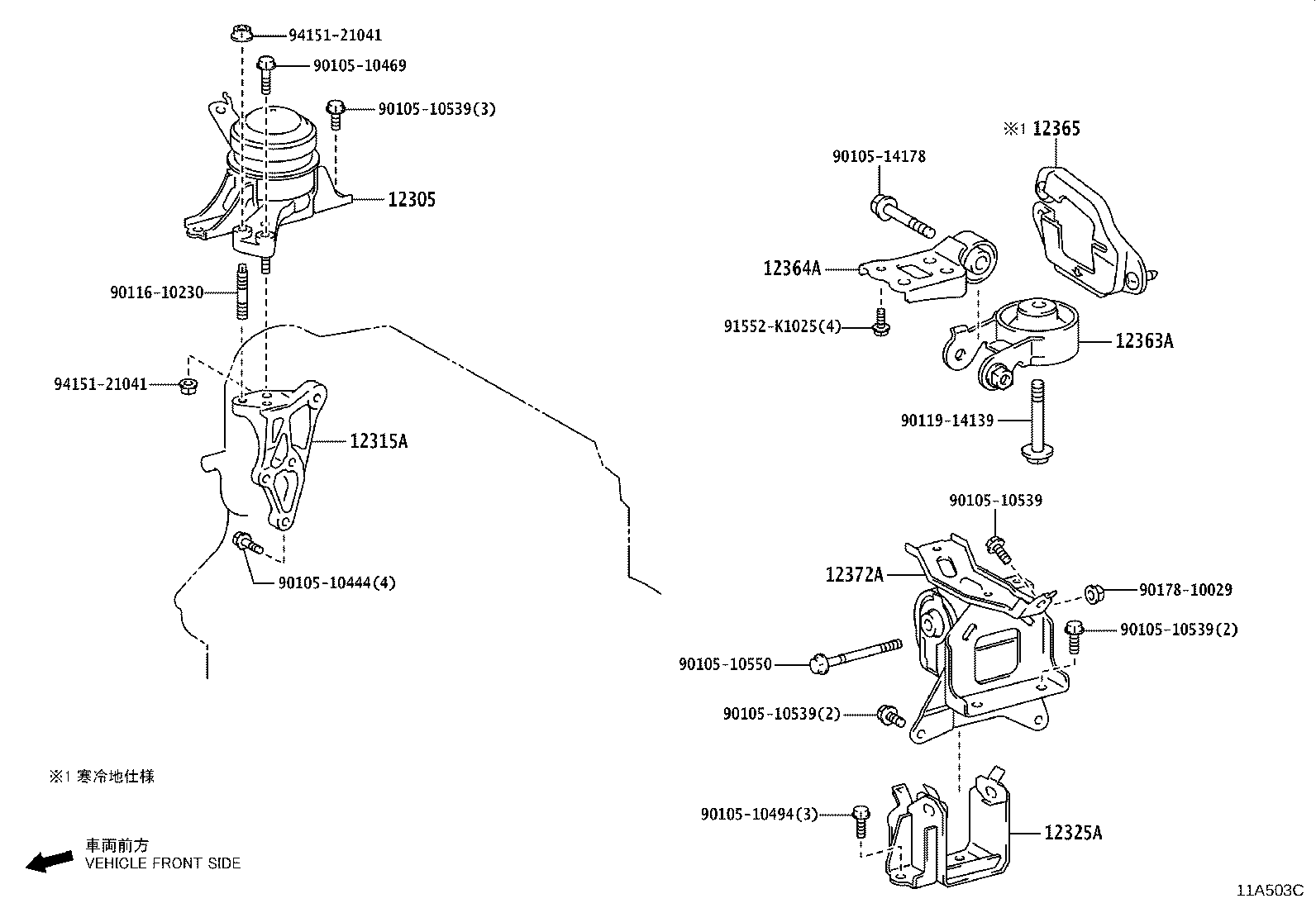

Exploded illustration 11A503C 12363A — ROD, ENGINE MOVING CONTROL (6 parts) 12364A — ROD, ENGINE LATERAL CONTROL (6 parts) 9010510539 — not listed in this catalogue 9010510494 — not listed in this catalogue 12325A — BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) (6 parts) 9415121041 — not listed in this catalogue 12305 — INSULATOR SUB-ASSY, ENGINE MOUNTING, RH (7 parts) 12315A — BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) (4 parts) 12372A — INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) (6 parts) 9010510444 — not listed in this catalogue 9010510539 — not listed in this catalogue 9010510539 — not listed in this catalogue 9010510539 — not listed in this catalogue 9010510550 — not listed in this catalogue 9011914139 — not listed in this catalogue 9017810029 — not listed in this catalogue 9010510469 — not listed in this catalogue 9415121041 — not listed in this catalogue 9011610230 — not listed in this catalogue 91552K1025 — not listed in this catalogue 9010514178 — not listed in this catalogue 12365 — COVER, ENGINE MOVING CONTROL ROD (2 parts)
11A503C · 7 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
37 parts on this figure
Part number Description Fitment Price
12305 — Insulator Sub-assy, Engine Mounting, RH
12305-21380 Insulator Sub-assy, Engine Mounting, RH
2015-06 → 2018-09 ended
1NZFE NCP175 ¥11,600
12305-21451 Insulator Sub-assy, Engine Mounting, RH
2015-07 → 2018-05 ended
1NZFXE NHP170 ¥16,000
12305-21570 Insulator Sub-assy, Engine Mounting, RH
2018-06 → 2018-09 ended
1NZFXE NHP170 ¥12,000
12305-47041 Insulator Sub-assy, Engine Mounting, RH
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥10,500
12305-21380 Insulator Sub-assy, Engine Mounting, RH
2018-09 → 2022-07 ended
1NZFE NCP175 ¥11,600
12305-21570 Insulator Sub-assy, Engine Mounting, RH
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥12,000
12305-47041 Insulator Sub-assy, Engine Mounting, RH
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥10,500
12315A — Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12315-21044 Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2015-06 → 2018-09 ended
1NZFE NCP175 ¥3,720
12315-21060 Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥3,440
12315-21044 Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2018-09 → 2022-07 ended
1NZFE NCP175 ¥3,720
12315-21060 Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥3,440
12325A — Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12325-21170 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2015-06 → 2018-09 ended
1NZFE NCP175 ¥2,150
12325-21260 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥2,870
12325-47130 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥2,150
12325-21170 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2018-09 → 2022-07 ended
1NZFE NCP175 ¥2,150
12325-21260 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥2,870
12325-47130 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥2,150
12363A — Rod, Engine Moving Control
12363-21141 Rod, Engine Moving Control
2015-06 → 2018-09 ended
1NZFE NCP175 ¥3,760
12363-21151 Rod, Engine Moving Control
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥3,760
12363-21161 Rod, Engine Moving Control
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥3,760
12363-21141 Rod, Engine Moving Control
2018-09 → 2022-07 ended
1NZFE NCP175 ¥3,760
12363-21151 Rod, Engine Moving Control
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥3,760
12363-21161 Rod, Engine Moving Control
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥3,760
12364A — Rod, Engine Lateral Control
12364-21090 Rod, Engine Lateral Control
2015-06 → 2018-09 ended
1NZFE NCP175 ¥3,050
12364-21110 Rod, Engine Lateral Control
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥2,690
12364-21130 Rod, Engine Lateral Control
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥3,410
12364-21090 Rod, Engine Lateral Control
2018-09 → 2022-07 ended
1NZFE NCP175 ¥3,050
12364-21110 Rod, Engine Lateral Control
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥2,690
12364-21130 Rod, Engine Lateral Control
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥3,410
12365 — Cover, Engine Moving Control Rod
12365-40010 note Cover, Engine Moving Control Rod
2015-06 → 2018-09 ended
1NZ#,2NRFKE NCP175,NHP170,NSP17# ¥660
12365-40010 note Cover, Engine Moving Control Rod
2018-09 → 2022-07 ended
1NZ#,2NRFKE NCP175,NHP170,NSP17# ¥660
12372A — Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12372-21300 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2015-06 → 2018-09 ended
1NZFE NCP175 ¥10,500
12372-21390 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥7,100
12372-47160 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥6,000
12372-21300 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2018-09 → 2022-07 ended
1NZFE NCP175 ¥10,500
12372-21390 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥7,100
12372-47160 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥6,000
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
