Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

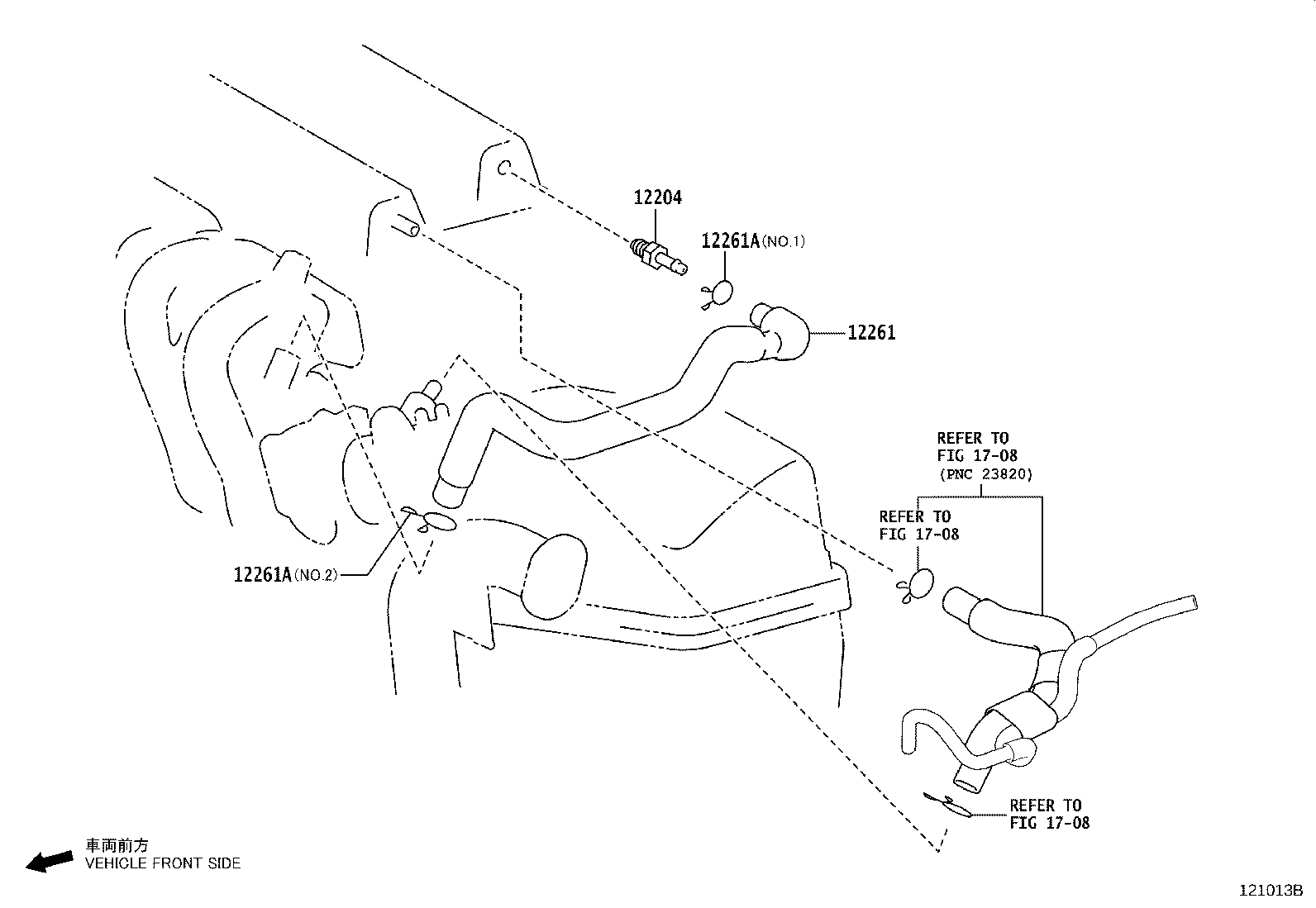

Exploded illustration 121013B 12261A — CLIP OR CLAMP(FOR VENTILATION HOSE) (8 parts) 12261A — CLIP OR CLAMP(FOR VENTILATION HOSE) (8 parts) 1708 — not listed in this catalogue 1708 — not listed in this catalogue 1708 — not listed in this catalogue 12261 — HOSE, VENTILATION (4 parts) 12204 — VALVE SUB-ASSY, VENTILATION (6 parts)
121013B · 4 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
18 parts on this figure
Part number Description Fitment Price
12204 — Valve Sub-assy, Ventilation
12204-21013 Valve Sub-assy, Ventilation
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥800
12204-21020 Valve Sub-assy, Ventilation
2015-06 → 2018-09 ended
1NZFE NCP175 ¥800
12204-47060 Valve Sub-assy, Ventilation
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥800
12204-21013 Valve Sub-assy, Ventilation
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥800
12204-21020 Valve Sub-assy, Ventilation
2018-09 → 2022-07 ended
1NZFE NCP175 ¥800
12204-47060 Valve Sub-assy, Ventilation
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥800
12261 — Hose, Ventilation
12261-21060 Hose, Ventilation
2015-06 → 2018-09 ended
1NZFE NCP175 ¥1,300
12261-21101 Hose, Ventilation
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥850
12261-21060 Hose, Ventilation
2018-09 → 2022-07 ended
1NZFE NCP175 ¥1,300
12261-21101 Hose, Ventilation
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥850
12261A — Clip OR Clamp(FOR VENTILATION HOSE)
90466-17004 note Clip OR Clamp(FOR VENTILATION HOSE)
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥80
90466-23003 note Clip OR Clamp(FOR VENTILATION HOSE)
2015-06 → 2018-09 ended
1NZFE NCP175 ¥120
90467-15120 note Clip OR Clamp(FOR VENTILATION HOSE)
2015-06 → 2018-09 ended
1NZ# NCP175,NHP170 ¥100
90467-16035 Clip OR Clamp(FOR VENTILATION HOSE)
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥160
90466-17004 note Clip OR Clamp(FOR VENTILATION HOSE)
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥80
90466-23003 note Clip OR Clamp(FOR VENTILATION HOSE)
2018-09 → 2022-07 ended
1NZFE NCP175 ¥120
90467-15120 note Clip OR Clamp(FOR VENTILATION HOSE)
2018-09 → 2022-07 ended
1NZ# NCP175,NHP170 ¥100
90467-16035 Clip OR Clamp(FOR VENTILATION HOSE)
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥160
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
