Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 121014A 9046400936 — not listed in this catalogue 12204 — VALVE SUB-ASSY, VENTILATION (6 parts) 12262 — HOSE, VENTILATION, NO.2 (4 parts) 12262D — CLIP(FOR VENTILATION HOSE NO.2) (2 parts) 12262A — CLIP(FOR VENTILATION HOSE NO.2) (6 parts) 12263 — HOSE, VENTILATION, NO.3 (2 parts) 12261 — HOSE, VENTILATION (4 parts) 1603 — not listed in this catalogue 12261A — CLIP OR CLAMP(FOR VENTILATION HOSE) (8 parts) 12263A — CLIP(FOR VENTILATION HOSE) (4 parts) 12261A — CLIP OR CLAMP(FOR VENTILATION HOSE) (8 parts) 12263A — CLIP(FOR VENTILATION HOSE) (4 parts)

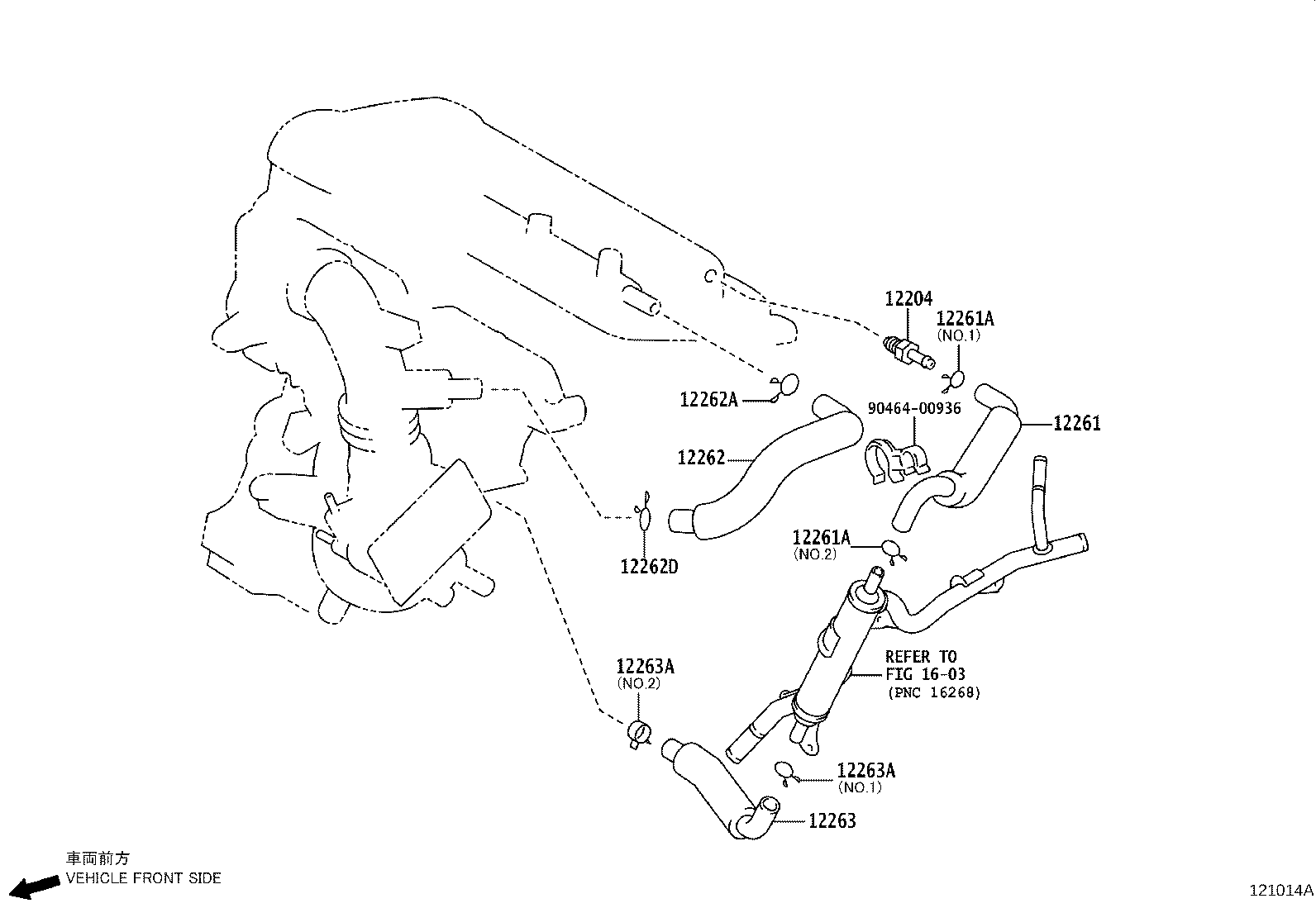

121014A · 10 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
36 parts on this figure
Part number Description Fitment Price
12204 — Valve Sub-assy, Ventilation
12204-21013 Valve Sub-assy, Ventilation
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥800
12204-21020 Valve Sub-assy, Ventilation
2015-06 → 2018-09 ended
1NZFE NCP175 ¥800
12204-47060 Valve Sub-assy, Ventilation
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥800
12204-21013 Valve Sub-assy, Ventilation
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥800
12204-21020 Valve Sub-assy, Ventilation
2018-09 → 2022-07 ended
1NZFE NCP175 ¥800
12204-47060 Valve Sub-assy, Ventilation
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥800
12261 — Hose, Ventilation
12261-21060 Hose, Ventilation
2015-06 → 2018-09 ended
1NZFE NCP175 ¥1,300
12261-21101 Hose, Ventilation
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥850
12261-21060 Hose, Ventilation
2018-09 → 2022-07 ended
1NZFE NCP175 ¥1,300
12261-21101 Hose, Ventilation
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥850
12261A — Clip OR Clamp(FOR VENTILATION HOSE)
90466-17004 note Clip OR Clamp(FOR VENTILATION HOSE)
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥80
90466-23003 note Clip OR Clamp(FOR VENTILATION HOSE)
2015-06 → 2018-09 ended
1NZFE NCP175 ¥120
90467-15120 note Clip OR Clamp(FOR VENTILATION HOSE)
2015-06 → 2018-09 ended
1NZ# NCP175,NHP170 ¥100
90467-16035 Clip OR Clamp(FOR VENTILATION HOSE)
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥160
90466-17004 note Clip OR Clamp(FOR VENTILATION HOSE)
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥80
90466-23003 note Clip OR Clamp(FOR VENTILATION HOSE)
2018-09 → 2022-07 ended
1NZFE NCP175 ¥120
90467-15120 note Clip OR Clamp(FOR VENTILATION HOSE)
2018-09 → 2022-07 ended
1NZ# NCP175,NHP170 ¥100
90467-16035 Clip OR Clamp(FOR VENTILATION HOSE)
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥160
12262 — Hose, Ventilation, NO.2
12262-21110 Hose, Ventilation, NO.2
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥950
12262-47040 Hose, Ventilation, NO.2
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥1,040
12262-21110 Hose, Ventilation, NO.2
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥950
12262-47040 Hose, Ventilation, NO.2
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥1,040
12262A — Clip(FOR VENTILATION HOSE NO.2)
16581-21050 Clip(FOR VENTILATION HOSE NO.2)
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥100
90467-21004 note Clip(FOR VENTILATION HOSE NO.2)
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥130
96136-42201 note Clip(FOR VENTILATION HOSE NO.2)
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥180
16581-21050 Clip(FOR VENTILATION HOSE NO.2)
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥100
90467-21004 note Clip(FOR VENTILATION HOSE NO.2)
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥130
96136-42201 note Clip(FOR VENTILATION HOSE NO.2)
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥180
12262D — Clip(FOR VENTILATION HOSE NO.2)
90467-21004 Clip(FOR VENTILATION HOSE NO.2)
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥130
90467-21004 Clip(FOR VENTILATION HOSE NO.2)
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥130
12263 — Hose, Ventilation, NO.3
12263-21020 Hose, Ventilation, NO.3
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥640
12263-21020 Hose, Ventilation, NO.3
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥640
12263A — Clip(FOR VENTILATION HOSE)
90466-17004 note Clip(FOR VENTILATION HOSE)
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥80
96137-41901 note Clip(FOR VENTILATION HOSE)
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥160
90466-17004 note Clip(FOR VENTILATION HOSE)
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥80
96137-41901 note Clip(FOR VENTILATION HOSE)
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥160
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
