Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

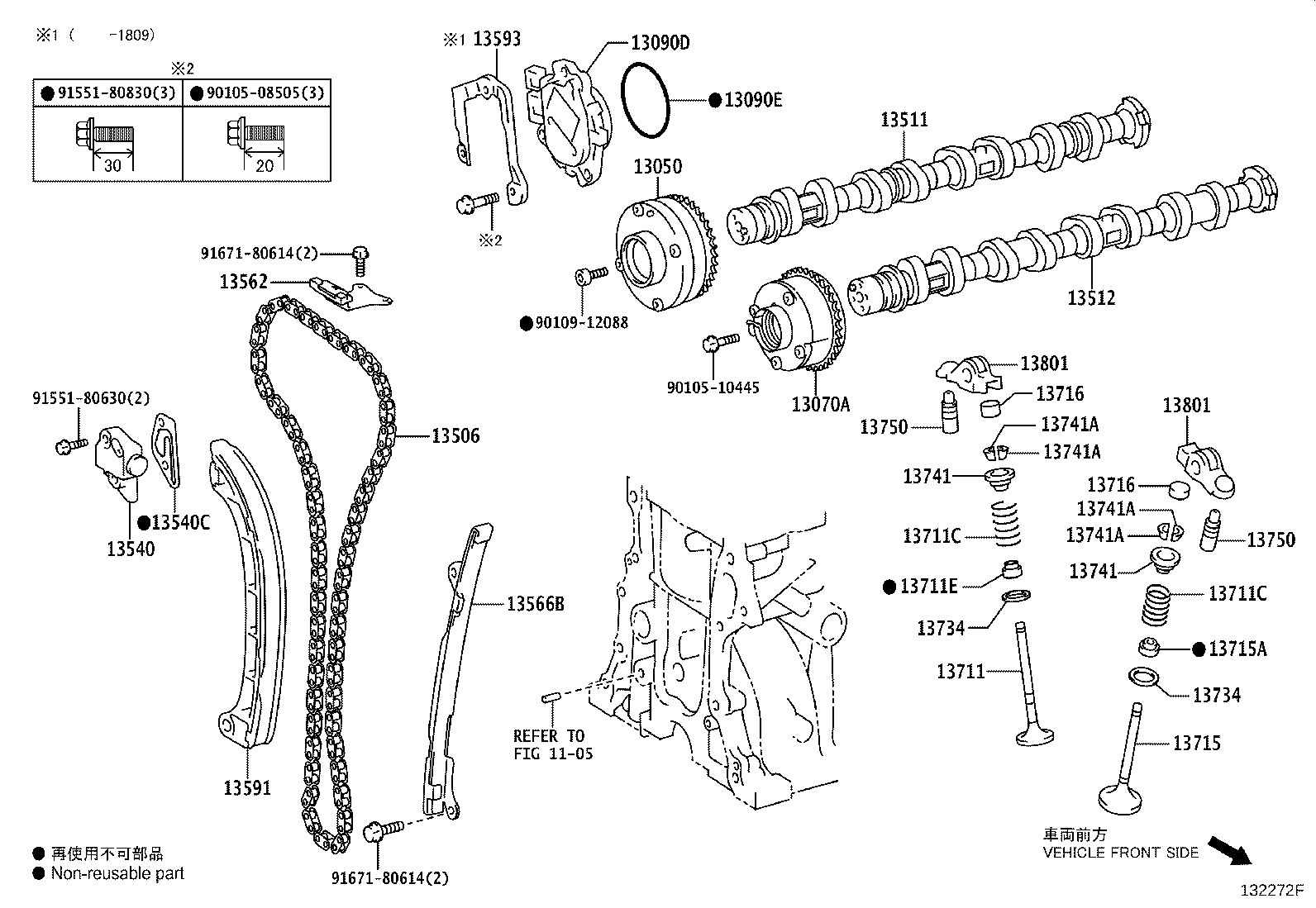

Exploded illustration 132272F 1105 — not listed in this catalogue 13562 — DAMPER, CHAIN VIBRATION, NO.2 (4 parts) 9167180614 — not listed in this catalogue 9167180614 — not listed in this catalogue 13591 — ARM, TIMING CHAIN TENSION (3 parts) 13566B — GUIDE, TIMING CHAIN (2 parts) 13506 — CHAIN SUB-ASSY (6 parts) 13741A — LOCK, VALVE SPRING RETAINER (4 parts) 13741A — LOCK, VALVE SPRING RETAINER (4 parts) 13741 — RETAINER, VALVE SPRING (6 parts) 13750 — ADJUSTER ASSY, VALVE LASH (5 parts) 13750 — ADJUSTER ASSY, VALVE LASH (5 parts) 13801 — ARM SUB-ASSY, VALVE ROCKER, NO.1 (4 parts) 13716 — CAP, VALVE STEM (2 parts) 13716 — CAP, VALVE STEM (2 parts) 13801 — ARM SUB-ASSY, VALVE ROCKER, NO.1 (4 parts) 13050 — GEAR ASSY, CAMSHAFT TIMING (6 parts) 13070A — GEAR ASSY, CAMSHAFT TIMING EXHAUST (2 parts) 13741A — LOCK, VALVE SPRING RETAINER (4 parts) 13741A — LOCK, VALVE SPRING RETAINER (4 parts) 13715A — SEAL, EXHAUST VALVE STEM OIL (5 parts) 13734 — SEAT, VALVE SPRING (4 parts) 13711 — VALVE, INTAKE (6 parts) 13741 — RETAINER, VALVE SPRING (6 parts) 13711C — SPRING, COMPRESSION(FOR OUTER) (6 parts) 13711C — SPRING, COMPRESSION(FOR OUTER) (6 parts) 13711E — SEAL, INTAKE VALVE STEM OIL (4 parts) 13734 — SEAT, VALVE SPRING (4 parts) 13715 — VALVE, EXHAUST (6 parts) 13511 — CAMSHAFT (6 parts) 13512 — CAMSHAFT, NO.2 (6 parts) 9010912088 — not listed in this catalogue 9010510445 — not listed in this catalogue 9155180830 — not listed in this catalogue 9010508505 — not listed in this catalogue 13540 — TENSIONER ASSY, CHAIN, NO.1 (4 parts) 9155180630 — not listed in this catalogue 13540C — GASKET(FOR CHAIN TENSIONER) (2 parts) 13090D — MOTOR ASSY, CAM TIMING CONTROL W/EDU (2 parts) 13090E — RING, O(FOR CAM TIMING CONTROL MOTOR) (2 parts) 13593 — COVER, CAMSHAFT TIMING GEAR (1 parts)
132272F · 33 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
98 parts on this figure
Part number Description Fitment Price
13050 — Gear Assy, Camshaft Timing
13050-21041 Gear Assy, Camshaft Timing
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥16,700
13050-21061 Gear Assy, Camshaft Timing
2015-06 → 2018-09 ended
1NZFE NCP175 ¥16,700
13050-47020 Gear Assy, Camshaft Timing
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥41,900
13050-21041 Gear Assy, Camshaft Timing
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥16,700
13050-21061 Gear Assy, Camshaft Timing
2018-09 → 2022-07 ended
1NZFE NCP175 ¥16,700
13050-47040 Gear Assy, Camshaft Timing
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥16,700
13070A — Gear Assy, Camshaft Timing Exhaust
13070-47020 Gear Assy, Camshaft Timing Exhaust
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥20,300
13070-47020 Gear Assy, Camshaft Timing Exhaust
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥20,300
13090D — Motor Assy, Cam Timing Control W/Edu
13090-47010 Motor Assy, Cam Timing Control W/Edu
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥65,500
13090-47020 Motor Assy, Cam Timing Control W/Edu
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥49,600
13090E — Ring, O(FOR CAM TIMING CONTROL MOTOR)
90301-92004 Ring, O(FOR CAM TIMING CONTROL MOTOR)
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥200
90301-92004 Ring, O(FOR CAM TIMING CONTROL MOTOR)
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥200
13506 — Chain Sub-assy
13506-21050 Chain Sub-assy
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥9,900
13506-21061 Chain Sub-assy
2015-06 → 2018-09 ended
1NZFE NCP175 ¥10,000
13506-47030 Chain Sub-assy
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥10,400
13506-21050 Chain Sub-assy
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥9,900
13506-21061 Chain Sub-assy
2018-09 → 2022-07 ended
1NZFE NCP175 ¥10,000
13506-47030 Chain Sub-assy
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥10,400
13511 — Camshaft
13501-21052 Camshaft
2015-06 → 2018-09 ended
1NZFE NCP175 ¥19,700
13501-21070 Camshaft
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥21,700
13501-47060 Camshaft
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥19,700
13501-21052 Camshaft
2018-09 → 2022-07 ended
1NZFE NCP175 ¥19,700
13501-21100 Camshaft
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥19,700
13501-47060 Camshaft
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥19,700
13512 — Camshaft, NO.2
13502-21021 Camshaft, NO.2
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥19,800
13502-21042 Camshaft, NO.2
2015-06 → 2018-09 ended
1NZFE NCP175 ¥19,700
13502-47050 Camshaft, NO.2
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥19,700
13502-21042 Camshaft, NO.2
2018-09 → 2022-07 ended
1NZFE NCP175 ¥19,700
13502-21070 Camshaft, NO.2
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥19,700
13502-47050 Camshaft, NO.2
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥19,700
13540 — Tensioner Assy, Chain, NO.1
13540-21020 Tensioner Assy, Chain, NO.1
2015-06 → 2018-09 ended
1NZ# NCP175,NHP170 ¥3,220
13540-47011 Tensioner Assy, Chain, NO.1
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥3,220
13540-21020 Tensioner Assy, Chain, NO.1
2018-09 → 2022-07 ended
1NZ# NCP175,NHP170 ¥3,220
13540-47011 Tensioner Assy, Chain, NO.1
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥3,220
13540C — Gasket(FOR CHAIN TENSIONER)
13552-47010 Gasket(FOR CHAIN TENSIONER)
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥270
13552-47010 Gasket(FOR CHAIN TENSIONER)
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥270
13562 — Damper, Chain Vibration, NO.2
13562-21010 Damper, Chain Vibration, NO.2
2015-06 → 2018-09 ended
1NZFE NCP175 ¥1,060
13562-47020 Damper, Chain Vibration, NO.2
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥1,060
13562-21010 Damper, Chain Vibration, NO.2
2018-09 → 2022-07 ended
1NZFE NCP175 ¥1,060
13562-47020 Damper, Chain Vibration, NO.2
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥1,060
13566B — Guide, Timing Chain
13566-47030 Guide, Timing Chain
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥1,120
13566-47030 Guide, Timing Chain
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥1,120
13591 — Arm, Timing Chain Tension
13591-47040 Arm, Timing Chain Tension
2015-06 → 2018-03 ended
2NRFKE NSP17# ¥3,560
13591-47060 Arm, Timing Chain Tension
2018-04 → 2018-09 ended
2NRFKE NSP17# ¥2,690
13591-47060 Arm, Timing Chain Tension
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥2,690
13593 — Cover, Camshaft Timing Gear
13593-47010 Cover, Camshaft Timing Gear
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥680
13711 — Valve, Intake
13711-21010 Valve, Intake
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥1,220
13711-21040 Valve, Intake
2015-06 → 2018-09 ended
1NZFE NCP175 ¥1,420
13711-47010 Valve, Intake
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥1,410
13711-21010 Valve, Intake
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥1,220
13711-21040 Valve, Intake
2018-09 → 2022-07 ended
1NZFE NCP175 ¥1,420
13711-47010 Valve, Intake
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥1,410
13711C — Spring, Compression(FOR OUTER)
90501-23135 Spring, Compression(FOR OUTER)
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥160
90501-29066 Spring, Compression(FOR OUTER)
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥200
90501-32053 Spring, Compression(FOR OUTER)
2015-06 → 2018-09 ended
1NZFE NCP175 ¥200
90501-23135 Spring, Compression(FOR OUTER)
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥160
90501-29066 Spring, Compression(FOR OUTER)
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥200
90501-32053 Spring, Compression(FOR OUTER)
2018-09 → 2022-07 ended
1NZFE NCP175 ¥200
13711E — Seal, Intake Valve Stem Oil
90913-02093 Seal, Intake Valve Stem Oil
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥280
90913-02101 Seal, Intake Valve Stem Oil
2015-06 → 2018-09 ended
1NZFE,2NRFKE NCP175,NSP17# ¥270
90913-02093 Seal, Intake Valve Stem Oil
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥280
90913-02101 Seal, Intake Valve Stem Oil
2018-09 → 2022-07 ended
1NZFE,2NRFKE NCP175,NSP17# ¥270
13715 — Valve, Exhaust
13715-21010 Valve, Exhaust
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥1,730
13715-21040 Valve, Exhaust
2015-06 → 2018-09 ended
1NZFE NCP175 ¥1,980
13715-47010 Valve, Exhaust
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥1,970
13715-21010 Valve, Exhaust
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥1,730
13715-21040 Valve, Exhaust
2018-09 → 2022-07 ended
1NZFE NCP175 ¥1,980
13715-47010 Valve, Exhaust
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥1,970
13715A — Seal, Exhaust Valve Stem Oil
90913-02092 Seal, Exhaust Valve Stem Oil
2015-07 → 2015-12 ended
1NZFXE NHP170 ¥380
90913-02112 Seal, Exhaust Valve Stem Oil
2015-06 → 2018-09 ended
1NZFE,2NRFKE NCP175,NSP17# ¥270
90913-02128 Seal, Exhaust Valve Stem Oil
2015-12 → 2018-09 ended
1NZFXE NHP170 ¥270
90913-02112 Seal, Exhaust Valve Stem Oil
2018-09 → 2022-07 ended
1NZFE,2NRFKE NCP175,NSP17# ¥270
90913-02128 Seal, Exhaust Valve Stem Oil
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥270
13716 — Cap, Valve Stem
13716-75020 Cap, Valve Stem
2015-06 → 2018-09 ended
1NZFE,2NRFKE NCP175,NSP17# ¥70
13716-75020 Cap, Valve Stem
2018-09 → 2022-07 ended
1NZFE,2NRFKE NCP175,NSP17# ¥70
13734 — Seat, Valve Spring
13734-62020 Seat, Valve Spring
2015-06 → 2018-09 ended
1NZFE,2NRFKE NCP175,NSP17# ¥60
13734-74010 Seat, Valve Spring
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥50
13734-62020 Seat, Valve Spring
2018-09 → 2022-07 ended
1NZFE,2NRFKE NCP175,NSP17# ¥60
13734-74010 Seat, Valve Spring
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥50
13741 — Retainer, Valve Spring
13741-20021 Retainer, Valve Spring
2015-06 → 2018-09 ended
1NZFE NCP175 ¥220
13741-22021 Retainer, Valve Spring
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥220
13741-36010 Retainer, Valve Spring
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥160
13741-20021 Retainer, Valve Spring
2018-09 → 2022-07 ended
1NZFE NCP175 ¥220
13741-22021 Retainer, Valve Spring
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥220
13741-36010 Retainer, Valve Spring
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥160
13741A — Lock, Valve Spring Retainer
90913-03028 Lock, Valve Spring Retainer
2015-06 → 2018-09 ended
1NZFE,2NRFKE NCP175,NSP17# ¥270
90913-03031 Lock, Valve Spring Retainer
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥70
90913-03028 Lock, Valve Spring Retainer
2018-09 → 2022-07 ended
1NZFE,2NRFKE NCP175,NSP17# ¥270
90913-03031 Lock, Valve Spring Retainer
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥70
13750 — Adjuster Assy, Valve Lash
13750-21010 Adjuster Assy, Valve Lash
2015-06 → 2017-03 ended
1NZFE NCP175 ¥850
13750-21010 Adjuster Assy, Valve Lash
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥850
13750-36020 Adjuster Assy, Valve Lash
2017-04 → 2018-09 ended
1NZFE NCP175 ¥850
13750-21010 Adjuster Assy, Valve Lash
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥850
13750-36020 Adjuster Assy, Valve Lash
2018-09 → 2022-07 ended
1NZFE NCP175 ¥850
13801 — Arm Sub-assy, Valve Rocker, NO.1
13801-36020 Arm Sub-assy, Valve Rocker, NO.1
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥2,090
13801-36020 Arm Sub-assy, Valve Rocker, NO.1
2017-04 → 2018-09 ended
1NZFE NCP175 ¥2,090
13801-47010 Arm Sub-assy, Valve Rocker, NO.1
2015-06 → 2017-04 ended
1NZFE NCP175 ¥2,510
13801-36020 Arm Sub-assy, Valve Rocker, NO.1
2018-09 → 2022-07 ended
1NZFE,2NRFKE NCP175,NSP17# ¥2,090
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
