Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

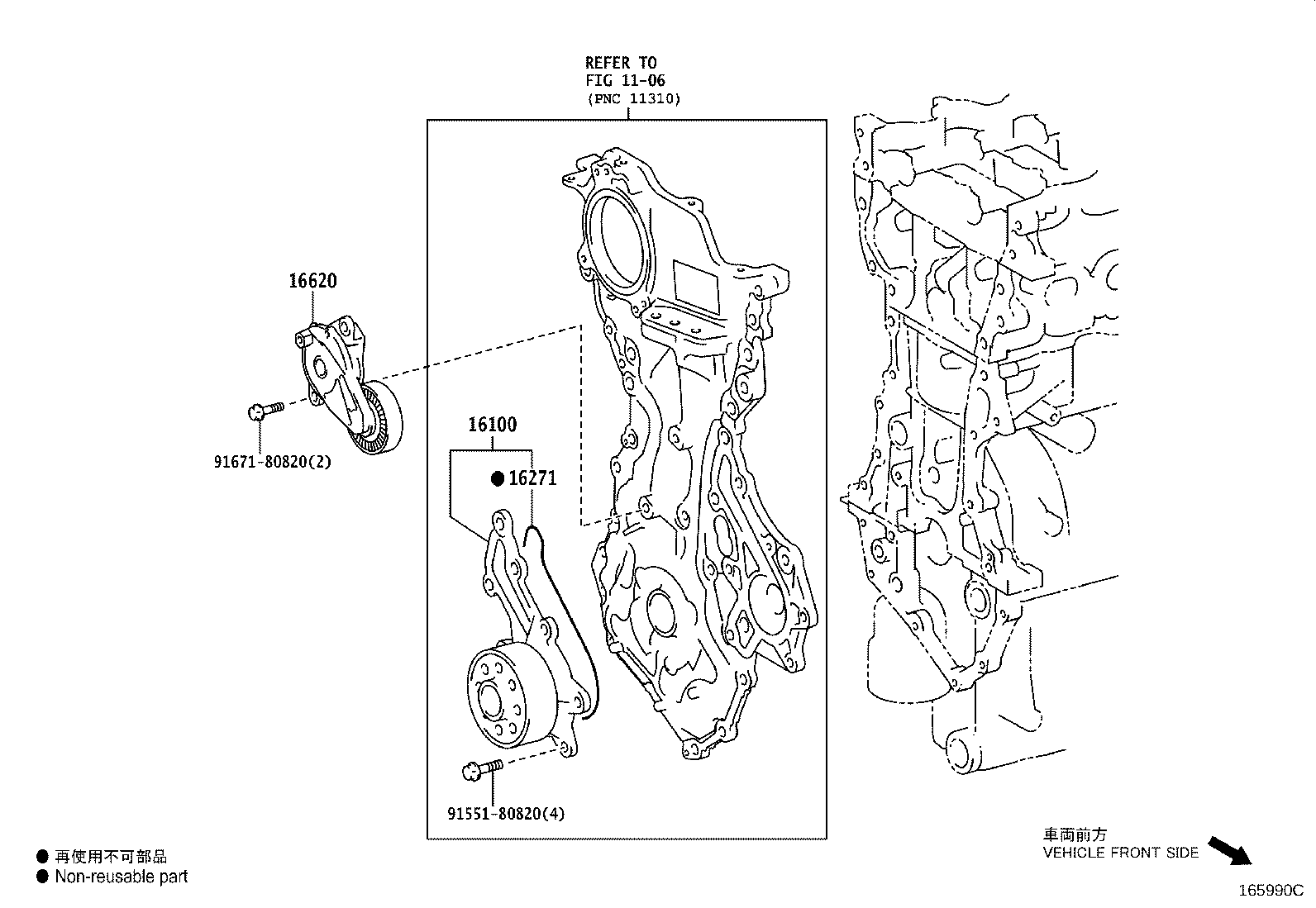

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16100 — Pump Assy, Engine Water | ||||
| 16100-29157 |
Pump Assy, Engine Water
2015-06 → 2018-09
ended
|
1NZFE NCP175 | ¥8,400 | |
| 16100-80013 |
Pump Assy, Engine Water
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥7,900 | |
| 161A0-29015 |
Pump Assy, Engine Water
2015-07 → 2018-09
ended
|
1NZFXE NHP170 | ¥15,000 | |
| 16100-29157 |
Pump Assy, Engine Water
2018-09 → 2018-12
ended
|
1NZFE NCP175 | ¥8,400 | |
| 16100-29158 |
Pump Assy, Engine Water
2018-12 → 2022-07
ended
|
1NZFE NCP175 | ¥8,400 | |
| 16100-80013 |
Pump Assy, Engine Water
2018-09 → 2021-05
ended
|
2NRFKE NSP17# | ¥7,900 | |
| 16100-80018 |
Pump Assy, Engine Water
2021-05 → 2022-07
ended
|
2NRFKE NSP17# | ¥7,900 | |
| 161A0-39035 |
Pump Assy, Engine Water
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥15,000 | |
| 16271 — Gasket, Water Pump | ||||
| 16271-0Y030 |
Gasket, Water Pump
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥650 | |
| 16271-21021 |
Gasket, Water Pump
2015-06 → 2018-09
ended
|
1NZFE NCP175 | ¥380 | |
| 16271-37020 |
Gasket, Water Pump
2015-07 → 2018-09
ended
|
1NZFXE NHP170 | ¥470 | |
| 16271-0Y030 |
Gasket, Water Pump
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥650 | |
| 16271-21021 |
Gasket, Water Pump
2018-09 → 2022-07
ended
|
1NZFE NCP175 | ¥380 | |
| 16271-37020 |
Gasket, Water Pump
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥470 | |
| 16620 — Tensioner Assy, V-ribbed Belt | ||||
| 16620-47030 |
Tensioner Assy, V-ribbed Belt
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥13,500 | |
| 16620-47030 |
Tensioner Assy, V-ribbed Belt
2018-09 → 2020-06
ended
|
2NRFKE NSP17# | ¥13,500 | |
| 16620-47030 |
Tensioner Assy, V-ribbed Belt
2018-09 → 2020-07
ended
|
2NRFKE NSP170 FNGCR | ¥13,500 | |
| 16620-47031 |
Tensioner Assy, V-ribbed Belt
2020-07 → 2022-07
ended
|
2NRFKE NSP17# | ¥10,100 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
