Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

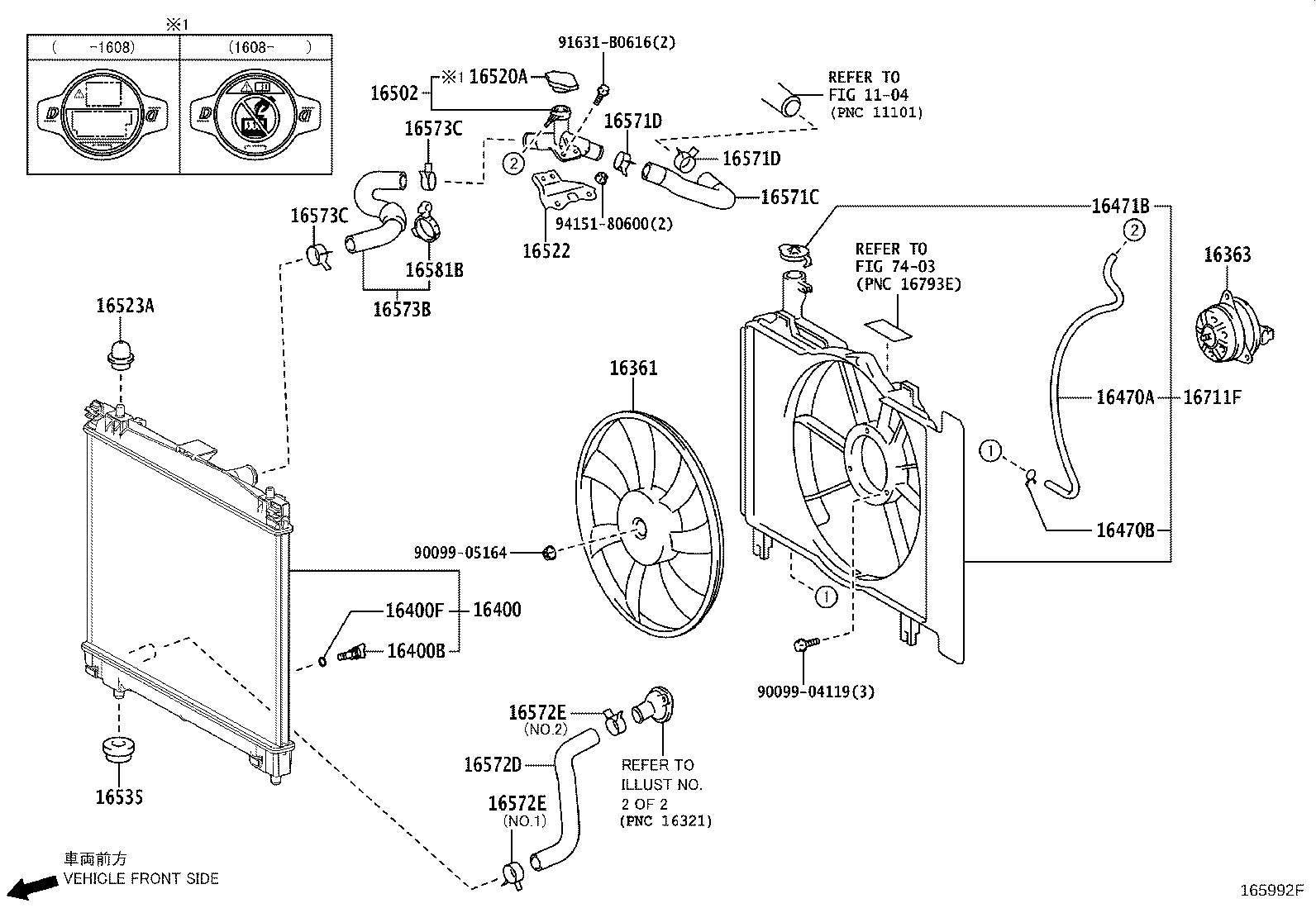

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16361 — Fan | ||||
| 16361-21090 |
Fan
2015-06 → 2018-09
ended
|
1NZFE NCP175 | ¥4,330 | |
| 16361-21130 |
Fan
2015-07 → 2018-09
ended
|
1NZFXE NHP170 | ¥4,310 | |
| 16361-47040 |
Fan
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥4,330 | |
| 16361-21090 |
Fan
2018-09 → 2022-07
ended
|
1NZFE NCP175 | ¥4,330 | |
| 16361-21130 |
Fan
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥4,310 | |
| 16361-47040 |
Fan
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥4,330 | |
| 16363 — Motor, Cooling Fan | ||||
| 16363-21070 |
Motor, Cooling Fan
2015-07 → 2018-09
ended
|
1NZFXE NHP170 | ¥17,400 | |
| 16363-21100 |
Motor, Cooling Fan
2015-06 → 2018-09
ended
|
1NZFE NCP175 | ¥15,800 | |
| 16363-47020 |
Motor, Cooling Fan
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥15,800 | |
| 16363-21070 |
Motor, Cooling Fan
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥17,400 | |
| 16363-21100 |
Motor, Cooling Fan
2018-09 → 2022-07
ended
|
1NZFE NCP175 | ¥15,800 | |
| 16363-47020 |
Motor, Cooling Fan
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥15,800 | |
| 16400 — Radiator Assy | ||||
| 16400-21270 |
Radiator Assy
2015-06 → 2018-01
ended
|
1NZFE NCP175 | ¥25,700 | |
| 16400-21350 |
Radiator Assy
2015-07 → 2018-09
ended
|
1NZFXE NHP170 | ¥34,400 | |
| 16400-21381 |
Radiator Assy
2018-02 → 2018-09
ended
|
1NZFE NCP175 | ¥25,700 | |
| 16400-47110 |
Radiator Assy
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥27,600 | |
| 16400-21350 |
Radiator Assy
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥34,400 | |
| 16400-21381 |
Radiator Assy
2018-09 → 2022-07
ended
|
1NZFE NCP175 | ¥25,700 | |
| 16400-47110 |
Radiator Assy
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥27,600 | |
| 16400B — Plug, Radiator Drain Cock | ||||
| 16417-21280 |
Plug, Radiator Drain Cock
2015-06 → 2018-09
ended
|
1NZ#,2NRFKE NCP175,NHP170,NSP17# | ¥360 | |
| 16417-21280 |
Plug, Radiator Drain Cock
2018-09 → 2022-07
ended
|
1NZ#,2NRFKE NCP175,NHP170,NSP17# | ¥360 | |
| 16400F — Packing(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
Packing(FOR RADIATOR DRAIN COCK)
2015-06 → 2018-09
ended
|
1NZ#,2NRFKE NCP175,NHP170,NSP17# | ¥210 | |
| 16492-21050 |
Packing(FOR RADIATOR DRAIN COCK)
2018-09 → 2022-07
ended
|
1NZ#,2NRFKE NCP175,NHP170,NSP17# | ¥210 | |
| 16470A — Hose OR Pipe(FOR RADIATOR RESERVE TANK) | ||||
| 16377-21190 |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
2015-07 → 2018-09
ended
|
1NZFXE NHP170 | — | |
| 16377-21220 |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
2015-06 → 2018-09
ended
|
1NZFE NCP175 | — | |
| 16378-47090 |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥1,020 | |
| 16377-21190 |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | — | |
| 16377-21220 |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
2018-09 → 2022-07
ended
|
1NZFE NCP175 | — | |
| 16378-47090 |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥1,020 | |
| 16470B — Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
2015-06 → 2018-09
ended
|
1NZ#,2NRFKE NCP175,NHP170,NSP17# | ¥100 | |
| 90467-11085 |
Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
2018-09 → 2022-07
ended
|
1NZ#,2NRFKE NCP175,NHP170,NSP17# | ¥100 | |
| 16471B — Cap, Reserve Tank | ||||
| 16471-23030 |
Cap, Reserve Tank
2015-06 → 2018-09
ended
|
1NZ#,2NRFKE NCP175,NHP170,NSP17# | ¥0 | |
| 16471-23030 |
Cap, Reserve Tank
2018-09 → 2022-07
ended
|
1NZ#,2NRFKE NCP175,NHP170,NSP17# | ¥0 | |
| 16502 — Filler Sub-assy, Water | ||||
| 16502-21080 |
Filler Sub-assy, Water
2015-06 → 2018-09
ended
|
1NZFE NCP175 | ¥1,670 | |
| 16502-21080 |
Filler Sub-assy, Water
2018-09 → 2022-07
ended
|
1NZFE NCP175 | ¥1,670 | |
| 16520A — Cap Sub-assy, Water Filler | ||||
| 16401-31520 |
Cap Sub-assy, Water Filler
2015-06 → 2016-08
ended
|
1NZFE NCP175 | ¥910 | |
| 16401-36020 |
Cap Sub-assy, Water Filler
2016-08 → 2018-09
ended
|
1NZFE NCP175 | ¥910 | |
| 16401-36020 |
Cap Sub-assy, Water Filler
2018-09 → 2022-07
ended
|
1NZFE NCP175 | ¥910 | |
| 16522 — Bracket, Water Filler | ||||
| 16522-21010 |
Bracket, Water Filler
2015-06 → 2018-09
ended
|
1NZFE NCP175 | ¥480 | |
| 16522-21010 |
Bracket, Water Filler
2018-09 → 2022-07
ended
|
1NZFE NCP175 | ¥480 | |
| 16523A — Cushion, Radiator Support | ||||
| 16523-21030 |
Cushion, Radiator Support
2015-06 → 2018-09
ended
|
1NZ#,2NRFKE NCP175,NHP170,NSP17# | ¥220 | |
| 16523-21030 |
Cushion, Radiator Support
2018-09 → 2022-07
ended
|
1NZ#,2NRFKE NCP175,NHP170,NSP17# | ¥220 | |
| 16535 — Support, Radiator, Lower | ||||
| 90480-22025 |
Support, Radiator, Lower
2015-06 → 2018-09
ended
|
1NZ#,2NRFKE NCP175,NHP170,NSP17# | ¥120 | |
| 90480-22025 |
Support, Radiator, Lower
2018-09 → 2022-07
ended
|
1NZ#,2NRFKE NCP175,NHP170,NSP17# | ¥120 | |
| 16571C — Hose, Radiator, NO.1 | ||||
| 16571-21120 |
Hose, Radiator, NO.1
2015-06 → 2018-09
ended
|
1NZFE NCP175 | ¥1,080 | |
| 16571-21180 |
Hose, Radiator, NO.1
2015-07 → 2018-09
ended
|
1NZFXE NHP170 | ¥1,190 | |
| 16571-47080 |
Hose, Radiator, NO.1
2015-06 → 2018-01
ended
|
2NRFKE NSP17# | ¥1,190 | |
| 16571-47120 |
Hose, Radiator, NO.1
2018-02 → 2018-09
ended
|
2NRFKE NSP17# | ¥1,150 | |
| 16571-21120 |
Hose, Radiator, NO.1
2018-09 → 2022-07
ended
|
1NZFE NCP175 | ¥1,080 | |
| 16571-21180 |
Hose, Radiator, NO.1
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥1,190 | |
| 16571-47120 |
Hose, Radiator, NO.1
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥1,150 | |
| 16571D — Clip, Radiator Hose, NO.1 | ||||
| 96136-43901 |
Clip, Radiator Hose, NO.1
2015-06 → 2018-09
ended
|
1NZ#,2NRFKE NCP175,NHP170,NSP17# | ¥240 | |
| 96136-43901 |
Clip, Radiator Hose, NO.1
2018-09 → 2022-07
ended
|
1NZ#,2NRFKE NCP175,NHP170,NSP17# | ¥240 | |
| 16572D — Hose, Radiator, NO.2 | ||||
| 16572-21090 |
Hose, Radiator, NO.2
2015-06 → 2018-09
ended
|
1NZFE NCP175 | ¥1,080 | |
| 16572-21130 |
Hose, Radiator, NO.2
2015-07 → 2017-11
ended
|
1NZFXE NHP170 | ¥1,340 | |
| 16572-21131 |
Hose, Radiator, NO.2
2017-12 → 2018-09
ended
|
1NZFXE NHP170 | ¥1,010 | |
| 16572-47101 |
Hose, Radiator, NO.2
2015-06 → 2018-01
ended
|
2NRFKE NSP17# | ¥1,340 | |
| 16572-47102 |
Hose, Radiator, NO.2
2018-02 → 2018-09
ended
|
2NRFKE NSP17# | ¥1,120 | |
| 16572-21090 |
Hose, Radiator, NO.2
2018-09 → 2022-07
ended
|
1NZFE NCP175 | ¥1,080 | |
| 16572-21131 |
Hose, Radiator, NO.2
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥1,010 | |
| 16572-47102 |
Hose, Radiator, NO.2
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥1,120 | |
| 16572E — Clip, Radiator Hose, NO.2 | ||||
| 90467-33006 note |
Clip, Radiator Hose, NO.2
2015-06 → 2018-09
ended
|
1NZFE,2NRFKE NCP175,NSP17# | ¥240 | |
| 96136-43901 note |
Clip, Radiator Hose, NO.2
2015-06 → 2018-09
ended
|
1NZFE,2NRFKE NCP175,NSP17# | ¥240 | |
| 96136-43901 note |
Clip, Radiator Hose, NO.2
2015-07 → 2018-09
ended
|
1NZFXE NHP170 | ¥240 | |
| 96136-43901 |
Clip, Radiator Hose, NO.2
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥240 | |
| 96136-43901 note |
Clip, Radiator Hose, NO.2
2018-09 → 2022-07
ended
|
1NZFE,2NRFKE NCP175,NSP17# | ¥240 | |
| 16573B — Hose, Radiator, NO.3 | ||||
| 16573-21110 |
Hose, Radiator, NO.3
2015-06 → 2018-09
ended
|
1NZFE NCP175 | ¥1,080 | |
| 16573-21130 |
Hose, Radiator, NO.3
2015-07 → 2018-07
ended
|
1NZFXE NHP170 | ¥1,340 | |
| 16573-21131 |
Hose, Radiator, NO.3
2018-08 → 2018-09
ended
|
1NZFXE NHP170 | ¥1,010 | |
| 16573-21110 |
Hose, Radiator, NO.3
2018-09 → 2022-07
ended
|
1NZFE NCP175 | ¥1,080 | |
| 16573-21131 |
Hose, Radiator, NO.3
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥1,010 | |
| 16573C — Clamp OR Clip, Radiator Hose, NO.3 | ||||
| 90467-33006 note |
Clamp OR Clip, Radiator Hose, NO.3
2015-07 → 2018-09
ended
|
1NZFXE NHP170 | ¥240 | |
| 96136-43601 note |
Clamp OR Clip, Radiator Hose, NO.3
2015-07 → 2018-09
ended
|
1NZFXE NHP170 | ¥220 | |
| 96136-43901 |
Clamp OR Clip, Radiator Hose, NO.3
2015-06 → 2018-09
ended
|
1NZFE NCP175 | ¥240 | |
| 96136-43601 note |
Clamp OR Clip, Radiator Hose, NO.3
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥220 | |
| 96136-43901 note |
Clamp OR Clip, Radiator Hose, NO.3
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥240 | |
| 96136-43901 |
Clamp OR Clip, Radiator Hose, NO.3
2018-09 → 2022-07
ended
|
1NZFE NCP175 | ¥240 | |
| 16581B — Clamp, Hose(FOR RADIATOR HOSE) | ||||
| 16581-21140 |
Clamp, Hose(FOR RADIATOR HOSE)
2015-06 → 2018-09
ended
|
1NZFE NCP175 | ¥520 | |
| 16581-21140 |
Clamp, Hose(FOR RADIATOR HOSE)
2018-09 → 2022-07
ended
|
1NZFE NCP175 | ¥520 | |
| 16711F — Shroud, Fan(W/RADIATOR RESERVE TANK) | ||||
| 16711-21170 |
Shroud, Fan(W/RADIATOR RESERVE TANK)
2015-06 → 2018-09
ended
|
1NZFE NCP175 | ¥5,900 | |
| 16711-21180 |
Shroud, Fan(W/RADIATOR RESERVE TANK)
2015-07 → 2018-09
ended
|
1NZFXE NHP170 | ¥7,400 | |
| 16711-47100 |
Shroud, Fan(W/RADIATOR RESERVE TANK)
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥6,500 | |
| 16711-21170 |
Shroud, Fan(W/RADIATOR RESERVE TANK)
2018-09 → 2022-07
ended
|
1NZFE NCP175 | ¥5,900 | |
| 16711-21180 |
Shroud, Fan(W/RADIATOR RESERVE TANK)
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥7,400 | |
| 16711-47100 |
Shroud, Fan(W/RADIATOR RESERVE TANK)
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥6,500 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
