Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

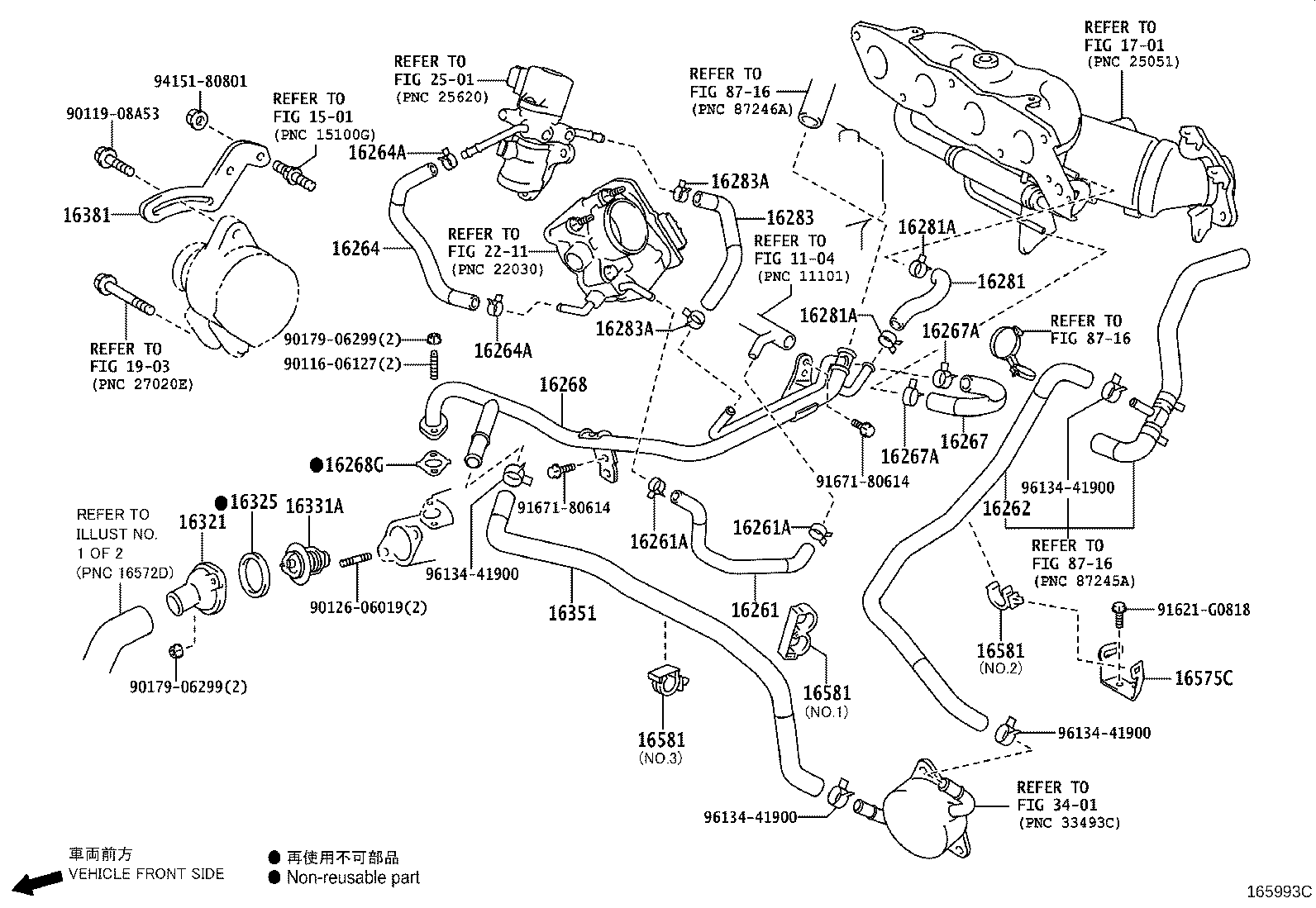

Exploded illustration 165993C 9011908A53 — not listed in this catalogue 16264 — HOSE, WATER BY-PASS, NO.2 (6 parts) 9017906299 — not listed in this catalogue 9011606127 — not listed in this catalogue 16325 — GASKET, WATER INLET HOUSING, NO.1 (4 parts) 16321 — INLET, WATER (2 parts) 16331A — THERMOSTAT (2 parts) 16268G — GASKET(FOR WATER BY-PASS PIPE) (2 parts) 9012606019 — not listed in this catalogue 9613441900 — not listed in this catalogue 16264A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) (2 parts) 9167180614 — not listed in this catalogue 16261A — CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) (2 parts) 16268 — PIPE, WATER BY-PASS, NO.1 (6 parts) 16351 — OUTLET, WATER BY-PASS (2 parts) 9613441900 — not listed in this catalogue 16261 — HOSE, WATER BY-PASS (4 parts) 16261A — CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) (2 parts) 9167180614 — not listed in this catalogue 9613441900 — not listed in this catalogue 91621G0818 — not listed in this catalogue 16575C — BRACKET, WATER HOSE CLAMP, NO.1 (2 parts) 9613441900 — not listed in this catalogue 16262 — HOSE, WATER INLET (6 parts) 16267 — HOSE, WATER BY-PASS, NO.3 (7 parts) 16267A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) (2 parts) 16267A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) (2 parts) 16281 — HOSE, WATER BY-PASS, NO.4 (6 parts) 16281A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) (4 parts) 16283A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) (4 parts) 16281A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) (4 parts) 16283 — HOSE, WATER BY-PASS, NO.6 (4 parts) 16283A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) (4 parts) 16264A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) (2 parts) 9017906299 — not listed in this catalogue 2501 — not listed in this catalogue 2211 — not listed in this catalogue 1903 — not listed in this catalogue 8716 — not listed in this catalogue 8716 — not listed in this catalogue 1701 — not listed in this catalogue 3401 — not listed in this catalogue 1104 — not listed in this catalogue 16581 — CLAMP, HOSE(FOR WATER HOSE) (6 parts) 16581 — CLAMP, HOSE(FOR WATER HOSE) (6 parts) 16581 — CLAMP, HOSE(FOR WATER HOSE) (6 parts) 8716 — not listed in this catalogue 16381 — BAR, FAN BELT ADJUSTING (2 parts) 9415180801 — not listed in this catalogue 1501 — not listed in this catalogue
165993C · 27 callouts, 23 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
75 parts on this figure
Part number Description Fitment Price
16261 — Hose, Water By-pass
16261-21070 Hose, Water By-pass
2015-06 → 2018-09 ended
1NZFE NCP175 ¥350
16261-21100 Hose, Water By-pass
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥350
16261-21070 Hose, Water By-pass
2018-09 → 2022-07 ended
1NZFE NCP175 ¥350
16261-21100 Hose, Water By-pass
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥350
16261A — Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
96136-41501 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2015-06 → 2018-09 ended
1NZ#,2NRFKE NCP175,NHP170,NSP17# ¥70
96136-41501 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2018-09 → 2022-07 ended
1NZ#,2NRFKE NCP175,NHP170,NSP17# ¥70
16262 — Hose, Water Inlet
16262-21020 Hose, Water Inlet
2015-06 → 2018-09 ended
1NZFE NCP175 ¥1,150
16262-21060 Hose, Water Inlet
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥540
16262-47020 Hose, Water Inlet
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥790
16262-21020 Hose, Water Inlet
2018-09 → 2022-07 ended
1NZFE NCP175 ¥1,150
16262-21060 Hose, Water Inlet
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥540
16262-47020 Hose, Water Inlet
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥790
16264 — Hose, Water By-pass, NO.2
16264-21060 Hose, Water By-pass, NO.2
2015-06 → 2018-09 ended
1NZFE NCP175 ¥350
16264-21100 Hose, Water By-pass, NO.2
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥1,010
16264-47050 Hose, Water By-pass, NO.2
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥790
16264-21060 Hose, Water By-pass, NO.2
2018-09 → 2022-07 ended
1NZFE NCP175 ¥350
16264-21100 Hose, Water By-pass, NO.2
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥1,010
16264-47050 Hose, Water By-pass, NO.2
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥790
16264A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
96136-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2015-06 → 2018-09 ended
1NZ# NCP175,NHP170 ¥70
96136-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2018-09 → 2022-07 ended
1NZ# NCP175,NHP170 ¥70
16267 — Hose, Water By-pass, NO.3
16267-21020 Hose, Water By-pass, NO.3
2015-06 → 2018-09 ended
1NZFE NCP175 ¥350
16267-21050 Hose, Water By-pass, NO.3
2015-07 → 2016-02 ended
1NZFXE NHP170 ¥580
16267-21100 Hose, Water By-pass, NO.3
2016-03 → 2018-09 ended
1NZFXE NHP170 ¥350
16267-47010 Hose, Water By-pass, NO.3
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥350
16267-21020 Hose, Water By-pass, NO.3
2018-09 → 2022-07 ended
1NZFE NCP175 ¥350
16267-21100 Hose, Water By-pass, NO.3
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥350
16267-47010 Hose, Water By-pass, NO.3
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥350
16267A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
96136-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2015-06 → 2018-09 ended
1NZ# NCP175,NHP170 ¥70
96136-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2018-09 → 2022-07 ended
1NZ# NCP175,NHP170 ¥70
16268 — Pipe, Water By-pass, NO.1
16268-21050 Pipe, Water By-pass, NO.1
2015-06 → 2018-09 ended
1NZFE NCP175 ¥3,810
16268-21130 Pipe, Water By-pass, NO.1
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥4,770
16268-47080 Pipe, Water By-pass, NO.1
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥2,760
16268-21050 Pipe, Water By-pass, NO.1
2018-09 → 2022-07 ended
1NZFE NCP175 ¥3,810
16268-21130 Pipe, Water By-pass, NO.1
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥4,770
16268-47080 Pipe, Water By-pass, NO.1
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥2,760
16268G — Gasket(FOR WATER BY-PASS PIPE)
16258-21021 Gasket(FOR WATER BY-PASS PIPE)
2015-06 → 2018-09 ended
1NZFE NCP175 ¥270
16258-21021 Gasket(FOR WATER BY-PASS PIPE)
2018-09 → 2022-07 ended
1NZFE NCP175 ¥270
16281 — Hose, Water By-pass, NO.4
16281-21020 Hose, Water By-pass, NO.4
2015-06 → 2018-09 ended
1NZFE NCP175 ¥350
16281-21050 Hose, Water By-pass, NO.4
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥790
16281-47030 Hose, Water By-pass, NO.4
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥540
16281-21020 Hose, Water By-pass, NO.4
2018-09 → 2022-07 ended
1NZFE NCP175 ¥350
16281-21050 Hose, Water By-pass, NO.4
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥790
16281-47030 Hose, Water By-pass, NO.4
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥540
16281A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
96136-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2015-06 → 2018-09 ended
1NZFE NCP175 ¥70
96137-41901 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥160
96136-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2018-09 → 2022-07 ended
1NZFE NCP175 ¥70
96137-41901 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥160
16283 — Hose, Water By-pass, NO.6
16283-21011 Hose, Water By-pass, NO.6
2015-06 → 2018-09 ended
1NZFE NCP175 ¥350
16283-47030 Hose, Water By-pass, NO.6
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥1,010
16283-21011 Hose, Water By-pass, NO.6
2018-09 → 2022-07 ended
1NZFE NCP175 ¥350
16283-47030 Hose, Water By-pass, NO.6
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥1,010
16283A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
96136-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2015-06 → 2018-09 ended
1NZFE NCP175 ¥70
96136-42501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥200
96136-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2018-09 → 2022-07 ended
1NZFE NCP175 ¥70
96136-42501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥200
16321 — Inlet, Water
16321-21020 Inlet, Water
2015-06 → 2018-09 ended
1NZFE NCP175 ¥890
16321-21020 Inlet, Water
2018-09 → 2022-07 ended
1NZFE NCP175 ¥890
16325 — Gasket, Water Inlet Housing, NO.1
16325-21010 Gasket, Water Inlet Housing, NO.1
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥210
16325-62010 Gasket, Water Inlet Housing, NO.1
2015-06 → 2018-09 ended
1NZFE NCP175 ¥350
16325-21010 Gasket, Water Inlet Housing, NO.1
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥210
16325-62010 Gasket, Water Inlet Housing, NO.1
2018-09 → 2022-07 ended
1NZFE NCP175 ¥350
16331A — Thermostat
90916-03142 note Thermostat
2015-06 → 2018-09 ended
1NZFE NCP175 ¥1,600
90916-03142 note Thermostat
2018-09 → 2022-07 ended
1NZFE NCP175 ¥1,600
16351 — Outlet, Water By-pass
16351-21010 Outlet, Water By-pass
2015-06 → 2018-09 ended
1NZFE NCP175 ¥2,820
16351-21010 Outlet, Water By-pass
2018-09 → 2022-07 ended
1NZFE NCP175 ¥2,820
16381 — Bar, Fan Belt Adjusting
16381-21040 Bar, Fan Belt Adjusting
2015-06 → 2018-09 ended
1NZFE NCP175 ¥370
16381-21040 Bar, Fan Belt Adjusting
2018-09 → 2022-07 ended
1NZFE NCP175 ¥370
16575C — Bracket, Water Hose Clamp, NO.1
16575-21020 Bracket, Water Hose Clamp, NO.1
2015-06 → 2018-09 ended
1NZFE NCP175 ¥590
16575-21020 Bracket, Water Hose Clamp, NO.1
2018-09 → 2022-07 ended
1NZFE NCP175 ¥590
16581 — Clamp, Hose(FOR WATER HOSE)
16581-21020 note Clamp, Hose(FOR WATER HOSE)
2015-06 → 2018-09 ended
1NZFE NCP175 ¥730
16581-21030 note Clamp, Hose(FOR WATER HOSE)
2015-06 → 2018-09 ended
1NZFE NCP175 ¥590
16581-21070 note Clamp, Hose(FOR WATER HOSE)
2015-06 → 2018-09 ended
1NZFE NCP175 ¥520
16581-21020 note Clamp, Hose(FOR WATER HOSE)
2018-09 → 2022-07 ended
1NZFE NCP175 ¥730
16581-21030 note Clamp, Hose(FOR WATER HOSE)
2018-09 → 2022-07 ended
1NZFE NCP175 ¥590
16581-21070 note Clamp, Hose(FOR WATER HOSE)
2018-09 → 2022-07 ended
1NZFE NCP175 ¥520
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
