Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 165996H 7403 — not listed in this catalogue 16361 — FAN (6 parts) 16363 — MOTOR, COOLING FAN (6 parts) 16400 — RADIATOR ASSY (7 parts) 16471B — CAP, RESERVE TANK (2 parts) 16366A — INSULATOR, COOLING FAN MOTOR (2 parts) 16571C — HOSE, RADIATOR, NO.1 (7 parts) 16571D — CLIP, RADIATOR HOSE, NO.1 (2 parts) 16571D — CLIP, RADIATOR HOSE, NO.1 (2 parts) 16572D — HOSE, RADIATOR, NO.2 (8 parts) 16572E — CLIP, RADIATOR HOSE, NO.2 (5 parts) 16572E — CLIP, RADIATOR HOSE, NO.2 (5 parts) 16711F — SHROUD, FAN(W/RADIATOR RESERVE TANK) (6 parts) 16535 — SUPPORT, RADIATOR, LOWER (2 parts) 16523A — CUSHION, RADIATOR SUPPORT (2 parts) 1104 — not listed in this catalogue 9009905164 — not listed in this catalogue 9009904119 — not listed in this catalogue 16470B — CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) (2 parts) 16470A — HOSE OR PIPE(FOR RADIATOR RESERVE TANK) (6 parts) 9331514010 — not listed in this catalogue 16401 — CAP SUB-ASSY, RADIATOR (3 parts) 16400B — PLUG, RADIATOR DRAIN COCK (2 parts) 16400F — PACKING(FOR RADIATOR DRAIN COCK) (2 parts) 9338516016 — not listed in this catalogue 16431A — RING, O(FOR RADIATOR WATER INLET) (2 parts) 16431 — INLET, RADIATOR WATER (5 parts)

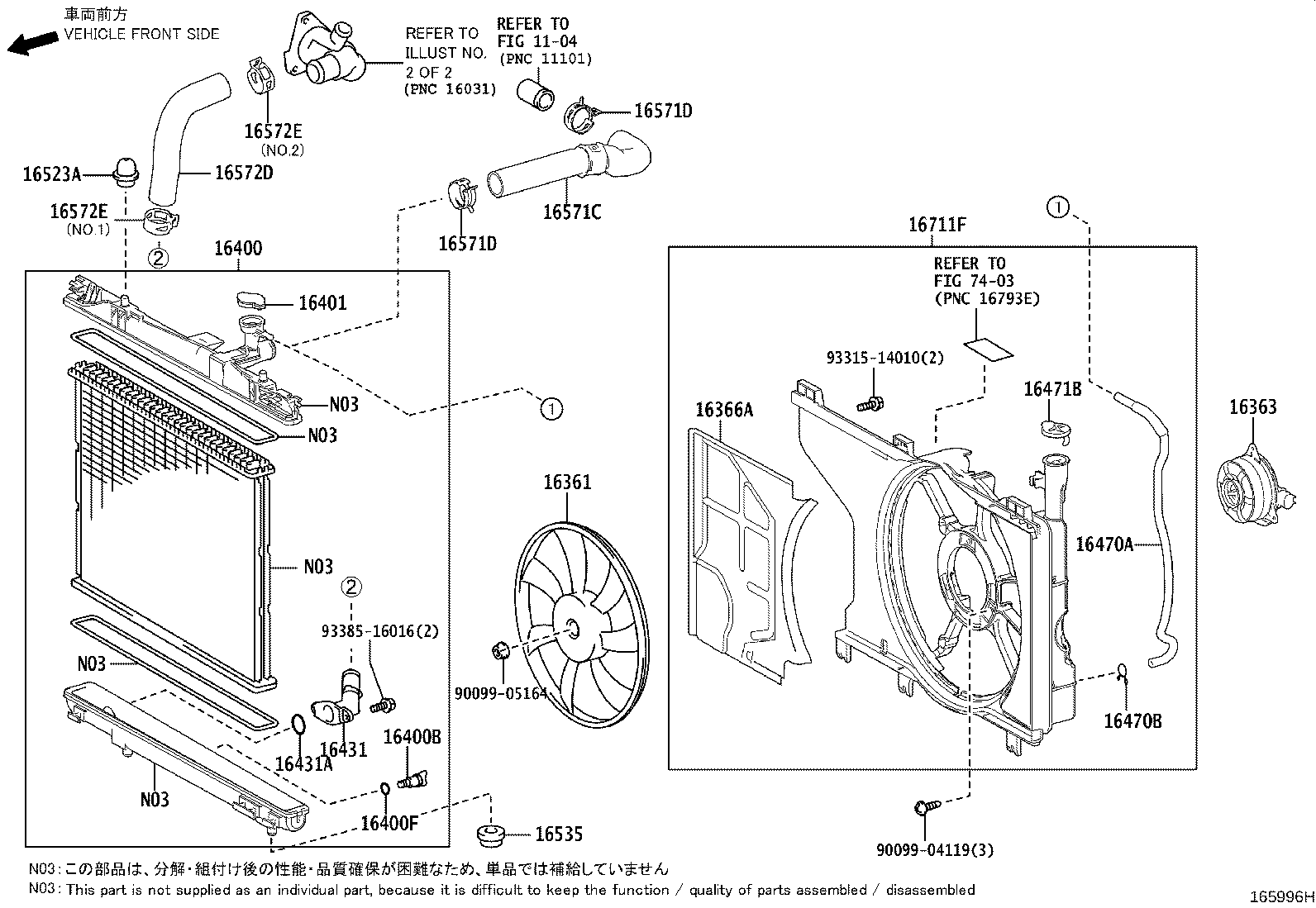

165996H · 21 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
77 parts on this figure
Part number Description Fitment Price
16361 — Fan
16361-21090 Fan
2015-06 → 2018-09 ended
1NZFE NCP175 ¥4,330
16361-21130 Fan
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥4,310
16361-47040 Fan
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥4,330
16361-21090 Fan
2018-09 → 2022-07 ended
1NZFE NCP175 ¥4,330
16361-21130 Fan
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥4,310
16361-47040 Fan
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥4,330
16363 — Motor, Cooling Fan
16363-21070 Motor, Cooling Fan
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥17,400
16363-21100 Motor, Cooling Fan
2015-06 → 2018-09 ended
1NZFE NCP175 ¥15,800
16363-47020 Motor, Cooling Fan
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥15,800
16363-21070 Motor, Cooling Fan
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥17,400
16363-21100 Motor, Cooling Fan
2018-09 → 2022-07 ended
1NZFE NCP175 ¥15,800
16363-47020 Motor, Cooling Fan
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥15,800
16366A — Insulator, Cooling Fan Motor
16366-47090 Insulator, Cooling Fan Motor
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥3,150
16366-47090 Insulator, Cooling Fan Motor
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥3,150
16400 — Radiator Assy
16400-21270 Radiator Assy
2015-06 → 2018-01 ended
1NZFE NCP175 ¥25,700
16400-21350 Radiator Assy
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥34,400
16400-21381 Radiator Assy
2018-02 → 2018-09 ended
1NZFE NCP175 ¥25,700
16400-47110 Radiator Assy
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥27,600
16400-21350 Radiator Assy
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥34,400
16400-21381 Radiator Assy
2018-09 → 2022-07 ended
1NZFE NCP175 ¥25,700
16400-47110 Radiator Assy
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥27,600
16400B — Plug, Radiator Drain Cock
16417-21280 Plug, Radiator Drain Cock
2015-06 → 2018-09 ended
1NZ#,2NRFKE NCP175,NHP170,NSP17# ¥360
16417-21280 Plug, Radiator Drain Cock
2018-09 → 2022-07 ended
1NZ#,2NRFKE NCP175,NHP170,NSP17# ¥360
16400F — Packing(FOR RADIATOR DRAIN COCK)
16492-21050 Packing(FOR RADIATOR DRAIN COCK)
2015-06 → 2018-09 ended
1NZ#,2NRFKE NCP175,NHP170,NSP17# ¥210
16492-21050 Packing(FOR RADIATOR DRAIN COCK)
2018-09 → 2022-07 ended
1NZ#,2NRFKE NCP175,NHP170,NSP17# ¥210
16401 — Cap Sub-assy, Radiator
16401-31520 Cap Sub-assy, Radiator
2015-06 → 2017-01 ended
1NZFXE,2NRFKE NHP170,NSP17# ¥910
16401-36020 Cap Sub-assy, Radiator
2017-01 → 2018-09 ended
1NZFXE,2NRFKE NHP170,NSP17# ¥910
16401-36020 Cap Sub-assy, Radiator
2018-09 → 2022-07 ended
1NZFXE,2NRFKE NHP170,NSP17# ¥910
16431 — Inlet, Radiator Water
16431-21350 Inlet, Radiator Water
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥2,370
16431-47110 Inlet, Radiator Water
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥2,370
16431-21350 Inlet, Radiator Water
2018-09 → 2022-01 ended
1NZFXE NHP170 ¥2,370
16431-21360 Inlet, Radiator Water
2022-01 → 2022-07 ended
1NZFXE NHP170 ¥2,150
16431-47110 Inlet, Radiator Water
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥2,370
16431A — Ring, O(FOR RADIATOR WATER INLET)
16492-6A300 Ring, O(FOR RADIATOR WATER INLET)
2015-06 → 2018-09 ended
1NZFXE,2NRFKE NHP170,NSP17# ¥450
16492-6A300 Ring, O(FOR RADIATOR WATER INLET)
2018-09 → 2022-07 ended
1NZFXE,2NRFKE NHP170,NSP17# ¥450
16470A — Hose OR Pipe(FOR RADIATOR RESERVE TANK)
16377-21190 Hose OR Pipe(FOR RADIATOR RESERVE TANK)
2015-07 → 2018-09 ended
1NZFXE NHP170 —
16377-21220 Hose OR Pipe(FOR RADIATOR RESERVE TANK)
2015-06 → 2018-09 ended
1NZFE NCP175 —
16378-47090 Hose OR Pipe(FOR RADIATOR RESERVE TANK)
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥1,020
16377-21190 Hose OR Pipe(FOR RADIATOR RESERVE TANK)
2018-09 → 2022-07 ended
1NZFXE NHP170 —
16377-21220 Hose OR Pipe(FOR RADIATOR RESERVE TANK)
2018-09 → 2022-07 ended
1NZFE NCP175 —
16378-47090 Hose OR Pipe(FOR RADIATOR RESERVE TANK)
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥1,020
16470B — Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
90467-11085 Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
2015-06 → 2018-09 ended
1NZ#,2NRFKE NCP175,NHP170,NSP17# ¥100
90467-11085 Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
2018-09 → 2022-07 ended
1NZ#,2NRFKE NCP175,NHP170,NSP17# ¥100
16471B — Cap, Reserve Tank
16471-23030 Cap, Reserve Tank
2015-06 → 2018-09 ended
1NZ#,2NRFKE NCP175,NHP170,NSP17# ¥0
16471-23030 Cap, Reserve Tank
2018-09 → 2022-07 ended
1NZ#,2NRFKE NCP175,NHP170,NSP17# ¥0
16523A — Cushion, Radiator Support
16523-21030 Cushion, Radiator Support
2015-06 → 2018-09 ended
1NZ#,2NRFKE NCP175,NHP170,NSP17# ¥220
16523-21030 Cushion, Radiator Support
2018-09 → 2022-07 ended
1NZ#,2NRFKE NCP175,NHP170,NSP17# ¥220
16535 — Support, Radiator, Lower
90480-22025 Support, Radiator, Lower
2015-06 → 2018-09 ended
1NZ#,2NRFKE NCP175,NHP170,NSP17# ¥120
90480-22025 Support, Radiator, Lower
2018-09 → 2022-07 ended
1NZ#,2NRFKE NCP175,NHP170,NSP17# ¥120
16571C — Hose, Radiator, NO.1
16571-21120 Hose, Radiator, NO.1
2015-06 → 2018-09 ended
1NZFE NCP175 ¥1,080
16571-21180 Hose, Radiator, NO.1
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥1,190
16571-47080 Hose, Radiator, NO.1
2015-06 → 2018-01 ended
2NRFKE NSP17# ¥1,190
16571-47120 Hose, Radiator, NO.1
2018-02 → 2018-09 ended
2NRFKE NSP17# ¥1,150
16571-21120 Hose, Radiator, NO.1
2018-09 → 2022-07 ended
1NZFE NCP175 ¥1,080
16571-21180 Hose, Radiator, NO.1
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥1,190
16571-47120 Hose, Radiator, NO.1
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥1,150
16571D — Clip, Radiator Hose, NO.1
96136-43901 Clip, Radiator Hose, NO.1
2015-06 → 2018-09 ended
1NZ#,2NRFKE NCP175,NHP170,NSP17# ¥240
96136-43901 Clip, Radiator Hose, NO.1
2018-09 → 2022-07 ended
1NZ#,2NRFKE NCP175,NHP170,NSP17# ¥240
16572D — Hose, Radiator, NO.2
16572-21090 Hose, Radiator, NO.2
2015-06 → 2018-09 ended
1NZFE NCP175 ¥1,080
16572-21130 Hose, Radiator, NO.2
2015-07 → 2017-11 ended
1NZFXE NHP170 ¥1,340
16572-21131 Hose, Radiator, NO.2
2017-12 → 2018-09 ended
1NZFXE NHP170 ¥1,010
16572-47101 Hose, Radiator, NO.2
2015-06 → 2018-01 ended
2NRFKE NSP17# ¥1,340
16572-47102 Hose, Radiator, NO.2
2018-02 → 2018-09 ended
2NRFKE NSP17# ¥1,120
16572-21090 Hose, Radiator, NO.2
2018-09 → 2022-07 ended
1NZFE NCP175 ¥1,080
16572-21131 Hose, Radiator, NO.2
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥1,010
16572-47102 Hose, Radiator, NO.2
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥1,120
16572E — Clip, Radiator Hose, NO.2
90467-33006 note Clip, Radiator Hose, NO.2
2015-06 → 2018-09 ended
1NZFE,2NRFKE NCP175,NSP17# ¥240
96136-43901 note Clip, Radiator Hose, NO.2
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥240
96136-43901 note Clip, Radiator Hose, NO.2
2015-06 → 2018-09 ended
1NZFE,2NRFKE NCP175,NSP17# ¥240
96136-43901 Clip, Radiator Hose, NO.2
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥240
96136-43901 note Clip, Radiator Hose, NO.2
2018-09 → 2022-07 ended
1NZFE,2NRFKE NCP175,NSP17# ¥240
16711F — Shroud, Fan(W/RADIATOR RESERVE TANK)
16711-21170 Shroud, Fan(W/RADIATOR RESERVE TANK)
2015-06 → 2018-09 ended
1NZFE NCP175 ¥5,900
16711-21180 Shroud, Fan(W/RADIATOR RESERVE TANK)
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥7,400
16711-47100 Shroud, Fan(W/RADIATOR RESERVE TANK)
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥6,500
16711-21170 Shroud, Fan(W/RADIATOR RESERVE TANK)
2018-09 → 2022-07 ended
1NZFE NCP175 ¥5,900
16711-21180 Shroud, Fan(W/RADIATOR RESERVE TANK)
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥7,400
16711-47100 Shroud, Fan(W/RADIATOR RESERVE TANK)
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥6,500
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
