Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

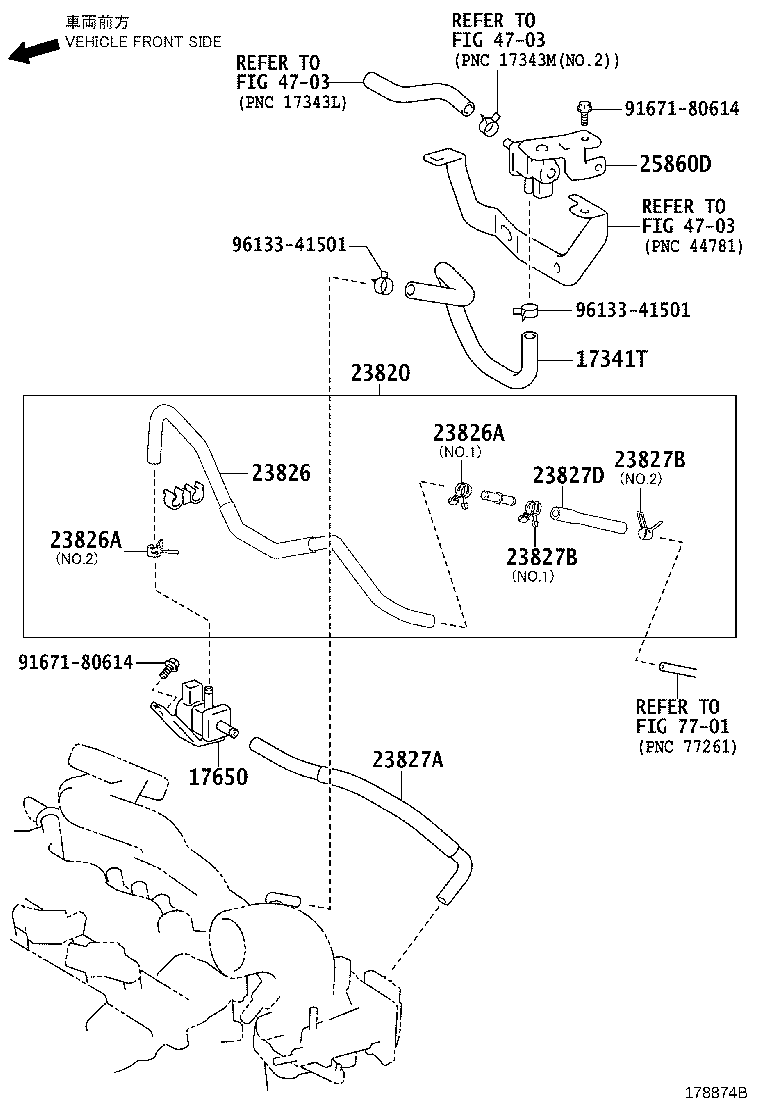

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17341T — Hose, Air, NO.1 | ||||
| 44726-52010 |
Hose, Air, NO.1
2015-06 → 2017-02
ended
|
2NRFKE NSP17# | ¥1,720 | |
| 44726-52011 |
Hose, Air, NO.1
2017-03 → 2018-09
ended
|
2NRFKE NSP17# | ¥1,430 | |
| 44726-52011 |
Hose, Air, NO.1
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥1,430 | |
| 17650 — Valve Assy, Vacuum Switching | ||||
| 25860-47030 |
Valve Assy, Vacuum Switching
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥3,480 | |
| 25860-47030 |
Valve Assy, Vacuum Switching
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥3,480 | |
| 23820 — Hose Assy, Fuel Vapor Feed | ||||
| 23820-21160 |
Hose Assy, Fuel Vapor Feed
2015-07 → 2018-09
ended
|
1NZFXE NHP170 | ¥2,070 | |
| 23820-21250 |
Hose Assy, Fuel Vapor Feed
2015-06 → 2016-05
ended
|
1NZFE NCP175 | ¥6,500 | |
| 23820-21251 |
Hose Assy, Fuel Vapor Feed
2016-06 → 2018-09
ended
|
1NZFE NCP175 | ¥4,500 | |
| 23820-47070 |
Hose Assy, Fuel Vapor Feed
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥2,360 | |
| 23820-21160 |
Hose Assy, Fuel Vapor Feed
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥2,070 | |
| 23820-21251 |
Hose Assy, Fuel Vapor Feed
2018-09 → 2022-07
ended
|
1NZFE NCP175 | ¥4,500 | |
| 23820-47070 |
Hose Assy, Fuel Vapor Feed
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥2,360 | |
| 23826 — Hose, Fuel Vapor Feed, NO.1 | ||||
| 23826-21200 |
Hose, Fuel Vapor Feed, NO.1
2015-07 → 2018-09
ended
|
1NZFXE NHP170 | ¥850 | |
| 23826-47120 |
Hose, Fuel Vapor Feed, NO.1
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥1,540 | |
| 23826-21200 |
Hose, Fuel Vapor Feed, NO.1
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥850 | |
| 23826-47120 |
Hose, Fuel Vapor Feed, NO.1
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥1,540 | |
| 23826A — Clip(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 96132-51100 note |
Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
2015-06 → 2016-07
ended
|
1NZFXE NHP170 | ¥120 | |
| 96132-51100 note |
Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
2015-06 → 2018-09
ended
|
1NZFE,2NRFKE NCP175,NSP17# | ¥120 | |
| 96132-51300 note |
Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
2015-07 → 2016-07
ended
|
1NZFXE NHP170 | ¥120 | |
| 96133-51101 note |
Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
2016-08 → 2018-09
ended
|
1NZFXE NHP170 | ¥110 | |
| 96133-51301 note |
Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
2016-08 → 2018-09
ended
|
1NZFXE NHP170 | ¥140 | |
| 96132-51100 note |
Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
2018-09 → 2022-07
ended
|
1NZFE,2NRFKE NCP175,NSP17# | ¥120 | |
| 96133-51101 note |
Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥110 | |
| 96133-51301 note |
Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥140 | |
| 23827A — Hose, Fuel Vapor Feed, NO.2 | ||||
| 23827-21170 |
Hose, Fuel Vapor Feed, NO.2
2015-07 → 2018-09
ended
|
1NZFXE NHP170 | ¥770 | |
| 23827-21240 |
Hose, Fuel Vapor Feed, NO.2
2015-06 → 2018-09
ended
|
1NZFE NCP175 | ¥480 | |
| 23827-47090 |
Hose, Fuel Vapor Feed, NO.2
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥1,170 | |
| 23827-21170 |
Hose, Fuel Vapor Feed, NO.2
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥770 | |
| 23827-21240 |
Hose, Fuel Vapor Feed, NO.2
2018-09 → 2022-07
ended
|
1NZFE NCP175 | ¥480 | |
| 23827-47090 |
Hose, Fuel Vapor Feed, NO.2
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥1,170 | |
| 23827B — Clip(FOR FUEL VAPOR FEED HOSE, NO.2) | ||||
| 96132-51000 note |
Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
2015-06 → 2018-09
ended
|
1NZFE,2NRFKE NCP175,NSP17# | ¥160 | |
| 96132-51100 note |
Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
2015-06 → 2018-09
ended
|
1NZFE,2NRFKE NCP175,NSP17# | ¥120 | |
| 96132-51100 |
Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
2015-07 → 2016-07
ended
|
1NZFXE NHP170 | ¥120 | |
| 96133-51101 |
Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
2016-08 → 2018-09
ended
|
1NZFXE NHP170 | ¥110 | |
| 96132-51000 note |
Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
2018-09 → 2022-07
ended
|
1NZFE,2NRFKE NCP175,NSP17# | ¥160 | |
| 96132-51100 note |
Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
2018-09 → 2022-07
ended
|
1NZFE,2NRFKE NCP175,NSP17# | ¥120 | |
| 96133-51101 |
Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥110 | |
| 23827D — Hose, Fuel Vapor Feed, NO.2 | ||||
| 23827-21180 |
Hose, Fuel Vapor Feed, NO.2
2015-07 → 2018-09
ended
|
1NZFXE NHP170 | ¥1,190 | |
| 23827-47120 |
Hose, Fuel Vapor Feed, NO.2
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥350 | |
| 23827-21180 |
Hose, Fuel Vapor Feed, NO.2
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥1,190 | |
| 23827-47120 |
Hose, Fuel Vapor Feed, NO.2
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥350 | |
| 25860D — Valve Assy, Vacuum Switching, NO.2 | ||||
| 25860-47040 |
Valve Assy, Vacuum Switching, NO.2
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥3,480 | |
| 25860-47040 |
Valve Assy, Vacuum Switching, NO.2
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥3,480 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
