Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

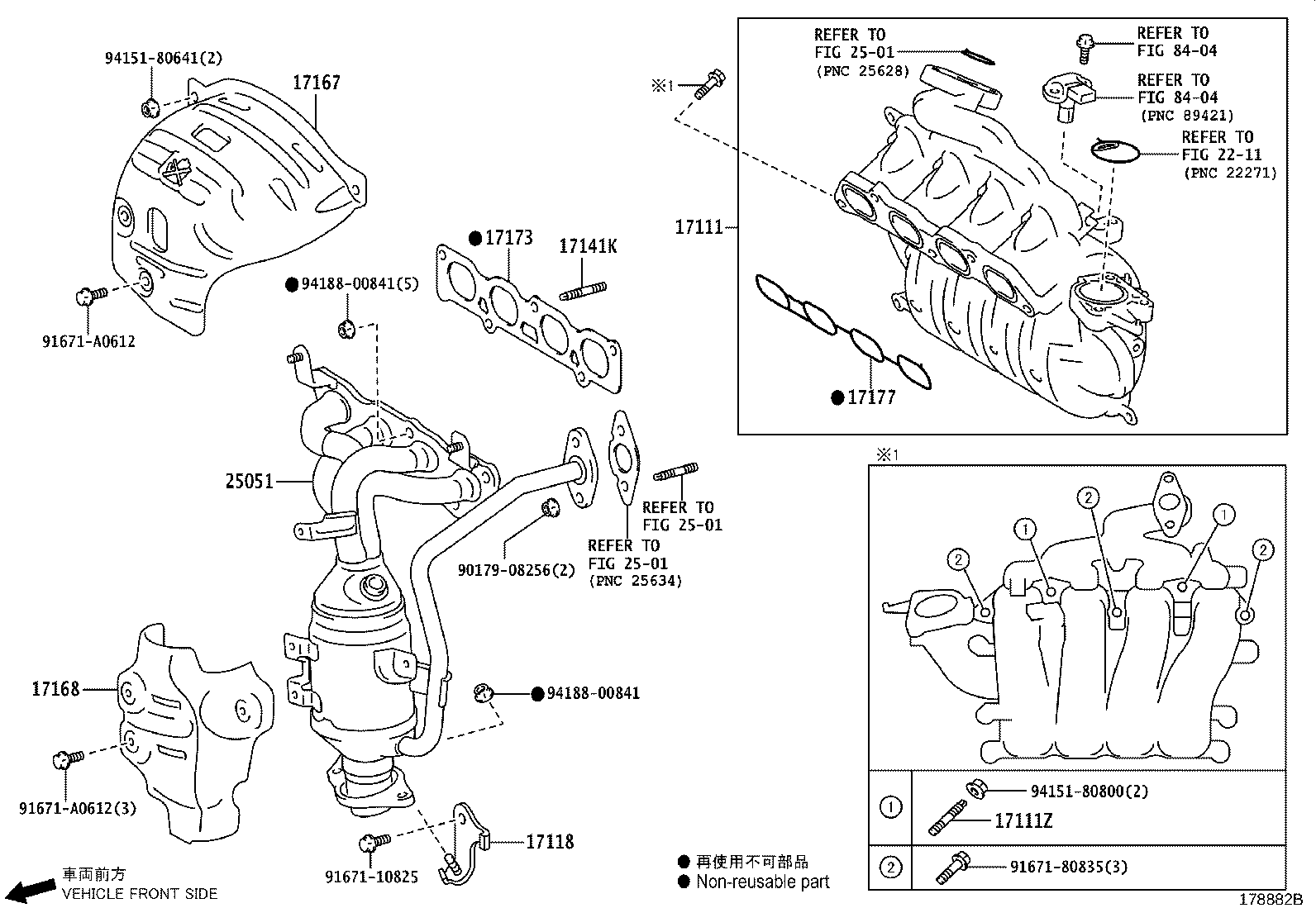

Exploded illustration 178882B 2501 — not listed in this catalogue 2501 — not listed in this catalogue 2501 — not listed in this catalogue 2211 — not listed in this catalogue 8404 — not listed in this catalogue 8404 — not listed in this catalogue 17111 — MANIFOLD, INTAKE (6 parts) 17111Z — BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) (6 parts) 17177 — GASKET, INTAKE MANIFOLD TO HEAD, NO.1 (6 parts) 9167180835 — not listed in this catalogue 9415180800 — not listed in this catalogue 17167 — INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 (6 parts) 17168 — INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 (7 parts) 9418800841 — not listed in this catalogue 9017908256 — not listed in this catalogue 9415180641 — not listed in this catalogue 91671A0612 — not listed in this catalogue 25051 — CONVERTER SUB-ASSY, EXHAUST MANIFOLD (4 parts) 17118 — STAY, MANIFOLD (5 parts) 9167110825 — not listed in this catalogue 9418800841 — not listed in this catalogue 17173 — GASKET, EXHAUST MANIFOLD TO HEAD (6 parts) 17141K — BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) (6 parts) 91671A0612 — not listed in this catalogue
178882B · 9 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
52 parts on this figure
Part number Description Fitment Price
17111 — Manifold, Intake
17101-21071 Manifold, Intake
2015-06 → 2018-09 ended
1NZFE NCP175 ¥10,600
17120-21060 Manifold, Intake
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥15,200
17120-47110 Manifold, Intake
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥15,200
17101-21071 Manifold, Intake
2018-09 → 2022-07 ended
1NZFE NCP175 ¥10,600
17120-21060 Manifold, Intake
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥15,200
17120-47110 Manifold, Intake
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥15,200
17111Z — Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90126-08026 Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥210
90126-08049 Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
2015-06 → 2018-09 ended
1NZFE NCP175 ¥190
90126-08060 Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥210
90126-08026 Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥210
90126-08049 Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
2018-09 → 2022-07 ended
1NZFE NCP175 ¥190
90126-08060 Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥210
17118 — Stay, Manifold
17118-21041 Stay, Manifold
2015-06 → 2018-09 ended
1NZFE NCP175 ¥740
17118-47010 Stay, Manifold
2015-06 → 2016-07 ended
2NRFKE NSP17# ¥1,290
17118-47011 Stay, Manifold
2016-08 → 2018-09 ended
2NRFKE NSP17# ¥890
17118-21041 Stay, Manifold
2018-09 → 2022-07 ended
1NZFE NCP175 ¥740
17118-47011 Stay, Manifold
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥890
17141K — Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
90126-08037 Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
2015-06 → 2018-09 ended
1NZFE NCP175 ¥340
90126-08037 Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥340
90126-08063 Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥80
90126-08037 Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥340
90126-08037 Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
2018-09 → 2022-07 ended
1NZFE NCP175 ¥340
90126-08063 Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥80
17167 — Insulator, Exhaust Manifold Heat, NO.1
17167-21160 Insulator, Exhaust Manifold Heat, NO.1
2015-06 → 2018-09 ended
1NZFE NCP175 ¥4,710
17167-21171 Insulator, Exhaust Manifold Heat, NO.1
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥3,510
17167-47011 Insulator, Exhaust Manifold Heat, NO.1
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥3,600
17167-21160 Insulator, Exhaust Manifold Heat, NO.1
2018-09 → 2022-07 ended
1NZFE NCP175 ¥4,710
17167-21171 Insulator, Exhaust Manifold Heat, NO.1
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥3,510
17167-47011 Insulator, Exhaust Manifold Heat, NO.1
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥3,600
17168 — Insulator, Exhaust Manifold Heat, NO.2
17168-21040 Insulator, Exhaust Manifold Heat, NO.2
2015-06 → 2018-09 ended
1NZFE NCP175 ¥840
17168-21061 Insulator, Exhaust Manifold Heat, NO.2
2015-07 → 2017-02 ended
1NZFXE NHP170 ¥3,920
17168-21090 Insulator, Exhaust Manifold Heat, NO.2
2017-03 → 2018-09 ended
1NZFXE NHP170 ¥2,960
17168-47041 Insulator, Exhaust Manifold Heat, NO.2
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥3,600
17168-21040 Insulator, Exhaust Manifold Heat, NO.2
2018-09 → 2022-07 ended
1NZFE NCP175 ¥840
17168-21090 Insulator, Exhaust Manifold Heat, NO.2
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥2,960
17168-47041 Insulator, Exhaust Manifold Heat, NO.2
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥3,600
17173 — Gasket, Exhaust Manifold TO Head
17173-21020 Gasket, Exhaust Manifold TO Head
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥980
17173-21030 Gasket, Exhaust Manifold TO Head
2015-06 → 2018-09 ended
1NZFE NCP175 ¥1,070
17173-47021 Gasket, Exhaust Manifold TO Head
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥780
17173-21020 Gasket, Exhaust Manifold TO Head
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥980
17173-21030 Gasket, Exhaust Manifold TO Head
2018-09 → 2022-07 ended
1NZFE NCP175 ¥1,070
17173-47021 Gasket, Exhaust Manifold TO Head
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥780
17177 — Gasket, Intake Manifold TO Head, NO.1
17177-21030 Gasket, Intake Manifold TO Head, NO.1
2015-06 → 2018-09 ended
1NZFE NCP175 ¥820
17177-21040 Gasket, Intake Manifold TO Head, NO.1
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥650
17177-47011 Gasket, Intake Manifold TO Head, NO.1
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥0
17177-21030 Gasket, Intake Manifold TO Head, NO.1
2018-09 → 2022-07 ended
1NZFE NCP175 ¥820
17177-21040 Gasket, Intake Manifold TO Head, NO.1
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥650
17177-47011 Gasket, Intake Manifold TO Head, NO.1
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥0
25051 — Converter Sub-assy, Exhaust Manifold
25051-21091 Converter Sub-assy, Exhaust Manifold
2015-06 → 2018-09 ended
1NZFE NCP175 ¥44,600
25051-47140 Converter Sub-assy, Exhaust Manifold
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥64,100
25051-21091 Converter Sub-assy, Exhaust Manifold
2018-09 → 2022-07 ended
1NZFE NCP175 ¥44,600
25051-47140 Converter Sub-assy, Exhaust Manifold
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥64,100
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
