Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

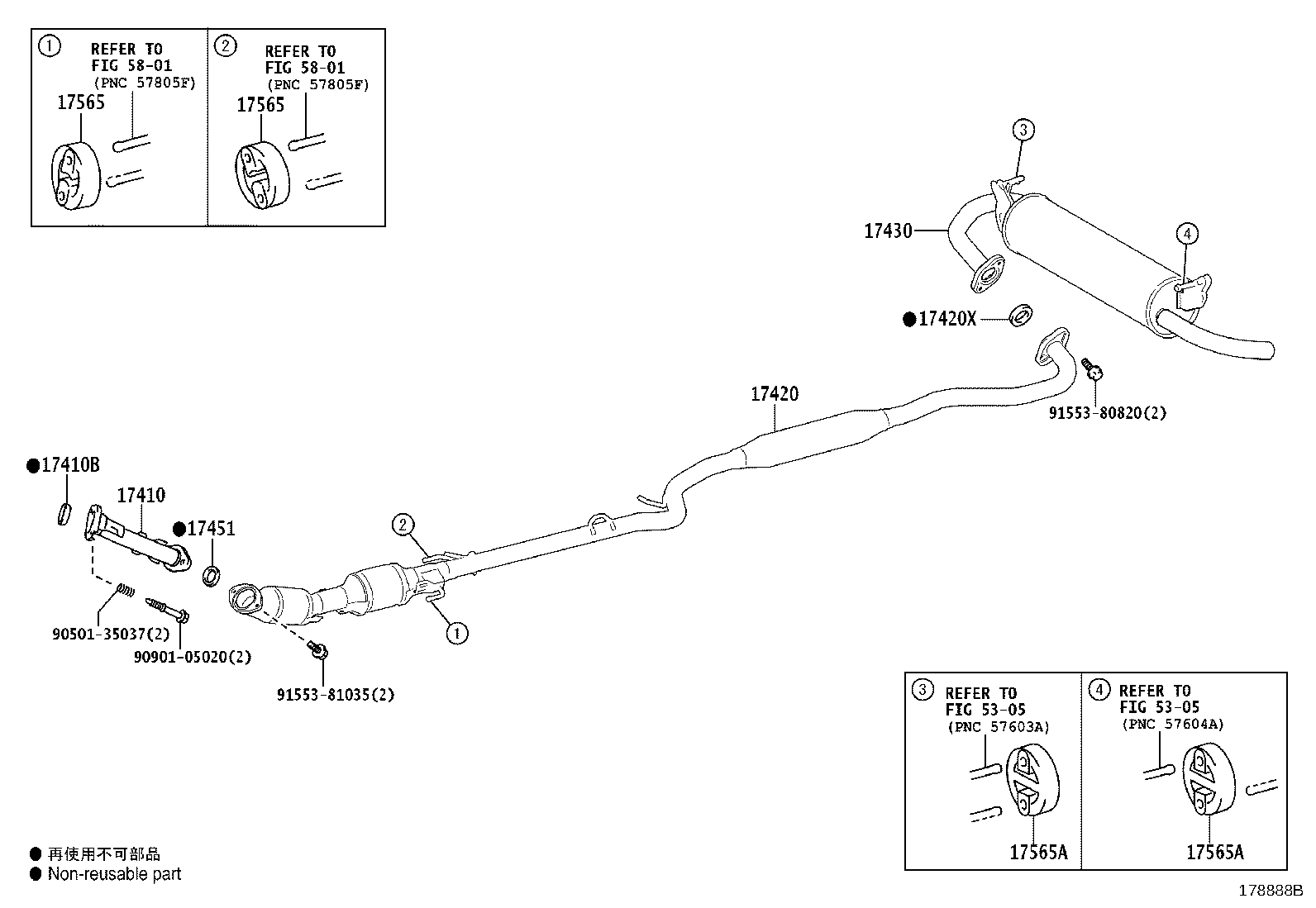

Exploded illustration 178888B 5305 — not listed in this catalogue 5305 — not listed in this catalogue 17410 — PIPE ASSY, EXHAUST, FRONT (8 parts) 17420X — GASKET, EXHAUST PIPE, CENTER (2 parts) 17420 — PIPE ASSY, EXHAUST, CENTER (2 parts) 17430 — PIPE ASSY, EXHAUST, TAIL (8 parts) 17410B — GASKET, EXHAUST PIPE (2 parts) 9155381035 — not listed in this catalogue 9155380820 — not listed in this catalogue 17565 — SUPPORT, EXHAUST PIPE, NO.5 (4 parts) 17565A — SUPPORT, EXHAUST PIPE, NO.4 (6 parts) 17565A — SUPPORT, EXHAUST PIPE, NO.4 (6 parts) 17565 — SUPPORT, EXHAUST PIPE, NO.5 (4 parts) 17451 — GASKET, EXHAUST PIPE (4 parts) 9090105020 — not listed in this catalogue 9050135037 — not listed in this catalogue 5801 — not listed in this catalogue 5801 — not listed in this catalogue
178888B · 10 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
36 parts on this figure
Part number Description Fitment Price
17410 — Pipe Assy, Exhaust, Front
17410-21840 Pipe Assy, Exhaust, Front
2015-06 → 2018-09 ended
1NZFE NCP175 ¥6,400
17410-21D40 Pipe Assy, Exhaust, Front
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥62,000
17410-47230 Pipe Assy, Exhaust, Front
2015-06 → 2018-09 ended
2NRFKE NSP170 ¥62,500
17410-47300 Pipe Assy, Exhaust, Front
2015-06 → 2018-09 ended
2NRFKE NSP172 ¥62,500
17410-21840 Pipe Assy, Exhaust, Front
2018-09 → 2022-07 ended
1NZFE NCP175 ¥6,400
17410-21D40 Pipe Assy, Exhaust, Front
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥62,000
17410-47230 Pipe Assy, Exhaust, Front
2018-09 → 2022-07 ended
2NRFKE NSP170 ¥62,500
17410-47300 Pipe Assy, Exhaust, Front
2018-09 → 2022-07 ended
2NRFKE NSP172 ¥62,500
17410B — Gasket, Exhaust Pipe
17451-21070 Gasket, Exhaust Pipe
2015-06 → 2018-09 ended
1NZ#,2NRFKE NCP175,NHP170,NSP17# ¥1,360
17451-21070 Gasket, Exhaust Pipe
2018-09 → 2022-07 ended
1NZ#,2NRFKE NCP175,NHP170,NSP17# ¥1,360
17420 — Pipe Assy, Exhaust, Center
17420-21350 Pipe Assy, Exhaust, Center
2015-06 → 2018-09 ended
1NZFE NCP175 ¥73,700
17420-21350 Pipe Assy, Exhaust, Center
2018-09 → 2022-07 ended
1NZFE NCP175 ¥73,700
17420X — Gasket, Exhaust Pipe, Center
90917-06039 Gasket, Exhaust Pipe, Center
2015-06 → 2018-09 ended
1NZFE NCP175 ¥240
90917-06039 Gasket, Exhaust Pipe, Center
2018-09 → 2022-07 ended
1NZFE NCP175 ¥240
17430 — Pipe Assy, Exhaust, Tail
17430-21880 Pipe Assy, Exhaust, Tail
2015-06 → 2018-09 ended
1NZFE NCP175 ¥24,300
17430-47210 Pipe Assy, Exhaust, Tail
2015-06 → 2018-09 ended
1NZFXE,2NRFKE NHP170,NSP170 ¥17,900
17430-47220 Pipe Assy, Exhaust, Tail
2015-06 → 2018-09 ended
2NRFKE NSP172 ¥26,800
17430-21880 Pipe Assy, Exhaust, Tail
2018-09 → 2018-11 ended
1NZFE NCP175 ¥24,300
17430-21881 Pipe Assy, Exhaust, Tail
2019-04 → 2022-07 ended
1NZFE NCP175 ¥20,200
17430-21B30 Pipe Assy, Exhaust, Tail
2018-11 → 2019-03 ended
1NZFE NCP175 ¥24,300
17430-47210 Pipe Assy, Exhaust, Tail
2018-09 → 2022-07 ended
1NZFXE,2NRFKE NHP170,NSP170 ¥17,900
17430-47220 Pipe Assy, Exhaust, Tail
2018-09 → 2022-07 ended
2NRFKE NSP172 ¥26,800
17451 — Gasket, Exhaust Pipe
17451-23042 Gasket, Exhaust Pipe
2015-06 → 2018-09 ended
1NZFXE,2NRFKE NHP170,NSP17# ¥790
90917-06089 Gasket, Exhaust Pipe
2015-06 → 2018-09 ended
1NZFE NCP175 ¥500
17451-23042 Gasket, Exhaust Pipe
2018-09 → 2022-07 ended
1NZFXE,2NRFKE NHP170,NSP17# ¥790
90917-06089 Gasket, Exhaust Pipe
2018-09 → 2022-07 ended
1NZFE NCP175 ¥500
17565 — Support, Exhaust Pipe, NO.5
17565-47010 Support, Exhaust Pipe, NO.5
2015-06 → 2018-09 ended
1NZFE NCP175 ¥320
17565-47010 Support, Exhaust Pipe, NO.5
2015-06 → 2018-09 ended
1NZFXE,2NRFKE NHP170,NSP17# ¥320
17565-47010 Support, Exhaust Pipe, NO.5
2018-09 → 2022-07 ended
1NZFE NCP175 ¥320
17565-47010 Support, Exhaust Pipe, NO.5
2018-09 → 2022-07 ended
1NZFXE,2NRFKE NHP170,NSP17# ¥320
17565A — Support, Exhaust Pipe, NO.4
17565-28010 Support, Exhaust Pipe, NO.4
2015-06 → 2018-09 ended
1NZFXE,2NRFKE NHP170,NSP170 ¥670
17565-28010 Support, Exhaust Pipe, NO.4
2015-06 → 2018-09 ended
2NRFKE NSP172 ¥670
17565-31040 Support, Exhaust Pipe, NO.4
2015-06 → 2018-09 ended
1NZFE NCP175 ¥570
17565-28010 Support, Exhaust Pipe, NO.4
2018-09 → 2022-07 ended
1NZFXE,2NRFKE NHP170,NSP170 ¥670
17565-28010 Support, Exhaust Pipe, NO.4
2018-09 → 2022-07 ended
2NRFKE NSP172 ¥670
17565-31040 Support, Exhaust Pipe, NO.4
2018-09 → 2022-07 ended
1NZFE NCP175 ¥570
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
