Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

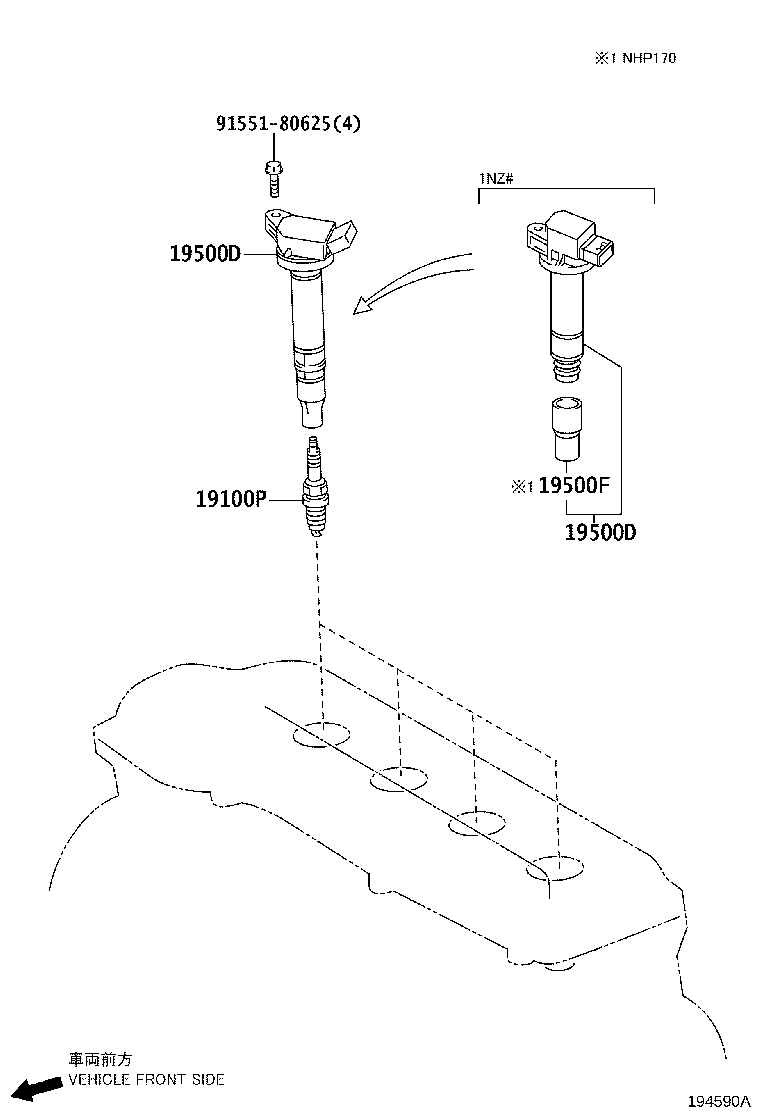

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 19100P — Plug, Spark | ||||
| 90919-01243 note |
Plug, Spark
2015-06 → 2018-09
ended
|
1NZFE NCP175 | ¥2,300 | |
| 90919-01280 note |
Plug, Spark
2015-06 → 2017-03
ended
|
2NRFKE NSP17# | ¥2,300 | |
| 90919-01284 note |
Plug, Spark
2015-07 → 2018-09
ended
|
1NZFXE NHP170 | ¥2,400 | |
| 90919-01289 note |
Plug, Spark
2017-04 → 2018-09
ended
|
2NRFKE NSP17# | ¥2,300 | |
| 90919-01243 note |
Plug, Spark
2018-09 → 2022-07
ended
|
1NZFE NCP175 | ¥2,300 | |
| 90919-01284 note |
Plug, Spark
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥2,400 | |
| 90919-01289 note |
Plug, Spark
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥2,300 | |
| 19500D — Coil, Ignition, NO.1 | ||||
| 90919-02257 |
Coil, Ignition, NO.1
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥7,500 | |
| 90919-02260 |
Coil, Ignition, NO.1
2015-06 → 2018-09
ended
|
1NZFE NCP175 | ¥7,500 | |
| 90919-02265 |
Coil, Ignition, NO.1
2015-07 → 2018-09
ended
|
1NZFXE NHP170 | ¥7,500 | |
| 90919-02257 |
Coil, Ignition, NO.1
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥7,500 | |
| 90919-02260 |
Coil, Ignition, NO.1
2018-09 → 2022-07
ended
|
1NZFE NCP175 | ¥7,500 | |
| 90919-02265 |
Coil, Ignition, NO.1
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥7,500 | |
| 19500F — Cap, Plug | ||||
| 90919-11009 |
Cap, Plug
2015-07 → 2018-09
ended
|
1NZFXE NHP170 | ¥550 | |
| 90919-11009 |
Cap, Plug
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥550 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
