Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

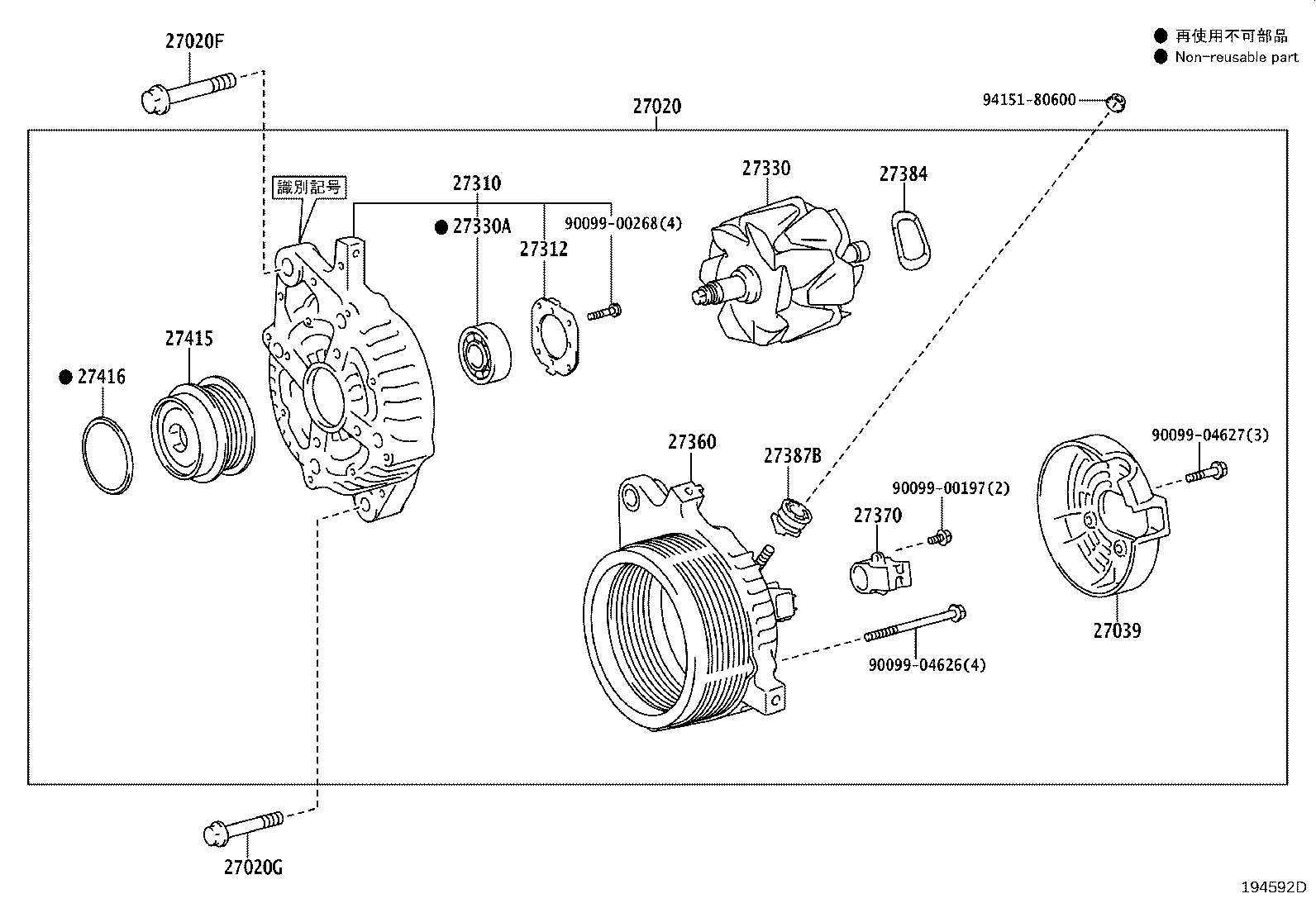

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 27020 — Alternator Assy | ||||
| 27060-21200 note |
Alternator Assy
2015-06 → 2018-09
ended
|
1NZFE NCP175 | ¥84,700 | |
| 27060-47270 note |
Alternator Assy
2015-06 → 2017-10
ended
|
2NRFKE NSP17# | ¥113,000 | |
| 27060-47290 note |
Alternator Assy
2017-10 → 2018-09
ended
|
2NRFKE NSP17# | ¥84,500 | |
| 27060-21200 note |
Alternator Assy
2018-09 → 2022-07
ended
|
1NZFE NCP175 | ¥84,700 | |
| 27060-47290 note |
Alternator Assy
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥84,500 | |
| 27020F — Bolt, NO.1(FOR ALTERNATOR) | ||||
| 91552-81075 |
Bolt, NO.1(FOR ALTERNATOR)
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥200 | |
| 91552-81075 |
Bolt, NO.1(FOR ALTERNATOR)
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥200 | |
| 27020G — Bolt, NO.2(FOR ALTERNATOR) | ||||
| 91551-80840 |
Bolt, NO.2(FOR ALTERNATOR)
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥120 | |
| 91551-80840 |
Bolt, NO.2(FOR ALTERNATOR)
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥120 | |
| 27039 — Cover, Alternator Rear End | ||||
| 27039-47310 |
Cover, Alternator Rear End
2015-06 → 2018-09
ended
|
1NZFE NCP175 | — | |
| 27039-47330 |
Cover, Alternator Rear End
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | — | |
| 27039-47310 |
Cover, Alternator Rear End
2018-09 → 2022-07
ended
|
1NZFE NCP175 | — | |
| 27039-47330 |
Cover, Alternator Rear End
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | — | |
| 27310 — Frame Assy, Drive End, Alternator | ||||
| 27310-21210 |
Frame Assy, Drive End, Alternator
2015-06 → 2018-09
ended
|
1NZFE NCP175 | — | |
| 27310-47330 |
Frame Assy, Drive End, Alternator
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | — | |
| 27310-21210 |
Frame Assy, Drive End, Alternator
2018-09 → 2022-07
ended
|
1NZFE NCP175 | — | |
| 27310-47330 |
Frame Assy, Drive End, Alternator
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | — | |
| 27312 — Plate, Retainer | ||||
| 27312-72100 |
Plate, Retainer
2015-06 → 2018-09
ended
|
1NZFE,2NRFKE NCP175,NSP17# | ¥0 | |
| 27312-72100 |
Plate, Retainer
2018-09 → 2022-07
ended
|
1NZFE,2NRFKE NCP175,NSP17# | ¥0 | |
| 27330 — Rotor Assy, Alternator | ||||
| 27330-47310 |
Rotor Assy, Alternator
2015-06 → 2018-09
ended
|
1NZFE NCP175 | — | |
| 27330-47330 |
Rotor Assy, Alternator
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥0 | |
| 27330-47310 |
Rotor Assy, Alternator
2018-09 → 2022-07
ended
|
1NZFE NCP175 | — | |
| 27330-47330 |
Rotor Assy, Alternator
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥0 | |
| 27330A — Bearing(FOR ALTERNATOR ROTOR) | ||||
| 90099-10223 |
Bearing(FOR ALTERNATOR ROTOR)
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥0 | |
| 90099-10227 |
Bearing(FOR ALTERNATOR ROTOR)
2015-06 → 2018-09
ended
|
1NZFE NCP175 | — | |
| 90099-10223 |
Bearing(FOR ALTERNATOR ROTOR)
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥0 | |
| 90099-10227 |
Bearing(FOR ALTERNATOR ROTOR)
2018-09 → 2022-07
ended
|
1NZFE NCP175 | — | |
| 27360 — Coil Assy, Alternator | ||||
| 27360-21210 |
Coil Assy, Alternator
2015-06 → 2018-09
ended
|
1NZFE NCP175 | — | |
| 27360-47411 |
Coil Assy, Alternator
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | — | |
| 27360-21210 |
Coil Assy, Alternator
2018-09 → 2022-07
ended
|
1NZFE NCP175 | — | |
| 27360-47411 |
Coil Assy, Alternator
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | — | |
| 27370 — Holder Assy, Alternator Brush | ||||
| 27370-31220 |
Holder Assy, Alternator Brush
2015-06 → 2018-09
ended
|
1NZFE,2NRFKE NCP175,NSP17# | ¥0 | |
| 27370-31220 |
Holder Assy, Alternator Brush
2018-09 → 2022-07
ended
|
1NZFE,2NRFKE NCP175,NSP17# | ¥0 | |
| 27384 — Washer | ||||
| 27384-38130 |
Washer
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | — | |
| 27384-38130 |
Washer
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | — | |
| 27387B — Insulator, Alternator Terminal | ||||
| 27387-20130 |
Insulator, Alternator Terminal
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥0 | |
| 27387-47310 |
Insulator, Alternator Terminal
2015-06 → 2018-09
ended
|
1NZFE NCP175 | ¥0 | |
| 27387-20130 |
Insulator, Alternator Terminal
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥0 | |
| 27387-47310 |
Insulator, Alternator Terminal
2018-09 → 2022-07
ended
|
1NZFE NCP175 | ¥0 | |
| 27415 — Pulley, Alternator W/Clutch | ||||
| 27415-0Y061 |
Pulley, Alternator W/Clutch
2015-06 → 2017-11
ended
|
2NRFKE NSP17# | ¥5,500 | |
| 27415-0Y061 note |
Pulley, Alternator W/Clutch
2017-11 → 2018-09
ended
|
2NRFKE NSP17# | ¥5,500 | |
| 27415-47070 note |
Pulley, Alternator W/Clutch
2017-11 → 2018-09
ended
|
2NRFKE NSP17# | ¥5,500 | |
| 27415-0Y061 note |
Pulley, Alternator W/Clutch
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥5,500 | |
| 27415-47070 note |
Pulley, Alternator W/Clutch
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥5,500 | |
| 27416 — Cap, Alternator Pulley | ||||
| 27416-0W050 |
Cap, Alternator Pulley
2015-06 → 2017-11
ended
|
2NRFKE NSP17# | ¥340 | |
| 27416-0W050 note |
Cap, Alternator Pulley
2017-11 → 2018-09
ended
|
2NRFKE NSP17# | ¥340 | |
| 27416-47010 note |
Cap, Alternator Pulley
2017-11 → 2018-09
ended
|
2NRFKE NSP17# | ¥340 | |
| 27416-0W050 note |
Cap, Alternator Pulley
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥340 | |
| 27416-47010 note |
Cap, Alternator Pulley
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥340 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
