Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

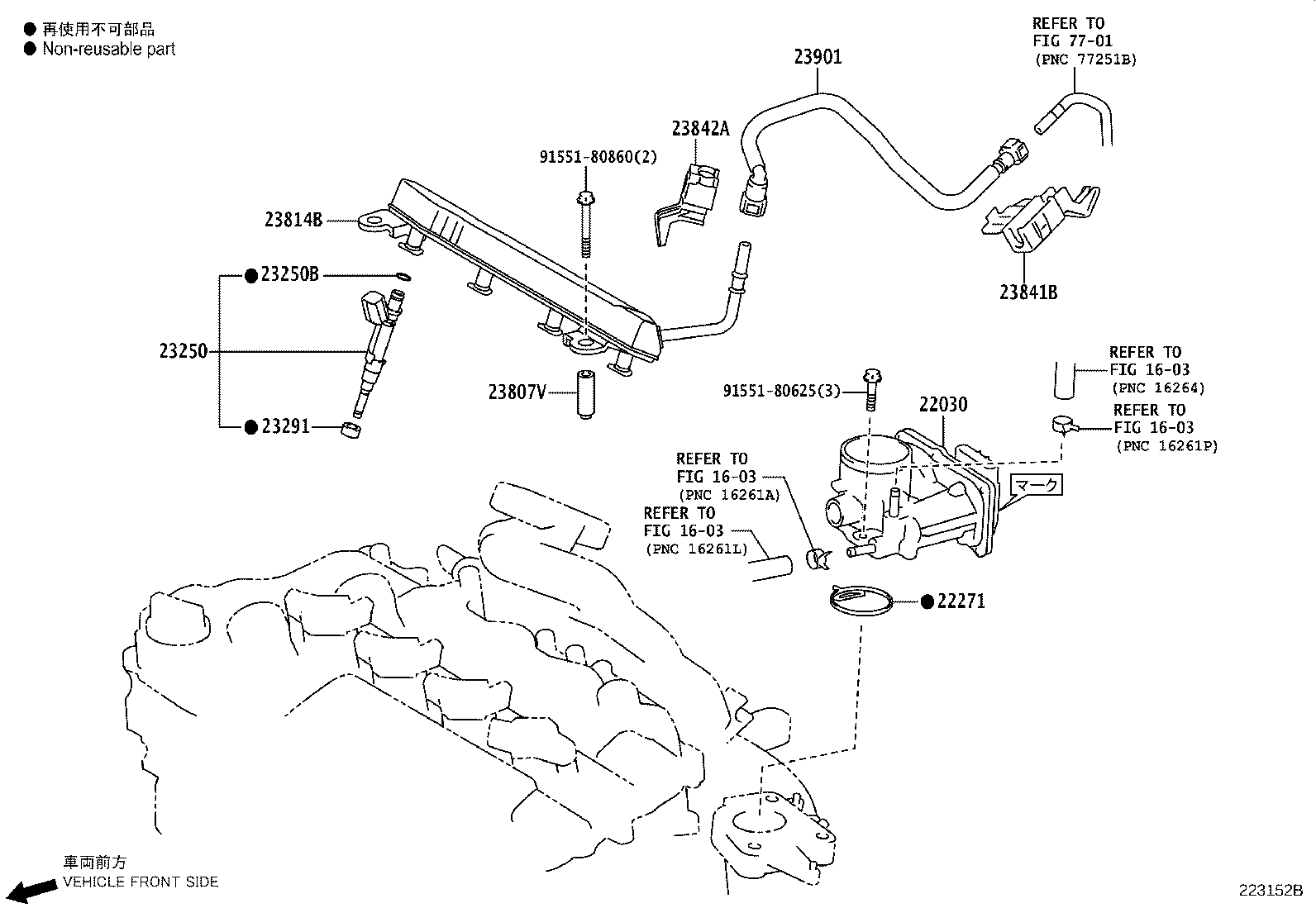

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 22030 — Body Assy, Throttle W/Throttle Position Sensor | ||||
| 22030-21030 |
Body Assy, Throttle W/Throttle Position Sensor
2015-06 → 2018-09
ended
|
1NZFE NCP175 | ¥52,700 | |
| 22030-47040 |
Body Assy, Throttle W/Throttle Position Sensor
2015-07 → 2018-09
ended
|
1NZFXE NHP170 | ¥52,700 | |
| 22030-47060 note |
Body Assy, Throttle W/Throttle Position Sensor
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥68,100 | |
| 22030-47090 note |
Body Assy, Throttle W/Throttle Position Sensor
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥52,700 | |
| 22030-21030 |
Body Assy, Throttle W/Throttle Position Sensor
2018-09 → 2022-07
ended
|
1NZFE NCP175 | ¥52,700 | |
| 22030-47040 |
Body Assy, Throttle W/Throttle Position Sensor
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥52,700 | |
| 22030-47060 note |
Body Assy, Throttle W/Throttle Position Sensor
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥68,100 | |
| 22030-47090 note |
Body Assy, Throttle W/Throttle Position Sensor
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥52,700 | |
| 22271 — Gasket, Throttle Body | ||||
| 22271-21060 |
Gasket, Throttle Body
2015-06 → 2018-09
ended
|
1NZFE NCP175 | ¥340 | |
| 22271-21070 |
Gasket, Throttle Body
2015-07 → 2018-09
ended
|
1NZFXE NHP170 | ¥340 | |
| 22271-47050 |
Gasket, Throttle Body
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥340 | |
| 22271-21060 |
Gasket, Throttle Body
2018-09 → 2022-07
ended
|
1NZFE NCP175 | ¥340 | |
| 22271-21070 |
Gasket, Throttle Body
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥340 | |
| 22271-47050 |
Gasket, Throttle Body
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥340 | |
| 23250 — Injector Assy, Fuel | ||||
| 23209-21040 |
Injector Assy, Fuel
2015-06 → 2018-09
ended
|
1NZFE NCP175 | ¥14,000 | |
| 23209-21091 |
Injector Assy, Fuel
2015-07 → 2018-09
ended
|
1NZFXE NHP170 | ¥13,900 | |
| 23209-49245 |
Injector Assy, Fuel
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥12,600 | |
| 23209-21040 |
Injector Assy, Fuel
2018-09 → 2022-07
ended
|
1NZFE NCP175 | ¥14,000 | |
| 23209-21110 |
Injector Assy, Fuel
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥12,600 | |
| 23209-49245 |
Injector Assy, Fuel
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥12,600 | |
| 23250B — Ring, O(FOR FUEL INJECTOR) | ||||
| 90301-07037 |
Ring, O(FOR FUEL INJECTOR)
2015-06 → 2018-09
ended
|
1NZ#,2NRFKE NCP175,NHP170,NSP17# | ¥140 | |
| 90301-07037 |
Ring, O(FOR FUEL INJECTOR)
2018-09 → 2019-08
ended
|
1NZFXE NHP170 | ¥140 | |
| 90301-07037 |
Ring, O(FOR FUEL INJECTOR)
2018-09 → 2022-07
ended
|
1NZFE,2NRFKE NCP175,NSP17# | ¥140 | |
| 90301-07037 note |
Ring, O(FOR FUEL INJECTOR)
2019-08 → 2022-07
ended
|
1NZFXE NHP170 | ¥140 | |
| 90301-C0072 note |
Ring, O(FOR FUEL INJECTOR)
2019-08 → 2022-07
ended
|
1NZFXE NHP170 | — | |
| 23291 — Insulator, Injector Vibration | ||||
| 23291-23010 |
Insulator, Injector Vibration
2015-06 → 2018-09
ended
|
1NZ#,2NRFKE NCP175,NHP170,NSP17# | ¥240 | |
| 23291-23010 |
Insulator, Injector Vibration
2018-09 → 2022-07
ended
|
1NZ#,2NRFKE NCP175,NHP170,NSP17# | ¥240 | |
| 23807V — Spacer, NO.1(FOR DELIVERY PIPE) | ||||
| 23891-21010 |
Spacer, NO.1(FOR DELIVERY PIPE)
2015-06 → 2018-09
ended
|
1NZ# NCP175,NHP170 | ¥240 | |
| 23891-47030 |
Spacer, NO.1(FOR DELIVERY PIPE)
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥300 | |
| 23891-21010 |
Spacer, NO.1(FOR DELIVERY PIPE)
2018-09 → 2022-07
ended
|
1NZ# NCP175,NHP170 | ¥240 | |
| 23891-47030 |
Spacer, NO.1(FOR DELIVERY PIPE)
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥300 | |
| 23814B — Pipe, Fuel Delivery | ||||
| 23814-21073 |
Pipe, Fuel Delivery
2015-07 → 2018-09
ended
|
1NZFXE NHP170 | ¥8,100 | |
| 23814-47050 |
Pipe, Fuel Delivery
2015-06 → 2018-05
ended
|
2NRFKE NSP17# | ¥9,400 | |
| 23814-47051 |
Pipe, Fuel Delivery
2018-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥7,100 | |
| 23814-21073 |
Pipe, Fuel Delivery
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥8,100 | |
| 23814-47051 |
Pipe, Fuel Delivery
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥7,100 | |
| 23841B — Clamp, Fuel Pipe, NO.1(FOR EFI) | ||||
| 23841-21050 |
Clamp, Fuel Pipe, NO.1(FOR EFI)
2015-06 → 2018-09
ended
|
1NZFE NCP175 | ¥220 | |
| 23841-21050 |
Clamp, Fuel Pipe, NO.1(FOR EFI)
2015-07 → 2018-09
ended
|
1NZFXE NHP170 | ¥220 | |
| 23841-37090 |
Clamp, Fuel Pipe, NO.1(FOR EFI)
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥1,080 | |
| 23841-21050 |
Clamp, Fuel Pipe, NO.1(FOR EFI)
2018-09 → 2022-07
ended
|
1NZFE NCP175 | ¥220 | |
| 23841-21050 |
Clamp, Fuel Pipe, NO.1(FOR EFI)
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥220 | |
| 23841-37090 |
Clamp, Fuel Pipe, NO.1(FOR EFI)
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥1,080 | |
| 23842A — Clamp, Fuel Pipe, NO.2(FOR EFI) | ||||
| 23841-21050 |
Clamp, Fuel Pipe, NO.2(FOR EFI)
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥220 | |
| 23841-37090 |
Clamp, Fuel Pipe, NO.2(FOR EFI)
2015-06 → 2018-09
ended
|
1NZFE NCP175 | ¥1,080 | |
| 23841-21050 |
Clamp, Fuel Pipe, NO.2(FOR EFI)
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥220 | |
| 23841-37090 |
Clamp, Fuel Pipe, NO.2(FOR EFI)
2018-09 → 2022-07
ended
|
1NZFE NCP175 | ¥1,080 | |
| 23901 — Tube Sub-assy, Fuel | ||||
| 23901-21110 |
Tube Sub-assy, Fuel
2015-06 → 2018-09
ended
|
1NZFE NCP175 | ¥4,300 | |
| 23901-21220 |
Tube Sub-assy, Fuel
2015-07 → 2018-09
ended
|
1NZFXE NHP170 | ¥3,980 | |
| 23901-47080 |
Tube Sub-assy, Fuel
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥3,780 | |
| 23901-21110 |
Tube Sub-assy, Fuel
2018-09 → 2022-07
ended
|
1NZFE NCP175 | ¥4,300 | |
| 23901-21220 |
Tube Sub-assy, Fuel
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥3,980 | |
| 23901-47080 |
Tube Sub-assy, Fuel
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥3,780 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
