Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

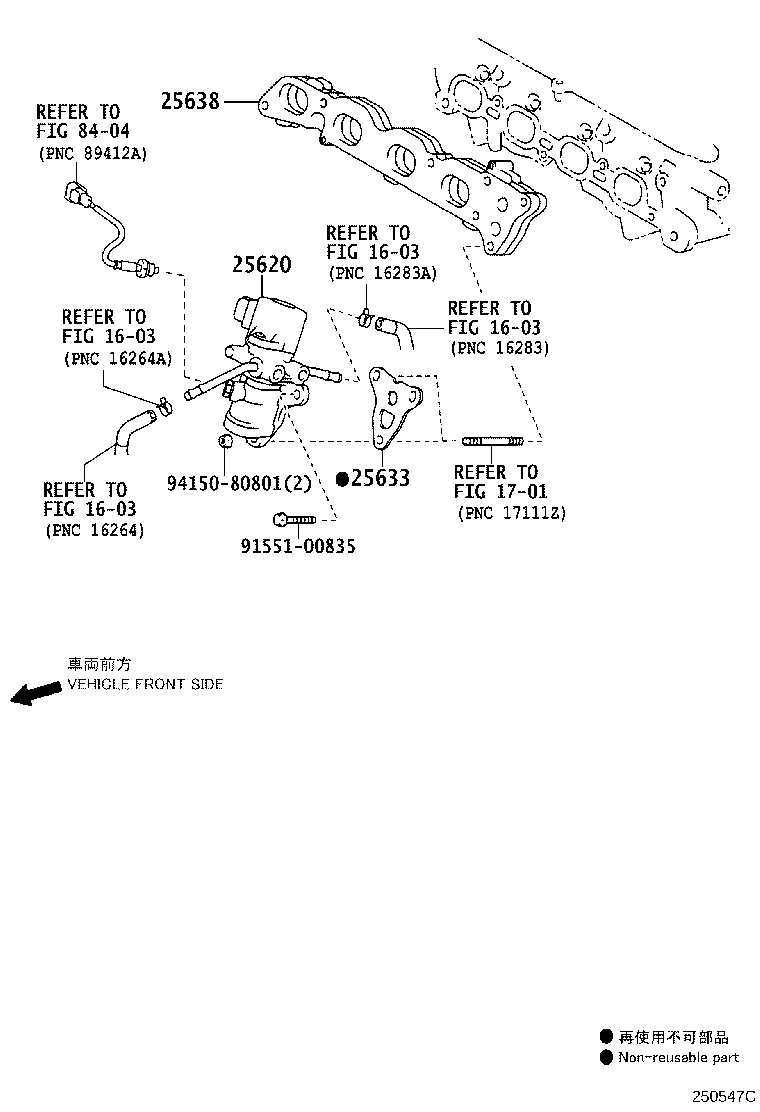

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 25620 — Valve Assy, Egr | ||||
| 25620-21010 |
Valve Assy, Egr
2015-06 → 2018-09
ended
|
1NZFE NCP175 | ¥18,400 | |
| 25620-21020 |
Valve Assy, Egr
2015-07 → 2016-06
ended
|
1NZFXE NHP170 | ¥29,200 | |
| 25620-21021 |
Valve Assy, Egr
2016-07 → 2018-09
ended
|
1NZFXE NHP170 | ¥18,400 | |
| 25620-47030 |
Valve Assy, Egr
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥24,300 | |
| 25620-21010 |
Valve Assy, Egr
2018-09 → 2022-07
ended
|
1NZFE NCP175 | ¥18,400 | |
| 25620-21021 |
Valve Assy, Egr
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥18,400 | |
| 25620-47030 |
Valve Assy, Egr
2018-09 → 2019-06
ended
|
2NRFKE NSP17# | ¥24,300 | |
| 25620-47060 |
Valve Assy, Egr
2019-07 → 2022-07
ended
|
2NRFKE NSP17# | ¥18,400 | |
| 25633 — Gasket, Egr Valve | ||||
| 25633-21010 |
Gasket, Egr Valve
2015-07 → 2018-09
ended
|
1NZFXE NHP170 | ¥340 | |
| 25633-21020 |
Gasket, Egr Valve
2015-06 → 2018-09
ended
|
1NZFE NCP175 | ¥270 | |
| 25633-47020 |
Gasket, Egr Valve
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥270 | |
| 25633-21010 |
Gasket, Egr Valve
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥340 | |
| 25633-21020 |
Gasket, Egr Valve
2018-09 → 2022-07
ended
|
1NZFE NCP175 | ¥270 | |
| 25633-47020 |
Gasket, Egr Valve
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥270 | |
| 25638 — Chamber, Egr Delivery | ||||
| 25638-21020 |
Chamber, Egr Delivery
2015-06 → 2018-09
ended
|
1NZFE NCP175 | ¥6,400 | |
| 25638-21020 |
Chamber, Egr Delivery
2018-09 → 2022-07
ended
|
1NZFE NCP175 | ¥6,400 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
