Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

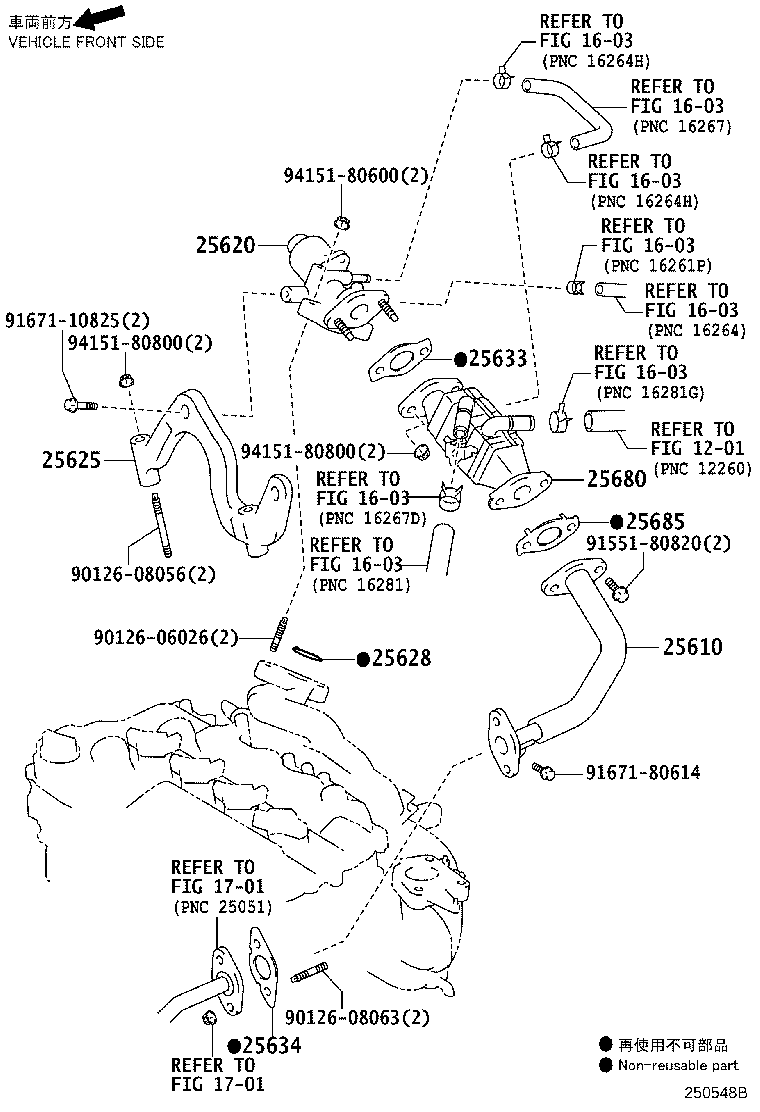

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 25610 — Pipe Assy, Egr | ||||
| 25610-47010 |
Pipe Assy, Egr
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥5,500 | |
| 25610-47010 |
Pipe Assy, Egr
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥5,500 | |
| 25620 — Valve Assy, Egr | ||||
| 25620-21010 |
Valve Assy, Egr
2015-06 → 2018-09
ended
|
1NZFE NCP175 | ¥18,400 | |
| 25620-21020 |
Valve Assy, Egr
2015-07 → 2016-06
ended
|
1NZFXE NHP170 | ¥29,200 | |
| 25620-21021 |
Valve Assy, Egr
2016-07 → 2018-09
ended
|
1NZFXE NHP170 | ¥18,400 | |
| 25620-47030 |
Valve Assy, Egr
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥24,300 | |
| 25620-21010 |
Valve Assy, Egr
2018-09 → 2022-07
ended
|
1NZFE NCP175 | ¥18,400 | |
| 25620-21021 |
Valve Assy, Egr
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥18,400 | |
| 25620-47030 |
Valve Assy, Egr
2018-09 → 2019-06
ended
|
2NRFKE NSP17# | ¥24,300 | |
| 25620-47060 |
Valve Assy, Egr
2019-07 → 2022-07
ended
|
2NRFKE NSP17# | ¥18,400 | |
| 25625 — Bracket, Egr Valve | ||||
| 25625-21010 |
Bracket, Egr Valve
2015-07 → 2018-09
ended
|
1NZFXE NHP170 | ¥2,170 | |
| 25625-47010 |
Bracket, Egr Valve
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥3,380 | |
| 25625-21010 |
Bracket, Egr Valve
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥2,170 | |
| 25625-47010 |
Bracket, Egr Valve
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥3,380 | |
| 25628 — Gasket, Egr Inlet | ||||
| 25628-28010 |
Gasket, Egr Inlet
2015-07 → 2018-09
ended
|
1NZFXE NHP170 | ¥210 | |
| 25628-36010 |
Gasket, Egr Inlet
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥280 | |
| 25628-25010 |
Gasket, Egr Inlet
2019-05 → 2022-07
ended
|
2NRFKE NSP17# | ¥340 | |
| 25628-28010 |
Gasket, Egr Inlet
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥210 | |
| 25628-36010 |
Gasket, Egr Inlet
2018-09 → 2019-04
ended
|
2NRFKE NSP17# | ¥280 | |
| 25633 — Gasket, Egr Valve | ||||
| 25633-21010 |
Gasket, Egr Valve
2015-07 → 2018-09
ended
|
1NZFXE NHP170 | ¥340 | |
| 25633-21020 |
Gasket, Egr Valve
2015-06 → 2018-09
ended
|
1NZFE NCP175 | ¥270 | |
| 25633-47020 |
Gasket, Egr Valve
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥270 | |
| 25633-21010 |
Gasket, Egr Valve
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥340 | |
| 25633-21020 |
Gasket, Egr Valve
2018-09 → 2022-07
ended
|
1NZFE NCP175 | ¥270 | |
| 25633-47020 |
Gasket, Egr Valve
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥270 | |
| 25634 — Gasket, Egr Pipe | ||||
| 25685-37010 |
Gasket, Egr Pipe
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥210 | |
| 25685-37010 |
Gasket, Egr Pipe
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥210 | |
| 25680 — Cooler Assy, Egr | ||||
| 25680-21010 |
Cooler Assy, Egr
2015-07 → 2018-09
ended
|
1NZFXE NHP170 | ¥16,700 | |
| 25680-47012 |
Cooler Assy, Egr
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥14,100 | |
| 25680-21010 |
Cooler Assy, Egr
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥16,700 | |
| 25680-47012 |
Cooler Assy, Egr
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥14,100 | |
| 25685 — Gasket, Egr Cooler, NO.1 | ||||
| 25685-21010 |
Gasket, Egr Cooler, NO.1
2015-07 → 2018-09
ended
|
1NZFXE NHP170 | ¥510 | |
| 25685-47010 |
Gasket, Egr Cooler, NO.1
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥280 | |
| 25685-21010 |
Gasket, Egr Cooler, NO.1
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥510 | |
| 25685-47010 |
Gasket, Egr Cooler, NO.1
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥280 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
