Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

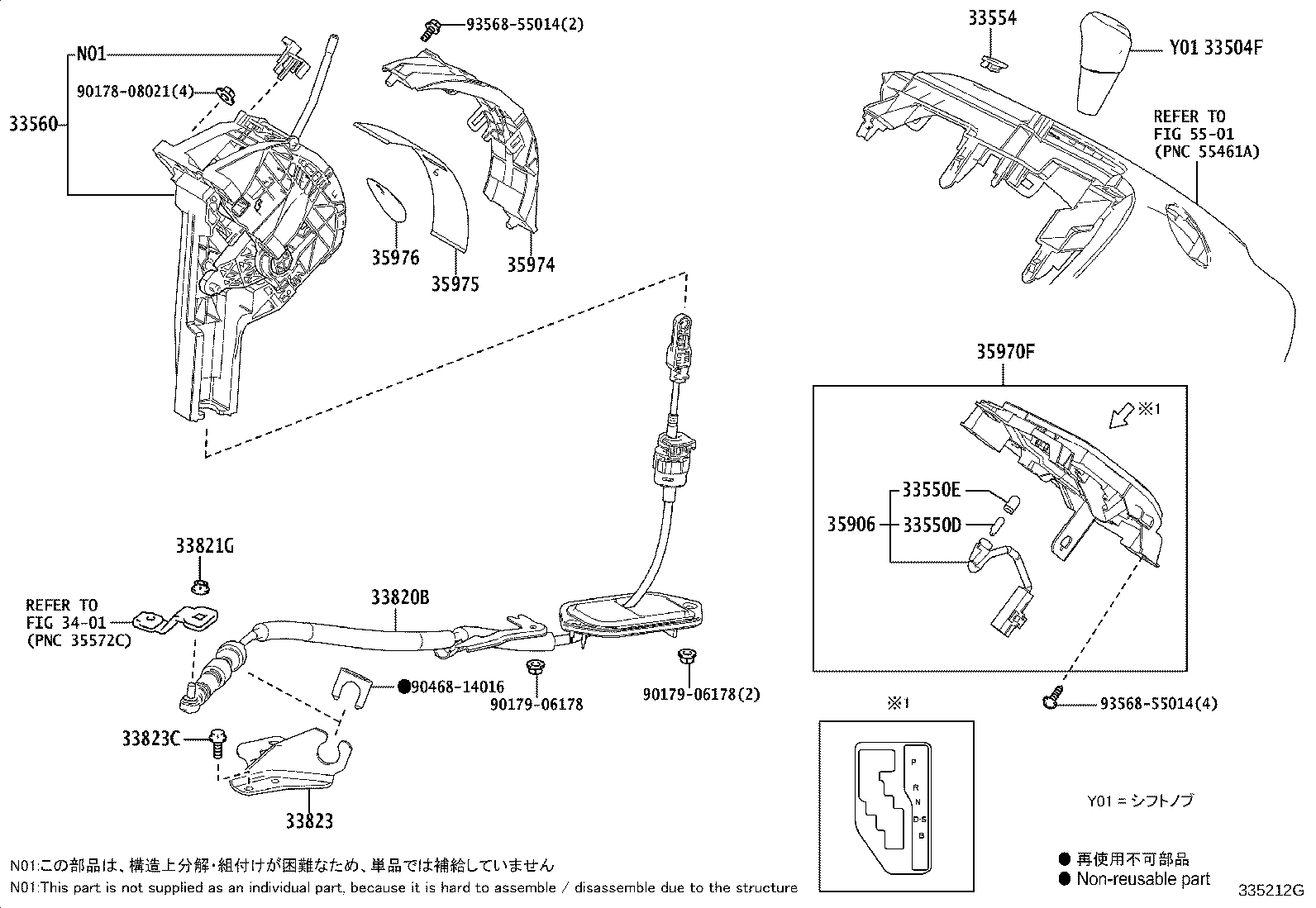

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 33504F — Knob Sub-assy, Shift Lever | ||||
| 33504-52180-C0 note |
Knob Sub-assy, Shift Lever
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# X | ¥2,270 | |
| 33504-52490-C0 note |
Knob Sub-assy, Shift Lever
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# G | ¥4,260 | |
| 33504-52550-C0 note |
Knob Sub-assy, Shift Lever
2017-08 → 2018-09
ended
|
NCP175 G;NHP170,NSP170 07S G | ¥5,100 | |
| 33504-52180-C0 note |
Knob Sub-assy, Shift Lever
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# WKX,X | ¥2,270 | |
| 33504-52180-C0 note |
Knob Sub-assy, Shift Lever
2018-09 → 2022-07
ended
|
NHP170,NSP170 FNBSX | ¥2,270 | |
| 33504-52490-C0 note |
Knob Sub-assy, Shift Lever
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 G | ¥4,260 | |
| 33504-52490-C0 note |
Knob Sub-assy, Shift Lever
2018-09 → 2022-07
ended
|
NSP172 WKG | ¥4,260 | |
| 33504-52490-C0 note |
Knob Sub-assy, Shift Lever
2018-09 → 2022-07
ended
|
NHP170,NSP170 FNBSG | ¥4,260 | |
| 33504-52490-C0 note |
Knob Sub-assy, Shift Lever
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNGCR,GCERO | ¥4,260 | |
| 33550D — Bulb, Position Indicator Lamp | ||||
| 90981-11018 note |
Bulb, Position Indicator Lamp
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥140 | |
| 90981-11018 note |
Bulb, Position Indicator Lamp
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥140 | |
| 33550E — Cap, Position Indicator Lamp | ||||
| 35956-64020 |
Cap, Position Indicator Lamp
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥140 | |
| 35956-64020 |
Cap, Position Indicator Lamp
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥140 | |
| 33554 — Cap, Shift Lever | ||||
| 33554-52160-A0 note |
Cap, Shift Lever
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥120 | |
| 33554-52160-C0 note |
Cap, Shift Lever
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥120 | |
| 33554-52160-A0 note |
Cap, Shift Lever
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# G,WKG,WKX,X | ¥120 | |
| 33554-52160-C0 note |
Cap, Shift Lever
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,G | ¥120 | |
| 33554-52160-C0 note |
Cap, Shift Lever
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# FNBSX,FNGCR,GCERO,WKG,WKX,X | ¥120 | |
| 33560 — Unit Assy, Shift Lock Control | ||||
| 33560-52650 |
Unit Assy, Shift Lock Control
2015-06 → 2018-09
ended
|
NCP175,NSP17# X | ¥20,200 | |
| 33560-52660 |
Unit Assy, Shift Lock Control
2015-06 → 2018-09
ended
|
NCP175,NSP17# G | ¥20,200 | |
| 33560-52660 note |
Unit Assy, Shift Lock Control
2015-06 → 2018-09
ended
|
NSP172 X | ¥20,200 | |
| 33560-52660 note |
Unit Assy, Shift Lock Control
2015-06 → 2018-09
ended
|
NCP175,NSP170 X | ¥20,200 | |
| 33560-52670 |
Unit Assy, Shift Lock Control
2015-07 → 2018-09
ended
|
NHP170 X | ¥20,200 | |
| 33560-52680 |
Unit Assy, Shift Lock Control
2015-07 → 2018-09
ended
|
NHP170 G | ¥20,200 | |
| 33560-52680 note |
Unit Assy, Shift Lock Control
2015-07 → 2018-09
ended
|
NHP170 X | ¥20,200 | |
| 33560-52650 |
Unit Assy, Shift Lock Control
2018-09 → 2022-07
ended
|
NCP175,NSP17# FNBSX,WKX,X | ¥20,200 | |
| 33560-52660 |
Unit Assy, Shift Lock Control
2018-09 → 2022-07
ended
|
NCP175,NSP17# FNBSG,FNGCR,G,GCERO,WKG | ¥20,200 | |
| 33560-52660 note |
Unit Assy, Shift Lock Control
2018-09 → 2022-07
ended
|
NCP175,NSP170 FNBSX,X | ¥20,200 | |
| 33560-52660 note |
Unit Assy, Shift Lock Control
2018-09 → 2022-07
ended
|
NSP172 WKX | ¥20,200 | |
| 33560-52670 |
Unit Assy, Shift Lock Control
2018-09 → 2022-07
ended
|
NHP170 FNBSX,X | ¥20,200 | |
| 33560-52680 |
Unit Assy, Shift Lock Control
2018-09 → 2022-07
ended
|
NHP170 FNBSG,FNGCR,G,GCERO | ¥20,200 | |
| 33560-52680 note |
Unit Assy, Shift Lock Control
2018-09 → 2022-07
ended
|
NHP170 FNBSX,X | ¥20,200 | |
| 33820B — Cable Assy, Transmission Control | ||||
| 33820-52870 |
Cable Assy, Transmission Control
2015-06 → 2018-09
ended
|
NSP17# | ¥8,900 | |
| 33820-52880 |
Cable Assy, Transmission Control
2015-06 → 2018-09
ended
|
NCP175 | ¥11,800 | |
| 33820-52890 |
Cable Assy, Transmission Control
2015-07 → 2018-09
ended
|
NHP170 | ¥11,800 | |
| 33820-52870 |
Cable Assy, Transmission Control
2018-09 → 2022-07
ended
|
NSP17# | ¥8,900 | |
| 33820-52880 |
Cable Assy, Transmission Control
2018-09 → 2022-07
ended
|
NCP175 | ¥11,800 | |
| 33820-52890 |
Cable Assy, Transmission Control
2018-09 → 2022-07
ended
|
NHP170 | ¥11,800 | |
| 33821G — Nut (FOR TRANSMISSION CONTROL CABLE) | ||||
| 94151-80800 |
Nut (FOR TRANSMISSION CONTROL CABLE)
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥80 | |
| 94151-80800 |
Nut (FOR TRANSMISSION CONTROL CABLE)
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥80 | |
| 33823 — Bracket, Transmission Control Cable, NO.1 | ||||
| 33823-52120 |
Bracket, Transmission Control Cable, NO.1
2015-06 → 2018-09
ended
|
NCP175 | ¥660 | |
| 33823-52140 |
Bracket, Transmission Control Cable, NO.1
2015-07 → 2018-09
ended
|
NHP170 | ¥1,390 | |
| 33823-52150 |
Bracket, Transmission Control Cable, NO.1
2015-06 → 2018-09
ended
|
NSP17# | ¥630 | |
| 33823-52120 |
Bracket, Transmission Control Cable, NO.1
2018-09 → 2022-07
ended
|
NCP175 | ¥660 | |
| 33823-52140 |
Bracket, Transmission Control Cable, NO.1
2018-09 → 2022-07
ended
|
NHP170 | ¥1,390 | |
| 33823-52150 |
Bracket, Transmission Control Cable, NO.1
2018-09 → 2022-07
ended
|
NSP17# | ¥630 | |
| 33823C — Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91611-B0816 |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2015-06 → 2018-09
ended
|
NCP175,NSP17# | ¥140 | |
| 91671-80816 |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2015-07 → 2018-09
ended
|
NHP170 | ¥80 | |
| 90119-08079 |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2018-09 → 2022-07
ended
|
NCP175,NSP17# | ¥120 | |
| 91671-80816 |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2018-09 → 2022-07
ended
|
NHP170 | ¥80 | |
| 35906 — Wire Sub-assy, Indicator Lamp | ||||
| 35906-52130 |
Wire Sub-assy, Indicator Lamp
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥480 | |
| 35906-52130 |
Wire Sub-assy, Indicator Lamp
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥480 | |
| 35970F — Housing Assy, Position Indicator | ||||
| 35970-52230-C1 note |
Housing Assy, Position Indicator
2015-06 → 2018-09
ended
|
NCP175,NSP17# X | ¥8,400 | |
| 35970-52240-C1 note |
Housing Assy, Position Indicator
2015-07 → 2018-09
ended
|
NHP170 X | ¥8,400 | |
| 35970-52250-B0 note |
Housing Assy, Position Indicator
2015-06 → 2018-09
ended
|
NCP175,NSP17# G | ¥9,500 | |
| 35970-52260-B0 note |
Housing Assy, Position Indicator
2015-07 → 2018-09
ended
|
NHP170 G | ¥9,500 | |
| 35970-52230-C1 note |
Housing Assy, Position Indicator
2018-09 → 2022-07
ended
|
NSP170 FNBSX | ¥8,400 | |
| 35970-52230-C1 note |
Housing Assy, Position Indicator
2018-09 → 2022-07
ended
|
NCP175,NSP17# WKX,X | ¥8,400 | |
| 35970-52240-C1 note |
Housing Assy, Position Indicator
2018-09 → 2022-07
ended
|
NHP170 X | ¥8,400 | |
| 35970-52240-C1 note |
Housing Assy, Position Indicator
2018-09 → 2022-07
ended
|
NHP170 FNBSX | ¥8,400 | |
| 35970-52250-B0 note |
Housing Assy, Position Indicator
2018-09 → 2022-07
ended
|
NSP172 WKG | ¥9,500 | |
| 35970-52250-B0 note |
Housing Assy, Position Indicator
2018-09 → 2022-07
ended
|
NSP170 FNBSG | ¥9,500 | |
| 35970-52250-B0 note |
Housing Assy, Position Indicator
2018-09 → 2022-07
ended
|
NCP175,NSP170 G | ¥9,500 | |
| 35970-52250-B0 note |
Housing Assy, Position Indicator
2018-09 → 2022-07
ended
|
NCP175,NSP170 FNGCR,GCERO | ¥9,500 | |
| 35970-52260-B0 note |
Housing Assy, Position Indicator
2018-09 → 2022-07
ended
|
NHP170 G | ¥9,500 | |
| 35970-52260-B0 note |
Housing Assy, Position Indicator
2018-09 → 2022-07
ended
|
NHP170 FNGCR,GCERO | ¥9,500 | |
| 35970-52260-B0 note |
Housing Assy, Position Indicator
2018-09 → 2022-07
ended
|
NHP170 FNBSG | ¥9,500 | |
| 35974 — Housing, Position Indicator, Lower | ||||
| 35974-52160 |
Housing, Position Indicator, Lower
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥3,280 | |
| 35974-52160 |
Housing, Position Indicator, Lower
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥3,280 | |
| 35975 — Cover, Slide (FOR POSITION INDICATOR) | ||||
| 35975-52120 |
Cover, Slide (FOR POSITION INDICATOR)
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥580 | |
| 35975-52120 |
Cover, Slide (FOR POSITION INDICATOR)
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥580 | |
| 35976 — Cover, Slide, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-48050 |
Cover, Slide, NO.2 (FOR POSITION INDICATOR)
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥390 | |
| 35976-48050 |
Cover, Slide, NO.2 (FOR POSITION INDICATOR)
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥390 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
