Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

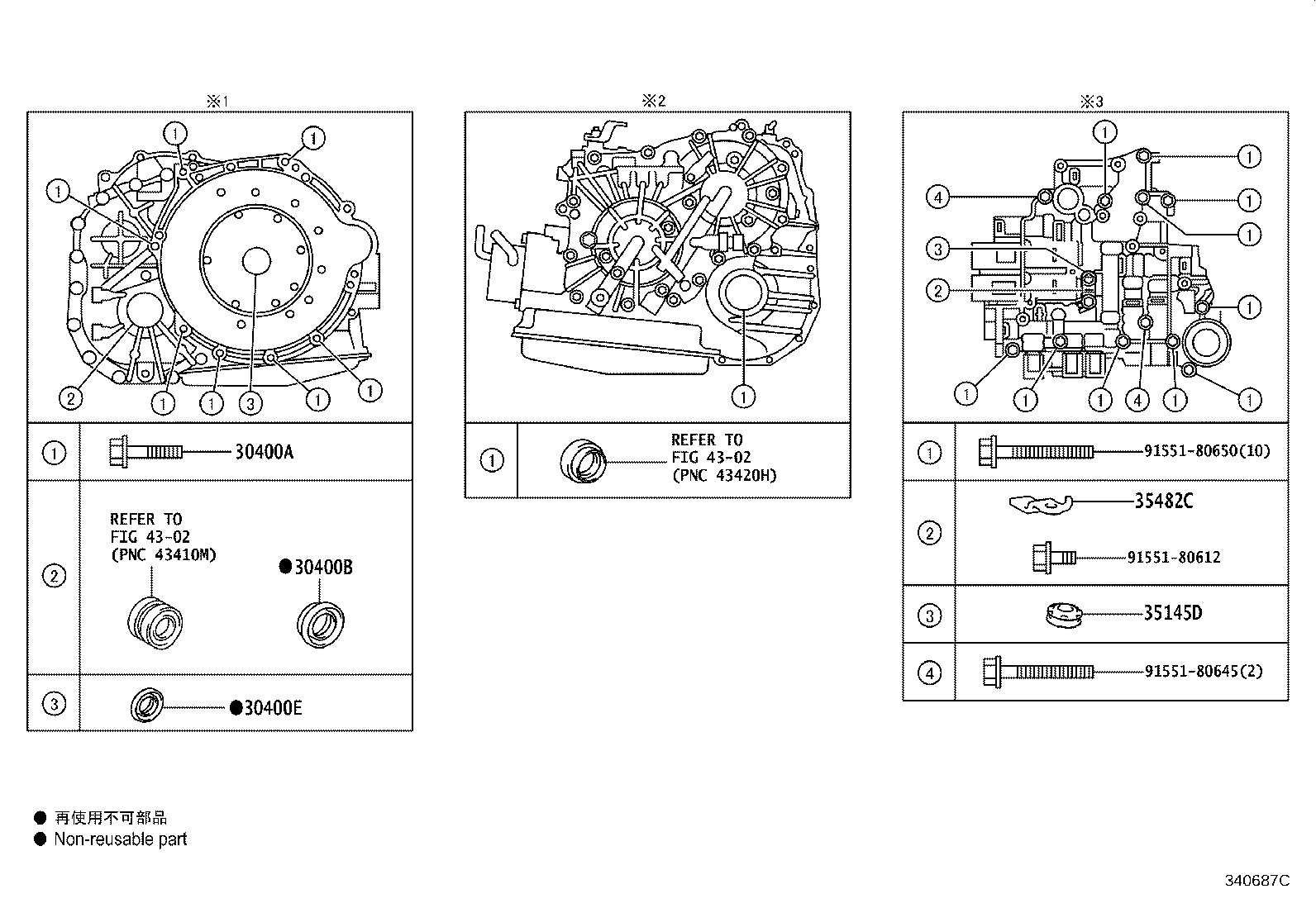

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 30400A — Bolt(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 91552-81245 |
Bolt(FOR TRANSAXLE & ENGINE SETTING)
2015-06 → 2018-09
ended
|
NSP17# | ¥190 | |
| 91612-61045 |
Bolt(FOR TRANSAXLE & ENGINE SETTING)
2015-06 → 2018-09
ended
|
NCP175 | ¥120 | |
| 91552-81245 |
Bolt(FOR TRANSAXLE & ENGINE SETTING)
2018-09 → 2022-07
ended
|
NSP17# | ¥190 | |
| 91612-61045 |
Bolt(FOR TRANSAXLE & ENGINE SETTING)
2018-09 → 2022-07
ended
|
NCP175 | ¥120 | |
| 30400B — Seal, Type T Oil, NO.1(FOR CVT) | ||||
| 90311-49002 |
Seal, Type T Oil, NO.1(FOR CVT)
2015-06 → 2018-09
ended
|
NCP175 | ¥310 | |
| 90311-49002 |
Seal, Type T Oil, NO.1(FOR CVT)
2018-09 → 2022-07
ended
|
NCP175 | ¥310 | |
| 30400E — Seal, Type T Oil(FOR CVT OIL PUMP) | ||||
| 90311-45027 |
Seal, Type T Oil(FOR CVT OIL PUMP)
2015-06 → 2018-09
ended
|
NCP175,NSP17# | ¥470 | |
| 90311-45027 |
Seal, Type T Oil(FOR CVT OIL PUMP)
2018-09 → 2022-07
ended
|
NCP175,NSP17# | ¥470 | |
| 35145D — Gasket, Transaxle Case | ||||
| 35145-33010 |
Gasket, Transaxle Case
2015-06 → 2018-08
ended
|
NCP175,NSP17# | ¥360 | |
| 35145-33010 |
Gasket, Transaxle Case
2018-09 → 2022-07
ended
|
NCP175,NSP17# | ¥360 | |
| 35482C — Clamp, Temperature Sensor | ||||
| 35482-12010 |
Clamp, Temperature Sensor
2015-06 → 2018-08
ended
|
NCP175 | ¥170 | |
| 35482-73010 |
Clamp, Temperature Sensor
2015-06 → 2018-08
ended
|
NSP17# | ¥170 | |
| 35482-12010 |
Clamp, Temperature Sensor
2018-09 → 2022-07
ended
|
NCP175 | ¥170 | |
| 35482-73010 |
Clamp, Temperature Sensor
2018-09 → 2022-07
ended
|
NSP17# | ¥170 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
