Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

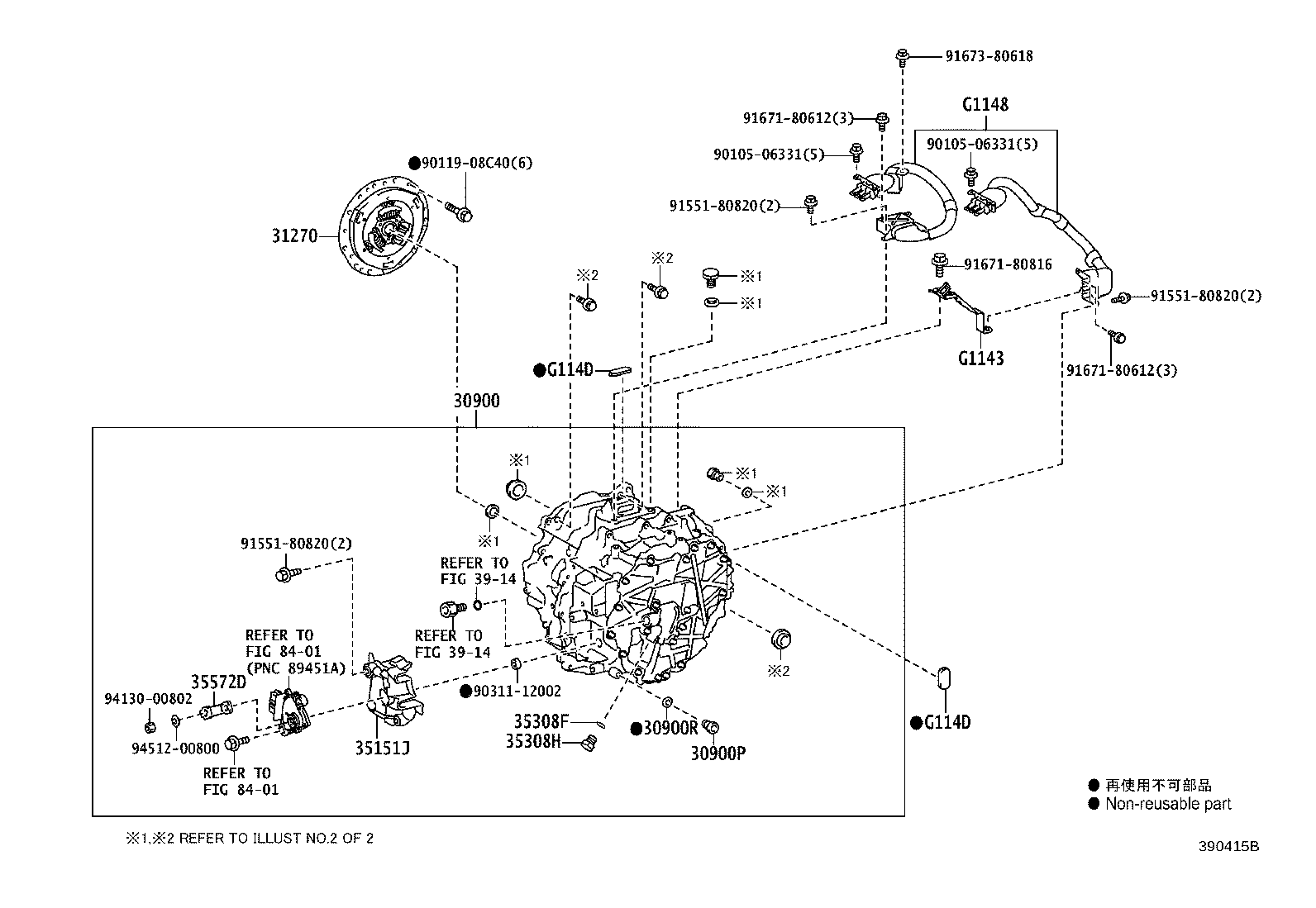

Exploded illustration 390415B 9155180820 — not listed in this catalogue 9010506331 — not listed in this catalogue 9010506331 — not listed in this catalogue 9011908C40 — not listed in this catalogue 9155180820 — not listed in this catalogue 9167180816 — not listed in this catalogue 9451200800 — not listed in this catalogue 9413000802 — not listed in this catalogue 9031112002 — not listed in this catalogue 9167180612 — not listed in this catalogue 9167380618 — not listed in this catalogue G114D — CAP, MOTOR CABLE TERMINAL (2 parts) G1148 — CABLE, MOTOR (2 parts) 9155180820 — not listed in this catalogue 9167180612 — not listed in this catalogue 31270 — DAMPER ASSY, TRANSMISSION INPUT (2 parts) 35151J — COVER, AUTOMATIC TRANSMISSION CASE (2 parts) G1143 — BRACKET, MOTOR CABLE (2 parts) 35572D — LEVER, TRANSMISSION CONTROL SHAFT (2 parts) 30900P — PLUG, DRAIN(HEV) (2 parts) 30900 — TRANSAXLE ASSY, HYBRID VEHICLE (2 parts) 30900R — GASKET, DRAIN PLUG(HEV) (2 parts) 8401 — not listed in this catalogue 8401 — not listed in this catalogue G114D — CAP, MOTOR CABLE TERMINAL (2 parts) 35308H — PLUG (FOR TRANSMISSION OIL PUMP COVER) (2 parts) 35308F — RING, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER) (2 parts) 3914 — not listed in this catalogue 3914 — not listed in this catalogue
390415B · 12 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
22 parts on this figure
Part number Description Fitment Price
30900 — Transaxle Assy, Hybrid Vehicle
30900-52020 Transaxle Assy, Hybrid Vehicle
2015-07 → 2018-09 ended
NHP170 ¥255,000
30900-52020 Transaxle Assy, Hybrid Vehicle
2018-09 → 2022-07 ended
NHP170 ¥255,000
30900P — Plug, Drain(HEV)
90341-18016 Plug, Drain(HEV)
2015-07 → 2018-09 ended
NHP170 ¥190
90341-18016 Plug, Drain(HEV)
2018-09 → 2022-07 ended
NHP170 ¥190
30900R — Gasket, Drain Plug(HEV)
90430-18008 Gasket, Drain Plug(HEV)
2015-07 → 2018-09 ended
NHP170 ¥110
90430-18008 Gasket, Drain Plug(HEV)
2018-09 → 2022-07 ended
NHP170 ¥110
31270 — Damper Assy, Transmission Input
31270-52010 Damper Assy, Transmission Input
2015-07 → 2018-09 ended
NHP170 ¥22,100
31270-52010 Damper Assy, Transmission Input
2018-09 → 2022-07 ended
NHP170 ¥22,100
35151J — Cover, Automatic Transmission Case
35151-52010 Cover, Automatic Transmission Case
2015-07 → 2018-09 ended
NHP170 ¥2,890
35151-52010 Cover, Automatic Transmission Case
2018-09 → 2022-07 ended
NHP170 ¥2,890
35308F — Ring, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER)
90301-06196 Ring, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER)
2015-07 → 2018-09 ended
NHP170 ¥170
90301-06196 Ring, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER)
2018-09 → 2022-07 ended
NHP170 ¥170
35308H — Plug (FOR TRANSMISSION OIL PUMP COVER)
90341-08001 Plug (FOR TRANSMISSION OIL PUMP COVER)
2015-07 → 2018-09 ended
NHP170 ¥120
90341-08001 Plug (FOR TRANSMISSION OIL PUMP COVER)
2018-09 → 2022-07 ended
NHP170 ¥120
35572D — Lever, Transmission Control Shaft
35572-52090 Lever, Transmission Control Shaft
2015-07 → 2018-09 ended
NHP170 ¥530
35572-52090 Lever, Transmission Control Shaft
2018-09 → 2022-07 ended
NHP170 ¥530
G1143 — Bracket, Motor Cable
G1143-52030 Bracket, Motor Cable
2015-07 → 2018-09 ended
NHP170 ¥400
G1143-52030 Bracket, Motor Cable
2018-09 → 2022-07 ended
NHP170 ¥400
G1148 — Cable, Motor
G1148-52010 Cable, Motor
2015-07 → 2018-09 ended
NHP170 ¥20,000
G1148-52010 Cable, Motor
2018-09 → 2022-07 ended
NHP170 ¥20,000
G114D — Cap, Motor Cable Terminal
G114D-47021 Cap, Motor Cable Terminal
2015-07 → 2018-09 ended
NHP170 ¥280
G114D-47021 Cap, Motor Cable Terminal
2018-09 → 2022-07 ended
NHP170 ¥280
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
