Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

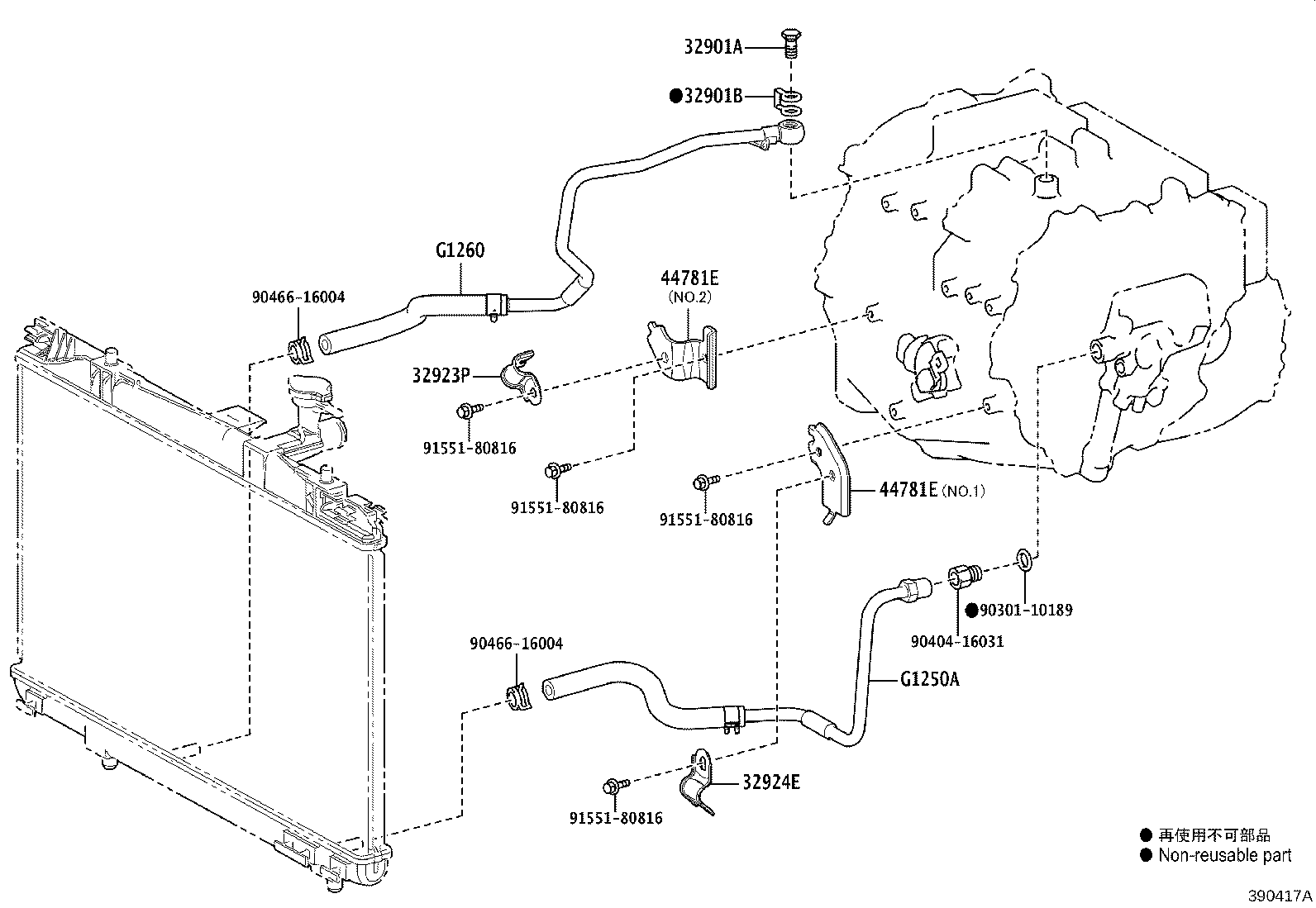

Exploded illustration 390417A 32901B — GASKET(FOR OIL COOLER UNION) (2 parts) 44781E — BRACKET, HOSE (4 parts) 44781E — BRACKET, HOSE (4 parts) 32901A — BOLT, UNION(FOR OIL COOLER) (2 parts) 32923P — CLAMP, OIL COOLER TUBE, NO.1 (2 parts) 32924E — CLAMP, OIL COOLER TUBE, NO.2 (2 parts) G1250A — PIPE ASSY, MOTOR COOLING (2 parts) G1260 — PIPE ASSY, MOTOR COOLING, NO.2 (2 parts) 9155180816 — not listed in this catalogue 9046616004 — not listed in this catalogue 9046616004 — not listed in this catalogue 9155180816 — not listed in this catalogue 9155180816 — not listed in this catalogue 9155180816 — not listed in this catalogue 9040416031 — not listed in this catalogue 9030110189 — not listed in this catalogue
390417A · 8 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
16 parts on this figure
Part number Description Fitment Price
32901A — Bolt, Union(FOR OIL COOLER)
90401-12039 Bolt, Union(FOR OIL COOLER)
2015-07 → 2018-09 ended
NHP170 ¥390
90401-12039 Bolt, Union(FOR OIL COOLER)
2018-09 → 2022-07 ended
NHP170 ¥390
32901B — Gasket(FOR OIL COOLER UNION)
90430-12037 Gasket(FOR OIL COOLER UNION)
2015-07 → 2018-09 ended
NHP170 ¥80
90430-12037 Gasket(FOR OIL COOLER UNION)
2018-09 → 2022-07 ended
NHP170 ¥80
32923P — Clamp, Oil Cooler Tube, NO.1
32923-52040 Clamp, Oil Cooler Tube, NO.1
2015-07 → 2018-09 ended
NHP170 ¥200
32923-52040 Clamp, Oil Cooler Tube, NO.1
2018-09 → 2022-07 ended
NHP170 ¥200
32924E — Clamp, Oil Cooler Tube, NO.2
32924-52040 Clamp, Oil Cooler Tube, NO.2
2015-07 → 2018-09 ended
NHP170 ¥200
32924-52040 Clamp, Oil Cooler Tube, NO.2
2018-09 → 2022-07 ended
NHP170 ¥200
44781E — Bracket, Hose
44781-52050 note Bracket, Hose
2015-07 → 2018-09 ended
NHP170 ¥320
44781-52060 note Bracket, Hose
2015-07 → 2018-09 ended
NHP170 ¥440
44781-52050 note Bracket, Hose
2018-09 → 2022-07 ended
NHP170 ¥320
44781-52060 note Bracket, Hose
2018-09 → 2022-07 ended
NHP170 ¥440
G1250A — Pipe Assy, Motor Cooling
G1250-52020 Pipe Assy, Motor Cooling
2015-07 → 2018-09 ended
NHP170 ¥3,180
G1250-52020 Pipe Assy, Motor Cooling
2018-09 → 2022-07 ended
NHP170 ¥3,180
G1260 — Pipe Assy, Motor Cooling, NO.2
G1260-52010 Pipe Assy, Motor Cooling, NO.2
2015-07 → 2018-09 ended
NHP170 ¥4,080
G1260-52010 Pipe Assy, Motor Cooling, NO.2
2018-09 → 2022-07 ended
NHP170 ¥4,080
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
