Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

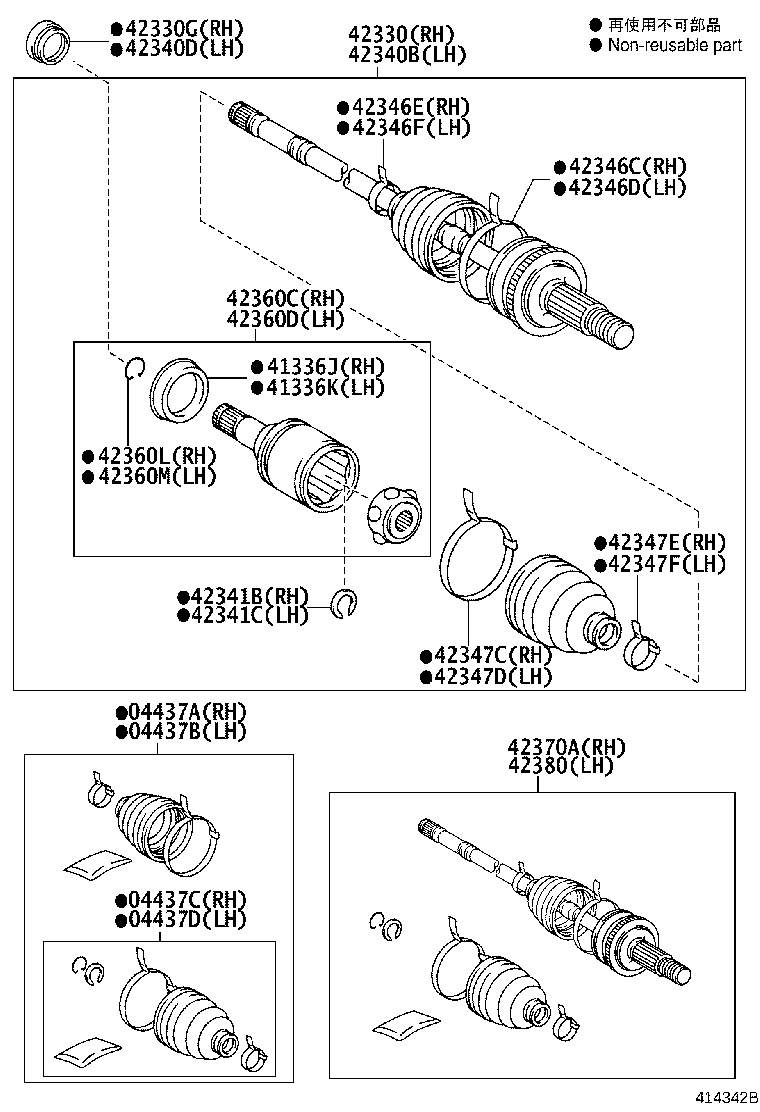

Exploded illustration 414342B 42340B — SHAFT ASSY, REAR DRIVE, LH (2 parts) 42380 — SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH (4 parts) 42330 — SHAFT ASSY, REAR DRIVE, RH (2 parts) 42370A — SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH (4 parts) 04437D — BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, LH (4 parts) 04437C — BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, RH (4 parts) 04437B — BOOT KIT, REAR DRIVE SHAFT, LH (4 parts) 04437A — BOOT KIT, REAR DRIVE SHAFT, RH (4 parts) 42340D — OIL SEAL, REAR DRIVE SHAFT, LH (2 parts) 42330G — OIL SEAL, REAR DRIVE SHAFT, RH (2 parts) 42346D — CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH) (2 parts) 42346C — CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH) (2 parts) 42346F — CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH) (2 parts) 42346E — CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH) (2 parts) 42347F — CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH (2 parts) 42347E — CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH) (2 parts) 42347D — CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH) (2 parts) 42347C — CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH) (2 parts) 42341C — RING, SNAP (FOR REAR DRIVE SHAFT LH) (2 parts) 42341B — RING, SNAP (FOR REAR DRIVE SHAFT RH) (2 parts) 42360D — JOINT ASSY, REAR DRIVE SHAFT INBOARD, LH (2 parts) 42360C — JOINT ASSY, REAR DRIVE SHAFT INBOARD, RH (2 parts) 41336K — COVER, REAR DRIVE SHAFT DUST, LH (2 parts) 41336J — COVER, REAR DRIVE SHAFT DUST, RH (2 parts) 42360M — RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH) (2 parts) 42360L — RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH) (2 parts)
414342B · 26 callouts Full size ↗
64 parts on this figure
Part number Description Fitment Price
04437A — Boot Kit, Rear Drive Shaft, RH
04429-52060 Boot Kit, Rear Drive Shaft, RH
2015-06 → 2017-11 ended
NCP175 ¥9,000
04429-52061 Boot Kit, Rear Drive Shaft, RH
2017-11 → 2018-09 ended
NCP175 ¥9,000
04429-52061 Boot Kit, Rear Drive Shaft, RH
2018-09 → 2019-09 ended
NCP175 ¥9,000
04429-52064 Boot Kit, Rear Drive Shaft, RH
2019-09 → 2022-07 ended
NCP175 ¥7,500
04437B — Boot Kit, Rear Drive Shaft, LH
04429-52060 Boot Kit, Rear Drive Shaft, LH
2015-06 → 2017-11 ended
NCP175 ¥9,000
04429-52061 Boot Kit, Rear Drive Shaft, LH
2017-11 → 2018-09 ended
NCP175 ¥9,000
04429-52061 Boot Kit, Rear Drive Shaft, LH
2018-09 → 2019-09 ended
NCP175 ¥9,000
04429-52064 Boot Kit, Rear Drive Shaft, LH
2019-09 → 2022-07 ended
NCP175 ¥7,500
04437C — Boot Kit, Rear Drive Shaft Inboard Joint, RH
04439-52051 Boot Kit, Rear Drive Shaft Inboard Joint, RH
2015-06 → 2017-11 ended
NCP175 ¥5,500
04439-52052 Boot Kit, Rear Drive Shaft Inboard Joint, RH
2017-11 → 2018-09 ended
NCP175 ¥5,500
04439-52052 Boot Kit, Rear Drive Shaft Inboard Joint, RH
2018-09 → 2019-09 ended
NCP175 ¥5,500
04439-52053 Boot Kit, Rear Drive Shaft Inboard Joint, RH
2019-09 → 2022-07 ended
NCP175 ¥4,150
04437D — Boot Kit, Rear Drive Shaft Inboard Joint, LH
04439-52051 Boot Kit, Rear Drive Shaft Inboard Joint, LH
2015-06 → 2017-11 ended
NCP175 ¥5,500
04439-52052 Boot Kit, Rear Drive Shaft Inboard Joint, LH
2017-11 → 2018-09 ended
NCP175 ¥5,500
04439-52052 Boot Kit, Rear Drive Shaft Inboard Joint, LH
2018-09 → 2019-09 ended
NCP175 ¥5,500
04439-52053 Boot Kit, Rear Drive Shaft Inboard Joint, LH
2019-09 → 2022-07 ended
NCP175 ¥4,150
41336J — Cover, Rear Drive Shaft Dust, RH
41336-28050 Cover, Rear Drive Shaft Dust, RH
2015-06 → 2018-09 ended
NCP175 ¥200
41336-28050 Cover, Rear Drive Shaft Dust, RH
2018-09 → 2022-07 ended
NCP175 ¥200
41336K — Cover, Rear Drive Shaft Dust, LH
41336-28050 Cover, Rear Drive Shaft Dust, LH
2015-06 → 2018-09 ended
NCP175 ¥200
41336-28050 Cover, Rear Drive Shaft Dust, LH
2018-09 → 2022-07 ended
NCP175 ¥200
42330 — Shaft Assy, Rear Drive, RH
42340-52040 Shaft Assy, Rear Drive, RH
2015-06 → 2018-09 ended
NCP175 ¥42,800
42340-52040 Shaft Assy, Rear Drive, RH
2018-09 → 2022-07 ended
NCP175 ¥42,800
42330G — Oil Seal, Rear Drive Shaft, RH
90311-37004 Oil Seal, Rear Drive Shaft, RH
2015-06 → 2018-09 ended
NCP175 ¥350
90311-37004 Oil Seal, Rear Drive Shaft, RH
2018-09 → 2022-07 ended
NCP175 ¥350
42340B — Shaft Assy, Rear Drive, LH
42340-52040 Shaft Assy, Rear Drive, LH
2015-06 → 2018-09 ended
NCP175 ¥42,800
42340-52040 Shaft Assy, Rear Drive, LH
2018-09 → 2022-07 ended
NCP175 ¥42,800
42340D — Oil Seal, Rear Drive Shaft, LH
90311-37004 Oil Seal, Rear Drive Shaft, LH
2015-06 → 2018-09 ended
NCP175 ¥350
90311-37004 Oil Seal, Rear Drive Shaft, LH
2018-09 → 2022-07 ended
NCP175 ¥350
42341B — Ring, Snap (FOR REAR DRIVE SHAFT RH)
43425-48040 Ring, Snap (FOR REAR DRIVE SHAFT RH)
2015-06 → 2018-09 ended
NCP175 ¥40
43425-48040 Ring, Snap (FOR REAR DRIVE SHAFT RH)
2018-09 → 2022-07 ended
NCP175 ¥40
42341C — Ring, Snap (FOR REAR DRIVE SHAFT LH)
43425-48040 Ring, Snap (FOR REAR DRIVE SHAFT LH)
2015-06 → 2018-09 ended
NCP175 ¥40
43425-48040 Ring, Snap (FOR REAR DRIVE SHAFT LH)
2018-09 → 2022-07 ended
NCP175 ¥40
42346C — Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
42345-12120 note Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
2015-06 → 2018-09 ended
NCP175 ¥220
42345-12120 note Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
2018-09 → 2022-07 ended
NCP175 ¥220
42346D — Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
42345-12120 note Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
2015-06 → 2018-09 ended
NCP175 ¥220
42345-12120 note Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
2018-09 → 2022-07 ended
NCP175 ¥220
42346E — Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
42345-12130 Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
2015-06 → 2018-09 ended
NCP175 ¥160
42345-12130 Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
2018-09 → 2022-07 ended
NCP175 ¥160
42346F — Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
42345-12130 Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
2015-06 → 2018-09 ended
NCP175 ¥160
42345-12130 Clamp, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
2018-09 → 2022-07 ended
NCP175 ¥160
42347C — Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42345-12120 note Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
2015-06 → 2018-09 ended
NCP175 ¥220
42345-12120 note Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
2018-09 → 2022-07 ended
NCP175 ¥220
42347D — Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
42345-12120 note Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
2015-06 → 2018-09 ended
NCP175 ¥220
42345-12120 note Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
2018-09 → 2022-07 ended
NCP175 ¥220
42347E — Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42345-12130 Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
2015-06 → 2018-09 ended
NCP175 ¥160
42345-12130 Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
2018-09 → 2022-07 ended
NCP175 ¥160
42347F — Clamp, NO.2 (For Rear Drive Shaft Inboard Joint Boot LH
42345-12130 Clamp, NO.2 (For Rear Drive Shaft Inboard Joint Boot LH
2015-06 → 2018-09 ended
NCP175 ¥160
42345-12130 Clamp, NO.2 (For Rear Drive Shaft Inboard Joint Boot LH
2018-09 → 2022-07 ended
NCP175 ¥160
42360C — Joint Assy, Rear Drive Shaft Inboard, RH
42360-52010 Joint Assy, Rear Drive Shaft Inboard, RH
2015-06 → 2018-09 ended
NCP175 ¥9,100
42360-52010 Joint Assy, Rear Drive Shaft Inboard, RH
2018-09 → 2022-07 ended
NCP175 ¥9,100
42360D — Joint Assy, Rear Drive Shaft Inboard, LH
42360-52010 Joint Assy, Rear Drive Shaft Inboard, LH
2015-06 → 2018-09 ended
NCP175 ¥9,100
42360-52010 Joint Assy, Rear Drive Shaft Inboard, LH
2018-09 → 2022-07 ended
NCP175 ¥9,100
42360L — Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT RH)
90520-19018 Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT RH)
2015-06 → 2018-09 ended
NCP175 ¥70
90520-19018 Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT RH)
2018-09 → 2022-07 ended
NCP175 ¥70
42360M — Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT LH)
90520-19018 Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT LH)
2015-06 → 2018-09 ended
NCP175 ¥70
90520-19018 Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT LH)
2018-09 → 2022-07 ended
NCP175 ¥70
42370A — Shaft Assy, Rear Drive Outboard Joint, RH
42370-59185 Shaft Assy, Rear Drive Outboard Joint, RH
2015-06 → 2017-11 ended
NCP175 ¥44,300
42370-59186 Shaft Assy, Rear Drive Outboard Joint, RH
2017-11 → 2018-09 ended
NCP175 ¥44,300
42370-59186 Shaft Assy, Rear Drive Outboard Joint, RH
2018-09 → 2019-10 ended
NCP175 ¥44,300
42370-59187 Shaft Assy, Rear Drive Outboard Joint, RH
2019-10 → 2022-07 ended
NCP175 ¥36,900
42380 — Shaft Assy, Rear Drive Outboard Joint, LH
42370-59185 Shaft Assy, Rear Drive Outboard Joint, LH
2015-06 → 2017-11 ended
NCP175 ¥44,300
42370-59186 Shaft Assy, Rear Drive Outboard Joint, LH
2017-11 → 2018-09 ended
NCP175 ¥44,300
42370-59186 Shaft Assy, Rear Drive Outboard Joint, LH
2018-09 → 2019-10 ended
NCP175 ¥44,300
42370-59187 Shaft Assy, Rear Drive Outboard Joint, LH
2019-10 → 2022-07 ended
NCP175 ¥36,900
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
