Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

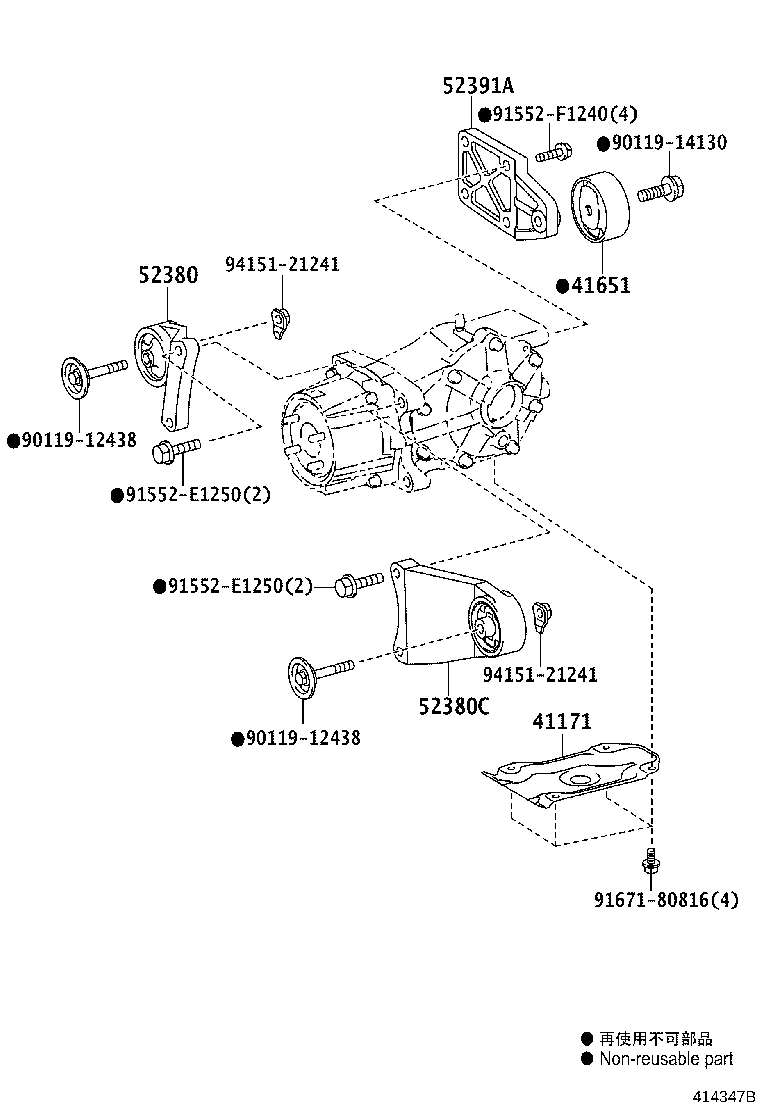

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 41171 — Protector, Differential, Rear | ||||
| 41171-52010 |
Protector, Differential, Rear
2015-06 → 2018-09
ended
|
NCP175 | ¥1,400 | |
| 41171-52010 |
Protector, Differential, Rear
2018-09 → 2022-07
ended
|
NCP175 | ¥1,400 | |
| 41651 — Cushion, Rear Differential Mount, NO.1 | ||||
| 41651-42130 |
Cushion, Rear Differential Mount, NO.1
2015-06 → 2018-09
ended
|
NCP175 | ¥1,670 | |
| 41651-42130 |
Cushion, Rear Differential Mount, NO.1
2018-09 → 2022-07
ended
|
NCP175 | ¥1,670 | |
| 52380 — Support, Rear Differential, NO.1 | ||||
| 52380-52030 |
Support, Rear Differential, NO.1
2015-06 → 2018-09
ended
|
NCP175 | ¥4,640 | |
| 52380-52030 |
Support, Rear Differential, NO.1
2018-09 → 2022-07
ended
|
NCP175 | ¥4,640 | |
| 52380C — Support, Rear Differential, NO.2 | ||||
| 52380-52040 |
Support, Rear Differential, NO.2
2015-06 → 2018-09
ended
|
NCP175 | ¥5,500 | |
| 52380-52040 |
Support, Rear Differential, NO.2
2018-09 → 2022-07
ended
|
NCP175 | ¥5,500 | |
| 52391A — Support, Rear Differential | ||||
| 52391-52050 |
Support, Rear Differential
2015-06 → 2018-09
ended
|
NCP175 | ¥5,900 | |
| 52391-52050 |
Support, Rear Differential
2018-09 → 2022-07
ended
|
NCP175 | ¥5,900 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
