Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

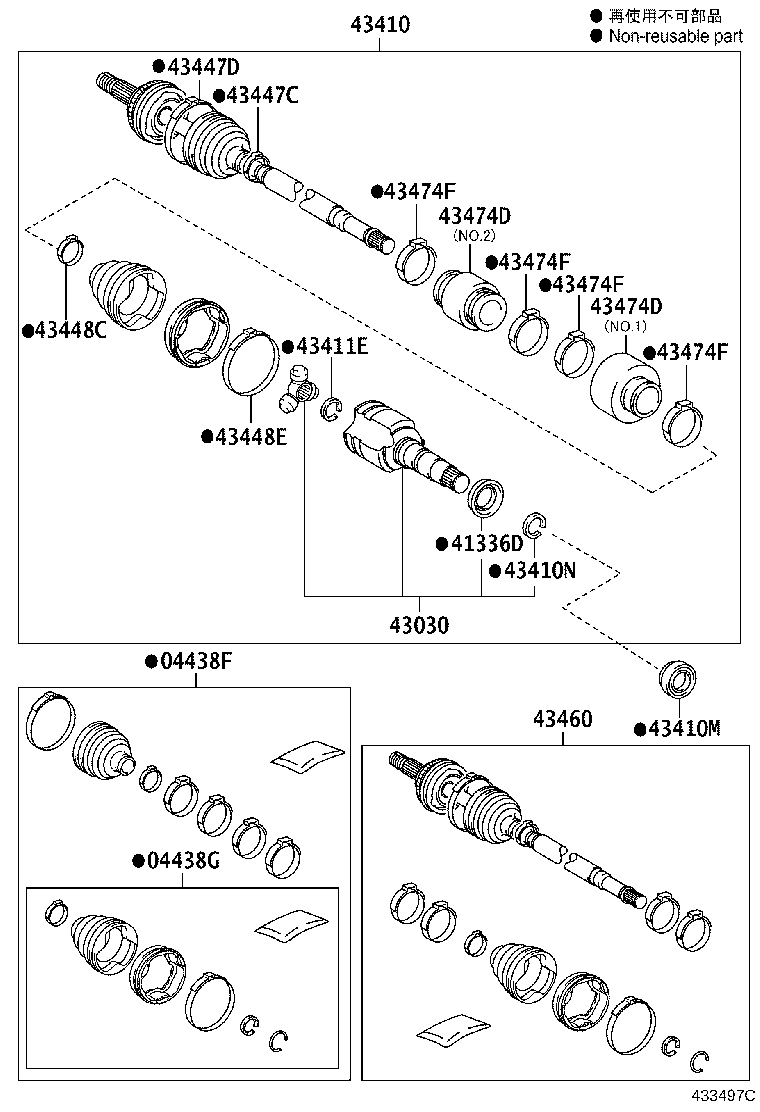

Exploded illustration 433497C 43410 — SHAFT ASSY, FRONT DRIVE, RH (6 parts) 41336D — COVER, FRONT DRIVE SHAFT DUST, RH (6 parts) 43410N — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) (6 parts) 43410M — OIL SEAL, FRONT DRIVE SHAFT, RH (7 parts) 43030 — JOINT ASSY, FRONT DRIVE INBOARD, RH (6 parts) 43447C — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (2 parts) 43447D — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (2 parts) 43448E — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) (2 parts) 43411E — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) (2 parts) 43448C — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) (2 parts) 43460 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH (9 parts) 04438F — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH (6 parts) 04438G — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH (9 parts) 43474D — DAMPER, FRONT DRIVE SHAFT, RH (8 parts) 43474F — CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) (4 parts) 43474F — CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) (4 parts) 43474F — CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) (4 parts) 43474F — CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) (4 parts) 43474D — DAMPER, FRONT DRIVE SHAFT, RH (8 parts)
433497C · 19 callouts Full size ↗
77 parts on this figure
Part number Description Fitment Price
04438F — Boot Kit, Front Drive Shaft, IN & Outboard, RH
04427-12761 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2015-06 → 2015-08 ended
NCP175 ¥12,400
04427-12763 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2015-09 → 2018-09 ended
NCP175 ¥8,600
04427-52A40 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2015-06 → 2015-08 ended
NSP17# ¥10,800
04427-52A41 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2015-09 → 2018-09 ended
NSP17# ¥7,500
04427-12763 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2018-09 → 2022-07 ended
NCP175 ¥8,600
04427-52A41 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2018-09 → 2022-07 ended
NSP17# ¥7,500
04438G — Boot Kit, Front Drive Shaft Inboard Joint, RH
04437-12371 Boot Kit, Front Drive Shaft Inboard Joint, RH
2015-06 → 2015-08 ended
NSP17# ¥8,200
04437-12372 Boot Kit, Front Drive Shaft Inboard Joint, RH
2015-09 → 2018-09 ended
NSP17# ¥5,700
04437-12410 Boot Kit, Front Drive Shaft Inboard Joint, RH
2015-06 → 2015-08 ended
NCP175 ¥6,700
04437-12411 Boot Kit, Front Drive Shaft Inboard Joint, RH
2015-09 → 2018-09 ended
NCP175 ¥4,150
04438-12A00 Boot Kit, Front Drive Shaft Inboard Joint, RH
2015-07 → 2015-08 ended
NHP170 ¥6,700
04438-12A01 Boot Kit, Front Drive Shaft Inboard Joint, RH
2015-09 → 2018-09 ended
NHP170 ¥4,150
04437-12372 Boot Kit, Front Drive Shaft Inboard Joint, RH
2018-09 → 2022-07 ended
NSP17# ¥5,700
04437-12411 Boot Kit, Front Drive Shaft Inboard Joint, RH
2018-09 → 2022-07 ended
NCP175 ¥4,150
04438-12A01 Boot Kit, Front Drive Shaft Inboard Joint, RH
2018-09 → 2022-07 ended
NHP170 ¥4,150
41336D — Cover, Front Drive Shaft Dust, RH
41336-12010 Cover, Front Drive Shaft Dust, RH
2015-06 → 2018-09 ended
NSP17# ¥130
41336-12060 Cover, Front Drive Shaft Dust, RH
2015-07 → 2018-09 ended
NHP170 ¥200
41336-52020 Cover, Front Drive Shaft Dust, RH
2015-06 → 2018-09 ended
NCP175 ¥250
41336-12010 Cover, Front Drive Shaft Dust, RH
2018-09 → 2022-07 ended
NSP17# ¥130
41336-12060 Cover, Front Drive Shaft Dust, RH
2018-09 → 2022-07 ended
NHP170 ¥200
41336-52020 Cover, Front Drive Shaft Dust, RH
2018-09 → 2022-07 ended
NCP175 ¥250
43030 — Joint Assy, Front Drive Inboard, RH
43030-12131 Joint Assy, Front Drive Inboard, RH
2015-06 → 2018-09 ended
NCP175 ¥20,600
43030-52080 Joint Assy, Front Drive Inboard, RH
2015-07 → 2018-09 ended
NHP170 ¥11,900
43040-12150 Joint Assy, Front Drive Inboard, RH
2015-06 → 2018-09 ended
NSP17# ¥14,300
43030-12131 Joint Assy, Front Drive Inboard, RH
2018-09 → 2022-07 ended
NCP175 ¥20,600
43030-52080 Joint Assy, Front Drive Inboard, RH
2018-09 → 2022-07 ended
NHP170 ¥11,900
43040-12150 Joint Assy, Front Drive Inboard, RH
2018-09 → 2022-07 ended
NSP17# ¥14,300
43410 — Shaft Assy, Front Drive, RH
43410-52310 Shaft Assy, Front Drive, RH
2015-06 → 2018-09 ended
NCP175 ¥57,400
43410-52390 Shaft Assy, Front Drive, RH
2015-06 → 2018-09 ended
NSP17# ¥57,400
43410-52400 Shaft Assy, Front Drive, RH
2015-07 → 2018-09 ended
NHP170 ¥52,100
43410-52310 Shaft Assy, Front Drive, RH
2018-09 → 2022-07 ended
NCP175 ¥57,400
43410-52390 Shaft Assy, Front Drive, RH
2018-09 → 2022-07 ended
NSP17# ¥57,400
43410-52400 Shaft Assy, Front Drive, RH
2018-09 → 2022-07 ended
NHP170 ¥52,100
43410M — Oil Seal, Front Drive Shaft, RH
90311-34046 Oil Seal, Front Drive Shaft, RH
2015-06 → 2018-08 ended
NSP17# ¥400
90311-34050 Oil Seal, Front Drive Shaft, RH
2018-08 → 2018-09 ended
NSP17# ¥400
90311-35065 Oil Seal, Front Drive Shaft, RH
2015-07 → 2018-09 ended
NHP170 ¥270
90316-28003 Oil Seal, Front Drive Shaft, RH
2015-06 → 2018-09 ended
NCP175 ¥450
90311-34050 Oil Seal, Front Drive Shaft, RH
2018-09 → 2022-07 ended
NSP17# ¥400
90311-35065 Oil Seal, Front Drive Shaft, RH
2018-09 → 2022-07 ended
NHP170 ¥270
90316-28003 Oil Seal, Front Drive Shaft, RH
2018-09 → 2022-07 ended
NCP175 ¥450
43410N — Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
90520-33008 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2015-06 → 2018-09 ended
NCP175 ¥110
90521-26004 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2015-06 → 2018-09 ended
NSP17# ¥100
90521-27005 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2015-07 → 2018-09 ended
NHP170 ¥110
90520-33008 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2018-09 → 2022-07 ended
NCP175 ¥110
90521-26004 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2018-09 → 2022-07 ended
NSP17# ¥100
90521-27005 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2018-09 → 2022-07 ended
NHP170 ¥110
43411E — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-12070 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥40
43425-12070 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥40
43447C — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-12230 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥220
42345-12230 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥220
43447D — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-12240 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥340
42345-12240 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥340
43448C — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12230 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥220
42345-12230 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥220
43448E — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12180 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥330
42345-12180 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥330
43460 — Shaft Assy, Front Drive Outboard Joint, RH
43460-59616 Shaft Assy, Front Drive Outboard Joint, RH
2015-07 → 2015-08 ended
NHP170 ¥61,300
43460-59617 Shaft Assy, Front Drive Outboard Joint, RH
2015-09 → 2018-09 ended
NHP170 ¥42,500
43460-59767 Shaft Assy, Front Drive Outboard Joint, RH
2015-06 → 2015-08 ended
NCP175 —
43460-59768 Shaft Assy, Front Drive Outboard Joint, RH
2015-09 → 2018-09 ended
NCP175 ¥33,800
43460-59875 Shaft Assy, Front Drive Outboard Joint, RH
2015-06 → 2015-08 ended
NSP17# ¥58,000
43460-59876 Shaft Assy, Front Drive Outboard Joint, RH
2015-09 → 2018-09 ended
NSP17# ¥40,200
43460-59617 Shaft Assy, Front Drive Outboard Joint, RH
2018-09 → 2022-07 ended
NHP170 ¥42,500
43460-59768 Shaft Assy, Front Drive Outboard Joint, RH
2018-09 → 2022-07 ended
NCP175 ¥33,800
43460-59876 Shaft Assy, Front Drive Outboard Joint, RH
2018-09 → 2022-07 ended
NSP17# ¥40,200
43474D — Damper, Front Drive Shaft, RH
43474-12160 Damper, Front Drive Shaft, RH
2015-06 → 2018-09 ended
NCP175 ¥2,480
43474-12210 Damper, Front Drive Shaft, RH
2015-07 → 2018-09 ended
NHP170 ¥4,640
43474-52030 note Damper, Front Drive Shaft, RH
2015-06 → 2018-09 ended
NSP17# ¥4,640
43474-52080 note Damper, Front Drive Shaft, RH
2015-06 → 2018-09 ended
NSP17# ¥2,650
43474-12160 Damper, Front Drive Shaft, RH
2018-09 → 2022-07 ended
NCP175 ¥2,480
43474-12210 Damper, Front Drive Shaft, RH
2018-09 → 2022-07 ended
NHP170 ¥4,640
43474-52030 note Damper, Front Drive Shaft, RH
2018-09 → 2022-07 ended
NSP17# ¥4,640
43474-52080 note Damper, Front Drive Shaft, RH
2018-09 → 2022-07 ended
NSP17# ¥2,650
43474F — Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-14010 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2015-06 → 2018-09 ended
NCP175,NHP170 ¥700
42345-14010 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2015-06 → 2018-09 ended
NSP17# ¥700
42345-12090 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2018-09 → 2022-07 ended
NCP175,NHP170 ¥140
42345-12090 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2018-09 → 2022-07 ended
NSP17# ¥140
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
