Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

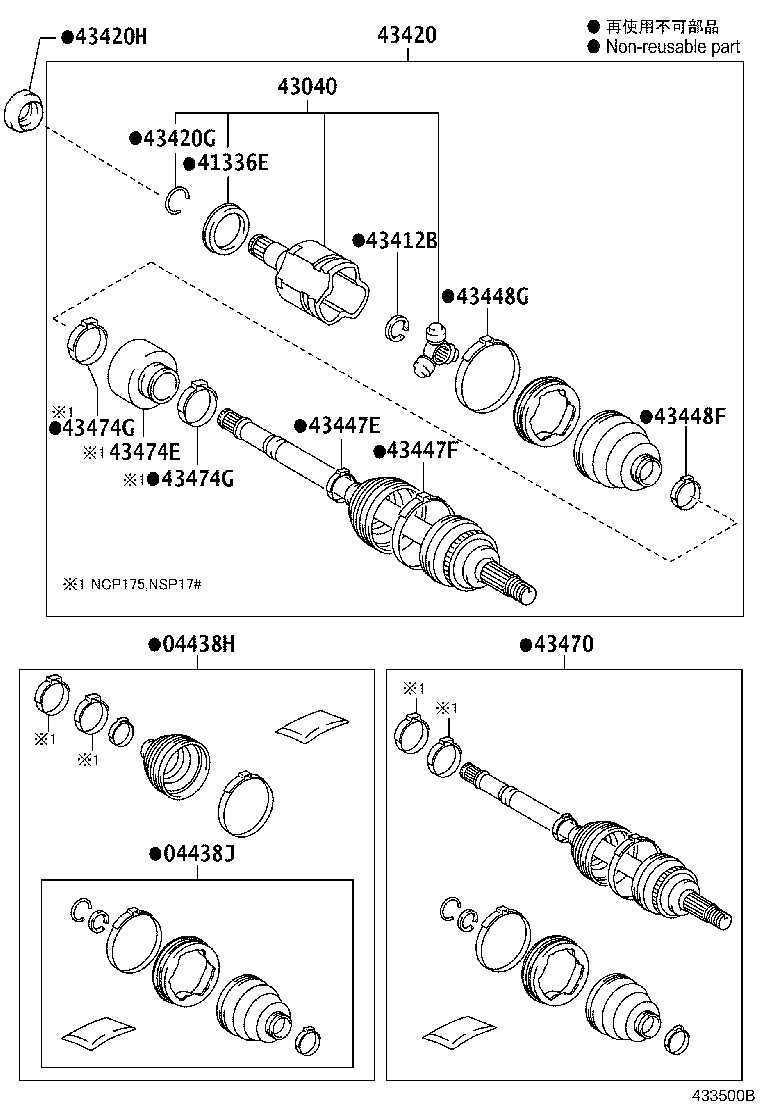

Exploded illustration 433500B 43420 — SHAFT ASSY, FRONT DRIVE, LH (6 parts) 43040 — JOINT ASSY, FRONT DRIVE INBOARD, LH (4 parts) 43420G — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) (4 parts) 41336E — COVER, FRONT DRIVE SHAFT DUST, LH (4 parts) 43412B — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) (2 parts) 43447F — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (2 parts) 43448F — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) (2 parts) 43448G — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) (2 parts) 04438H — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH (7 parts) 04438J — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH (6 parts) 43470 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH (9 parts) 43474E — DAMPER, FRONT DRIVE SHAFT, LH (2 parts) 43474G — CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) (2 parts) 43447E — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (2 parts) 43474G — CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) (2 parts) 43420H — OIL SEAL, FRONT DRIVE SHAFT, LH (9 parts)
433500B · 16 callouts Full size ↗
63 parts on this figure
Part number Description Fitment Price
04438H — Boot Kit, Front Drive Shaft, IN & Outboard, LH
04427-12632 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2015-06 → 2015-09 ended
NSP17# —
04427-12633 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2015-09 → 2018-09 ended
NSP17# ¥8,600
04428-12740 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2015-07 → 2015-09 ended
NHP170 ¥10,800
04428-12780 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2015-06 → 2015-09 ended
NCP175 ¥10,800
04428-12781 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2015-09 → 2018-09 ended
NCP175,NHP170 ¥6,700
04427-12633 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2018-09 → 2022-07 ended
NSP17# ¥8,600
04428-12781 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2018-09 → 2022-07 ended
NCP175,NHP170 ¥6,700
04438J — Boot Kit, Front Drive Shaft Inboard Joint, LH
04437-12371 Boot Kit, Front Drive Shaft Inboard Joint, LH
2015-06 → 2015-09 ended
NSP17# ¥8,200
04437-12372 Boot Kit, Front Drive Shaft Inboard Joint, LH
2015-09 → 2018-09 ended
NSP17# ¥5,700
04438-12A00 Boot Kit, Front Drive Shaft Inboard Joint, LH
2015-06 → 2015-09 ended
NCP175,NHP170 ¥6,700
04438-12A01 Boot Kit, Front Drive Shaft Inboard Joint, LH
2015-09 → 2018-09 ended
NCP175,NHP170 ¥4,150
04437-12372 Boot Kit, Front Drive Shaft Inboard Joint, LH
2018-09 → 2022-07 ended
NSP17# ¥5,700
04438-12A01 Boot Kit, Front Drive Shaft Inboard Joint, LH
2018-09 → 2022-07 ended
NCP175,NHP170 ¥4,150
41336E — Cover, Front Drive Shaft Dust, LH
41336-12010 Cover, Front Drive Shaft Dust, LH
2015-06 → 2018-09 ended
NSP17# ¥130
41336-12060 Cover, Front Drive Shaft Dust, LH
2015-06 → 2018-09 ended
NCP175,NHP170 ¥200
41336-12010 Cover, Front Drive Shaft Dust, LH
2018-09 → 2022-07 ended
NSP17# ¥130
41336-12060 Cover, Front Drive Shaft Dust, LH
2018-09 → 2022-07 ended
NCP175,NHP170 ¥200
43040 — Joint Assy, Front Drive Inboard, LH
43040-12120 Joint Assy, Front Drive Inboard, LH
2015-06 → 2018-09 ended
NCP175,NHP170 ¥16,600
43040-12150 Joint Assy, Front Drive Inboard, LH
2015-06 → 2018-09 ended
NSP17# ¥14,300
43040-12120 Joint Assy, Front Drive Inboard, LH
2018-09 → 2022-07 ended
NCP175,NHP170 ¥16,600
43040-12150 Joint Assy, Front Drive Inboard, LH
2018-09 → 2022-07 ended
NSP17# ¥14,300
43412B — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-12070 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥40
43425-12070 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥40
43420 — Shaft Assy, Front Drive, LH
43420-52250 Shaft Assy, Front Drive, LH
2015-07 → 2018-09 ended
NHP170 ¥44,900
43420-52330 Shaft Assy, Front Drive, LH
2015-06 → 2018-09 ended
NSP17# ¥51,900
43420-52340 Shaft Assy, Front Drive, LH
2015-06 → 2018-09 ended
NCP175 ¥51,900
43420-52250 Shaft Assy, Front Drive, LH
2018-09 → 2022-07 ended
NHP170 ¥44,900
43420-52330 Shaft Assy, Front Drive, LH
2018-09 → 2022-07 ended
NSP17# ¥51,900
43420-52340 Shaft Assy, Front Drive, LH
2018-09 → 2022-07 ended
NCP175 ¥51,900
43420G — Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
90521-26004 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2015-06 → 2018-09 ended
NSP17# ¥100
90521-27005 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2015-06 → 2018-09 ended
NCP175,NHP170 ¥110
90521-26004 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2018-09 → 2022-07 ended
NSP17# ¥100
90521-27005 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2018-09 → 2022-07 ended
NCP175,NHP170 ¥110
43420H — Oil Seal, Front Drive Shaft, LH
90311-34043 Oil Seal, Front Drive Shaft, LH
2015-06 → 2018-08 ended
NSP17# ¥400
90311-34051 Oil Seal, Front Drive Shaft, LH
2018-08 → 2018-09 ended
NSP17# ¥400
90311-35068 Oil Seal, Front Drive Shaft, LH
2015-06 → 2018-07 ended
NCP175 ¥400
90311-35068 Oil Seal, Front Drive Shaft, LH
2015-06 → 2018-09 ended
NHP170 ¥400
90311-35080 Oil Seal, Front Drive Shaft, LH
2018-08 → 2018-09 ended
NCP175 ¥400
90311-34051 Oil Seal, Front Drive Shaft, LH
2018-09 → 2021-10 ended
NSP17# ¥400
90311-34057 Oil Seal, Front Drive Shaft, LH
2021-10 → 2022-07 ended
NSP17# ¥400
90311-35068 Oil Seal, Front Drive Shaft, LH
2018-09 → 2022-07 ended
NHP170 ¥400
90311-35080 Oil Seal, Front Drive Shaft, LH
2018-09 → 2022-07 ended
NCP175 ¥400
43447E — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-12230 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥220
42345-12230 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥220
43447F — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-12240 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥340
42345-12240 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥340
43448F — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12230 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥220
42345-12230 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥220
43448G — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12180 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥330
42345-12180 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥330
43470 — Shaft Assy, Front Drive Outboard Joint, LH
43470-59686 Shaft Assy, Front Drive Outboard Joint, LH
2015-07 → 2015-09 ended
NHP170 ¥48,900
43470-59687 Shaft Assy, Front Drive Outboard Joint, LH
2015-09 → 2018-09 ended
NHP170 ¥33,800
43470-79175 Shaft Assy, Front Drive Outboard Joint, LH
2015-06 → 2015-09 ended
NSP17# ¥50,300
43470-79176 Shaft Assy, Front Drive Outboard Joint, LH
2015-09 → 2018-09 ended
NSP17# ¥34,800
43470-79185 Shaft Assy, Front Drive Outboard Joint, LH
2015-06 → 2015-09 ended
NCP175 ¥50,300
43470-79186 Shaft Assy, Front Drive Outboard Joint, LH
2015-09 → 2018-09 ended
NCP175 ¥34,800
43470-59687 Shaft Assy, Front Drive Outboard Joint, LH
2018-09 → 2022-07 ended
NHP170 ¥33,800
43470-79176 Shaft Assy, Front Drive Outboard Joint, LH
2018-09 → 2022-07 ended
NSP17# ¥34,800
43470-79186 Shaft Assy, Front Drive Outboard Joint, LH
2018-09 → 2022-07 ended
NCP175 ¥34,800
43474E — Damper, Front Drive Shaft, LH
43474-12200 Damper, Front Drive Shaft, LH
2015-06 → 2018-09 ended
NCP175,NSP17# ¥2,790
43474-12200 Damper, Front Drive Shaft, LH
2018-09 → 2022-07 ended
NCP175,NSP17# ¥2,790
43474G — Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-14010 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2015-06 → 2018-09 ended
NCP175,NSP17# ¥700
42345-12090 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2018-09 → 2022-07 ended
NCP175,NSP17# ¥140
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
