Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

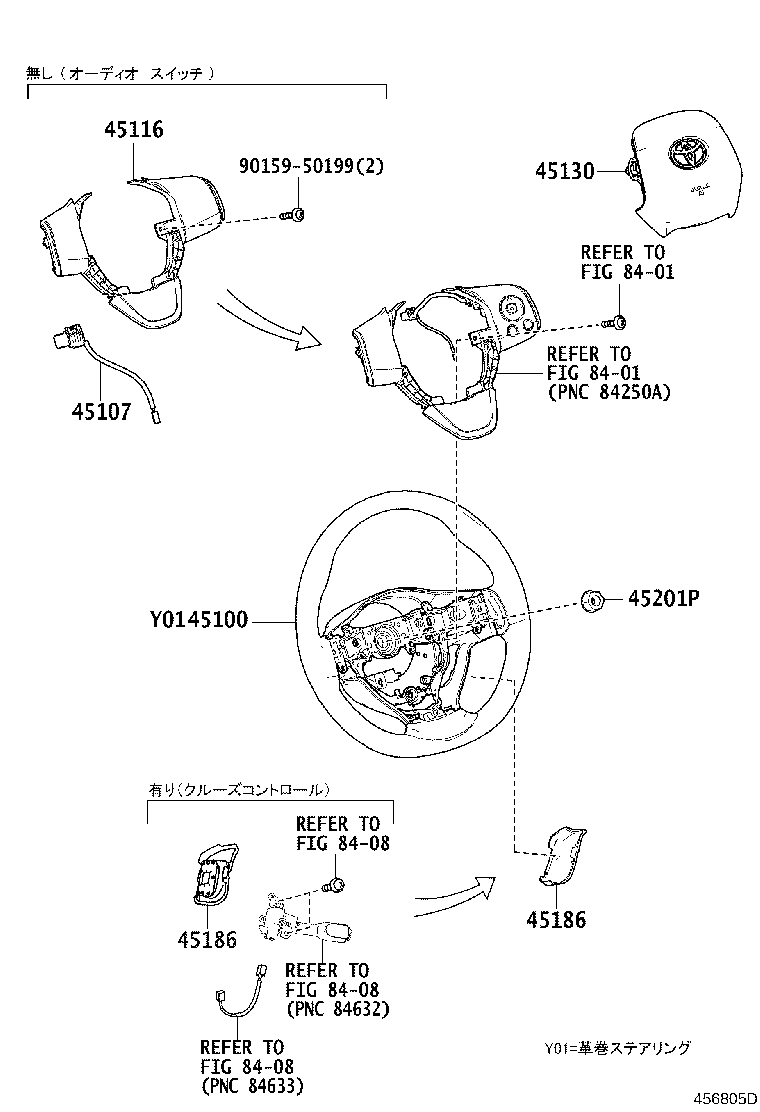

Exploded illustration 456805D 45186 — COVER, STEERING WHEEL, LOWER NO.2 (8 parts) 45130 — BUTTON ASSY, HORN (11 parts) 45116 — ORNAMENT, STEERING WHEEL, NO.1 (3 parts) 45100 — WHEEL ASSY, STEERING (19 parts) 45201P — NUT, STEERING WHEEL SET (2 parts) 45107 — WIRE SUB-ASSY, HORN BUTTON (10 parts) 8401 — not listed in this catalogue 8401 — not listed in this catalogue 9015950199 — not listed in this catalogue 45186 — COVER, STEERING WHEEL, LOWER NO.2 (8 parts) 8408 — not listed in this catalogue 8408 — not listed in this catalogue 8408 — not listed in this catalogue
456805D · 7 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
53 parts on this figure
Part number Description Fitment Price
45100 — Wheel Assy, Steering
45100-52480-C1 note Wheel Assy, Steering
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥19,400
45100-52610-C0 note Wheel Assy, Steering
2015-06 → 2017-08 ended
NCP175 G;NHP170,NSP170 07S G ¥44,200
45100-52610-C0 note Wheel Assy, Steering
2017-08 → 2018-09 ended
NCP175 G;NHP170,NSP170 07S G ¥44,200
45100-52610-C0 note Wheel Assy, Steering
2015-06 → 2018-09 ended
NHP170,NSP17# (05S,06S) G ¥44,200
45100-52610-C1 note Wheel Assy, Steering
2017-08 → 2018-09 ended
NCP175 G;NHP170,NSP170 07S G ¥53,100
45100-52480-C1 note Wheel Assy, Steering
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKX,X ¥19,400
45100-52480-C1 note Wheel Assy, Steering
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX ¥19,400
45100-52610-C0 note Wheel Assy, Steering
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥44,200
45100-52610-C0 note Wheel Assy, Steering
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥44,200
45100-52610-C0 note Wheel Assy, Steering
2018-09 → 2022-07 ended
NSP172 WKG ¥44,200
45100-52610-C0 note Wheel Assy, Steering
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥44,200
45100-52660-C0 note Wheel Assy, Steering
2018-09 → 2020-06 ended
NCP175,NHP170,NSP170 FNBSX,GCERO ¥68,100
45100-52660-C0 note Wheel Assy, Steering
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥68,100
45100-52660-C0 note Wheel Assy, Steering
2018-09 → 2020-06 ended
NHP170,NSP170 FNBSG ¥68,100
45100-52660-C0 note Wheel Assy, Steering
2018-09 → 2020-06 ended
NCP175,NHP170,NSP170 G ¥68,100
45100-52660-C0 note Wheel Assy, Steering
2020-06 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥68,100
45100-52660-C0 note Wheel Assy, Steering
2020-06 → 2022-07 ended
NSP172 WKG ¥68,100
45100-52660-C0 note Wheel Assy, Steering
2020-06 → 2022-07 ended
NHP170,NSP170 FNBSG ¥68,100
45100-52660-C0 note Wheel Assy, Steering
2020-06 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥68,100
45107 — Wire Sub-assy, Horn Button
45107-48010 Wire Sub-assy, Horn Button
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥220
45107-48010 note Wire Sub-assy, Horn Button
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥220
45107-48010 note Wire Sub-assy, Horn Button
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥220
45107-48010 note Wire Sub-assy, Horn Button
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥220
45107-52010 note Wire Sub-assy, Horn Button
2018-09 → 2022-07 ended
NCP175,NSP17# FNBSX,WKX,X ¥170
45107-52010 note Wire Sub-assy, Horn Button
2018-09 → 2022-07 ended
NCP175,NSP17# FNBSX,WKX,X ¥170
45107-52010 note Wire Sub-assy, Horn Button
2018-09 → 2022-07 ended
NCP175,NSP17# FNBSX,WKX,X ¥170
45107-52010 note Wire Sub-assy, Horn Button
2018-09 → 2020-11 ended
NCP175,NSP17# FNBSX,WKX,X ¥170
45107-52010 note Wire Sub-assy, Horn Button
2018-09 → 2020-11 ended
NCP175,NSP17# FNBSX,WKX,X ¥170
45107-52010 Wire Sub-assy, Horn Button
2018-09 → 2022-07 ended
NCP175,NSP17# FNBSX,WKX,X ¥170
45116 — Ornament, Steering Wheel, NO.1
45116-52160-C2 note Ornament, Steering Wheel, NO.1
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥2,910
45116-52160-C2 note Ornament, Steering Wheel, NO.1
2018-09 → 2022-07 ended
NCP175,NSP17# WKX,X ¥2,910
45116-52160-C2 note Ornament, Steering Wheel, NO.1
2018-09 → 2022-07 ended
NSP170 FNBSX ¥2,910
45130 — Button Assy, Horn
45130-52810-C0 note Button Assy, Horn
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥64,200
45130-52810-C0 note Button Assy, Horn
2018-09 → 2019-09 ended
NCP175,NHP170,NSP170 G ¥64,200
45130-52810-C0 note Button Assy, Horn
2018-09 → 2019-09 ended
NHP170,NSP170 FNBSG ¥64,200
45130-52810-C0 note Button Assy, Horn
2018-09 → 2019-09 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥64,200
45130-52810-C0 note Button Assy, Horn
2018-09 → 2019-09 ended
NCP175,NHP170,NSP170 FNBSX,GCERO ¥64,200
45130-52811-C0 note Button Assy, Horn
2019-10 → 2022-07 ended
NHP170,NSP170 FNBSG ¥53,500
45130-52811-C0 note Button Assy, Horn
2019-10 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,FNGCR,GCERO ¥53,500
45130-52811-C0 note Button Assy, Horn
2019-10 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥53,500
45130-52811-C0 note Button Assy, Horn
2019-10 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥53,500
45130-52811-C1 note Button Assy, Horn
2020-01 → 2022-06 ended
NCP175,NHP170,NSP170 FNBSG,G ¥48,600
45130-52811-C1 note Button Assy, Horn
2019-10 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥48,600
45186 — Cover, Steering Wheel, Lower NO.2
45186-52020-C0 note Cover, Steering Wheel, Lower NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥160
45186-52020-C0 note Cover, Steering Wheel, Lower NO.2
2018-09 → 2022-07 ended
NSP170 FNBSG ¥160
45186-52020-C0 note Cover, Steering Wheel, Lower NO.2
2018-09 → 2022-07 ended
NCP175,NSP170 G ¥160
45186-52020-C0 note Cover, Steering Wheel, Lower NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥160
45186-52020-C0 note Cover, Steering Wheel, Lower NO.2
2018-09 → 2022-07 ended
NSP170 FNBSX,FNGCR,GCERO;NCP175,NHP170 (05S,06S) (FNBSX,GCERO) ¥160
45186-52030-C0 note Cover, Steering Wheel, Lower NO.2
2018-09 → 2022-07 ended
NHP170 G ¥180
45186-52030-C0 note Cover, Steering Wheel, Lower NO.2
2018-09 → 2022-07 ended
NHP170 FNBSG ¥180
45186-52030-C0 note Cover, Steering Wheel, Lower NO.2
2018-09 → 2022-07 ended
NHP170 FNGCR,GCERO ¥180
45201P — Nut, Steering Wheel Set
90179-12071 Nut, Steering Wheel Set
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥130
90179-12071 Nut, Steering Wheel Set
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥130
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
