Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

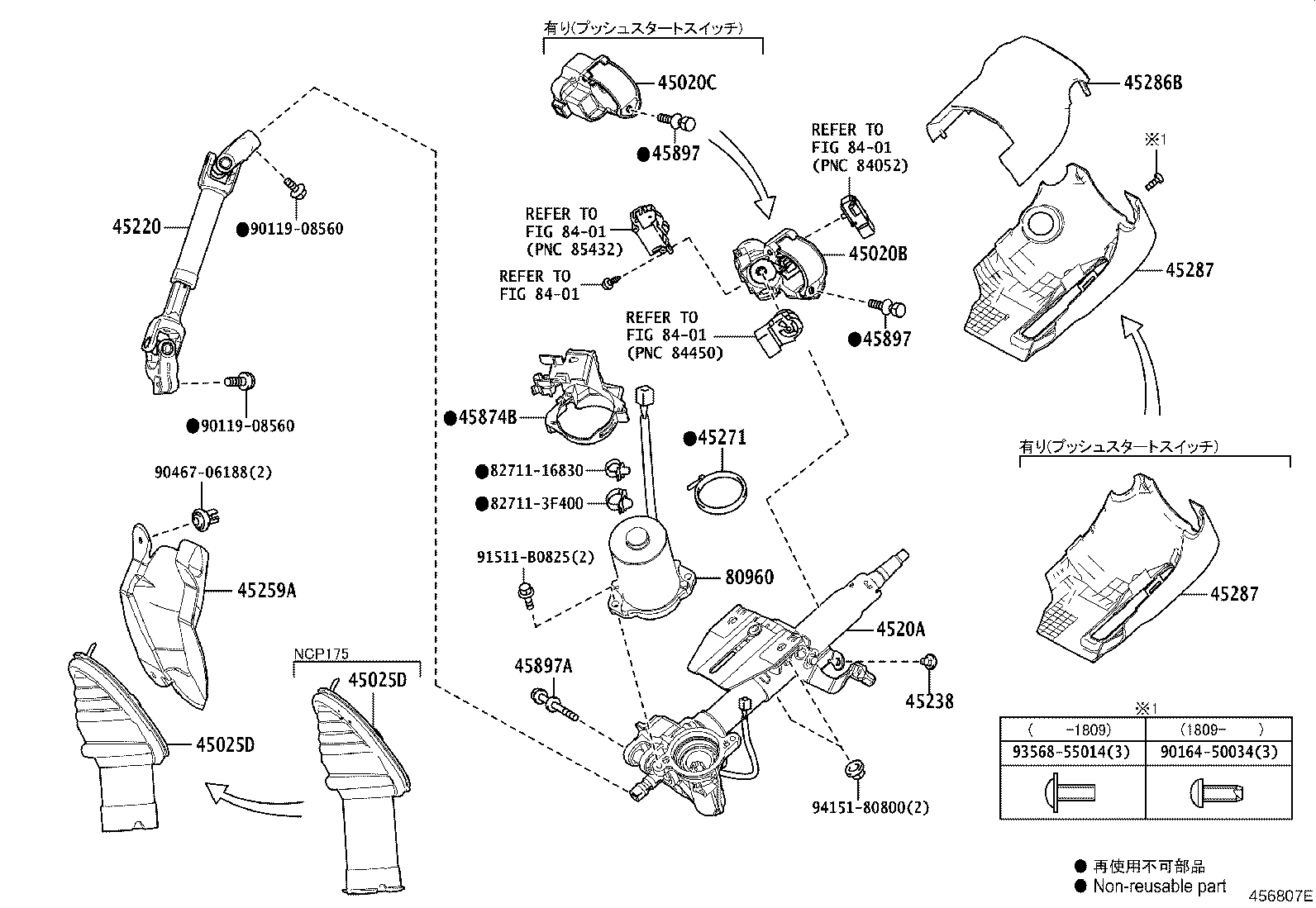

Exploded illustration 456807E 9011908560 — not listed in this catalogue 9011908560 — not listed in this catalogue 45025D — COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 (4 parts) 45025D — COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 (4 parts) 9415180800 — not listed in this catalogue 45020B — ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK (2 parts) 45259A — SHEET, COLUMN HOLE COVER SILENCER (2 parts) 45220 — SHAFT ASSY, STEERING INTERMEDIATE (2 parts) 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 4520A — COLUMN SUB-ASSY, ELECTRIC POWER STEERING (8 parts) 45238 — CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING) (2 parts) 91511B0825 — not listed in this catalogue 45897 — BOLT, STEERING LOCK SET (2 parts) 45020C — ACTUATOR ASSY, STEERING LOCK(W/ECU) (6 parts) 9046706188 — not listed in this catalogue 80960 — MOTOR ASSY, POWER STEERING (2 parts) 45874B — PROTECTOR, STEERING COLUMN, NO.1 (2 parts) 45897A — BOLT, TILT STEERING PAWL SET (2 parts) 45286B — COVER, STEERING COLUMN, UPR (13 parts) 45287 — COVER, STEERING COLUMN, LWR (13 parts) 45287 — COVER, STEERING COLUMN, LWR (13 parts) 9356855014 — not listed in this catalogue 9016450034 — not listed in this catalogue 8271116830 — not listed in this catalogue 827113F400 — not listed in this catalogue 45271 — CLAMP, STEERING COLUMN, UPPER (2 parts) 45897 — BOLT, STEERING LOCK SET (2 parts)
456807E · 17 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
62 parts on this figure
Part number Description Fitment Price
45020B — Actuator OR Upper Bracket Assy, Steering Lock
45280-52100 Actuator OR Upper Bracket Assy, Steering Lock
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥10,500
45280-52100 Actuator OR Upper Bracket Assy, Steering Lock
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥10,500
45020C — Actuator Assy, Steering Lock(W/ECU)
45020-30B20 note Actuator Assy, Steering Lock(W/ECU)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥14,300
45020-30B20 note Actuator Assy, Steering Lock(W/ECU)
2015-06 → 2018-09 ended
NSP172 X ¥14,300
45020-30B20 Actuator Assy, Steering Lock(W/ECU)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥14,300
45020-30B20 Actuator Assy, Steering Lock(W/ECU)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥14,300
45020-30B20 note Actuator Assy, Steering Lock(W/ECU)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥14,300
45020-30B20 note Actuator Assy, Steering Lock(W/ECU)
2018-09 → 2022-07 ended
NSP172 WKX ¥14,300
45025D — Cover Sub-assy, Steering Column Hole, NO.1
45025-52160 Cover Sub-assy, Steering Column Hole, NO.1
2015-06 → 2018-09 ended
NCP175 ¥2,140
45025-52170 Cover Sub-assy, Steering Column Hole, NO.1
2015-06 → 2018-09 ended
NHP170,NSP17# ¥2,750
45025-52160 Cover Sub-assy, Steering Column Hole, NO.1
2018-09 → 2022-07 ended
NCP175 ¥2,140
45025-52170 Cover Sub-assy, Steering Column Hole, NO.1
2018-09 → 2022-07 ended
NHP170,NSP17# ¥2,750
4520A — Column Sub-assy, Electric Power Steering
4520A-52290 Column Sub-assy, Electric Power Steering
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥41,900
4520A-52300 Column Sub-assy, Electric Power Steering
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥41,900
4520A-52300 note Column Sub-assy, Electric Power Steering
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥41,900
4520A-52300 note Column Sub-assy, Electric Power Steering
2015-06 → 2018-09 ended
NSP172 X ¥41,900
4520A-52290 Column Sub-assy, Electric Power Steering
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥41,900
4520A-52300 Column Sub-assy, Electric Power Steering
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥41,900
4520A-52300 note Column Sub-assy, Electric Power Steering
2018-09 → 2022-07 ended
NSP172 WKX ¥41,900
4520A-52300 note Column Sub-assy, Electric Power Steering
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥41,900
45220 — Shaft Assy, Steering Intermediate
45220-52050 Shaft Assy, Steering Intermediate
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥10,400
45220-52050 Shaft Assy, Steering Intermediate
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥10,400
45238 — Clamp, Bolt(FOR STEERING FLEXIBLE COUPLING)
45238-52010 Clamp, Bolt(FOR STEERING FLEXIBLE COUPLING)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥70
45238-52010 Clamp, Bolt(FOR STEERING FLEXIBLE COUPLING)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥70
45259A — Sheet, Column Hole Cover Silencer
45259-52070 Sheet, Column Hole Cover Silencer
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥740
45259-52070 Sheet, Column Hole Cover Silencer
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥740
45271 — Clamp, Steering Column, Upper
45271-52040 Clamp, Steering Column, Upper
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥90
45271-52040 Clamp, Steering Column, Upper
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥90
45286B — Cover, Steering Column, Upr
45286-12560-C0 note Cover, Steering Column, Upr
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥1,750
45286-12560-C0 note Cover, Steering Column, Upr
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥1,750
45286-12560-C0 note Cover, Steering Column, Upr
2015-06 → 2018-09 ended
NSP172 X ¥1,750
45286-52160-C0 note Cover, Steering Column, Upr
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥1,750
45286-12560-C0 note Cover, Steering Column, Upr
2018-09 → 2022-07 ended
NSP172 WKG ¥1,750
45286-12560-C0 note Cover, Steering Column, Upr
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥1,750
45286-12560-C0 note Cover, Steering Column, Upr
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥1,750
45286-12560-C0 note Cover, Steering Column, Upr
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 X ¥1,750
45286-12560-C0 note Cover, Steering Column, Upr
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX ¥1,750
45286-12560-C0 note Cover, Steering Column, Upr
2018-09 → 2022-07 ended
NSP172 WKX ¥1,750
45286-12560-C0 note Cover, Steering Column, Upr
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥1,750
45286-52180-C0 note Cover, Steering Column, Upr
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKX,X ¥1,750
45286-52180-C0 note Cover, Steering Column, Upr
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX ¥1,750
45287 — Cover, Steering Column, Lwr
45287-12640-C0 note Cover, Steering Column, Lwr
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥3,290
45287-12640-C0 note Cover, Steering Column, Lwr
2015-06 → 2018-09 ended
NSP172 X ¥3,290
45287-12640-C0 note Cover, Steering Column, Lwr
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥3,290
45287-52190-C0 note Cover, Steering Column, Lwr
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥2,740
45287-52260-C0 note Cover, Steering Column, Lwr
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKX,X ¥2,740
45287-52260-C0 note Cover, Steering Column, Lwr
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX ¥2,740
45287-52270-C0 note Cover, Steering Column, Lwr
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥2,740
45287-52270-C0 note Cover, Steering Column, Lwr
2018-09 → 2022-07 ended
NSP172 WKX ¥2,740
45287-52270-C0 note Cover, Steering Column, Lwr
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX ¥2,740
45287-52270-C0 note Cover, Steering Column, Lwr
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 X ¥2,740
45287-52270-C0 note Cover, Steering Column, Lwr
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥2,740
45287-52270-C0 note Cover, Steering Column, Lwr
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥2,740
45287-52270-C0 note Cover, Steering Column, Lwr
2018-09 → 2022-07 ended
NSP172 WKG ¥2,740
45874B — Protector, Steering Column, NO.1
45874-52040 Protector, Steering Column, NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,260
45874-52040 Protector, Steering Column, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,260
45897 — Bolt, Steering Lock Set
45897-12020 Bolt, Steering Lock Set
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥210
45897-12020 Bolt, Steering Lock Set
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥210
45897A — Bolt, Tilt Steering Pawl Set
90119-10980 Bolt, Tilt Steering Pawl Set
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥190
90119-10980 Bolt, Tilt Steering Pawl Set
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥190
80960 — Motor Assy, Power Steering
80960-52110 Motor Assy, Power Steering
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥21,500
80960-52150 Motor Assy, Power Steering
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥16,200
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
