Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

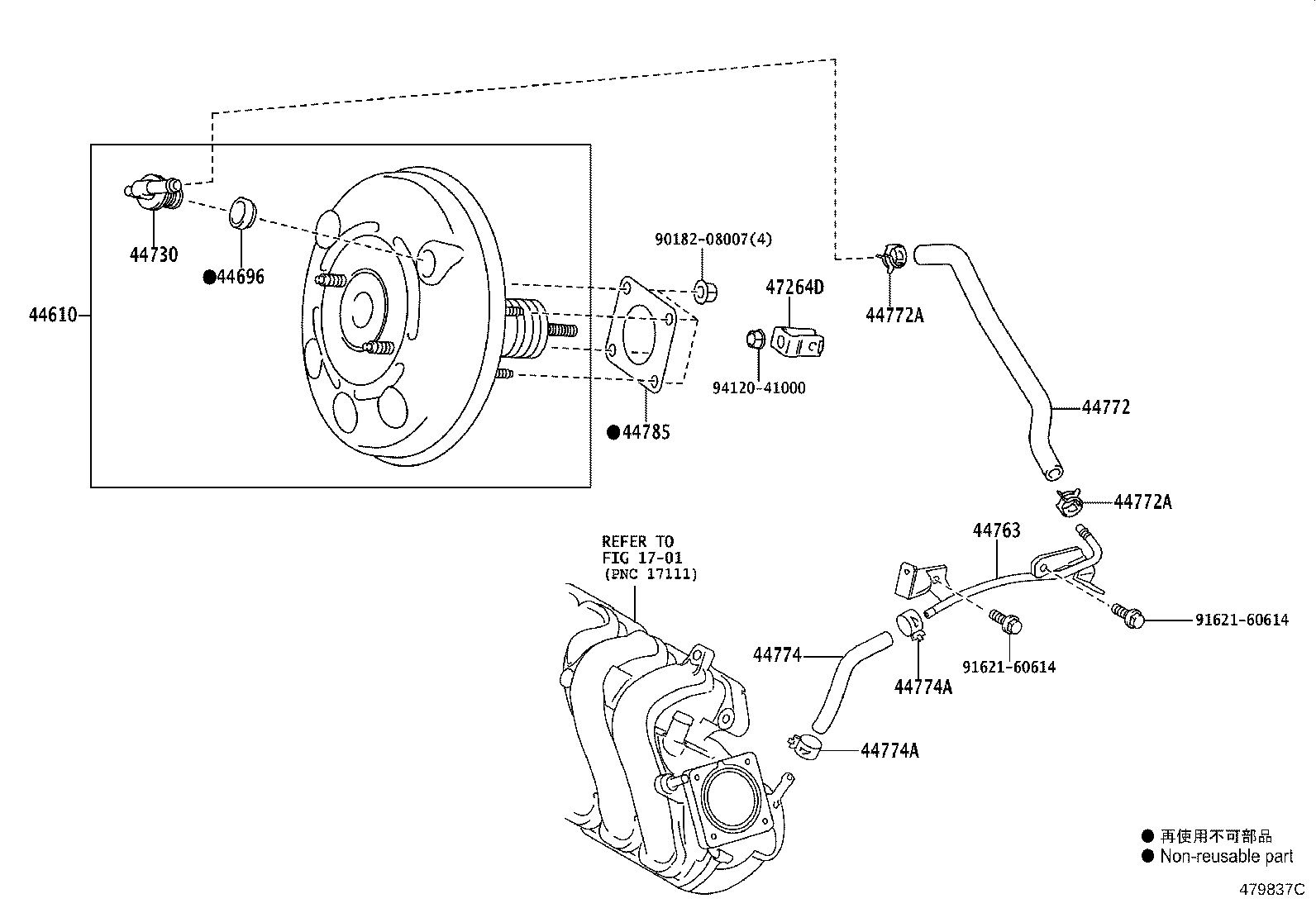

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44610 — Booster Assy, Brake | ||||
| 44610-52G70 |
Booster Assy, Brake
2015-06 → 2018-09
ended
|
NSP17# | ¥35,500 | |
| 44610-52G80 |
Booster Assy, Brake
2015-06 → 2018-09
ended
|
NCP175 | ¥32,300 | |
| 44610-52G70 |
Booster Assy, Brake
2018-09 → 2022-07
ended
|
NSP17# | ¥35,500 | |
| 44610-52G80 |
Booster Assy, Brake
2018-09 → 2022-07
ended
|
NCP175 | ¥32,300 | |
| 44696 — Grommet, Check Valve | ||||
| 90480-24439 |
Grommet, Check Valve
2015-06 → 2018-09
ended
|
NCP175 | ¥390 | |
| 90480-24439 |
Grommet, Check Valve
2015-06 → 2018-09
ended
|
NSP17# | ¥390 | |
| 90480-24439 |
Grommet, Check Valve
2018-09 → 2022-07
ended
|
NCP175 | ¥390 | |
| 90480-24439 |
Grommet, Check Valve
2018-09 → 2022-07
ended
|
NSP17# | ¥390 | |
| 44730 — Valve Assy, Vacuum Check(FOR BRAKE) | ||||
| 44730-14050 |
Valve Assy, Vacuum Check(FOR BRAKE)
2015-06 → 2015-10
ended
|
NSP17# | ¥1,380 | |
| 44730-14050 note |
Valve Assy, Vacuum Check(FOR BRAKE)
2015-06 → 2018-09
ended
|
NSP17# | ¥1,380 | |
| 44730-20170 note |
Valve Assy, Vacuum Check(FOR BRAKE)
2015-10 → 2018-09
ended
|
NSP17# | ¥1,310 | |
| 44730-20170 |
Valve Assy, Vacuum Check(FOR BRAKE)
2015-06 → 2018-09
ended
|
NCP175 | ¥1,310 | |
| 44730-14050 note |
Valve Assy, Vacuum Check(FOR BRAKE)
2018-09 → 2022-07
ended
|
NSP17# | ¥1,380 | |
| 44730-20170 |
Valve Assy, Vacuum Check(FOR BRAKE)
2018-09 → 2022-07
ended
|
NCP175 | ¥1,310 | |
| 44730-20170 note |
Valve Assy, Vacuum Check(FOR BRAKE)
2018-09 → 2022-07
ended
|
NSP17# | ¥1,310 | |
| 44763 — Tube, Booster Vacuum | ||||
| 44763-52030 |
Tube, Booster Vacuum
2015-06 → 2018-09
ended
|
NCP175 | ¥1,200 | |
| 44763-52030 |
Tube, Booster Vacuum
2018-09 → 2022-07
ended
|
NCP175 | ¥1,200 | |
| 44772 — Hose, Check Valve TO Connector Tube | ||||
| 44772-52120 |
Hose, Check Valve TO Connector Tube
2015-06 → 2018-09
ended
|
NCP175 | ¥1,360 | |
| 44772-52220 note |
Hose, Check Valve TO Connector Tube
2015-06 → 2018-09
ended
|
NSP17# | ¥770 | |
| 44772-52230 note |
Hose, Check Valve TO Connector Tube
2015-06 → 2018-09
ended
|
NSP17# | ¥770 | |
| 44772-52120 |
Hose, Check Valve TO Connector Tube
2018-09 → 2022-07
ended
|
NCP175 | ¥1,360 | |
| 44772-52220 note |
Hose, Check Valve TO Connector Tube
2018-09 → 2022-07
ended
|
NSP17# | ¥770 | |
| 44772-52230 note |
Hose, Check Valve TO Connector Tube
2018-09 → 2022-07
ended
|
NSP17# | ¥770 | |
| 44772A — Clip(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90467-16014 |
Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
2015-06 → 2018-09
ended
|
NCP175 | ¥230 | |
| 90467-16014 |
Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
2015-06 → 2018-09
ended
|
NSP17# | ¥230 | |
| 90467-16014 |
Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
2018-09 → 2022-07
ended
|
NCP175 | ¥230 | |
| 90467-16014 note |
Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
2018-09 → 2022-07
ended
|
NSP17# | ¥230 | |
| 44774 — Hose, Union TO Connector Tube | ||||
| 44774-52070 |
Hose, Union TO Connector Tube
2015-06 → 2018-09
ended
|
NCP175 | ¥400 | |
| 44774-52170 |
Hose, Union TO Connector Tube
2015-06 → 2018-09
ended
|
NSP17# | ¥770 | |
| 44774-52070 |
Hose, Union TO Connector Tube
2018-09 → 2022-07
ended
|
NCP175 | ¥400 | |
| 44774-52170 |
Hose, Union TO Connector Tube
2018-09 → 2022-07
ended
|
NSP17# | ¥770 | |
| 44774A — Clip(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16014 |
Clip(FOR UNION TO CONNECTOR TUBE HOSE)
2015-06 → 2018-09
ended
|
NSP17# | ¥230 | |
| 96136-41801 |
Clip(FOR UNION TO CONNECTOR TUBE HOSE)
2015-06 → 2018-09
ended
|
NCP175 | ¥160 | |
| 90467-16014 |
Clip(FOR UNION TO CONNECTOR TUBE HOSE)
2018-09 → 2022-07
ended
|
NSP17# | ¥230 | |
| 96136-41801 |
Clip(FOR UNION TO CONNECTOR TUBE HOSE)
2018-09 → 2022-07
ended
|
NCP175 | ¥160 | |
| 44785 — Gasket, Brake Booster | ||||
| 44785-16020 |
Gasket, Brake Booster
2015-06 → 2018-09
ended
|
NCP175,NSP17# | ¥220 | |
| 44785-16020 |
Gasket, Brake Booster
2018-09 → 2022-07
ended
|
NCP175,NSP17# | ¥220 | |
| 47264D — Clevis, Brake Master Cylinder Push Rod | ||||
| 47264-52010 |
Clevis, Brake Master Cylinder Push Rod
2015-06 → 2018-09
ended
|
NCP175,NSP17# | ¥350 | |
| 47264-52010 |
Clevis, Brake Master Cylinder Push Rod
2018-09 → 2022-07
ended
|
NCP175,NSP17# | ¥350 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
