Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09

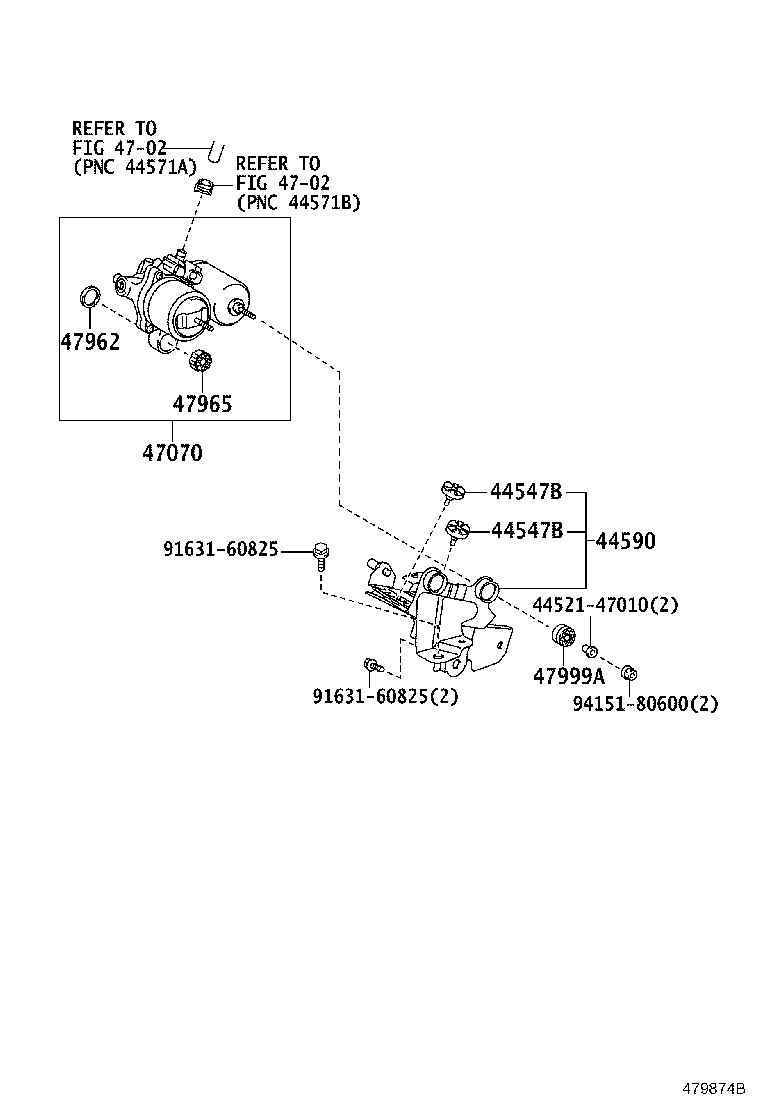

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

15 parts on this figure

Part number	Description	Fitment	Price
44547B — Cushion, Brake Actuator Bracket
47131-47070	Cushion, Brake Actuator Bracket 2015-07 → 2018-09 ended	NHP170	¥90
47131-47070	Cushion, Brake Actuator Bracket 2018-09 → 2022-07 ended	NHP170	¥90
44590 — Bracket Assy, Brake Actuator
44590-52250	Bracket Assy, Brake Actuator 2015-06 → 2015-12 ended	NCP175,NSP17#	¥3,090
44590-52251	Bracket Assy, Brake Actuator 2016-01 → 2018-09 ended	NCP175,NSP17#	¥1,950
44590-52271	Bracket Assy, Brake Actuator 2015-07 → 2018-09 ended	NHP170	¥2,620
44590-52251	Bracket Assy, Brake Actuator 2018-09 → 2022-07 ended	NCP175,NSP17#	¥1,950
44590-52271	Bracket Assy, Brake Actuator 2018-09 → 2022-07 ended	NHP170	¥2,620
47070 — Pump Assy, Brake Booster
47070-52020	Pump Assy, Brake Booster 2015-07 → 2018-09 ended	NHP170	¥68,000
47070-52020	Pump Assy, Brake Booster 2018-09 → 2022-07 ended	NHP170	¥68,000
47962 — Collar, Brake Booster Pump
47962-60090	Collar, Brake Booster Pump 2015-07 → 2018-09 ended	NHP170	¥50
47962-60090	Collar, Brake Booster Pump 2018-09 → 2022-07 ended	NHP170	¥50
47965 — Bush, Brake Booster Pump
47965-30010	Bush, Brake Booster Pump 2015-07 → 2018-09 ended	NHP170	¥210
47965-30010	Bush, Brake Booster Pump 2018-09 → 2022-07 ended	NHP170	¥210
47999A — Bush(FOR BRAKE TRACTION ACTUATOR BRACKET)
47965-24010	Bush(FOR BRAKE TRACTION ACTUATOR BRACKET) 2015-07 → 2018-09 ended	NHP170	¥210
47965-24010	Bush(FOR BRAKE TRACTION ACTUATOR BRACKET) 2018-09 → 2022-07 ended	NHP170	¥210

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
