Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

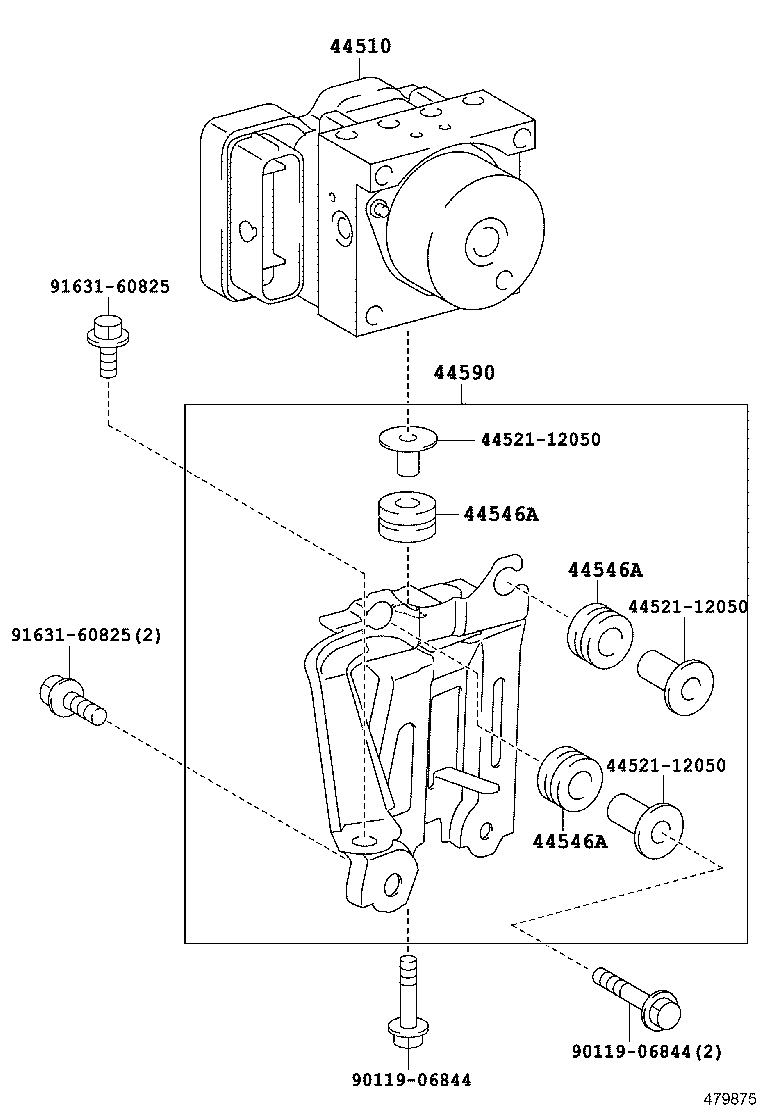

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44510 — Actuator Assy, Brake | ||||
| 44050-52M30 |
Actuator Assy, Brake
2015-06 → 2018-09
ended
|
NCP175,NSP170 | ¥180,000 | |
| 44050-52M50 |
Actuator Assy, Brake
2015-06 → 2018-09
ended
|
NSP172 | ¥180,000 | |
| 44050-52M70 |
Actuator Assy, Brake
2018-09 → 2022-07
ended
|
NCP175,NSP170 | ¥149,000 | |
| 44050-52R90 |
Actuator Assy, Brake
2018-09 → 2022-07
ended
|
NSP172 | ¥149,000 | |
| 44546A — Cushion, Brake Actuator Bolt | ||||
| 44546-12110 |
Cushion, Brake Actuator Bolt
2015-06 → 2018-09
ended
|
NCP175,NSP17# | ¥130 | |
| 44546-12110 |
Cushion, Brake Actuator Bolt
2018-09 → 2022-07
ended
|
NCP175,NSP17# | ¥130 | |
| 44590 — Bracket Assy, Brake Actuator | ||||
| 44590-52250 |
Bracket Assy, Brake Actuator
2015-06 → 2015-12
ended
|
NCP175,NSP17# | ¥3,090 | |
| 44590-52251 |
Bracket Assy, Brake Actuator
2016-01 → 2018-09
ended
|
NCP175,NSP17# | ¥1,950 | |
| 44590-52271 |
Bracket Assy, Brake Actuator
2015-07 → 2018-09
ended
|
NHP170 | ¥2,620 | |
| 44590-52251 |
Bracket Assy, Brake Actuator
2018-09 → 2022-07
ended
|
NCP175,NSP17# | ¥1,950 | |
| 44590-52271 |
Bracket Assy, Brake Actuator
2018-09 → 2022-07
ended
|
NHP170 | ¥2,620 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
