Exploded illustration 47B386A 47321 — TUBE, REAR BRAKE, NO.1 (8 parts) 47316 — TUBE, FRONT BRAKE, NO.6 (4 parts) 9046808035 — not listed in this catalogue 9046808035 — not listed in this catalogue 47312 — TUBE, FRONT BRAKE, NO.2 (2 parts) 47313 — TUBE, FRONT BRAKE, NO.3 (4 parts) 47315 — TUBE, FRONT BRAKE, NO.5 (4 parts) 47317 — TUBE, FRONT BRAKE, NO.7 (4 parts) 47311B — WAY, NO.1(FOR FRONT BRAKE TUBE) (2 parts) 9167180614 — not listed in this catalogue 47311 — TUBE, FRONT BRAKE, NO.1 (4 parts) 47322 — TUBE, REAR BRAKE, NO.2 (6 parts) 47371A — CLAMP, BRAKE TUBE, NO.1 (4 parts) 47372 — CLAMP, BRAKE TUBE, NO.2 (4 parts) 47373B — CLAMP, BRAKE TUBE, NO.3 (4 parts) 47371B — CLAMP, BRAKE TUBE, NO.6 (2 parts) 47374B — CLAMP, BRAKE TUBE, NO.4 (4 parts) 47375 — CLAMP, BRAKE TUBE, NO.5 (4 parts) 47313J — HOSE, FLEXIBLE, NO.2(FOR FRONT) (5 parts) 47313A — HOSE, FLEXIBLE, NO.1(FOR FRONT) (5 parts) 47313B — BOLT, UNION(FOR FRONT FLEXIBLE HOSE) (2 parts) 47313B — BOLT, UNION(FOR FRONT FLEXIBLE HOSE) (2 parts) 47313P — GASKET(FOR FRONT FLEXIBLE HOSE) (2 parts) 47313P — GASKET(FOR FRONT FLEXIBLE HOSE) (2 parts) 9011908868 — not listed in this catalogue 9011908868 — not listed in this catalogue 9046808035 — not listed in this catalogue 9046808035 — not listed in this catalogue 47318F — HOSE, FLEXIBLE(FOR REAR RH) (4 parts) 47319F — HOSE, FLEXIBLE(FOR REAR LH) (4 parts) 7701 — not listed in this catalogue 7701 — not listed in this catalogue 7701 — not listed in this catalogue 7701 — not listed in this catalogue 7701 — not listed in this catalogue 47318E — GASKET(FOR REAR FLEXIBLE HOSE) (4 parts) 47318D — BOLT, UNION(FOR REAR FLEXIBLE HOSE) (4 parts) 47318D — BOLT, UNION(FOR REAR FLEXIBLE HOSE) (4 parts) 47318E — GASKET(FOR REAR FLEXIBLE HOSE) (4 parts) 47318E — GASKET(FOR REAR FLEXIBLE HOSE) (4 parts) 4702 — not listed in this catalogue

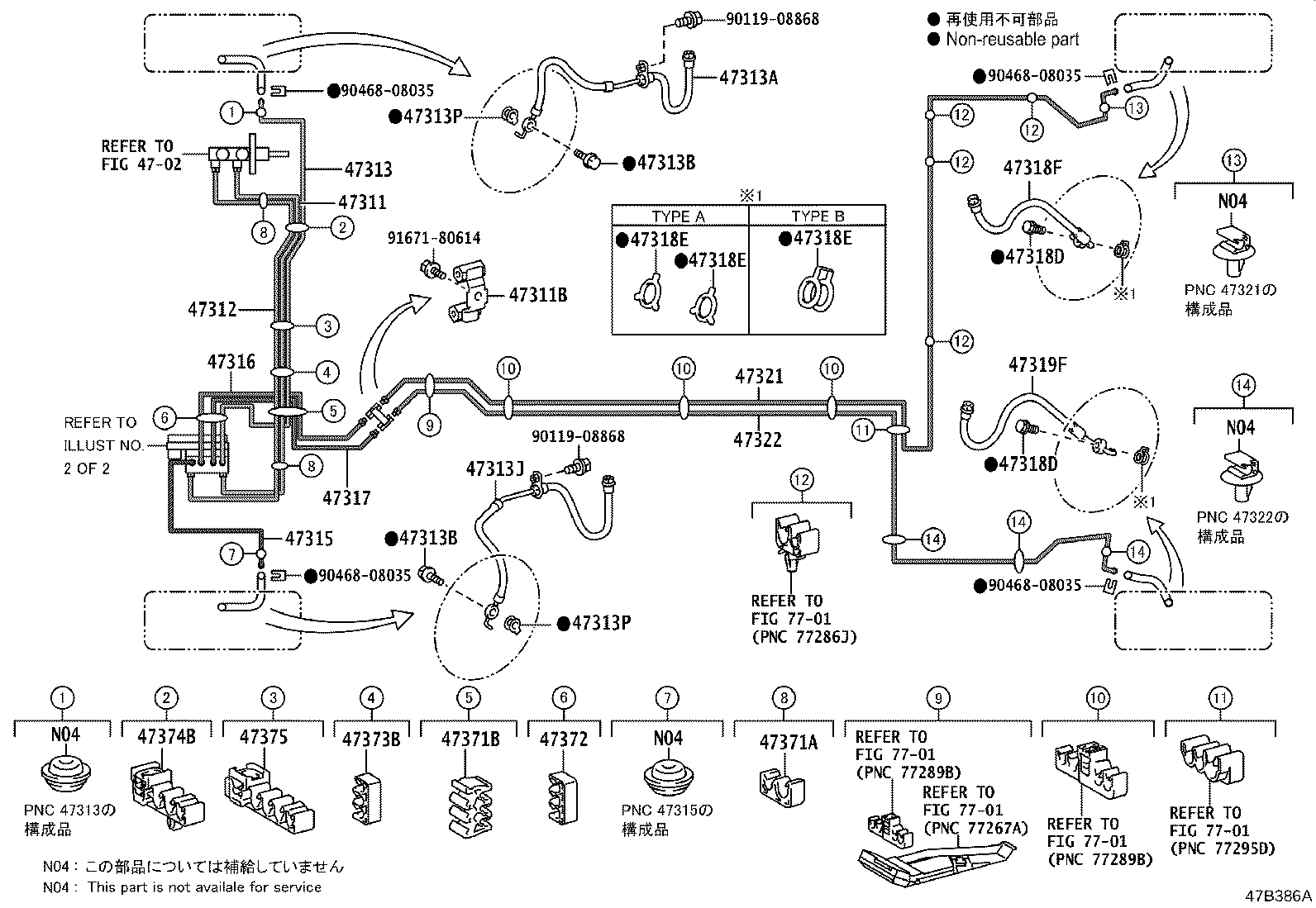

47B386A · 28 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
90 parts on this figure
Part number Description Fitment Price
47311 — Tube, Front Brake, NO.1
47311-52630 Tube, Front Brake, NO.1
2015-06 → 2018-09 ended
NCP175,NSP17# ¥1,130
47311-52751 Tube, Front Brake, NO.1
2015-07 → 2018-09 ended
NHP170 ¥1,020
47311-52630 Tube, Front Brake, NO.1
2018-09 → 2022-07 ended
NCP175,NSP17# ¥1,130
47311-52751 Tube, Front Brake, NO.1
2018-09 → 2022-07 ended
NHP170 ¥1,020
47311B — Way, NO.1(FOR FRONT BRAKE TUBE)
90412-10285 Way, NO.1(FOR FRONT BRAKE TUBE)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥610
90412-10285 Way, NO.1(FOR FRONT BRAKE TUBE)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥610
47312 — Tube, Front Brake, NO.2
47312-52720 Tube, Front Brake, NO.2
2015-06 → 2018-09 ended
NCP175,NSP17# ¥1,260
47312-52720 Tube, Front Brake, NO.2
2018-09 → 2022-07 ended
NCP175,NSP17# ¥1,260
47313 — Tube, Front Brake, NO.3
47313-52301 Tube, Front Brake, NO.3
2015-07 → 2018-09 ended
NHP170 ¥460
47313-52350 Tube, Front Brake, NO.3
2015-06 → 2018-09 ended
NCP175,NSP17# ¥1,130
47313-52301 Tube, Front Brake, NO.3
2018-09 → 2022-07 ended
NHP170 ¥460
47313-52350 Tube, Front Brake, NO.3
2018-09 → 2022-07 ended
NCP175,NSP17# ¥1,130
47313A — Hose, Flexible, NO.1(FOR FRONT)
90947-02H35 Hose, Flexible, NO.1(FOR FRONT)
2015-06 → 2015-07 ended
NCP175,NSP17# ¥2,250
90947-02H35 Hose, Flexible, NO.1(FOR FRONT)
2015-06 → 2018-09 ended
NHP170 ¥2,250
90947-02H71 Hose, Flexible, NO.1(FOR FRONT)
2015-07 → 2018-09 ended
NCP175,NSP17# ¥2,250
90947-02H35 Hose, Flexible, NO.1(FOR FRONT)
2018-09 → 2022-07 ended
NHP170 ¥2,250
90947-02H71 Hose, Flexible, NO.1(FOR FRONT)
2018-09 → 2022-07 ended
NCP175,NSP17# ¥2,250
47313B — Bolt, Union(FOR FRONT FLEXIBLE HOSE)
90401-10058 Bolt, Union(FOR FRONT FLEXIBLE HOSE)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥220
90401-10058 Bolt, Union(FOR FRONT FLEXIBLE HOSE)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥220
47313J — Hose, Flexible, NO.2(FOR FRONT)
90947-02H36 Hose, Flexible, NO.2(FOR FRONT)
2015-06 → 2015-07 ended
NCP175,NSP17# ¥2,250
90947-02H36 Hose, Flexible, NO.2(FOR FRONT)
2015-06 → 2018-09 ended
NHP170 ¥2,250
90947-02H72 Hose, Flexible, NO.2(FOR FRONT)
2015-07 → 2018-09 ended
NCP175,NSP17# ¥2,250
90947-02H36 Hose, Flexible, NO.2(FOR FRONT)
2018-09 → 2022-07 ended
NHP170 ¥2,250
90947-02H72 Hose, Flexible, NO.2(FOR FRONT)
2018-09 → 2022-07 ended
NCP175,NSP17# ¥2,250
47313P — Gasket(FOR FRONT FLEXIBLE HOSE)
47389-50021 Gasket(FOR FRONT FLEXIBLE HOSE)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥310
47389-50021 Gasket(FOR FRONT FLEXIBLE HOSE)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥310
47315 — Tube, Front Brake, NO.5
47315-52271 Tube, Front Brake, NO.5
2015-07 → 2018-09 ended
NHP170 ¥1,140
47315-52300 Tube, Front Brake, NO.5
2015-06 → 2018-09 ended
NCP175,NSP17# ¥650
47315-52271 Tube, Front Brake, NO.5
2018-09 → 2022-07 ended
NHP170 ¥1,140
47315-52300 Tube, Front Brake, NO.5
2018-09 → 2022-07 ended
NCP175,NSP17# ¥650
47316 — Tube, Front Brake, NO.6
47316-52261 Tube, Front Brake, NO.6
2015-07 → 2018-09 ended
NHP170 ¥910
47316-52280 Tube, Front Brake, NO.6
2015-06 → 2018-09 ended
NCP175,NSP17# ¥510
47316-52261 Tube, Front Brake, NO.6
2018-09 → 2022-07 ended
NHP170 ¥910
47316-52280 Tube, Front Brake, NO.6
2018-09 → 2022-07 ended
NCP175,NSP17# ¥510
47317 — Tube, Front Brake, NO.7
47317-52271 Tube, Front Brake, NO.7
2015-07 → 2018-09 ended
NHP170 ¥910
47317-52290 Tube, Front Brake, NO.7
2015-06 → 2018-09 ended
NCP175,NSP17# ¥510
47317-52271 Tube, Front Brake, NO.7
2018-09 → 2022-07 ended
NHP170 ¥910
47317-52290 Tube, Front Brake, NO.7
2018-09 → 2022-07 ended
NCP175,NSP17# ¥510
47318D — Bolt, Union(FOR REAR FLEXIBLE HOSE)
90401-10045 note Bolt, Union(FOR REAR FLEXIBLE HOSE)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥330
90401-10058 note Bolt, Union(FOR REAR FLEXIBLE HOSE)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥220
90401-10045 note Bolt, Union(FOR REAR FLEXIBLE HOSE)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥330
90401-10058 note Bolt, Union(FOR REAR FLEXIBLE HOSE)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥220
47318E — Gasket(FOR REAR FLEXIBLE HOSE)
47389-30010 note Gasket(FOR REAR FLEXIBLE HOSE)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥310
47389-50020 note Gasket(FOR REAR FLEXIBLE HOSE)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥280
47389-30010 note Gasket(FOR REAR FLEXIBLE HOSE)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥310
47389-50020 note Gasket(FOR REAR FLEXIBLE HOSE)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥280
47318F — Hose, Flexible(FOR REAR RH)
90947-02H37 Hose, Flexible(FOR REAR RH)
2015-06 → 2018-09 ended
NHP170,NSP17# ¥1,170
90947-02H38 Hose, Flexible(FOR REAR RH)
2015-06 → 2018-09 ended
NCP175 ¥1,170
90947-02H37 Hose, Flexible(FOR REAR RH)
2018-09 → 2022-07 ended
NHP170,NSP17# ¥1,170
90947-02H38 Hose, Flexible(FOR REAR RH)
2018-09 → 2022-07 ended
NCP175 ¥1,170
47319F — Hose, Flexible(FOR REAR LH)
90947-02H37 Hose, Flexible(FOR REAR LH)
2015-06 → 2018-09 ended
NHP170,NSP17# ¥1,170
90947-02H39 Hose, Flexible(FOR REAR LH)
2015-06 → 2018-09 ended
NCP175 ¥1,170
90947-02H37 Hose, Flexible(FOR REAR LH)
2018-09 → 2022-07 ended
NHP170,NSP17# ¥1,170
90947-02H39 Hose, Flexible(FOR REAR LH)
2018-09 → 2022-07 ended
NCP175 ¥1,170
47321 — Tube, Rear Brake, NO.1
47321-52430 Tube, Rear Brake, NO.1
2015-06 → 2018-09 ended
NSP170 ¥3,060
47321-52440 Tube, Rear Brake, NO.1
2015-07 → 2018-09 ended
NHP170 ¥3,060
47321-52450 Tube, Rear Brake, NO.1
2015-06 → 2018-09 ended
NSP172 ¥2,950
47321-52460 Tube, Rear Brake, NO.1
2015-06 → 2018-09 ended
NCP175 ¥2,950
47321-52430 Tube, Rear Brake, NO.1
2018-09 → 2022-07 ended
NSP170 ¥3,060
47321-52440 Tube, Rear Brake, NO.1
2018-09 → 2022-07 ended
NHP170 ¥3,060
47321-52450 Tube, Rear Brake, NO.1
2018-09 → 2022-07 ended
NSP172 ¥2,950
47321-52460 Tube, Rear Brake, NO.1
2018-09 → 2022-07 ended
NCP175 ¥2,950
47322 — Tube, Rear Brake, NO.2
47322-52430 Tube, Rear Brake, NO.2
2015-06 → 2018-09 ended
NSP17# ¥2,250
47322-52440 Tube, Rear Brake, NO.2
2015-07 → 2018-09 ended
NHP170 ¥2,500
47322-52460 Tube, Rear Brake, NO.2
2015-06 → 2018-09 ended
NCP175 ¥2,380
47322-52430 Tube, Rear Brake, NO.2
2018-09 → 2022-07 ended
NSP17# ¥2,250
47322-52440 Tube, Rear Brake, NO.2
2018-09 → 2022-07 ended
NHP170 ¥2,500
47322-52460 Tube, Rear Brake, NO.2
2018-09 → 2022-07 ended
NCP175 ¥2,380
47371A — Clamp, Brake Tube, NO.1
90464-00899 Clamp, Brake Tube, NO.1
2015-06 → 2018-09 ended
NCP175,NSP17# ¥110
90949-01D64 Clamp, Brake Tube, NO.1
2015-07 → 2018-09 ended
NHP170 ¥350
90464-00899 Clamp, Brake Tube, NO.1
2018-09 → 2022-07 ended
NCP175,NSP17# ¥110
90949-01D64 Clamp, Brake Tube, NO.1
2018-09 → 2022-07 ended
NHP170 ¥350
47371B — Clamp, Brake Tube, NO.6
90949-01D98 Clamp, Brake Tube, NO.6
2015-06 → 2018-09 ended
NCP175,NSP17# ¥170
90949-01D98 Clamp, Brake Tube, NO.6
2018-09 → 2022-07 ended
NCP175,NSP17# ¥170
47372 — Clamp, Brake Tube, NO.2
90464-00876 Clamp, Brake Tube, NO.2
2015-07 → 2018-09 ended
NHP170 ¥110
90949-01D92 Clamp, Brake Tube, NO.2
2015-06 → 2018-09 ended
NCP175,NSP17# ¥110
90464-00876 Clamp, Brake Tube, NO.2
2018-09 → 2022-07 ended
NHP170 ¥110
90949-01D92 Clamp, Brake Tube, NO.2
2018-09 → 2022-07 ended
NCP175,NSP17# ¥110
47373B — Clamp, Brake Tube, NO.3
90949-01D08 Clamp, Brake Tube, NO.3
2015-07 → 2018-09 ended
NHP170 ¥170
90949-01D93 Clamp, Brake Tube, NO.3
2015-06 → 2018-09 ended
NCP175,NSP17# ¥110
90949-01D08 Clamp, Brake Tube, NO.3
2018-09 → 2022-07 ended
NHP170 ¥170
90949-01D93 Clamp, Brake Tube, NO.3
2018-09 → 2022-07 ended
NCP175,NSP17# ¥110
47374B — Clamp, Brake Tube, NO.4
90464-00857 Clamp, Brake Tube, NO.4
2015-07 → 2018-09 ended
NHP170 ¥110
90949-01D94 Clamp, Brake Tube, NO.4
2015-06 → 2018-09 ended
NCP175,NSP17# ¥170
90464-00857 Clamp, Brake Tube, NO.4
2018-09 → 2022-07 ended
NHP170 ¥110
90949-01D94 Clamp, Brake Tube, NO.4
2018-09 → 2022-07 ended
NCP175,NSP17# ¥170
47375 — Clamp, Brake Tube, NO.5
90461-10854 Clamp, Brake Tube, NO.5
2015-07 → 2018-09 ended
NHP170 ¥170
90949-01D97 Clamp, Brake Tube, NO.5
2015-06 → 2018-09 ended
NCP175,NSP17# ¥170
90461-10854 Clamp, Brake Tube, NO.5
2018-09 → 2022-07 ended
NHP170 ¥170
90949-01D97 Clamp, Brake Tube, NO.5
2018-09 → 2022-07 ended
NCP175,NSP17# ¥170
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
