Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

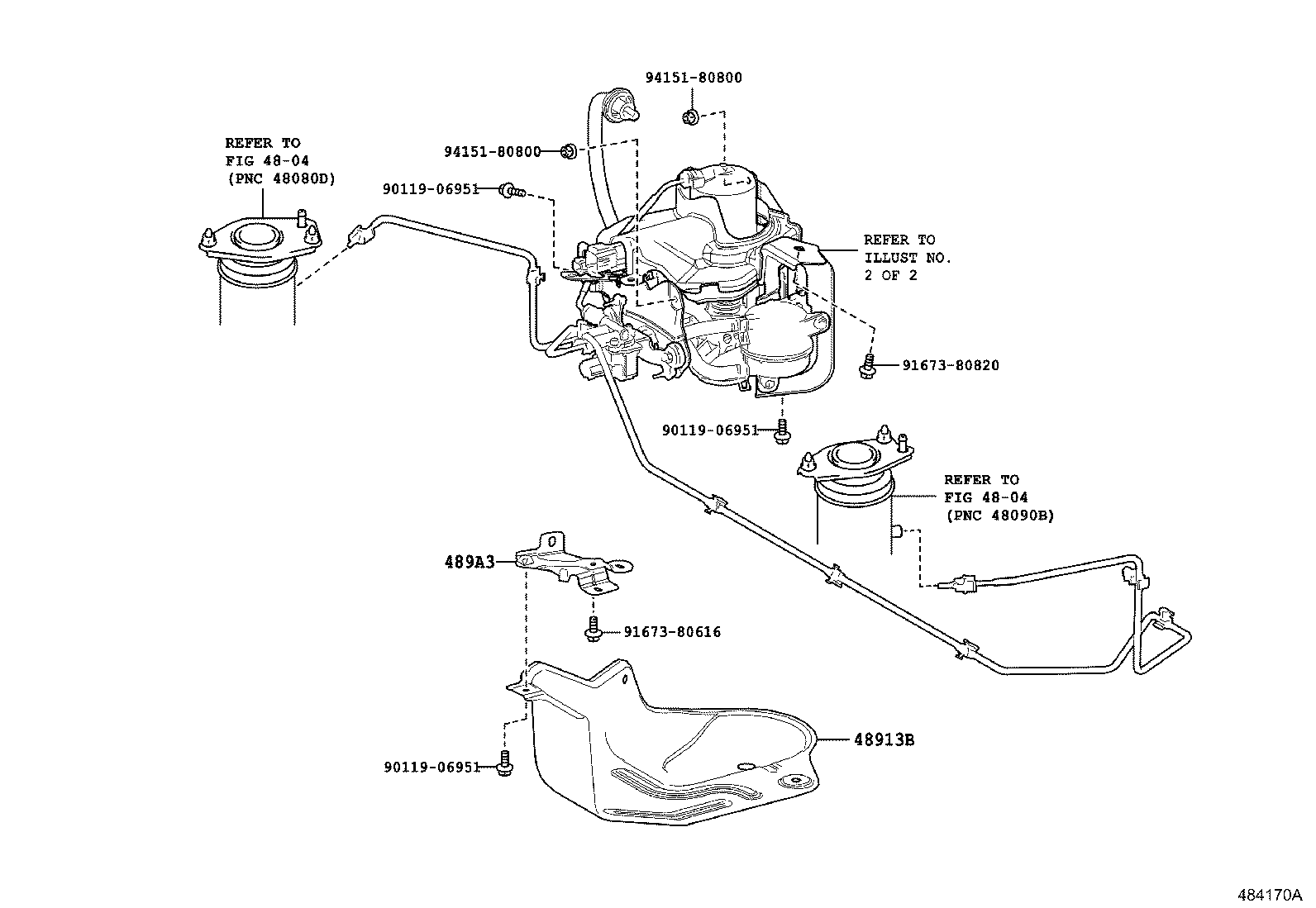

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 48913B — Cover, Height Control Pump | ||||
| 48913-52010 |
Cover, Height Control Pump
2015-06 → 2018-09
ended
|
NSP172 | ¥2,280 | |
| 48913-52010 |
Cover, Height Control Pump
2018-09 → 2022-07
ended
|
NSP172 | ¥2,280 | |
| 489A3 — Bracket, Height Control Protector, NO.1 | ||||
| 489A3-52010 |
Bracket, Height Control Protector, NO.1
2015-06 → 2018-09
ended
|
NSP172 | ¥540 | |
| 489A3-52010 |
Bracket, Height Control Protector, NO.1
2018-09 → 2022-07
ended
|
NSP172 | ¥540 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
