Exploded illustration 484182C 9017812009 — not listed in this catalogue 9017810014 — not listed in this catalogue 9017810014 — not listed in this catalogue 9017814006 — not listed in this catalogue 9011912357 — not listed in this catalogue 9010510361 — not listed in this catalogue 9017812010 — not listed in this catalogue 48760B — SUPPORT ASSY REAR SUSPENSION, LH (4 parts) 48750H — SUPPORT ASSY, REAR SUSPENSION, RH (4 parts) 48341B — BUMPER, REAR SPRING, NO.1 LH (4 parts) 48341A — BUMPER, REAR SPRING, NO.1 RH (4 parts) 48402 — BRACKET SUB-ASSY, REAR SPRING, FRONT LH (4 parts) 48401 — BRACKET SUB-ASSY, REAR SPRING, FRONT RH (4 parts) 48541E — RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH) (2 parts) 48531E — RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH) (2 parts) 42118 — DAMPER, REAR AXLE BEAM (2 parts) 48812 — BAR, STABILIZER, REAR (4 parts) 48817U — BOLT(FOR REAR STABILIZER) (2 parts) 42110F — BEAM ASSY, REAR AXLE (2 parts) 48830A — NUT(FOR REAR STABILIZER LINK) (4 parts) 48755 — SUPPORT, REAR SUSPENSION (4 parts) 48530B — WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 (2 parts) 48259A — INSULATOR, REAR COIL SPRING, UPPER LH (4 parts) 48257C — INSULATOR, REAR COIL SPRING, UPPER RH (4 parts) 48231B — SPRING, COIL, REAR LH (6 parts) 48231A — SPRING, COIL, REAR RH (6 parts) 48540 — ABSORBER ASSY, SHOCK, REAR LH (5 parts) 48530 — ABSORBER ASSY, SHOCK, REAR RH (5 parts)

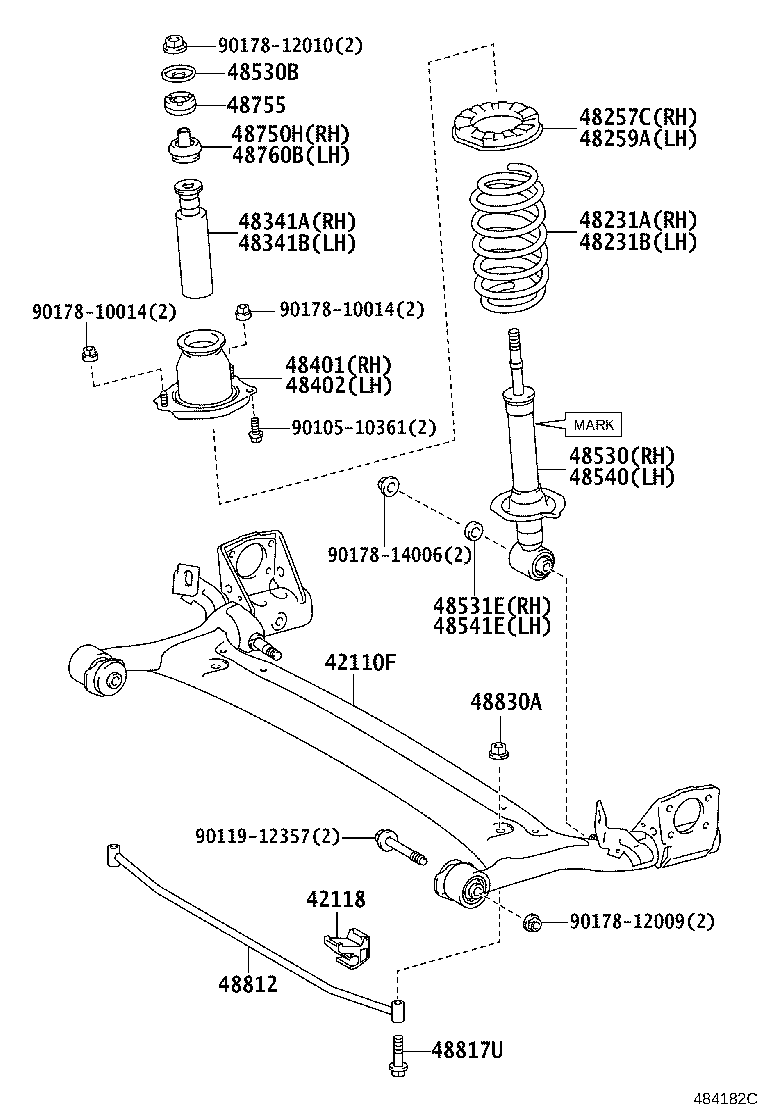

484182C · 21 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
78 parts on this figure
Part number Description Fitment Price
42110F — Beam Assy, Rear Axle
42110-52310 Beam Assy, Rear Axle
2015-06 → 2018-09 ended
NHP170,NSP17# ¥58,100
42110-52310 Beam Assy, Rear Axle
2018-09 → 2022-07 ended
NHP170,NSP17# ¥58,100
42118 — Damper, Rear Axle Beam
42118-68020 Damper, Rear Axle Beam
2015-06 → 2018-09 ended
NHP170,NSP17# ¥930
42118-68020 Damper, Rear Axle Beam
2018-09 → 2022-07 ended
NHP170,NSP17# ¥930
48231A — Spring, Coil, Rear RH
48231-52J40 Spring, Coil, Rear RH
2015-06 → 2018-09 ended
NSP170 ¥6,800
48231-52J50 Spring, Coil, Rear RH
2015-07 → 2018-09 ended
NHP170 ¥7,500
48231-52J60 Spring, Coil, Rear RH
2015-06 → 2018-09 ended
NCP175 ¥7,700
48231-52J40 Spring, Coil, Rear RH
2018-09 → 2022-07 ended
NSP170 ¥6,800
48231-52J50 Spring, Coil, Rear RH
2018-09 → 2022-07 ended
NHP170 ¥7,500
48231-52J60 Spring, Coil, Rear RH
2018-09 → 2022-07 ended
NCP175 ¥7,700
48231B — Spring, Coil, Rear LH
48231-52J40 Spring, Coil, Rear LH
2015-06 → 2018-09 ended
NSP170 ¥6,800
48231-52J50 Spring, Coil, Rear LH
2015-07 → 2018-09 ended
NHP170 ¥7,500
48231-52J60 Spring, Coil, Rear LH
2015-06 → 2018-09 ended
NCP175 ¥7,700
48231-52J40 Spring, Coil, Rear LH
2018-09 → 2022-07 ended
NSP170 ¥6,800
48231-52J50 Spring, Coil, Rear LH
2018-09 → 2022-07 ended
NHP170 ¥7,500
48231-52J60 Spring, Coil, Rear LH
2018-09 → 2022-07 ended
NCP175 ¥7,700
48257C — Insulator, Rear Coil Spring, Upper RH
48257-12030 Insulator, Rear Coil Spring, Upper RH
2015-06 → 2018-09 ended
NCP175 ¥860
48257-32090 Insulator, Rear Coil Spring, Upper RH
2015-06 → 2018-09 ended
NHP170,NSP170 ¥550
48257-12030 Insulator, Rear Coil Spring, Upper RH
2018-09 → 2022-07 ended
NCP175 ¥860
48257-32090 Insulator, Rear Coil Spring, Upper RH
2018-09 → 2022-07 ended
NHP170,NSP170 ¥550
48259A — Insulator, Rear Coil Spring, Upper LH
48257-12030 Insulator, Rear Coil Spring, Upper LH
2015-06 → 2018-09 ended
NCP175 ¥860
48257-32090 Insulator, Rear Coil Spring, Upper LH
2015-06 → 2018-09 ended
NHP170,NSP170 ¥550
48257-12030 Insulator, Rear Coil Spring, Upper LH
2018-09 → 2022-07 ended
NCP175 ¥860
48257-32090 Insulator, Rear Coil Spring, Upper LH
2018-09 → 2022-07 ended
NHP170,NSP170 ¥550
48341A — Bumper, Rear Spring, NO.1 RH
48341-32100 Bumper, Rear Spring, NO.1 RH
2015-06 → 2018-09 ended
NCP175 ¥990
48341-47010 Bumper, Rear Spring, NO.1 RH
2015-06 → 2018-09 ended
NHP170,NSP170 ¥900
48341-32100 Bumper, Rear Spring, NO.1 RH
2018-09 → 2022-07 ended
NCP175 ¥990
48341-47010 Bumper, Rear Spring, NO.1 RH
2018-09 → 2022-07 ended
NHP170,NSP170 ¥900
48341B — Bumper, Rear Spring, NO.1 LH
48341-32100 Bumper, Rear Spring, NO.1 LH
2015-06 → 2018-09 ended
NCP175 ¥990
48341-47010 Bumper, Rear Spring, NO.1 LH
2015-06 → 2018-09 ended
NHP170,NSP170 ¥900
48341-32100 Bumper, Rear Spring, NO.1 LH
2018-09 → 2022-07 ended
NCP175 ¥990
48341-47010 Bumper, Rear Spring, NO.1 LH
2018-09 → 2022-07 ended
NHP170,NSP170 ¥900
48401 — Bracket Sub-assy, Rear Spring, Front RH
48401-32010 Bracket Sub-assy, Rear Spring, Front RH
2015-06 → 2018-09 ended
NCP175 ¥1,550
48401-32020 Bracket Sub-assy, Rear Spring, Front RH
2015-06 → 2018-09 ended
NHP170,NSP170 ¥1,410
48401-32010 Bracket Sub-assy, Rear Spring, Front RH
2018-09 → 2022-07 ended
NCP175 ¥1,550
48401-32020 Bracket Sub-assy, Rear Spring, Front RH
2018-09 → 2022-07 ended
NHP170,NSP170 ¥1,410
48402 — Bracket Sub-assy, Rear Spring, Front LH
48401-32010 Bracket Sub-assy, Rear Spring, Front LH
2015-06 → 2018-09 ended
NCP175 ¥1,550
48403-32010 Bracket Sub-assy, Rear Spring, Front LH
2015-06 → 2018-09 ended
NHP170,NSP170 ¥1,410
48401-32010 Bracket Sub-assy, Rear Spring, Front LH
2018-09 → 2022-07 ended
NCP175 ¥1,550
48403-32010 Bracket Sub-assy, Rear Spring, Front LH
2018-09 → 2022-07 ended
NHP170,NSP170 ¥1,410
48530 — Absorber Assy, Shock, Rear RH
48530-52J00 note Absorber Assy, Shock, Rear RH
2015-06 → 2018-09 ended
NHP170,NSP170 ¥17,800
48530-52K50 note Absorber Assy, Shock, Rear RH
2015-06 → 2018-09 ended
NCP175 ¥17,800
48530-52P80 note Absorber Assy, Shock, Rear RH
2018-09 → 2022-07 ended
NSP170 ¥14,700
48530-52P90 note Absorber Assy, Shock, Rear RH
2018-09 → 2022-07 ended
NHP170 ¥14,700
48530-52Q00 note Absorber Assy, Shock, Rear RH
2018-09 → 2022-07 ended
NCP175 ¥14,700
48530B — Washer, Rear Shock Absorber Cushion, NO.1
90948-03021 Washer, Rear Shock Absorber Cushion, NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥280
90948-03021 Washer, Rear Shock Absorber Cushion, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 ¥280
48531E — Retainer, Cushion, NO.1(FOR REAR SHOCK ABSORBER RH)
90201-14034 Retainer, Cushion, NO.1(FOR REAR SHOCK ABSORBER RH)
2015-06 → 2018-09 ended
NHP170,NSP17# ¥170
90201-14034 Retainer, Cushion, NO.1(FOR REAR SHOCK ABSORBER RH)
2018-09 → 2022-07 ended
NHP170,NSP17# ¥170
48540 — Absorber Assy, Shock, Rear LH
48530-52J00 note Absorber Assy, Shock, Rear LH
2015-06 → 2018-09 ended
NHP170,NSP170 ¥17,800
48530-52K50 note Absorber Assy, Shock, Rear LH
2015-06 → 2018-09 ended
NCP175 ¥17,800
48530-52P80 note Absorber Assy, Shock, Rear LH
2018-09 → 2022-07 ended
NSP170 ¥14,700
48530-52P90 note Absorber Assy, Shock, Rear LH
2018-09 → 2022-07 ended
NHP170 ¥14,700
48530-52Q00 note Absorber Assy, Shock, Rear LH
2018-09 → 2022-07 ended
NCP175 ¥14,700
48541E — Retainer, Cushion, NO.1(FOR REAR SHOCK ABSORBER LH)
90201-14034 Retainer, Cushion, NO.1(FOR REAR SHOCK ABSORBER LH)
2015-06 → 2018-09 ended
NHP170,NSP17# ¥170
90201-14034 Retainer, Cushion, NO.1(FOR REAR SHOCK ABSORBER LH)
2018-09 → 2022-07 ended
NHP170,NSP17# ¥170
48750H — Support Assy, Rear Suspension, RH
48750-32170 Support Assy, Rear Suspension, RH
2015-06 → 2018-09 ended
NCP175 ¥840
48750-47010 Support Assy, Rear Suspension, RH
2015-06 → 2018-09 ended
NHP170,NSP170 ¥760
48750-32170 Support Assy, Rear Suspension, RH
2018-09 → 2022-07 ended
NCP175 ¥840
48750-47010 Support Assy, Rear Suspension, RH
2018-09 → 2022-07 ended
NHP170,NSP170 ¥760
48755 — Support, Rear Suspension
48755-20010 Support, Rear Suspension
2015-06 → 2018-09 ended
NCP175 ¥450
48755-63010 Support, Rear Suspension
2015-06 → 2018-09 ended
NHP170,NSP170 ¥490
48755-20010 Support, Rear Suspension
2018-09 → 2022-07 ended
NCP175 ¥450
48755-63010 Support, Rear Suspension
2018-09 → 2022-07 ended
NHP170,NSP170 ¥490
48760B — Support Assy Rear Suspension, LH
48750-32170 Support Assy Rear Suspension, LH
2015-06 → 2018-09 ended
NCP175 ¥840
48750-47010 Support Assy Rear Suspension, LH
2015-06 → 2018-09 ended
NHP170,NSP170 ¥760
48750-32170 Support Assy Rear Suspension, LH
2018-09 → 2022-07 ended
NCP175 ¥840
48750-47010 Support Assy Rear Suspension, LH
2018-09 → 2022-07 ended
NHP170,NSP170 ¥760
48812 — Bar, Stabilizer, Rear
48812-68021 Bar, Stabilizer, Rear
2015-06 → 2018-09 ended
NCP175 ¥8,100
48812-68040 Bar, Stabilizer, Rear
2015-06 → 2018-09 ended
NHP170,NSP17# ¥5,500
48812-68021 Bar, Stabilizer, Rear
2018-09 → 2022-07 ended
NCP175 ¥8,100
48812-68040 Bar, Stabilizer, Rear
2018-09 → 2022-07 ended
NHP170,NSP17# ¥5,500
48817U — Bolt(FOR REAR STABILIZER)
90105-16085 Bolt(FOR REAR STABILIZER)
2015-06 → 2018-09 ended
NHP170,NSP17# ¥430
90105-16085 Bolt(FOR REAR STABILIZER)
2018-09 → 2022-07 ended
NHP170,NSP17# ¥430
48830A — Nut(FOR REAR STABILIZER LINK)
90179-10183 Nut(FOR REAR STABILIZER LINK)
2015-06 → 2018-09 ended
NCP175 ¥100
94151-21641 Nut(FOR REAR STABILIZER LINK)
2015-06 → 2018-09 ended
NHP170,NSP17# ¥160
90179-10183 Nut(FOR REAR STABILIZER LINK)
2018-09 → 2022-07 ended
NCP175 ¥100
94151-21641 Nut(FOR REAR STABILIZER LINK)
2018-09 → 2022-07 ended
NHP170,NSP17# ¥160
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
