Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

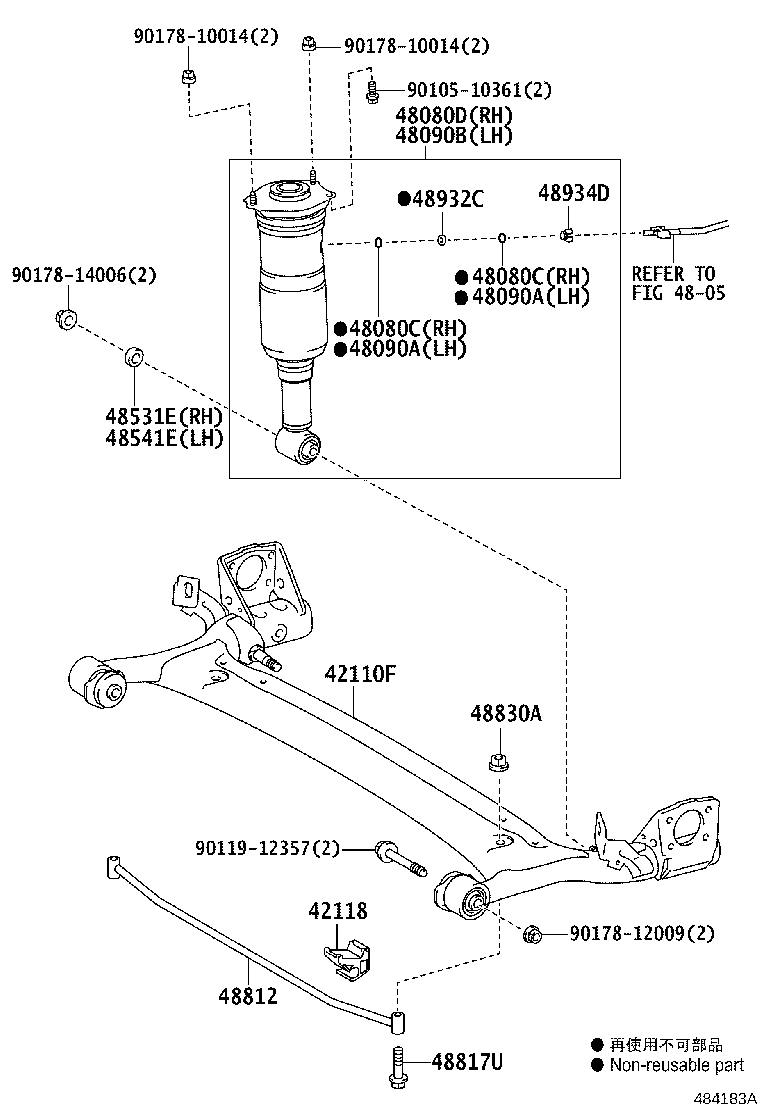

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 42110F — Beam Assy, Rear Axle | ||||
| 42110-52310 |
Beam Assy, Rear Axle
2015-06 → 2018-09
ended
|
NHP170,NSP17# | ¥58,100 | |
| 42110-52310 |
Beam Assy, Rear Axle
2018-09 → 2022-07
ended
|
NHP170,NSP17# | ¥58,100 | |
| 42118 — Damper, Rear Axle Beam | ||||
| 42118-68020 |
Damper, Rear Axle Beam
2015-06 → 2018-09
ended
|
NHP170,NSP17# | ¥930 | |
| 42118-68020 |
Damper, Rear Axle Beam
2018-09 → 2022-07
ended
|
NHP170,NSP17# | ¥930 | |
| 48080C — Ring, O(FOR REAR PNEUMATIC CYLINDER RH) | ||||
| 90301-04011 |
Ring, O(FOR REAR PNEUMATIC CYLINDER RH)
2015-06 → 2018-09
ended
|
NSP172 | ¥140 | |
| 90301-04011 |
Ring, O(FOR REAR PNEUMATIC CYLINDER RH)
2018-09 → 2022-07
ended
|
NSP172 | ¥140 | |
| 48080D — Cylinder Assy, Pneumatic, Rear RH | ||||
| 48080-52030 |
Cylinder Assy, Pneumatic, Rear RH
2015-06 → 2018-09
ended
|
NSP172 | ¥67,500 | |
| 48080-52030 |
Cylinder Assy, Pneumatic, Rear RH
2018-09 → 2022-07
ended
|
NSP172 | ¥67,500 | |
| 48090A — Ring, O(FOR REAR PNEUMATIC CYLINDER LH) | ||||
| 90301-04011 |
Ring, O(FOR REAR PNEUMATIC CYLINDER LH)
2015-06 → 2018-09
ended
|
NSP172 | ¥140 | |
| 90301-04011 |
Ring, O(FOR REAR PNEUMATIC CYLINDER LH)
2018-09 → 2022-07
ended
|
NSP172 | ¥140 | |
| 48090B — Cylinder Assy, Pneumatic, Rear LH | ||||
| 48090-52030 |
Cylinder Assy, Pneumatic, Rear LH
2015-06 → 2018-09
ended
|
NSP172 | ¥67,500 | |
| 48090-52030 |
Cylinder Assy, Pneumatic, Rear LH
2018-09 → 2022-07
ended
|
NSP172 | ¥67,500 | |
| 48531E — Retainer, Cushion, NO.1(FOR REAR SHOCK ABSORBER RH) | ||||
| 90201-14034 |
Retainer, Cushion, NO.1(FOR REAR SHOCK ABSORBER RH)
2015-06 → 2018-09
ended
|
NHP170,NSP17# | ¥170 | |
| 90201-14034 |
Retainer, Cushion, NO.1(FOR REAR SHOCK ABSORBER RH)
2018-09 → 2022-07
ended
|
NHP170,NSP17# | ¥170 | |
| 48541E — Retainer, Cushion, NO.1(FOR REAR SHOCK ABSORBER LH) | ||||
| 90201-14034 |
Retainer, Cushion, NO.1(FOR REAR SHOCK ABSORBER LH)
2015-06 → 2018-09
ended
|
NHP170,NSP17# | ¥170 | |
| 90201-14034 |
Retainer, Cushion, NO.1(FOR REAR SHOCK ABSORBER LH)
2018-09 → 2022-07
ended
|
NHP170,NSP17# | ¥170 | |
| 48812 — Bar, Stabilizer, Rear | ||||
| 48812-68021 |
Bar, Stabilizer, Rear
2015-06 → 2018-09
ended
|
NCP175 | ¥8,100 | |
| 48812-68040 |
Bar, Stabilizer, Rear
2015-06 → 2018-09
ended
|
NHP170,NSP17# | ¥5,500 | |
| 48812-68021 |
Bar, Stabilizer, Rear
2018-09 → 2022-07
ended
|
NCP175 | ¥8,100 | |
| 48812-68040 |
Bar, Stabilizer, Rear
2018-09 → 2022-07
ended
|
NHP170,NSP17# | ¥5,500 | |
| 48817U — Bolt(FOR REAR STABILIZER) | ||||
| 90105-16085 |
Bolt(FOR REAR STABILIZER)
2015-06 → 2018-09
ended
|
NHP170,NSP17# | ¥430 | |
| 90105-16085 |
Bolt(FOR REAR STABILIZER)
2018-09 → 2022-07
ended
|
NHP170,NSP17# | ¥430 | |
| 48830A — Nut(FOR REAR STABILIZER LINK) | ||||
| 90179-10183 |
Nut(FOR REAR STABILIZER LINK)
2015-06 → 2018-09
ended
|
NCP175 | ¥100 | |
| 94151-21641 |
Nut(FOR REAR STABILIZER LINK)
2015-06 → 2018-09
ended
|
NHP170,NSP17# | ¥160 | |
| 90179-10183 |
Nut(FOR REAR STABILIZER LINK)
2018-09 → 2022-07
ended
|
NCP175 | ¥100 | |
| 94151-21641 |
Nut(FOR REAR STABILIZER LINK)
2018-09 → 2022-07
ended
|
NHP170,NSP17# | ¥160 | |
| 48932C — Plate, Height Control Tube | ||||
| 48932-30010 |
Plate, Height Control Tube
2015-06 → 2018-09
ended
|
NSP172 | ¥130 | |
| 48932-30010 |
Plate, Height Control Tube
2018-09 → 2022-07
ended
|
NSP172 | ¥130 | |
| 48934D — Connector, Height Control Tube | ||||
| 48934-30010 |
Connector, Height Control Tube
2015-06 → 2018-09
ended
|
NSP172 | ¥130 | |
| 48934-30010 |
Connector, Height Control Tube
2018-09 → 2022-07
ended
|
NSP172 | ¥130 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
