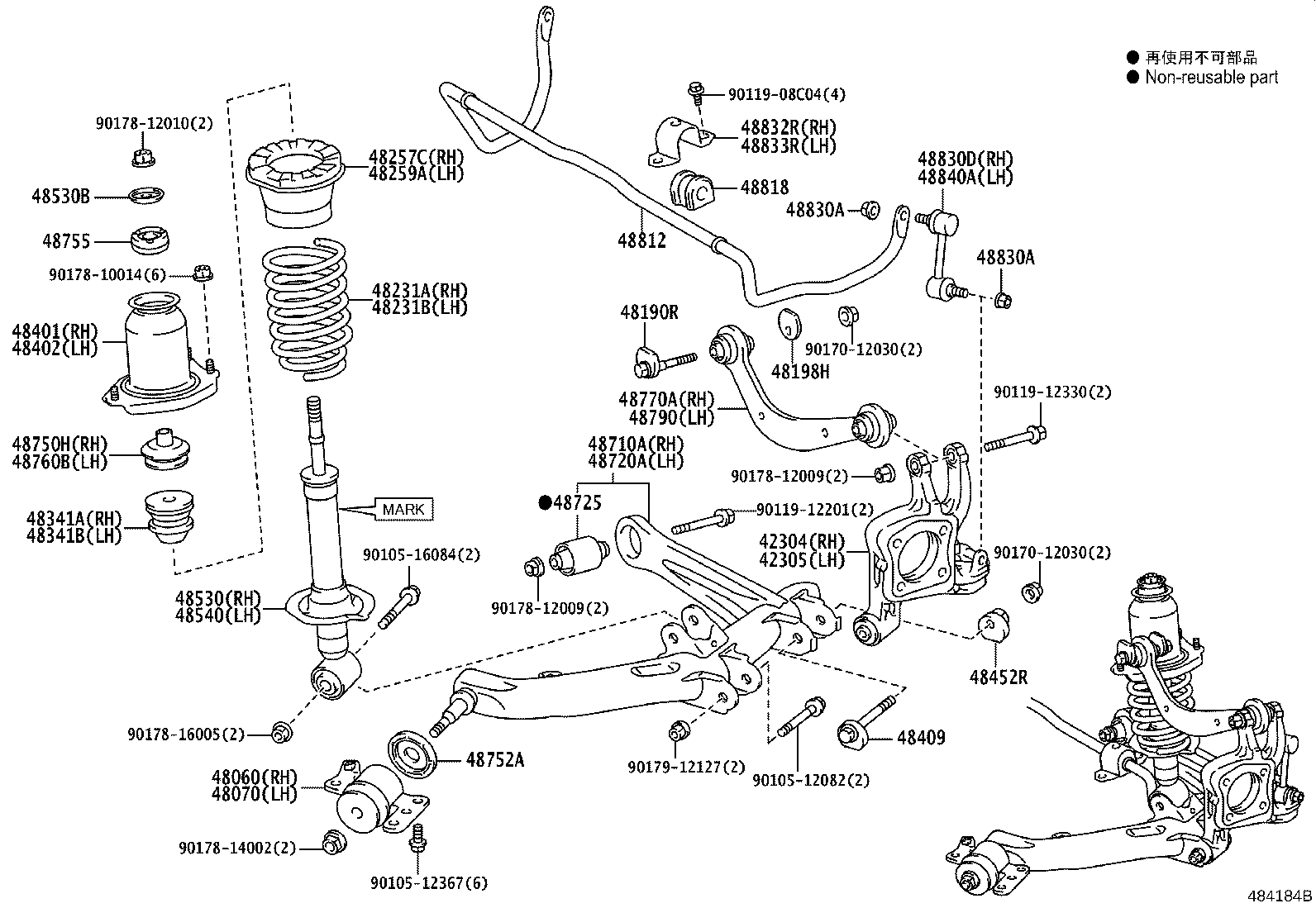

Exploded illustration 484184B 48530B — WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 (2 parts) 48755 — SUPPORT, REAR SUSPENSION (4 parts) 48401 — BRACKET SUB-ASSY, REAR SPRING, FRONT RH (4 parts) 48402 — BRACKET SUB-ASSY, REAR SPRING, FRONT LH (4 parts) 48750H — SUPPORT ASSY, REAR SUSPENSION, RH (4 parts) 48760B — SUPPORT ASSY REAR SUSPENSION, LH (4 parts) 48341A — BUMPER, REAR SPRING, NO.1 RH (4 parts) 48341B — BUMPER, REAR SPRING, NO.1 LH (4 parts) 48830D — LINK ASSY, REAR STABILIZER, RH (2 parts) 9017812009 — not listed in this catalogue 48840A — LINK ASSY, REAR STABILIZER, LH (2 parts) 9017810014 — not listed in this catalogue 48259A — INSULATOR, REAR COIL SPRING, UPPER LH (4 parts) 48257C — INSULATOR, REAR COIL SPRING, UPPER RH (4 parts) 48231A — SPRING, COIL, REAR RH (6 parts) 48231B — SPRING, COIL, REAR LH (6 parts) 9010516084 — not listed in this catalogue 9017816005 — not listed in this catalogue 48060 — BRACKET ASSY, REAR SUSPENSION ARM, RH (2 parts) 48070 — BRACKET ASSY, REAR SUSPENSION ARM, LH (2 parts) 9017814002 — not listed in this catalogue 9010512367 — not listed in this catalogue 48752A — STOPPER, REAR SUSPENSION SUPPORT (2 parts) 9017812009 — not listed in this catalogue 48725 — BUSH, LOWER CONTROL ARM (2 parts) 48710A — ARM ASSY, REAR SUSPENSION, NO.1 RH (2 parts) 48720A — ARM ASSY, REAR SUSPENSION, NO.1 LH (2 parts) 48770A — ARM ASSY, UPPER CONTROL, REAR RH (2 parts) 48790 — ARM ASSY, UPPER CONTROL, REAR LH (2 parts) 48812 — BAR, STABILIZER, REAR (4 parts) 48818 — BUSH, STABILIZER, REAR (2 parts) 48830A — NUT(FOR REAR STABILIZER LINK) (4 parts) 48830A — NUT(FOR REAR STABILIZER LINK) (4 parts) 48832R — BRACKET, REAR STABILIZER BAR, NO.1 RH (2 parts) 48833R — BRACKET, REAR STABILIZER BAR, NO.1 LH (2 parts) 48540 — ABSORBER ASSY, SHOCK, REAR LH (5 parts) 48190R — CAM ASSY, CAMBER ADJUST (2 parts) 48198H — CAM, CAMBER ADJUST, NO.2 (2 parts) 9017012030 — not listed in this catalogue 9017012030 — not listed in this catalogue 9017912127 — not listed in this catalogue 9011912330 — not listed in this catalogue 9010512082 — not listed in this catalogue 48409 — CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST (2 parts) 48452R — PLATE, REAR SUSPENSION TOE ADJUST, NO.2 (2 parts) 42304 — CARRIER SUB-ASSY, REAR AXLE, RH (2 parts) 42305 — CARRIER SUB-ASSY, REAR AXLE, LH (2 parts) 9011912201 — not listed in this catalogue 48530 — ABSORBER ASSY, SHOCK, REAR RH (5 parts) 9011908C04 — not listed in this catalogue 9017812010 — not listed in this catalogue
484184B · 36 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
106 parts on this figure
Part number Description Fitment Price
42304 — Carrier Sub-assy, Rear Axle, RH
42304-32110 Carrier Sub-assy, Rear Axle, RH
2015-06 → 2018-09 ended
NCP175 ¥11,400
42304-32110 Carrier Sub-assy, Rear Axle, RH
2018-09 → 2022-07 ended
NCP175 ¥11,400
42305 — Carrier Sub-assy, Rear Axle, LH
42305-32110 Carrier Sub-assy, Rear Axle, LH
2015-06 → 2018-09 ended
NCP175 ¥11,400
42305-32110 Carrier Sub-assy, Rear Axle, LH
2018-09 → 2022-07 ended
NCP175 ¥11,400
48060 — Bracket Assy, Rear Suspension Arm, RH
48060-32040 Bracket Assy, Rear Suspension Arm, RH
2015-06 → 2018-09 ended
NCP175 ¥3,670
48060-32040 Bracket Assy, Rear Suspension Arm, RH
2018-09 → 2022-07 ended
NCP175 ¥3,670
48070 — Bracket Assy, Rear Suspension Arm, LH
48070-32040 Bracket Assy, Rear Suspension Arm, LH
2015-06 → 2018-09 ended
NCP175 ¥3,670
48070-32040 Bracket Assy, Rear Suspension Arm, LH
2018-09 → 2022-07 ended
NCP175 ¥3,670
48190R — Cam Assy, Camber Adjust
48190-32010 Cam Assy, Camber Adjust
2015-06 → 2018-09 ended
NCP175 ¥470
48190-32010 Cam Assy, Camber Adjust
2018-09 → 2022-07 ended
NCP175 ¥470
48198H — Cam, Camber Adjust, NO.2
48198-32040 Cam, Camber Adjust, NO.2
2015-06 → 2018-09 ended
NCP175 ¥720
48198-32040 Cam, Camber Adjust, NO.2
2018-09 → 2022-07 ended
NCP175 ¥720
48231A — Spring, Coil, Rear RH
48231-52J40 Spring, Coil, Rear RH
2015-06 → 2018-09 ended
NSP170 ¥6,800
48231-52J50 Spring, Coil, Rear RH
2015-07 → 2018-09 ended
NHP170 ¥7,500
48231-52J60 Spring, Coil, Rear RH
2015-06 → 2018-09 ended
NCP175 ¥7,700
48231-52J40 Spring, Coil, Rear RH
2018-09 → 2022-07 ended
NSP170 ¥6,800
48231-52J50 Spring, Coil, Rear RH
2018-09 → 2022-07 ended
NHP170 ¥7,500
48231-52J60 Spring, Coil, Rear RH
2018-09 → 2022-07 ended
NCP175 ¥7,700
48231B — Spring, Coil, Rear LH
48231-52J40 Spring, Coil, Rear LH
2015-06 → 2018-09 ended
NSP170 ¥6,800
48231-52J50 Spring, Coil, Rear LH
2015-07 → 2018-09 ended
NHP170 ¥7,500
48231-52J60 Spring, Coil, Rear LH
2015-06 → 2018-09 ended
NCP175 ¥7,700
48231-52J40 Spring, Coil, Rear LH
2018-09 → 2022-07 ended
NSP170 ¥6,800
48231-52J50 Spring, Coil, Rear LH
2018-09 → 2022-07 ended
NHP170 ¥7,500
48231-52J60 Spring, Coil, Rear LH
2018-09 → 2022-07 ended
NCP175 ¥7,700
48257C — Insulator, Rear Coil Spring, Upper RH
48257-12030 Insulator, Rear Coil Spring, Upper RH
2015-06 → 2018-09 ended
NCP175 ¥860
48257-32090 Insulator, Rear Coil Spring, Upper RH
2015-06 → 2018-09 ended
NHP170,NSP170 ¥550
48257-12030 Insulator, Rear Coil Spring, Upper RH
2018-09 → 2022-07 ended
NCP175 ¥860
48257-32090 Insulator, Rear Coil Spring, Upper RH
2018-09 → 2022-07 ended
NHP170,NSP170 ¥550
48259A — Insulator, Rear Coil Spring, Upper LH
48257-12030 Insulator, Rear Coil Spring, Upper LH
2015-06 → 2018-09 ended
NCP175 ¥860
48257-32090 Insulator, Rear Coil Spring, Upper LH
2015-06 → 2018-09 ended
NHP170,NSP170 ¥550
48257-12030 Insulator, Rear Coil Spring, Upper LH
2018-09 → 2022-07 ended
NCP175 ¥860
48257-32090 Insulator, Rear Coil Spring, Upper LH
2018-09 → 2022-07 ended
NHP170,NSP170 ¥550
48341A — Bumper, Rear Spring, NO.1 RH
48341-32100 Bumper, Rear Spring, NO.1 RH
2015-06 → 2018-09 ended
NCP175 ¥990
48341-47010 Bumper, Rear Spring, NO.1 RH
2015-06 → 2018-09 ended
NHP170,NSP170 ¥900
48341-32100 Bumper, Rear Spring, NO.1 RH
2018-09 → 2022-07 ended
NCP175 ¥990
48341-47010 Bumper, Rear Spring, NO.1 RH
2018-09 → 2022-07 ended
NHP170,NSP170 ¥900
48341B — Bumper, Rear Spring, NO.1 LH
48341-32100 Bumper, Rear Spring, NO.1 LH
2015-06 → 2018-09 ended
NCP175 ¥990
48341-47010 Bumper, Rear Spring, NO.1 LH
2015-06 → 2018-09 ended
NHP170,NSP170 ¥900
48341-32100 Bumper, Rear Spring, NO.1 LH
2018-09 → 2022-07 ended
NCP175 ¥990
48341-47010 Bumper, Rear Spring, NO.1 LH
2018-09 → 2022-07 ended
NHP170,NSP170 ¥900
48401 — Bracket Sub-assy, Rear Spring, Front RH
48401-32010 Bracket Sub-assy, Rear Spring, Front RH
2015-06 → 2018-09 ended
NCP175 ¥1,550
48401-32020 Bracket Sub-assy, Rear Spring, Front RH
2015-06 → 2018-09 ended
NHP170,NSP170 ¥1,410
48401-32010 Bracket Sub-assy, Rear Spring, Front RH
2018-09 → 2022-07 ended
NCP175 ¥1,550
48401-32020 Bracket Sub-assy, Rear Spring, Front RH
2018-09 → 2022-07 ended
NHP170,NSP170 ¥1,410
48402 — Bracket Sub-assy, Rear Spring, Front LH
48401-32010 Bracket Sub-assy, Rear Spring, Front LH
2015-06 → 2018-09 ended
NCP175 ¥1,550
48403-32010 Bracket Sub-assy, Rear Spring, Front LH
2015-06 → 2018-09 ended
NHP170,NSP170 ¥1,410
48401-32010 Bracket Sub-assy, Rear Spring, Front LH
2018-09 → 2022-07 ended
NCP175 ¥1,550
48403-32010 Bracket Sub-assy, Rear Spring, Front LH
2018-09 → 2022-07 ended
NHP170,NSP170 ¥1,410
48409 — Cam Sub-assy, Rear Suspension Toe Adjust
48409-32040 Cam Sub-assy, Rear Suspension Toe Adjust
2015-06 → 2018-09 ended
NCP175 ¥700
48409-32040 Cam Sub-assy, Rear Suspension Toe Adjust
2018-09 → 2022-07 ended
NCP175 ¥700
48452R — Plate, Rear Suspension Toe Adjust, NO.2
48452-32040 Plate, Rear Suspension Toe Adjust, NO.2
2015-06 → 2018-09 ended
NCP175 ¥480
48452-32040 Plate, Rear Suspension Toe Adjust, NO.2
2018-09 → 2022-07 ended
NCP175 ¥480
48530 — Absorber Assy, Shock, Rear RH
48530-52J00 note Absorber Assy, Shock, Rear RH
2015-06 → 2018-09 ended
NHP170,NSP170 ¥17,800
48530-52K50 note Absorber Assy, Shock, Rear RH
2015-06 → 2018-09 ended
NCP175 ¥17,800
48530-52P80 note Absorber Assy, Shock, Rear RH
2018-09 → 2022-07 ended
NSP170 ¥14,700
48530-52P90 note Absorber Assy, Shock, Rear RH
2018-09 → 2022-07 ended
NHP170 ¥14,700
48530-52Q00 note Absorber Assy, Shock, Rear RH
2018-09 → 2022-07 ended
NCP175 ¥14,700
48530B — Washer, Rear Shock Absorber Cushion, NO.1
90948-03021 Washer, Rear Shock Absorber Cushion, NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥280
90948-03021 Washer, Rear Shock Absorber Cushion, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 ¥280
48540 — Absorber Assy, Shock, Rear LH
48530-52J00 note Absorber Assy, Shock, Rear LH
2015-06 → 2018-09 ended
NHP170,NSP170 ¥17,800
48530-52K50 note Absorber Assy, Shock, Rear LH
2015-06 → 2018-09 ended
NCP175 ¥17,800
48530-52P80 note Absorber Assy, Shock, Rear LH
2018-09 → 2022-07 ended
NSP170 ¥14,700
48530-52P90 note Absorber Assy, Shock, Rear LH
2018-09 → 2022-07 ended
NHP170 ¥14,700
48530-52Q00 note Absorber Assy, Shock, Rear LH
2018-09 → 2022-07 ended
NCP175 ¥14,700
48710A — Arm Assy, Rear Suspension, NO.1 RH
48710-68010 Arm Assy, Rear Suspension, NO.1 RH
2015-06 → 2018-09 ended
NCP175 ¥9,000
48710-68010 Arm Assy, Rear Suspension, NO.1 RH
2018-09 → 2022-07 ended
NCP175 ¥9,000
48720A — Arm Assy, Rear Suspension, NO.1 LH
48720-68010 Arm Assy, Rear Suspension, NO.1 LH
2015-06 → 2018-09 ended
NCP175 ¥9,000
48720-68010 Arm Assy, Rear Suspension, NO.1 LH
2018-09 → 2022-07 ended
NCP175 ¥9,000
48725 — Bush, Lower Control Arm
48725-32250 Bush, Lower Control Arm
2015-06 → 2018-09 ended
NCP175 ¥1,220
48725-32250 Bush, Lower Control Arm
2018-09 → 2022-07 ended
NCP175 ¥1,220
48750H — Support Assy, Rear Suspension, RH
48750-32170 Support Assy, Rear Suspension, RH
2015-06 → 2018-09 ended
NCP175 ¥840
48750-47010 Support Assy, Rear Suspension, RH
2015-06 → 2018-09 ended
NHP170,NSP170 ¥760
48750-32170 Support Assy, Rear Suspension, RH
2018-09 → 2022-07 ended
NCP175 ¥840
48750-47010 Support Assy, Rear Suspension, RH
2018-09 → 2022-07 ended
NHP170,NSP170 ¥760
48752A — Stopper, Rear Suspension Support
48752-32011 Stopper, Rear Suspension Support
2015-06 → 2018-09 ended
NCP175 ¥930
48752-32011 Stopper, Rear Suspension Support
2018-09 → 2022-07 ended
NCP175 ¥930
48755 — Support, Rear Suspension
48755-20010 Support, Rear Suspension
2015-06 → 2018-09 ended
NCP175 ¥450
48755-63010 Support, Rear Suspension
2015-06 → 2018-09 ended
NHP170,NSP170 ¥490
48755-20010 Support, Rear Suspension
2018-09 → 2022-07 ended
NCP175 ¥450
48755-63010 Support, Rear Suspension
2018-09 → 2022-07 ended
NHP170,NSP170 ¥490
48760B — Support Assy Rear Suspension, LH
48750-32170 Support Assy Rear Suspension, LH
2015-06 → 2018-09 ended
NCP175 ¥840
48750-47010 Support Assy Rear Suspension, LH
2015-06 → 2018-09 ended
NHP170,NSP170 ¥760
48750-32170 Support Assy Rear Suspension, LH
2018-09 → 2022-07 ended
NCP175 ¥840
48750-47010 Support Assy Rear Suspension, LH
2018-09 → 2022-07 ended
NHP170,NSP170 ¥760
48770A — Arm Assy, Upper Control, Rear RH
48770-20020 Arm Assy, Upper Control, Rear RH
2015-06 → 2018-09 ended
NCP175 ¥7,600
48770-20020 Arm Assy, Upper Control, Rear RH
2018-09 → 2022-07 ended
NCP175 ¥7,600
48790 — Arm Assy, Upper Control, Rear LH
48770-20020 Arm Assy, Upper Control, Rear LH
2015-06 → 2018-09 ended
NCP175 ¥7,600
48770-20020 Arm Assy, Upper Control, Rear LH
2018-09 → 2022-07 ended
NCP175 ¥7,600
48812 — Bar, Stabilizer, Rear
48812-68021 Bar, Stabilizer, Rear
2015-06 → 2018-09 ended
NCP175 ¥8,100
48812-68040 Bar, Stabilizer, Rear
2015-06 → 2018-09 ended
NHP170,NSP17# ¥5,500
48812-68021 Bar, Stabilizer, Rear
2018-09 → 2022-07 ended
NCP175 ¥8,100
48812-68040 Bar, Stabilizer, Rear
2018-09 → 2022-07 ended
NHP170,NSP17# ¥5,500
48818 — Bush, Stabilizer, Rear
48818-21070 Bush, Stabilizer, Rear
2015-06 → 2018-09 ended
NCP175 ¥620
48818-21070 Bush, Stabilizer, Rear
2018-09 → 2022-07 ended
NCP175 ¥620
48830A — Nut(FOR REAR STABILIZER LINK)
90179-10183 Nut(FOR REAR STABILIZER LINK)
2015-06 → 2018-09 ended
NCP175 ¥100
94151-21641 Nut(FOR REAR STABILIZER LINK)
2015-06 → 2018-09 ended
NHP170,NSP17# ¥160
90179-10183 Nut(FOR REAR STABILIZER LINK)
2018-09 → 2022-07 ended
NCP175 ¥100
94151-21641 Nut(FOR REAR STABILIZER LINK)
2018-09 → 2022-07 ended
NHP170,NSP17# ¥160
48830D — Link Assy, Rear Stabilizer, RH
48830-32050 Link Assy, Rear Stabilizer, RH
2015-06 → 2018-09 ended
NCP175 ¥3,680
48830-32050 Link Assy, Rear Stabilizer, RH
2018-09 → 2022-07 ended
NCP175 ¥3,680
48832R — Bracket, Rear Stabilizer Bar, NO.1 RH
48832-68010 Bracket, Rear Stabilizer Bar, NO.1 RH
2015-06 → 2018-09 ended
NCP175 ¥480
48832-68010 Bracket, Rear Stabilizer Bar, NO.1 RH
2018-09 → 2022-07 ended
NCP175 ¥480
48833R — Bracket, Rear Stabilizer Bar, NO.1 LH
48832-68010 Bracket, Rear Stabilizer Bar, NO.1 LH
2015-06 → 2018-09 ended
NCP175 ¥480
48832-68010 Bracket, Rear Stabilizer Bar, NO.1 LH
2018-09 → 2022-07 ended
NCP175 ¥480
48840A — Link Assy, Rear Stabilizer, LH
48830-32050 Link Assy, Rear Stabilizer, LH
2015-06 → 2018-09 ended
NCP175 ¥3,680
48830-32050 Link Assy, Rear Stabilizer, LH
2018-09 → 2022-07 ended
NCP175 ¥3,680
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
