Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

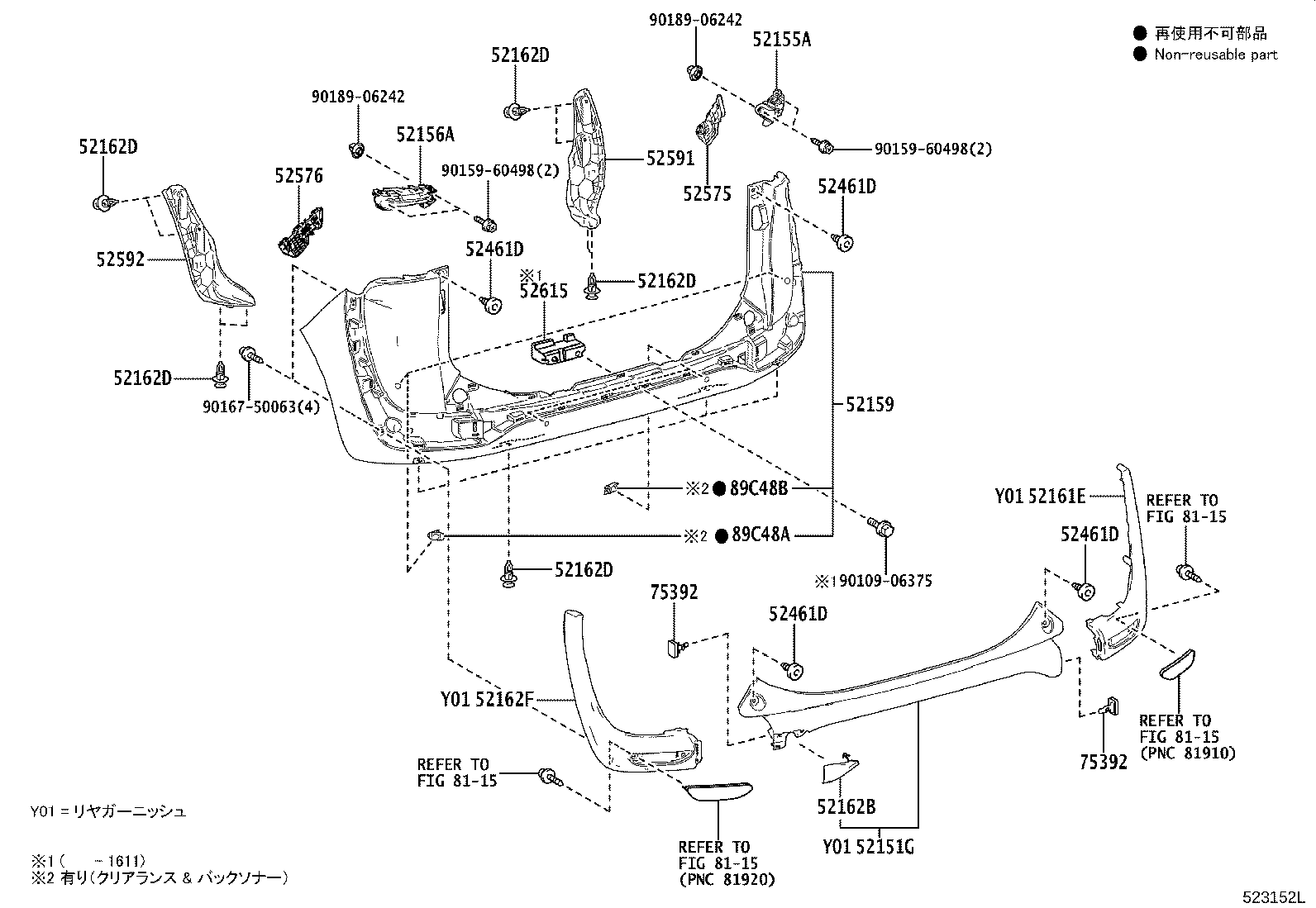

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52151G — Extension, Rear Bumper | ||||
| 52151-52010 |
Extension, Rear Bumper
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP170 | ¥4,710 | |
| 52151-52030-E1 note |
Extension, Rear Bumper
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP170 | ¥7,000 | |
| 52151-52030-J1 note |
Extension, Rear Bumper
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP170 | ¥7,000 | |
| 52151-52010 |
Extension, Rear Bumper
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 | ¥4,710 | |
| 52155A — Support, Rear Bumper Side, RH | ||||
| 52155-52130 |
Support, Rear Bumper Side, RH
2015-06 → 2016-05
ended
|
NCP175,NHP170,NSP17# | ¥3,580 | |
| 52155-52131 |
Support, Rear Bumper Side, RH
2016-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥2,490 | |
| 52155-52131 |
Support, Rear Bumper Side, RH
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥2,490 | |
| 52156A — Support, Rear Bumper Side, LH | ||||
| 52156-52130 |
Support, Rear Bumper Side, LH
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥2,490 | |
| 52156-52130 |
Support, Rear Bumper Side, LH
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥2,490 | |
| 52159 — Cover, Rear Bumper | ||||
| 52159-52770-A0 note |
Cover, Rear Bumper
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP170 | ¥40,400 | |
| 52159-52770-A0 note |
Cover, Rear Bumper
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP170 | ¥40,400 | |
| 52159-52770-B0 note |
Cover, Rear Bumper
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP170 | ¥40,400 | |
| 52159-52770-B0 note |
Cover, Rear Bumper
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP170 | ¥40,400 | |
| 52159-52770-C0 note |
Cover, Rear Bumper
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP170 | ¥40,400 | |
| 52159-52770-C0 note |
Cover, Rear Bumper
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP170 | ¥40,400 | |
| 52159-52770-D1 note |
Cover, Rear Bumper
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP170 | ¥48,600 | |
| 52159-52770-D2 note |
Cover, Rear Bumper
2017-08 → 2018-09
ended
|
NCP175 G;NHP170,NSP170 07S G | ¥48,600 | |
| 52159-52770-E1 note |
Cover, Rear Bumper
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP170 | ¥40,400 | |
| 52159-52770-F1 note |
Cover, Rear Bumper
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP170 | ¥40,400 | |
| 52159-52770-F1 note |
Cover, Rear Bumper
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP170 | ¥40,400 | |
| 52159-52770-G1 note |
Cover, Rear Bumper
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP170 | ¥48,600 | |
| 52159-52770-G1 note |
Cover, Rear Bumper
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP170 | ¥48,600 | |
| 52159-52770-J0 note |
Cover, Rear Bumper
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP170 | ¥48,500 | |
| 52159-52770-A0 note |
Cover, Rear Bumper
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | ¥40,400 | |
| 52159-52770-B0 note |
Cover, Rear Bumper
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | ¥40,400 | |
| 52159-52770-C0 note |
Cover, Rear Bumper
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | ¥40,400 | |
| 52159-52770-D3 note |
Cover, Rear Bumper
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | ¥40,400 | |
| 52159-52770-E1 note |
Cover, Rear Bumper
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | ¥40,400 | |
| 52159-52770-E2 note |
Cover, Rear Bumper
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | ¥40,400 | |
| 52159-52770-E3 note |
Cover, Rear Bumper
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | ¥40,400 | |
| 52159-52770-F1 note |
Cover, Rear Bumper
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | ¥40,400 | |
| 52159-52770-G2 note |
Cover, Rear Bumper
2018-09 → 2021-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | ¥40,400 | |
| 52159-52770-J0 note |
Cover, Rear Bumper
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | ¥48,500 | |
| 52159-52770-J1 note |
Cover, Rear Bumper
2019-10 → 2021-06
ended
|
NCP175,NHP170,NSP170 FNBSG,G | ¥40,400 | |
| 52159-52770-J2 note |
Cover, Rear Bumper
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | ¥40,400 | |
| 52159-52987-A0 note |
Cover, Rear Bumper
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNGCR,GCERO | ¥49,400 | |
| 52159-52987-A0 note |
Cover, Rear Bumper
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | ¥49,400 | |
| 52159-52987-A0 note |
Cover, Rear Bumper
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | ¥49,400 | |
| 52159-52987-B0 note |
Cover, Rear Bumper
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | ¥49,400 | |
| 52159-52987-B0 note |
Cover, Rear Bumper
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNGCR,GCERO | ¥49,400 | |
| 52159-52987-B0 note |
Cover, Rear Bumper
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | ¥49,400 | |
| 52159-52987-C0 note |
Cover, Rear Bumper
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | ¥49,400 | |
| 52159-52987-C0 note |
Cover, Rear Bumper
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | ¥49,400 | |
| 52159-52987-C0 note |
Cover, Rear Bumper
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNGCR,GCERO | ¥49,400 | |
| 52159-52987-D0 note |
Cover, Rear Bumper
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNGCR,GCERO | ¥49,400 | |
| 52159-52987-D0 note |
Cover, Rear Bumper
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | ¥49,400 | |
| 52159-52987-D0 note |
Cover, Rear Bumper
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | ¥49,400 | |
| 52159-52987-E0 note |
Cover, Rear Bumper
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | ¥49,400 | |
| 52159-52987-E0 note |
Cover, Rear Bumper
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNGCR,GCERO | ¥49,400 | |
| 52159-52987-E0 note |
Cover, Rear Bumper
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | ¥49,400 | |
| 52159-52987-E1 note |
Cover, Rear Bumper
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 GCERO | ¥49,400 | |
| 52159-52987-E1 note |
Cover, Rear Bumper
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | ¥49,400 | |
| 52159-52987-E1 note |
Cover, Rear Bumper
2020-06 → 2022-07
ended
|
NHP170,NSP170 FNGCR | ¥49,400 | |
| 52159-52987-E1 note |
Cover, Rear Bumper
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | ¥49,400 | |
| 52159-52987-E4 note |
Cover, Rear Bumper
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | ¥49,400 | |
| 52159-52987-E4 note |
Cover, Rear Bumper
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNGCR,GCERO | ¥49,400 | |
| 52159-52987-F0 note |
Cover, Rear Bumper
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | ¥49,400 | |
| 52159-52987-F0 note |
Cover, Rear Bumper
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNGCR,GCERO | ¥49,400 | |
| 52159-52987-F0 note |
Cover, Rear Bumper
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | ¥49,400 | |
| 52159-52987-G0 note |
Cover, Rear Bumper
2020-06 → 2021-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | ¥49,400 | |
| 52159-52987-G0 note |
Cover, Rear Bumper
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | ¥49,400 | |
| 52159-52987-G0 note |
Cover, Rear Bumper
2018-09 → 2021-06
ended
|
NCP175,NHP170,NSP170 FNGCR,GCERO | ¥49,400 | |
| 52159-52987-J0 note |
Cover, Rear Bumper
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 GCERO | ¥59,300 | |
| 52159-52987-J0 note |
Cover, Rear Bumper
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | ¥59,300 | |
| 52159-52987-J1 note |
Cover, Rear Bumper
2019-10 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,G | ¥49,400 | |
| 52159-52987-J1 note |
Cover, Rear Bumper
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,G | ¥49,400 | |
| 52159-52987-J3 note |
Cover, Rear Bumper
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNGCR,GCERO | ¥49,400 | |
| 52159-52987-J3 note |
Cover, Rear Bumper
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | ¥49,400 | |
| 52161E — Extension, Rear Bumper Side, RH | ||||
| 52161-52170 |
Extension, Rear Bumper Side, RH
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥3,200 | |
| 52161-52180-E1 note |
Extension, Rear Bumper Side, RH
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP170 | ¥4,630 | |
| 52161-52180-J1 note |
Extension, Rear Bumper Side, RH
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP170 | ¥4,630 | |
| 52161-52170 |
Extension, Rear Bumper Side, RH
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥3,200 | |
| 52162B — Plate, Rear Bumper, NO.1 | ||||
| 52162-52180 |
Plate, Rear Bumper, NO.1
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP170 | ¥520 | |
| 52162-52190-E1 note |
Plate, Rear Bumper, NO.1
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP170 | ¥760 | |
| 52162-52190-J1 note |
Plate, Rear Bumper, NO.1
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP170 | ¥760 | |
| 52162-52180 |
Plate, Rear Bumper, NO.1
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 | ¥520 | |
| 52162D — Piece, Rear Bumper | ||||
| 52161-16010 |
Piece, Rear Bumper
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP170 | ¥120 | |
| 52161-16010 |
Piece, Rear Bumper
2015-06 → 2018-09
ended
|
NSP172 | ¥120 | |
| 52161-16010 |
Piece, Rear Bumper
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 | ¥120 | |
| 52161-16010 |
Piece, Rear Bumper
2018-09 → 2022-07
ended
|
NSP172 | ¥120 | |
| 52162F — Extension, Rear Bumper Side, LH | ||||
| 52162-52150 |
Extension, Rear Bumper Side, LH
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥3,200 | |
| 52162-52170-E1 note |
Extension, Rear Bumper Side, LH
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP170 | ¥4,630 | |
| 52162-52170-J1 note |
Extension, Rear Bumper Side, LH
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP170 | ¥4,630 | |
| 52162-52150 |
Extension, Rear Bumper Side, LH
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥3,200 | |
| 52461D — Cushion, Rear Bumper | ||||
| 52461-52020 |
Cushion, Rear Bumper
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥590 | |
| 52461-52020 |
Cushion, Rear Bumper
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥590 | |
| 52575 — Retainer, Rear Bumper Side, RH | ||||
| 52575-52200 |
Retainer, Rear Bumper Side, RH
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥1,920 | |
| 52575-52200 |
Retainer, Rear Bumper Side, RH
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥1,920 | |
| 52576 — Retainer, Rear Bumper Side, LH | ||||
| 52576-52180 |
Retainer, Rear Bumper Side, LH
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥1,920 | |
| 52576-52180 |
Retainer, Rear Bumper Side, LH
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥1,920 | |
| 52591 — Seal, Rear Bumper Side, RH | ||||
| 52591-52360 |
Seal, Rear Bumper Side, RH
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥1,520 | |
| 52591-52360 |
Seal, Rear Bumper Side, RH
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥1,520 | |
| 52592 — Seal, Rear Bumper Side, LH | ||||
| 52592-52350 |
Seal, Rear Bumper Side, LH
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥1,520 | |
| 52592-52350 |
Seal, Rear Bumper Side, LH
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥1,520 | |
| 52615 — Absorber, Rear Bumper Energy | ||||
| 52615-52080 |
Absorber, Rear Bumper Energy
2015-06 → 2016-11
ended
|
NCP175,NHP170,NSP170 | ¥2,180 | |
| 75392 — Retainer, Outside Moulding | ||||
| 75392-35200 |
Retainer, Outside Moulding
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP170 | ¥130 | |
| 75392-35200 |
Retainer, Outside Moulding
2015-06 → 2018-09
ended
|
NSP172 | ¥130 | |
| 75392-35200 |
Retainer, Outside Moulding
2020-08 → 2022-07
ended
|
NSP172 | ¥130 | |
| 75392-35200 |
Retainer, Outside Moulding
2018-09 → 2020-08
ended
|
NSP172 | ¥130 | |
| 75392-35200 |
Retainer, Outside Moulding
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 | ¥130 | |
| 89C48A — Retainer, Ultrasonic Sensor, Rear Corner | ||||
| 89348-42110-A1 note |
Retainer, Ultrasonic Sensor, Rear Corner
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-42110-A1 note |
Retainer, Ultrasonic Sensor, Rear Corner
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-42110-A1 note |
Retainer, Ultrasonic Sensor, Rear Corner
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNGCR,GCERO | — | |
| 89348-42110-B2 note |
Retainer, Ultrasonic Sensor, Rear Corner
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-42110-B2 note |
Retainer, Ultrasonic Sensor, Rear Corner
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNGCR,GCERO | — | |
| 89348-42110-B2 note |
Retainer, Ultrasonic Sensor, Rear Corner
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-42110-C1 note |
Retainer, Ultrasonic Sensor, Rear Corner
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-42110-C1 note |
Retainer, Ultrasonic Sensor, Rear Corner
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNGCR,GCERO | — | |
| 89348-42110-C1 note |
Retainer, Ultrasonic Sensor, Rear Corner
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-42110-D0 note |
Retainer, Ultrasonic Sensor, Rear Corner
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNGCR,GCERO | — | |
| 89348-42110-D0 note |
Retainer, Ultrasonic Sensor, Rear Corner
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-42110-D0 note |
Retainer, Ultrasonic Sensor, Rear Corner
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-42110-E1 note |
Retainer, Ultrasonic Sensor, Rear Corner
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-42110-E1 note |
Retainer, Ultrasonic Sensor, Rear Corner
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNGCR,GCERO | — | |
| 89348-42110-E1 note |
Retainer, Ultrasonic Sensor, Rear Corner
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-42110-E2 note |
Retainer, Ultrasonic Sensor, Rear Corner
2020-06 → 2022-07
ended
|
NHP170,NSP170 FNGCR | — | |
| 89348-42110-E2 note |
Retainer, Ultrasonic Sensor, Rear Corner
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-42110-E2 note |
Retainer, Ultrasonic Sensor, Rear Corner
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 GCERO | — | |
| 89348-42110-E2 note |
Retainer, Ultrasonic Sensor, Rear Corner
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-42110-E5 note |
Retainer, Ultrasonic Sensor, Rear Corner
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNGCR,GCERO | — | |
| 89348-42110-E5 note |
Retainer, Ultrasonic Sensor, Rear Corner
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-42110-F0 note |
Retainer, Ultrasonic Sensor, Rear Corner
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-42110-F0 note |
Retainer, Ultrasonic Sensor, Rear Corner
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNGCR,GCERO | — | |
| 89348-42110-F0 note |
Retainer, Ultrasonic Sensor, Rear Corner
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-42110-G2 note |
Retainer, Ultrasonic Sensor, Rear Corner
2020-06 → 2021-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-42110-G2 note |
Retainer, Ultrasonic Sensor, Rear Corner
2018-09 → 2021-06
ended
|
NCP175,NHP170,NSP170 FNGCR,GCERO | — | |
| 89348-42110-G2 note |
Retainer, Ultrasonic Sensor, Rear Corner
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-42110-J2 note |
Retainer, Ultrasonic Sensor, Rear Corner
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-42110-J2 note |
Retainer, Ultrasonic Sensor, Rear Corner
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 GCERO | — | |
| 89348-42110-J3 note |
Retainer, Ultrasonic Sensor, Rear Corner
2019-10 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,G | — | |
| 89348-42110-J3 note |
Retainer, Ultrasonic Sensor, Rear Corner
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,G | — | |
| 89348-42110-J4 note |
Retainer, Ultrasonic Sensor, Rear Corner
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNGCR,GCERO | — | |
| 89348-42110-J4 note |
Retainer, Ultrasonic Sensor, Rear Corner
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89C48B — Retainer, Ultrasonic Sensor, Rear Center | ||||
| 89348-52050-A0 note |
Retainer, Ultrasonic Sensor, Rear Center
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-52050-A0 note |
Retainer, Ultrasonic Sensor, Rear Center
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNGCR,GCERO | — | |
| 89348-52050-A0 note |
Retainer, Ultrasonic Sensor, Rear Center
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-52050-B0 note |
Retainer, Ultrasonic Sensor, Rear Center
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNGCR,GCERO | — | |
| 89348-52050-B0 note |
Retainer, Ultrasonic Sensor, Rear Center
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-52050-B0 note |
Retainer, Ultrasonic Sensor, Rear Center
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-52050-C0 note |
Retainer, Ultrasonic Sensor, Rear Center
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNGCR,GCERO | — | |
| 89348-52050-C0 note |
Retainer, Ultrasonic Sensor, Rear Center
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-52050-C0 note |
Retainer, Ultrasonic Sensor, Rear Center
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-52050-D0 note |
Retainer, Ultrasonic Sensor, Rear Center
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNGCR,GCERO | — | |
| 89348-52050-D0 note |
Retainer, Ultrasonic Sensor, Rear Center
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-52050-D0 note |
Retainer, Ultrasonic Sensor, Rear Center
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-52050-E0 note |
Retainer, Ultrasonic Sensor, Rear Center
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-52050-E0 note |
Retainer, Ultrasonic Sensor, Rear Center
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNGCR,GCERO | — | |
| 89348-52050-E0 note |
Retainer, Ultrasonic Sensor, Rear Center
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-52050-E1 note |
Retainer, Ultrasonic Sensor, Rear Center
2020-06 → 2022-07
ended
|
NHP170,NSP170 FNGCR | — | |
| 89348-52050-E1 note |
Retainer, Ultrasonic Sensor, Rear Center
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-52050-E1 note |
Retainer, Ultrasonic Sensor, Rear Center
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 GCERO | — | |
| 89348-52050-E1 note |
Retainer, Ultrasonic Sensor, Rear Center
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-52050-E2 note |
Retainer, Ultrasonic Sensor, Rear Center
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNGCR,GCERO | — | |
| 89348-52050-E2 note |
Retainer, Ultrasonic Sensor, Rear Center
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-52050-F0 note |
Retainer, Ultrasonic Sensor, Rear Center
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-52050-F0 note |
Retainer, Ultrasonic Sensor, Rear Center
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNGCR,GCERO | — | |
| 89348-52050-F0 note |
Retainer, Ultrasonic Sensor, Rear Center
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-52050-G0 note |
Retainer, Ultrasonic Sensor, Rear Center
2018-09 → 2021-06
ended
|
NCP175,NHP170,NSP170 FNGCR,GCERO | — | |
| 89348-52050-G0 note |
Retainer, Ultrasonic Sensor, Rear Center
2020-06 → 2021-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-52050-G0 note |
Retainer, Ultrasonic Sensor, Rear Center
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-52050-J0 note |
Retainer, Ultrasonic Sensor, Rear Center
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 GCERO | — | |
| 89348-52050-J0 note |
Retainer, Ultrasonic Sensor, Rear Center
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-52050-J1 note |
Retainer, Ultrasonic Sensor, Rear Center
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,G | — | |
| 89348-52050-J1 note |
Retainer, Ultrasonic Sensor, Rear Center
2019-10 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,G | — | |
| 89348-52050-J2 note |
Retainer, Ultrasonic Sensor, Rear Center
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNGCR,GCERO | — | |
| 89348-52050-J2 note |
Retainer, Ultrasonic Sensor, Rear Center
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-52060-A0 note |
Retainer, Ultrasonic Sensor, Rear Center
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNGCR,GCERO | — | |
| 89348-52060-A0 note |
Retainer, Ultrasonic Sensor, Rear Center
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-52060-A0 note |
Retainer, Ultrasonic Sensor, Rear Center
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-52060-B0 note |
Retainer, Ultrasonic Sensor, Rear Center
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNGCR,GCERO | — | |
| 89348-52060-B0 note |
Retainer, Ultrasonic Sensor, Rear Center
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-52060-B0 note |
Retainer, Ultrasonic Sensor, Rear Center
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-52060-C0 note |
Retainer, Ultrasonic Sensor, Rear Center
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-52060-C0 note |
Retainer, Ultrasonic Sensor, Rear Center
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-52060-C0 note |
Retainer, Ultrasonic Sensor, Rear Center
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNGCR,GCERO | — | |
| 89348-52060-D0 note |
Retainer, Ultrasonic Sensor, Rear Center
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-52060-D0 note |
Retainer, Ultrasonic Sensor, Rear Center
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-52060-D0 note |
Retainer, Ultrasonic Sensor, Rear Center
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNGCR,GCERO | — | |
| 89348-52060-E0 note |
Retainer, Ultrasonic Sensor, Rear Center
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-52060-E0 note |
Retainer, Ultrasonic Sensor, Rear Center
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-52060-E0 note |
Retainer, Ultrasonic Sensor, Rear Center
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNGCR,GCERO | — | |
| 89348-52060-E1 note |
Retainer, Ultrasonic Sensor, Rear Center
2020-06 → 2022-07
ended
|
NHP170,NSP170 FNGCR | — | |
| 89348-52060-E1 note |
Retainer, Ultrasonic Sensor, Rear Center
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-52060-E1 note |
Retainer, Ultrasonic Sensor, Rear Center
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-52060-E1 note |
Retainer, Ultrasonic Sensor, Rear Center
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 GCERO | — | |
| 89348-52060-E2 note |
Retainer, Ultrasonic Sensor, Rear Center
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNGCR,GCERO | — | |
| 89348-52060-E2 note |
Retainer, Ultrasonic Sensor, Rear Center
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-52060-F0 note |
Retainer, Ultrasonic Sensor, Rear Center
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNGCR,GCERO | — | |
| 89348-52060-F0 note |
Retainer, Ultrasonic Sensor, Rear Center
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-52060-F0 note |
Retainer, Ultrasonic Sensor, Rear Center
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-52060-G0 note |
Retainer, Ultrasonic Sensor, Rear Center
2020-06 → 2021-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-52060-G0 note |
Retainer, Ultrasonic Sensor, Rear Center
2018-09 → 2021-06
ended
|
NCP175,NHP170,NSP170 FNGCR,GCERO | — | |
| 89348-52060-G0 note |
Retainer, Ultrasonic Sensor, Rear Center
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-52060-J0 note |
Retainer, Ultrasonic Sensor, Rear Center
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
| 89348-52060-J0 note |
Retainer, Ultrasonic Sensor, Rear Center
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP170 GCERO | — | |
| 89348-52060-J1 note |
Retainer, Ultrasonic Sensor, Rear Center
2019-10 → 2020-06
ended
|
NCP175,NHP170,NSP170 FNBSG,G | — | |
| 89348-52060-J1 note |
Retainer, Ultrasonic Sensor, Rear Center
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,G | — | |
| 89348-52060-J2 note |
Retainer, Ultrasonic Sensor, Rear Center
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNGCR,GCERO | — | |
| 89348-52060-J2 note |
Retainer, Ultrasonic Sensor, Rear Center
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
