Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

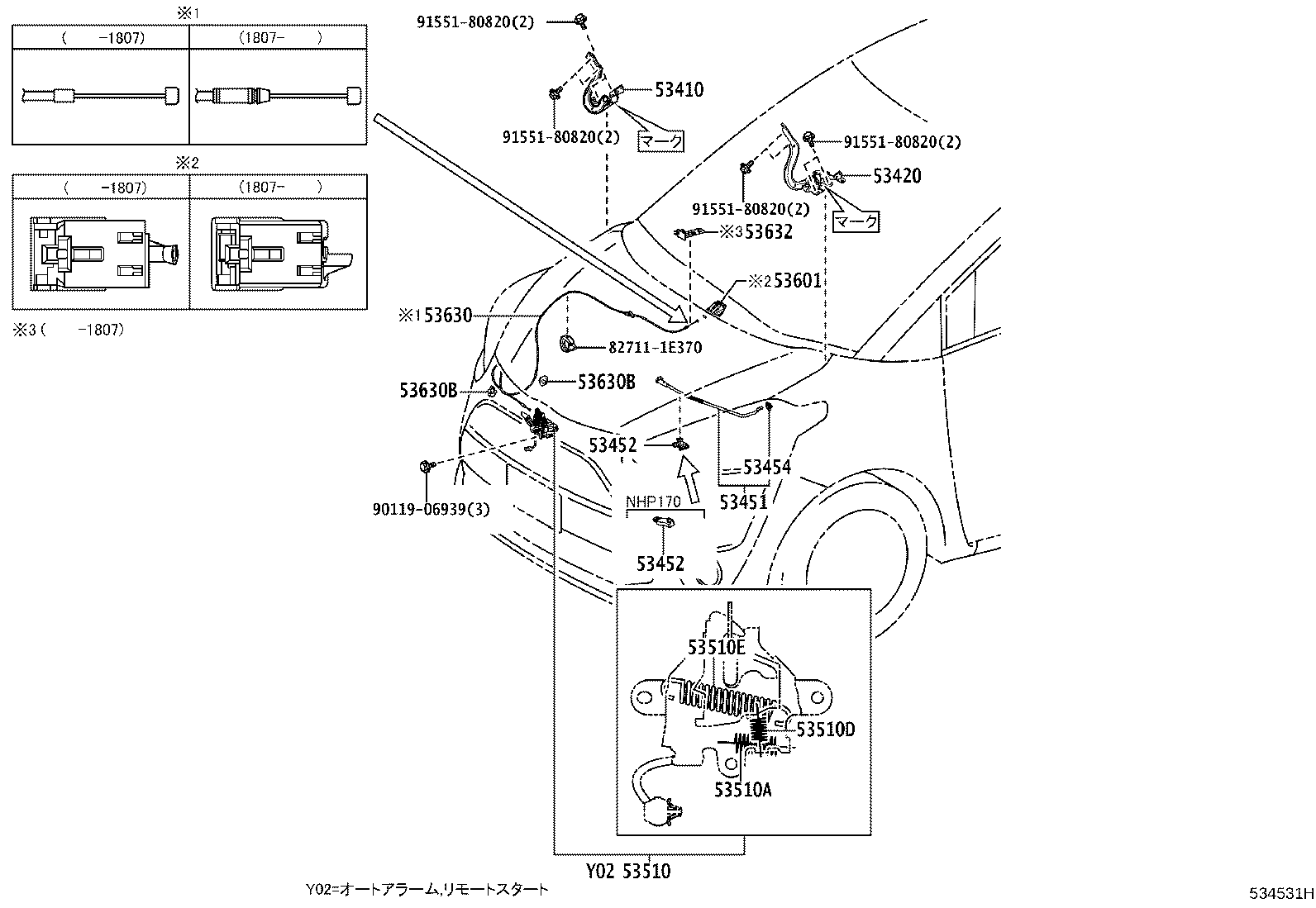

Exploded illustration 534531H 53410 — HINGE ASSY, HOOD, RH (6 parts) 53420 — HINGE ASSY, HOOD, LH (6 parts) 53451 — ROD, HOOD SUPPORT (2 parts) 53452 — HOLDER, HOOD STAY (4 parts) 53452 — HOLDER, HOOD STAY (4 parts) 53454 — CLIP, HOOD SUPPORT ROD (2 parts) 53510 — LOCK ASSY, HOOD (4 parts) 53510A — SPRING, TENSION(FOR HOOD LOCK) (2 parts) 53510D — SPRING, TENSION(FOR HOOD LOCK) (2 parts) 53510E — SPRING, TENSION(FOR HOOD LOCK) (2 parts) 53601 — LEVER SUB-ASSY, HOOD LOCK CONTROL (8 parts) 53632 — HOLDER, HOOD LOCK CONTROL CABLE (1 parts) 53630 — CABLE ASSY, HOOD LOCK CONTROL (3 parts) 53630B — CLAMP(FOR HOOD LOCK CONTROL CABLE) (2 parts) 53630B — CLAMP(FOR HOOD LOCK CONTROL CABLE) (2 parts) 827111E370 — not listed in this catalogue 9155180820 — not listed in this catalogue 9155180820 — not listed in this catalogue 9155180820 — not listed in this catalogue 9155180820 — not listed in this catalogue 9011906939 — not listed in this catalogue
534531H · 15 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
44 parts on this figure
Part number Description Fitment Price
53410 — Hinge Assy, Hood, RH
53410-52420 note Hinge Assy, Hood, RH
2015-06 → 2016-12 ended
NCP175,NHP170,NSP17# ¥2,870
53410-52421 note Hinge Assy, Hood, RH
2017-01 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,390
53410-52450 note Hinge Assy, Hood, RH
2015-06 → 2017-01 ended
NCP175,NHP170,NSP17# ¥2,870
53410-52460 note Hinge Assy, Hood, RH
2015-06 → 2017-01 ended
NCP175,NHP170,NSP17# ¥2,870
53410-52421 Hinge Assy, Hood, RH
2018-09 → 2018-10 ended
NCP175,NHP170,NSP17# ¥2,390
53410-52461 Hinge Assy, Hood, RH
2018-11 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,990
53420 — Hinge Assy, Hood, LH
53420-52430 note Hinge Assy, Hood, LH
2015-06 → 2016-12 ended
NCP175,NHP170,NSP17# ¥2,870
53420-52431 note Hinge Assy, Hood, LH
2017-01 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,390
53420-52460 note Hinge Assy, Hood, LH
2015-06 → 2017-01 ended
NCP175,NHP170,NSP17# ¥2,870
53420-52470 note Hinge Assy, Hood, LH
2015-06 → 2017-01 ended
NCP175,NHP170,NSP17# ¥2,870
53420-52431 Hinge Assy, Hood, LH
2018-09 → 2018-10 ended
NCP175,NHP170,NSP17# ¥2,390
53420-52471 Hinge Assy, Hood, LH
2018-11 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,990
53451 — Rod, Hood Support
53440-52310 Rod, Hood Support
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,200
53440-52310 Rod, Hood Support
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,200
53452 — Holder, Hood Stay
53452-52080 Holder, Hood Stay
2015-06 → 2018-09 ended
NCP175,NSP17# ¥380
53452-52090 Holder, Hood Stay
2015-07 → 2018-09 ended
NHP170 ¥880
53452-52080 Holder, Hood Stay
2018-09 → 2022-07 ended
NCP175,NSP17# ¥380
53452-52090 Holder, Hood Stay
2018-09 → 2022-07 ended
NHP170 ¥880
53454 — Clip, Hood Support Rod
53454-12030 Clip, Hood Support Rod
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥100
53454-12030 Clip, Hood Support Rod
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥100
53510 — Lock Assy, Hood
53510-52610 Lock Assy, Hood
2015-06 → 2018-09 ended
NCP175,NHP170 ¥2,220
53510-52620 Lock Assy, Hood
2015-06 → 2018-09 ended
NSP17# ¥3,230
53510-52610 Lock Assy, Hood
2018-09 → 2022-07 ended
NCP175,NHP170 ¥2,220
53510-52620 Lock Assy, Hood
2018-09 → 2022-07 ended
NSP17# ¥3,230
53510A — Spring, Tension(FOR HOOD LOCK)
90506-09055 note Spring, Tension(FOR HOOD LOCK)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥90
90506-09055 note Spring, Tension(FOR HOOD LOCK)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥90
53510D — Spring, Tension(FOR HOOD LOCK)
90506-12063 note Spring, Tension(FOR HOOD LOCK)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥90
90506-12063 note Spring, Tension(FOR HOOD LOCK)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥90
53510E — Spring, Tension(FOR HOOD LOCK)
90506-16077 note Spring, Tension(FOR HOOD LOCK)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥120
90506-16077 note Spring, Tension(FOR HOOD LOCK)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥120
53601 — Lever Sub-assy, Hood Lock Control
53601-30100-A0 note Lever Sub-assy, Hood Lock Control
2018-07 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,410
53601-30100-C0 note Lever Sub-assy, Hood Lock Control
2018-07 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,410
53601-52010-A7 note Lever Sub-assy, Hood Lock Control
2015-06 → 2018-07 ended
NCP175,NHP170,NSP17# ¥1,860
53601-52010-C0 note Lever Sub-assy, Hood Lock Control
2015-06 → 2016-12 ended
NCP175,NHP170,NSP17# ¥2,240
53601-52010-C1 note Lever Sub-assy, Hood Lock Control
2016-12 → 2018-07 ended
NCP175,NHP170,NSP17# ¥1,410
53601-30100-A0 note Lever Sub-assy, Hood Lock Control
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,WKG,WKX,X ¥1,410
53601-30100-C0 note Lever Sub-assy, Hood Lock Control
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥1,410
53601-30100-C0 note Lever Sub-assy, Hood Lock Control
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,FNGCR,GCERO,WKG,WKX,X ¥1,410
53630 — Cable Assy, Hood Lock Control
53630-52200 Cable Assy, Hood Lock Control
2015-06 → 2018-07 ended
NCP175,NHP170,NSP17# ¥1,320
53630-52201 Cable Assy, Hood Lock Control
2018-07 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,090
53630-52201 Cable Assy, Hood Lock Control
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,090
53630B — Clamp(FOR HOOD LOCK CONTROL CABLE)
90469-06005 Clamp(FOR HOOD LOCK CONTROL CABLE)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥80
90469-06005 Clamp(FOR HOOD LOCK CONTROL CABLE)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥80
53632 — Holder, Hood Lock Control Cable
53632-30010 Holder, Hood Lock Control Cable
2015-06 → 2018-07 ended
NCP175,NHP170,NSP17# ¥200
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
