Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

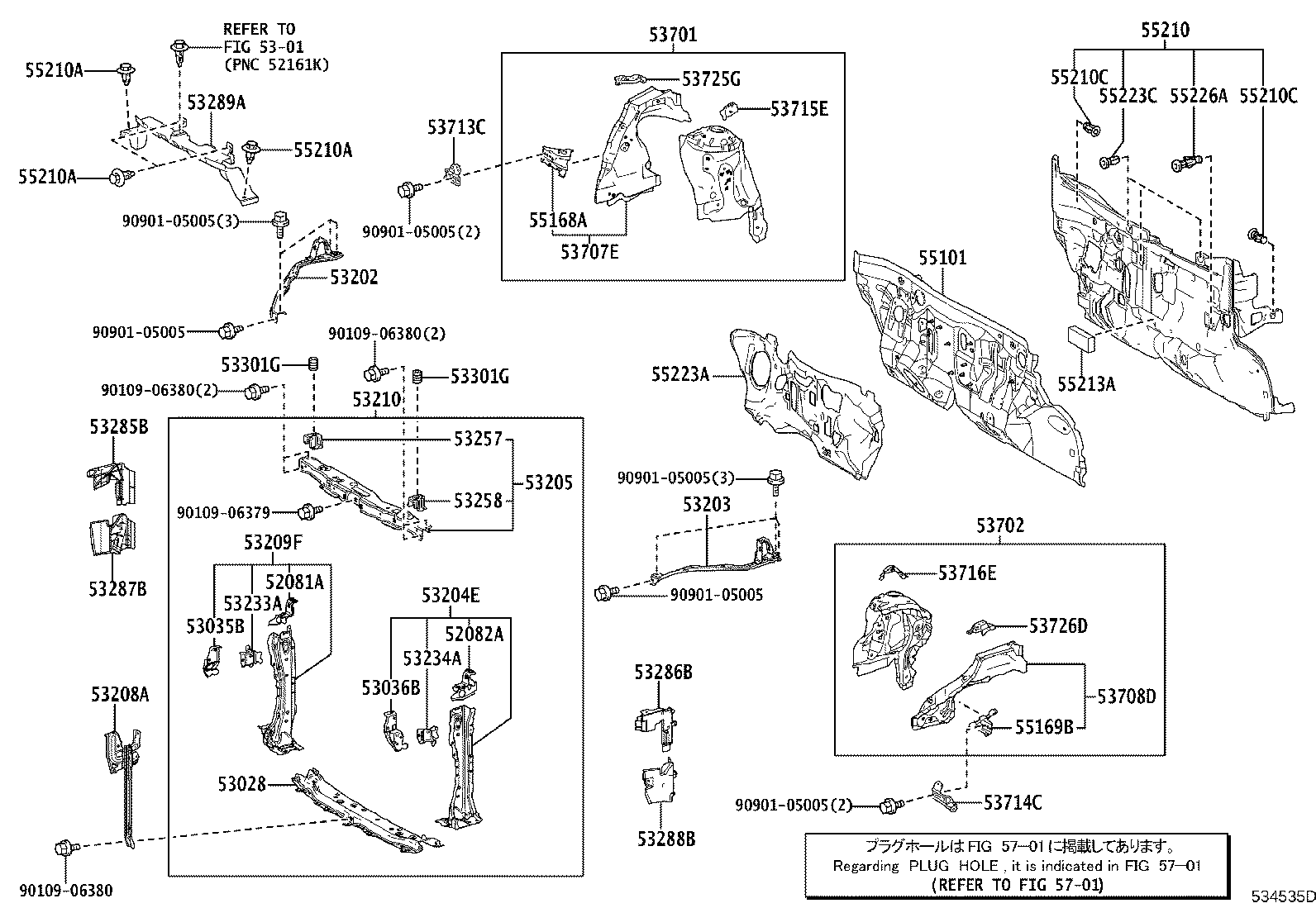

Exploded illustration 534535D 5301 — not listed in this catalogue 5701 — not listed in this catalogue 52081A — STAY SUB-ASSY, FRONT BUMPER, RH (2 parts) 52082A — STAY SUB-ASSY, FRONT BUMPER, LH (2 parts) 53028 — SUPPORT SUB-ASSY, RADIATOR, LOWER (2 parts) 53202 — SUPPORT SUB-ASSY, RADIATOR, RH (2 parts) 53203 — SUPPORT SUB-ASSY, RADIATOR, LH (2 parts) 53204E — BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, LH (2 parts) 53208A — SUPPORT SUB-ASSY, HOOD LOCK (2 parts) 53209F — BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, RH (2 parts) 53233A — BRACKET, HEADLAMP, NO.1 RH (2 parts) 53035B — BRACKET SUB-ASSY, HEADLAMP MOUNTING, RH (2 parts) 53234A — BRACKET, HEADLAMP, NO.1 LH (2 parts) 53036B — BRACKET SUB-ASSY, HEADLAMP MOUNTING, LH (2 parts) 53285B — SEAL, RADIATOR SIDE AIR, NO.1 (4 parts) 53286B — SEAL, RADIATOR SIDE AIR, NO.2 (4 parts) 53287B — EXTENSION, RADIATOR SUPPORT, RH (4 parts) 53288B — EXTENSION, RADIATOR SUPPORT, LH (4 parts) 53289A — COVER, RADIATOR SUPPORT OPENING (2 parts) 53301G — CUSHION, HOOD BUMPER (2 parts) 53301G — CUSHION, HOOD BUMPER (2 parts) 53701 — APRON SUB-ASSY, FRONT FENDER, RH (2 parts) 53707E — APRON SUB-ASSY, FENDER SIDE, RH (2 parts) 53713C — EXTENSION, FRONT FENDER APRON, FRONT RH (2 parts) 53715E — EXTENSION, FRONT FENDER APRON, REAR RH (2 parts) 53725G — APRON, FRONT FENDER NO.2 SIDE, RH (2 parts) 55101 — PANEL SUB-ASSY, DASH (4 parts) 55168A — BRACKET, FRONT FENDER MOUNTING, RH (2 parts) 55210 — INSULATOR ASSY, DASH PANEL (2 parts) 55210C — CLIP (2 parts) 55226A — CLIP (2 parts) 55223C — CLIP (2 parts) 55210A — CLIP (2 parts) 55210A — CLIP (2 parts) 55210A — CLIP (2 parts) 55223A — INSULATOR, DASH PANEL, OUTER (3 parts) 9010906379 — not listed in this catalogue 9010906380 — not listed in this catalogue 9010906380 — not listed in this catalogue 9090105005 — not listed in this catalogue 9090105005 — not listed in this catalogue 9090105005 — not listed in this catalogue 55213A — PAD, DASH PANEL SILENCER (2 parts) 9090105005 — not listed in this catalogue 9090105005 — not listed in this catalogue 53702 — APRON SUB-ASSY, FRONT FENDER, LH (2 parts) 53708D — APRON SUB-ASSY, FENDER SIDE, LH (2 parts) 53714C — EXTENSION, FRONT FENDER APRON, FRONT LH (2 parts) 53716E — EXTENSION, FRONT FENDER APRON, REAR LH (2 parts) 53726D — APRON, FRONT FENDER NO.2 SIDE, LH (2 parts) 9090105005 — not listed in this catalogue 53205 — SUPPORT SUB-ASSY, RADIATOR, UPPER (2 parts) 53257 — BRACKET, FRONT END PANEL MOUNTING, RH (2 parts) 53258 — BRACKET, FRONT END PANEL MOUNTING, LH (2 parts) 53210 — SUPPORT ASSY, RADIATOR (2 parts) 55169B — BRACKET, FRONT FENDER MOUNTING, LH (2 parts) 55210C — CLIP (2 parts) 9010906380 — not listed in this catalogue
534535D · 46 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
95 parts on this figure
Part number Description Fitment Price
52081A — Stay Sub-assy, Front Bumper, RH
52081-52030 Stay Sub-assy, Front Bumper, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,220
52081-52030 Stay Sub-assy, Front Bumper, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,220
52082A — Stay Sub-assy, Front Bumper, LH
52082-52020 Stay Sub-assy, Front Bumper, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,220
52082-52020 Stay Sub-assy, Front Bumper, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,220
53028 — Support Sub-assy, Radiator, Lower
53028-52100 Support Sub-assy, Radiator, Lower
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥8,900
53028-52100 Support Sub-assy, Radiator, Lower
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥8,900
53035B — Bracket Sub-assy, Headlamp Mounting, RH
53035-52020 Bracket Sub-assy, Headlamp Mounting, RH
2015-06 → 2018-08 ended
NCP175,NHP170,NSP17# ¥800
53035-52020 Bracket Sub-assy, Headlamp Mounting, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥800
53036B — Bracket Sub-assy, Headlamp Mounting, LH
53036-52020 Bracket Sub-assy, Headlamp Mounting, LH
2015-06 → 2018-08 ended
NCP175,NHP170,NSP17# ¥800
53036-52020 Bracket Sub-assy, Headlamp Mounting, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥800
53202 — Support Sub-assy, Radiator, RH
53202-52260 Support Sub-assy, Radiator, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,050
53202-52260 Support Sub-assy, Radiator, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,050
53203 — Support Sub-assy, Radiator, LH
53203-52250 Support Sub-assy, Radiator, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,050
53203-52250 Support Sub-assy, Radiator, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,050
53204E — Brace Sub-assy, Radiator Support TO Crossmember, LH
53204-52901 Brace Sub-assy, Radiator Support TO Crossmember, LH
2015-06 → 2018-08 ended
NCP175,NHP170,NSP17# ¥8,100
53204-52901 Brace Sub-assy, Radiator Support TO Crossmember, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥8,100
53205 — Support Sub-assy, Radiator, Upper
53205-52190 Support Sub-assy, Radiator, Upper
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥6,400
53205-52190 Support Sub-assy, Radiator, Upper
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥6,400
53208A — Support Sub-assy, Hood Lock
53208-52904 Support Sub-assy, Hood Lock
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,980
53208-52904 Support Sub-assy, Hood Lock
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,980
53209F — Brace Sub-assy, Radiator Support TO Crossmember, RH
53209-52901 Brace Sub-assy, Radiator Support TO Crossmember, RH
2015-06 → 2018-08 ended
NCP175,NHP170,NSP17# ¥8,100
53209-52901 Brace Sub-assy, Radiator Support TO Crossmember, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥8,100
53210 — Support Assy, Radiator
53210-52918 Support Assy, Radiator
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥29,100
53210-52918 Support Assy, Radiator
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥29,100
53233A — Bracket, Headlamp, NO.1 RH
53233-52080 Bracket, Headlamp, NO.1 RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥800
53233-52080 Bracket, Headlamp, NO.1 RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥800
53234A — Bracket, Headlamp, NO.1 LH
53234-52090 Bracket, Headlamp, NO.1 LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥800
53234-52090 Bracket, Headlamp, NO.1 LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥800
53257 — Bracket, Front End Panel Mounting, RH
53257-52030 Bracket, Front End Panel Mounting, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥620
53257-52030 Bracket, Front End Panel Mounting, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥620
53258 — Bracket, Front End Panel Mounting, LH
53258-52030 Bracket, Front End Panel Mounting, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥620
53258-52030 Bracket, Front End Panel Mounting, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥620
53285B — Seal, Radiator Side Air, NO.1
53285-52500 Seal, Radiator Side Air, NO.1
2015-06 → 2018-09 ended
NCP175,NSP17# ¥1,170
53285-52510 Seal, Radiator Side Air, NO.1
2015-07 → 2018-09 ended
NHP170 ¥1,360
53285-52570 Seal, Radiator Side Air, NO.1
2018-09 → 2022-07 ended
NCP175,NSP17# ¥750
53285-52580 Seal, Radiator Side Air, NO.1
2018-09 → 2022-07 ended
NHP170 ¥920
53286B — Seal, Radiator Side Air, NO.2
53286-52420 Seal, Radiator Side Air, NO.2
2015-06 → 2018-09 ended
NCP175,NSP17# ¥1,140
53286-52430 Seal, Radiator Side Air, NO.2
2015-07 → 2018-09 ended
NHP170 ¥1,200
53286-52490 Seal, Radiator Side Air, NO.2
2018-09 → 2022-07 ended
NCP175,NSP17# ¥650
53286-52500 Seal, Radiator Side Air, NO.2
2018-09 → 2022-07 ended
NHP170 ¥680
53287B — Extension, Radiator Support, RH
53287-52020 Extension, Radiator Support, RH
2015-06 → 2018-09 ended
NCP175,NSP17# ¥1,260
53287-52260 Extension, Radiator Support, RH
2015-07 → 2018-09 ended
NHP170 ¥1,460
53287-52310 Extension, Radiator Support, RH
2018-09 → 2022-07 ended
NCP175,NSP17# ¥1,120
53287-52320 Extension, Radiator Support, RH
2018-09 → 2022-07 ended
NHP170 ¥1,210
53288B — Extension, Radiator Support, LH
53288-52250 Extension, Radiator Support, LH
2015-06 → 2018-09 ended
NCP175,NSP17# ¥1,200
53288-52260 Extension, Radiator Support, LH
2015-07 → 2018-09 ended
NHP170 ¥1,220
53288-52310 Extension, Radiator Support, LH
2018-09 → 2022-07 ended
NCP175,NSP17# ¥1,070
53288-52320 Extension, Radiator Support, LH
2018-09 → 2022-07 ended
NHP170 ¥1,090
53289A — Cover, Radiator Support Opening
53289-52100 Cover, Radiator Support Opening
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥3,850
53289-52200 Cover, Radiator Support Opening
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥3,200
53301G — Cushion, Hood Bumper
90541-15037 Cushion, Hood Bumper
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥200
90541-15037 Cushion, Hood Bumper
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥200
53701 — Apron Sub-assy, Front Fender, RH
53701-52250 Apron Sub-assy, Front Fender, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥17,700
53701-52250 Apron Sub-assy, Front Fender, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥17,700
53702 — Apron Sub-assy, Front Fender, LH
53702-52250 Apron Sub-assy, Front Fender, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥17,700
53702-52250 Apron Sub-assy, Front Fender, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥17,700
53707E — Apron Sub-assy, Fender Side, RH
53707-52060 Apron Sub-assy, Fender Side, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥7,900
53707-52060 Apron Sub-assy, Fender Side, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥7,900
53708D — Apron Sub-assy, Fender Side, LH
53708-52060 Apron Sub-assy, Fender Side, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥7,100
53708-52060 Apron Sub-assy, Fender Side, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥7,100
53713C — Extension, Front Fender Apron, Front RH
53713-52080 Extension, Front Fender Apron, Front RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥910
53713-52080 Extension, Front Fender Apron, Front RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥910
53714C — Extension, Front Fender Apron, Front LH
53714-52090 Extension, Front Fender Apron, Front LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥870
53714-52090 Extension, Front Fender Apron, Front LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥870
53715E — Extension, Front Fender Apron, Rear RH
53715-52030 Extension, Front Fender Apron, Rear RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥670
53715-52030 Extension, Front Fender Apron, Rear RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥670
53716E — Extension, Front Fender Apron, Rear LH
53716-52040 Extension, Front Fender Apron, Rear LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥680
53716-52040 Extension, Front Fender Apron, Rear LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥680
53725G — Apron, Front Fender NO.2 Side, RH
53725-52030 Apron, Front Fender NO.2 Side, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,850
53725-52030 Apron, Front Fender NO.2 Side, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,850
53726D — Apron, Front Fender NO.2 Side, LH
53726-52030 Apron, Front Fender NO.2 Side, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,850
53726-52030 Apron, Front Fender NO.2 Side, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,850
55101 — Panel Sub-assy, Dash
55101-52621 Panel Sub-assy, Dash
2015-06 → 2018-09 ended
NCP175,NSP17# ¥15,200
55101-52670 Panel Sub-assy, Dash
2015-07 → 2018-09 ended
NHP170 ¥15,200
55101-52621 Panel Sub-assy, Dash
2018-09 → 2022-07 ended
NCP175,NSP17# ¥15,200
55101-52670 Panel Sub-assy, Dash
2018-09 → 2022-07 ended
NHP170 ¥15,200
55168A — Bracket, Front Fender Mounting, RH
55168-52130 Bracket, Front Fender Mounting, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,320
55168-52130 Bracket, Front Fender Mounting, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,320
55169B — Bracket, Front Fender Mounting, LH
55169-52130 Bracket, Front Fender Mounting, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,320
55169-52130 Bracket, Front Fender Mounting, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,320
55210 — Insulator Assy, Dash Panel
55210-52440 Insulator Assy, Dash Panel
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥9,300
55210-52440 Insulator Assy, Dash Panel
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥9,300
55210A — Clip
90467-07214 Clip
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥70
90467-07214 Clip
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥70
55210C — Clip
90467-13079 Clip
2015-06 → 2018-08 ended
NCP175,NHP170,NSP17# ¥120
90467-13079 Clip
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥120
55213A — Pad, Dash Panel Silencer
55213-52190 Pad, Dash Panel Silencer
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥210
55213-52190 Pad, Dash Panel Silencer
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥210
55223A — Insulator, Dash Panel, Outer
55223-52121 Insulator, Dash Panel, Outer
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥5,300
55223-52121 note Insulator, Dash Panel, Outer
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥5,300
55223-52121 Insulator, Dash Panel, Outer
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥5,300
55223C — Clip
90467-20013 Clip
2015-06 → 2018-08 ended
NCP175,NHP170,NSP17# ¥120
90467-20013 Clip
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥120
55226A — Clip
90467-11123 Clip
2015-06 → 2018-08 ended
NCP175,NHP170,NSP17# ¥120
90467-11123 Clip
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥120
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
