Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

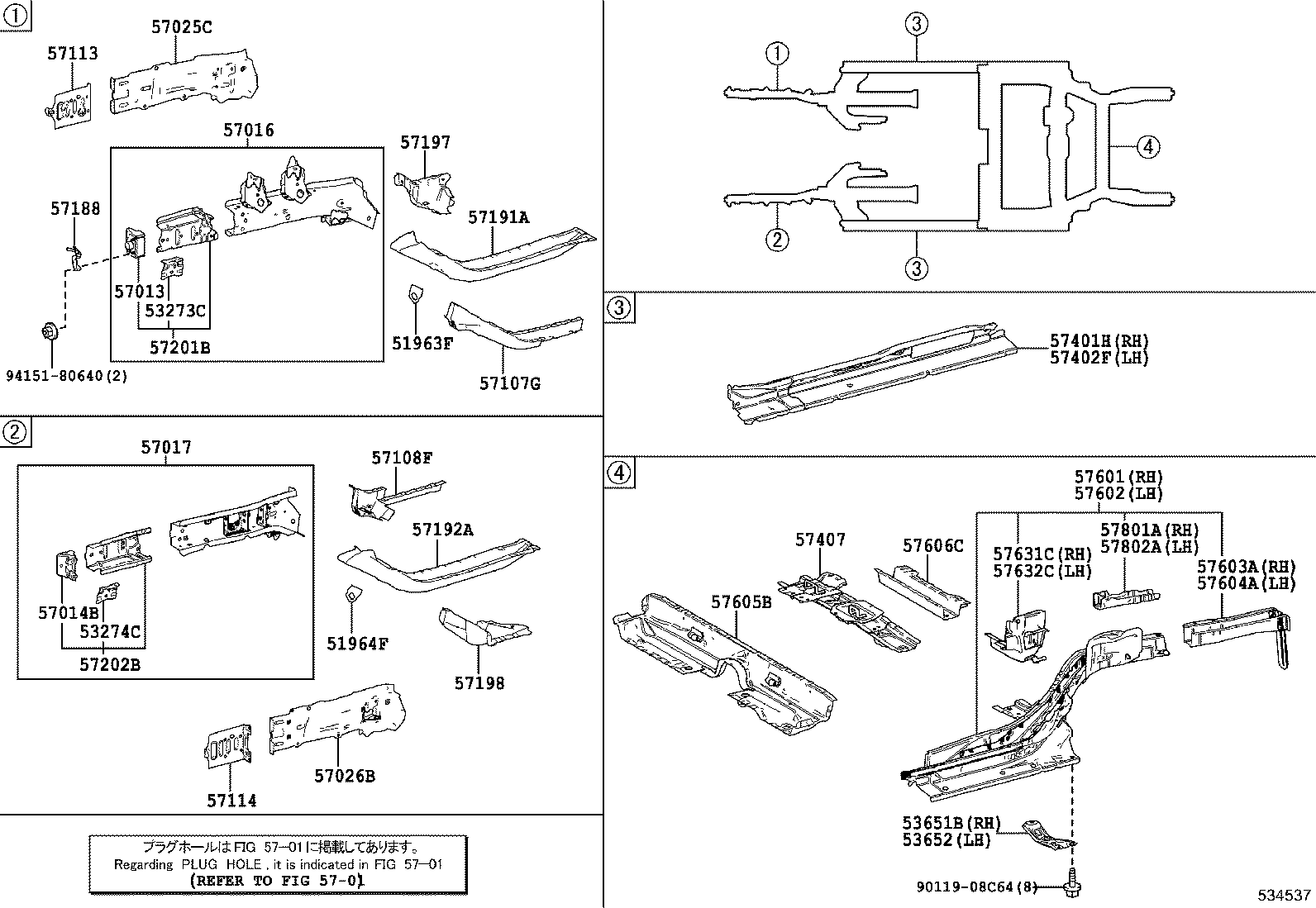

Exploded illustration 534537 5701 — not listed in this catalogue 51963F — HOOK, TRANSPORT (2 parts) 51964F — HOOK, TRANSPORT, LH (2 parts) 53273C — REINFORCEMENT, RADIATOR SUPPORT, RH (2 parts) 53274C — REINFORCEMENT, RADIATOR SUPPORT, LH (2 parts) 53651B — BRACE, REAR SUSPENSION, UPPER RH (2 parts) 53652 — BRACE, REAR SUSPENSION, UPPER LH (2 parts) 57013 — BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH (2 parts) 57014B — BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH (2 parts) 57016 — REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH (2 parts) 57017 — REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH (2 parts) 57025C — MEMBER SUB-ASSY, FRONT SIDE, OUTER RH (2 parts) 57026B — MEMBER SUB-ASSY, FRONT SIDE, OUTER LH (2 parts) 57107G — BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH (2 parts) 57108F — BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH (2 parts) 57113 — EXTENSION, FRONT SIDE MEMBER, RH (2 parts) 57114 — EXTENSION, FRONT SIDE MEMBER, LH (2 parts) 57188 — REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH (2 parts) 57191A — MEMBER, FRONT SIDE, INNER REAR RH (2 parts) 57192A — MEMBER, FRONT SIDE, INNER REAR LH (2 parts) 57197 — BOX, TORQUE, FRONT RH (2 parts) 57198 — BOX, TORQUE, FRONT LH (2 parts) 57201B — EXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH (2 parts) 57202B — EXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH (2 parts) 57401H — MEMBER SUB-ASSY, FLOOR SIDE, INNER RH (2 parts) 57402F — MEMBER SUB-ASSY, FLOOR SIDE, INNER LH (2 parts) 57407 — CROSSMEMBER SUB-ASSY, CENTER FLOOR, NO.1 (11 parts) 57601 — MEMBER SUB-ASSY, REAR FLOOR SIDE, RH (15 parts) 57602 — MEMBER SUB-ASSY, REAR FLOOR SIDE, LH (15 parts) 57603A — MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH (13 parts) 57604A — MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH (13 parts) 57605B — MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 (15 parts) 57606C — MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 (13 parts) 57801A — REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, RH (8 parts) 57802A — REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, LH (8 parts) 9011908C64 — not listed in this catalogue 9415180640 — not listed in this catalogue 57631C — EXTENSION, REAR FLOOR SIDE MEMBER, FRONT RH (2 parts) 57632C — EXTENSION, REAR FLOOR SIDE MEMBER, FRONT LH (2 parts)
534537 · 36 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
165 parts on this figure
Part number Description Fitment Price
51963F — Hook, Transport
51963-52050 Hook, Transport
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥700
51963-52050 Hook, Transport
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥700
51964F — Hook, Transport, LH
51963-52050 Hook, Transport, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥700
51963-52050 Hook, Transport, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥700
53273C — Reinforcement, Radiator Support, RH
53273-52030 Reinforcement, Radiator Support, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥500
53273-52030 Reinforcement, Radiator Support, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥500
53274C — Reinforcement, Radiator Support, LH
53274-52020 Reinforcement, Radiator Support, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥500
53274-52020 Reinforcement, Radiator Support, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥500
53651B — Brace, Rear Suspension, Upper RH
53651-52020 Brace, Rear Suspension, Upper RH
2015-06 → 2018-09 ended
NHP170,NSP17# ¥1,320
53651-52020 Brace, Rear Suspension, Upper RH
2018-09 → 2022-07 ended
NHP170,NSP17# ¥1,320
53652 — Brace, Rear Suspension, Upper LH
53652-52010 Brace, Rear Suspension, Upper LH
2015-06 → 2018-09 ended
NHP170,NSP17# ¥1,320
53652-52010 Brace, Rear Suspension, Upper LH
2018-09 → 2022-07 ended
NHP170,NSP17# ¥1,320
57013 — Bracket Sub-assy, Front Side Member, RH
57013-52040 Bracket Sub-assy, Front Side Member, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,670
57013-52040 Bracket Sub-assy, Front Side Member, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,670
57014B — Bracket Sub-assy, Front Side Member, LH
57014-52030 Bracket Sub-assy, Front Side Member, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,920
57014-52030 Bracket Sub-assy, Front Side Member, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,920
57016 — Reinforcement Sub-assy, Front Side Member, RH
57016-52090 Reinforcement Sub-assy, Front Side Member, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥11,700
57016-52090 Reinforcement Sub-assy, Front Side Member, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥11,700
57017 — Reinforcement Sub-assy, Front Side Member, LH
57017-52100 Reinforcement Sub-assy, Front Side Member, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥10,400
57017-52100 Reinforcement Sub-assy, Front Side Member, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥10,400
57025C — Member Sub-assy, Front Side, Outer RH
57025-52010 Member Sub-assy, Front Side, Outer RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥5,200
57025-52010 Member Sub-assy, Front Side, Outer RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥5,200
57026B — Member Sub-assy, Front Side, Outer LH
57026-52010 Member Sub-assy, Front Side, Outer LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥5,200
57026-52010 Member Sub-assy, Front Side, Outer LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥5,200
57107G — Bracket Sub-assy, Front Suspension Member Mounting, Rear RH
57107-52030 Bracket Sub-assy, Front Suspension Member Mounting, Rear RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,400
57107-52030 Bracket Sub-assy, Front Suspension Member Mounting, Rear RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,400
57108F — Bracket Sub-assy, Front Suspension Member Mounting, Rear LH
57108-52030 Bracket Sub-assy, Front Suspension Member Mounting, Rear LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,400
57108-52030 Bracket Sub-assy, Front Suspension Member Mounting, Rear LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,400
57113 — Extension, Front Side Member, RH
57113-52010 Extension, Front Side Member, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,430
57113-52010 Extension, Front Side Member, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,430
57114 — Extension, Front Side Member, LH
57114-52010 Extension, Front Side Member, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,440
57114-52010 Extension, Front Side Member, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,440
57188 — Reinforcement, Front Side Member Extension, RH
57188-52020 Reinforcement, Front Side Member Extension, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥710
57188-52020 Reinforcement, Front Side Member Extension, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥710
57191A — Member, Front Side, Inner Rear RH
57191-52020 Member, Front Side, Inner Rear RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥7,600
57191-52020 Member, Front Side, Inner Rear RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥7,600
57192A — Member, Front Side, Inner Rear LH
57192-52020 Member, Front Side, Inner Rear LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥7,600
57192-52020 Member, Front Side, Inner Rear LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥7,600
57197 — Box, Torque, Front RH
57197-52030 Box, Torque, Front RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥4,120
57197-52030 Box, Torque, Front RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥4,120
57198 — Box, Torque, Front LH
57198-52030 Box, Torque, Front LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥4,120
57198-52030 Box, Torque, Front LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥4,120
57201B — Extension Sub-assy, Front Side Member, RH
57201-52020 Extension Sub-assy, Front Side Member, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥4,820
57201-52020 Extension Sub-assy, Front Side Member, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥4,820
57202B — Extension Sub-assy, Front Side Member, LH
57202-52020 Extension Sub-assy, Front Side Member, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥4,130
57202-52020 Extension Sub-assy, Front Side Member, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥4,130
57401H — Member Sub-assy, Floor Side, Inner RH
57401-52230 Member Sub-assy, Floor Side, Inner RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥15,100
57401-52230 Member Sub-assy, Floor Side, Inner RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥15,100
57402F — Member Sub-assy, Floor Side, Inner LH
57402-52250 Member Sub-assy, Floor Side, Inner LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥15,100
57402-52250 Member Sub-assy, Floor Side, Inner LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥15,100
57407 — Crossmember Sub-assy, Center Floor, NO.1
57407-52050 Crossmember Sub-assy, Center Floor, NO.1
2015-06 → 2018-09 ended
NHP170,NSP170 ¥14,500
57407-52050 note Crossmember Sub-assy, Center Floor, NO.1
2015-06 → 2018-09 ended
NHP170,NSP170 06S ¥14,500
57407-52050 note Crossmember Sub-assy, Center Floor, NO.1
2015-06 → 2018-09 ended
NSP170 07S ¥14,500
57407-52050 note Crossmember Sub-assy, Center Floor, NO.1
2015-07 → 2018-09 ended
NHP170 07S ¥14,500
57407-52060 Crossmember Sub-assy, Center Floor, NO.1
2015-06 → 2018-09 ended
NSP172 ¥16,200
57407-52050 Crossmember Sub-assy, Center Floor, NO.1
2018-09 → 2022-07 ended
NHP170,NSP170 07S ¥14,500
57407-52050 note Crossmember Sub-assy, Center Floor, NO.1
2018-09 → 2022-07 ended
NHP170 G ¥14,500
57407-52050 note Crossmember Sub-assy, Center Floor, NO.1
2018-09 → 2022-07 ended
NSP170 G,X ¥14,500
57407-52050 note Crossmember Sub-assy, Center Floor, NO.1
2018-09 → 2022-07 ended
NHP170,NSP170 GCERO ¥14,500
57407-52060 Crossmember Sub-assy, Center Floor, NO.1
2018-09 → 2022-07 ended
NSP172 ¥16,200
57407-52070 Crossmember Sub-assy, Center Floor, NO.1
2018-09 → 2022-07 ended
NHP170,NSP170 05S ¥14,500
57601 — Member Sub-assy, Rear Floor Side, RH
57601-52320 Member Sub-assy, Rear Floor Side, RH
2015-06 → 2018-09 ended
NHP170,NSP170 ¥40,900
57601-52320 note Member Sub-assy, Rear Floor Side, RH
2015-06 → 2018-09 ended
NHP170,NSP170 06S ¥40,900
57601-52320 note Member Sub-assy, Rear Floor Side, RH
2015-06 → 2018-09 ended
NSP170 07S ¥40,900
57601-52320 note Member Sub-assy, Rear Floor Side, RH
2015-07 → 2018-09 ended
NHP170 07S ¥40,900
57601-52370 Member Sub-assy, Rear Floor Side, RH
2015-06 → 2018-09 ended
NCP175 ¥52,700
57601-52380 Member Sub-assy, Rear Floor Side, RH
2015-06 → 2018-09 ended
NSP172 ¥43,900
57601-52320 Member Sub-assy, Rear Floor Side, RH
2018-09 → 2022-07 ended
NHP170,NSP170 ¥40,900
57601-52320 note Member Sub-assy, Rear Floor Side, RH
2018-09 → 2022-07 ended
NHP170,NSP170 GCERO ¥40,900
57601-52320 note Member Sub-assy, Rear Floor Side, RH
2018-09 → 2022-07 ended
NSP170 G,X ¥40,900
57601-52320 note Member Sub-assy, Rear Floor Side, RH
2018-09 → 2022-07 ended
NHP170 G ¥40,900
57601-52370 note Member Sub-assy, Rear Floor Side, RH
2018-09 → 2019-05 ended
NCP175 GCERO ¥52,700
57601-52370 Member Sub-assy, Rear Floor Side, RH
2018-09 → 2019-05 ended
NCP175 ¥52,700
57601-52371 Member Sub-assy, Rear Floor Side, RH
2019-06 → 2022-07 ended
NCP175 ¥43,900
57601-52371 note Member Sub-assy, Rear Floor Side, RH
2019-06 → 2022-07 ended
NCP175 GCERO ¥43,900
57601-52380 Member Sub-assy, Rear Floor Side, RH
2018-09 → 2022-07 ended
NSP172 ¥43,900
57602 — Member Sub-assy, Rear Floor Side, LH
57602-52380 note Member Sub-assy, Rear Floor Side, LH
2015-06 → 2018-09 ended
NHP170,NSP170 06S ¥40,900
57602-52380 note Member Sub-assy, Rear Floor Side, LH
2015-07 → 2018-09 ended
NHP170 07S ¥40,900
57602-52380 note Member Sub-assy, Rear Floor Side, LH
2015-06 → 2018-09 ended
NSP170 07S ¥40,900
57602-52380 Member Sub-assy, Rear Floor Side, LH
2015-06 → 2018-09 ended
NHP170,NSP170 ¥40,900
57602-52440 Member Sub-assy, Rear Floor Side, LH
2015-06 → 2018-09 ended
NCP175 ¥52,700
57602-52450 Member Sub-assy, Rear Floor Side, LH
2015-06 → 2018-09 ended
NSP172 ¥43,900
57602-52380 note Member Sub-assy, Rear Floor Side, LH
2018-09 → 2022-07 ended
NHP170 G ¥40,900
57602-52380 Member Sub-assy, Rear Floor Side, LH
2018-09 → 2022-07 ended
NHP170,NSP170 ¥40,900
57602-52380 note Member Sub-assy, Rear Floor Side, LH
2018-09 → 2022-07 ended
NHP170,NSP170 GCERO ¥40,900
57602-52380 note Member Sub-assy, Rear Floor Side, LH
2018-09 → 2022-07 ended
NSP170 G,X ¥40,900
57602-52440 Member Sub-assy, Rear Floor Side, LH
2018-09 → 2019-05 ended
NCP175 ¥52,700
57602-52440 note Member Sub-assy, Rear Floor Side, LH
2018-09 → 2019-05 ended
NCP175 GCERO ¥52,700
57602-52441 Member Sub-assy, Rear Floor Side, LH
2019-06 → 2022-07 ended
NCP175 ¥43,900
57602-52441 note Member Sub-assy, Rear Floor Side, LH
2019-06 → 2022-07 ended
NCP175 GCERO ¥43,900
57602-52450 Member Sub-assy, Rear Floor Side, LH
2018-09 → 2022-07 ended
NSP172 ¥43,900
57603A — Member Sub-assy, Rear Floor Side, Rear RH
57603-52110 Member Sub-assy, Rear Floor Side, Rear RH
2015-06 → 2018-09 ended
NHP170,NSP170 ¥4,390
57603-52110 note Member Sub-assy, Rear Floor Side, Rear RH
2015-06 → 2018-09 ended
NHP170,NSP170 06S ¥4,390
57603-52110 note Member Sub-assy, Rear Floor Side, Rear RH
2015-06 → 2018-09 ended
NSP170 07S ¥4,390
57603-52110 note Member Sub-assy, Rear Floor Side, Rear RH
2015-07 → 2018-09 ended
NHP170 07S ¥4,390
57603-52120 Member Sub-assy, Rear Floor Side, Rear RH
2015-06 → 2018-09 ended
NCP175 ¥6,100
57603-52130 Member Sub-assy, Rear Floor Side, Rear RH
2015-06 → 2018-09 ended
NSP172 ¥6,100
57603-52110 note Member Sub-assy, Rear Floor Side, Rear RH
2018-09 → 2022-07 ended
NHP170,NSP170 GCERO ¥4,390
57603-52110 note Member Sub-assy, Rear Floor Side, Rear RH
2018-09 → 2022-07 ended
NHP170 G ¥4,390
57603-52110 note Member Sub-assy, Rear Floor Side, Rear RH
2018-09 → 2022-07 ended
NSP170 G,X ¥4,390
57603-52110 Member Sub-assy, Rear Floor Side, Rear RH
2018-09 → 2022-07 ended
NHP170,NSP170 ¥4,390
57603-52120 Member Sub-assy, Rear Floor Side, Rear RH
2018-09 → 2022-07 ended
NCP175 ¥6,100
57603-52120 note Member Sub-assy, Rear Floor Side, Rear RH
2018-09 → 2022-07 ended
NCP175 GCERO ¥6,100
57603-52130 Member Sub-assy, Rear Floor Side, Rear RH
2018-09 → 2022-07 ended
NSP172 ¥6,100
57604A — Member Sub-assy, Rear Floor Side, Rear LH
57604-52190 Member Sub-assy, Rear Floor Side, Rear LH
2015-06 → 2018-09 ended
NHP170,NSP170 ¥6,100
57604-52190 note Member Sub-assy, Rear Floor Side, Rear LH
2015-06 → 2018-09 ended
NHP170,NSP170 06S ¥6,100
57604-52190 note Member Sub-assy, Rear Floor Side, Rear LH
2015-06 → 2018-09 ended
NSP170 07S ¥6,100
57604-52190 note Member Sub-assy, Rear Floor Side, Rear LH
2015-07 → 2018-09 ended
NHP170 07S ¥6,100
57604-52200 Member Sub-assy, Rear Floor Side, Rear LH
2015-06 → 2018-09 ended
NCP175 ¥7,600
57604-52220 Member Sub-assy, Rear Floor Side, Rear LH
2015-06 → 2018-09 ended
NSP172 ¥6,100
57604-52190 Member Sub-assy, Rear Floor Side, Rear LH
2018-09 → 2022-07 ended
NHP170,NSP170 ¥6,100
57604-52190 note Member Sub-assy, Rear Floor Side, Rear LH
2018-09 → 2022-07 ended
NHP170,NSP170 GCERO ¥6,100
57604-52190 note Member Sub-assy, Rear Floor Side, Rear LH
2018-09 → 2022-07 ended
NSP170 G,X ¥6,100
57604-52190 note Member Sub-assy, Rear Floor Side, Rear LH
2018-09 → 2022-07 ended
NHP170 G ¥6,100
57604-52200 Member Sub-assy, Rear Floor Side, Rear LH
2018-09 → 2022-07 ended
NCP175 ¥7,600
57604-52200 note Member Sub-assy, Rear Floor Side, Rear LH
2018-09 → 2022-07 ended
NCP175 GCERO ¥7,600
57604-52220 Member Sub-assy, Rear Floor Side, Rear LH
2018-09 → 2022-07 ended
NSP172 ¥6,100
57605B — Member Sub-assy, Rear Floor Cross, NO.1
57605-52220 note Member Sub-assy, Rear Floor Cross, NO.1
2015-06 → 2015-11 ended
NHP170,NSP170 ¥20,900
57605-52220 note Member Sub-assy, Rear Floor Cross, NO.1
2015-07 → 2015-11 ended
NHP170 07S ¥20,900
57605-52220 note Member Sub-assy, Rear Floor Cross, NO.1
2015-06 → 2015-11 ended
NSP170 07S ¥20,900
57605-52220 Member Sub-assy, Rear Floor Cross, NO.1
2015-06 → 2015-11 ended
NHP170,NSP17# ¥20,900
57605-52221 Member Sub-assy, Rear Floor Cross, NO.1
2015-12 → 2018-09 ended
NHP170,NSP17# ¥14,500
57605-52221 note Member Sub-assy, Rear Floor Cross, NO.1
2015-12 → 2018-09 ended
NHP170,NSP170 06S ¥14,500
57605-52221 note Member Sub-assy, Rear Floor Cross, NO.1
2015-12 → 2018-09 ended
NSP170 07S ¥14,500
57605-52221 note Member Sub-assy, Rear Floor Cross, NO.1
2015-12 → 2018-09 ended
NHP170 07S ¥14,500
57605-52230 Member Sub-assy, Rear Floor Cross, NO.1
2015-06 → 2018-09 ended
NCP175 ¥16,200
57605-52221 Member Sub-assy, Rear Floor Cross, NO.1
2018-09 → 2022-07 ended
NHP170,NSP17# ¥14,500
57605-52221 note Member Sub-assy, Rear Floor Cross, NO.1
2018-09 → 2022-07 ended
NHP170 G ¥14,500
57605-52221 note Member Sub-assy, Rear Floor Cross, NO.1
2018-09 → 2022-07 ended
NHP170,NSP170 GCERO ¥14,500
57605-52221 note Member Sub-assy, Rear Floor Cross, NO.1
2018-09 → 2022-07 ended
NSP170 G,X ¥14,500
57605-52230 note Member Sub-assy, Rear Floor Cross, NO.1
2018-09 → 2022-07 ended
NCP175 GCERO ¥16,200
57605-52230 Member Sub-assy, Rear Floor Cross, NO.1
2018-09 → 2022-07 ended
NCP175 ¥16,200
57606C — Member Sub-assy, Rear Floor Cross, NO.2
57606-52220 Member Sub-assy, Rear Floor Cross, NO.2
2015-06 → 2018-09 ended
NHP170,NSP170 ¥7,200
57606-52220 note Member Sub-assy, Rear Floor Cross, NO.2
2015-06 → 2018-09 ended
NHP170,NSP170 06S ¥7,200
57606-52220 note Member Sub-assy, Rear Floor Cross, NO.2
2015-06 → 2018-09 ended
NSP170 07S ¥7,200
57606-52220 note Member Sub-assy, Rear Floor Cross, NO.2
2015-07 → 2018-09 ended
NHP170 07S ¥7,200
57606-52230 Member Sub-assy, Rear Floor Cross, NO.2
2015-06 → 2018-09 ended
NCP175 ¥8,900
57606-52260 Member Sub-assy, Rear Floor Cross, NO.2
2015-06 → 2018-09 ended
NSP172 ¥4,750
57606-52220 Member Sub-assy, Rear Floor Cross, NO.2
2018-09 → 2022-07 ended
NHP170,NSP170 ¥7,200
57606-52220 note Member Sub-assy, Rear Floor Cross, NO.2
2018-09 → 2022-07 ended
NHP170 G ¥7,200
57606-52220 note Member Sub-assy, Rear Floor Cross, NO.2
2018-09 → 2022-07 ended
NSP170 G,X ¥7,200
57606-52220 note Member Sub-assy, Rear Floor Cross, NO.2
2018-09 → 2022-07 ended
NHP170,NSP170 GCERO ¥7,200
57606-52230 Member Sub-assy, Rear Floor Cross, NO.2
2018-09 → 2022-07 ended
NCP175 ¥8,900
57606-52230 note Member Sub-assy, Rear Floor Cross, NO.2
2018-09 → 2022-07 ended
NCP175 GCERO ¥8,900
57606-52260 Member Sub-assy, Rear Floor Cross, NO.2
2018-09 → 2022-07 ended
NSP172 ¥4,750
57631C — Extension, Rear Floor Side Member, Front RH
58035-52020 Extension, Rear Floor Side Member, Front RH
2015-06 → 2018-09 ended
NSP172 ¥7,400
58035-52020 Extension, Rear Floor Side Member, Front RH
2018-09 → 2022-07 ended
NSP172 ¥7,400
57632C — Extension, Rear Floor Side Member, Front LH
58036-52040 Extension, Rear Floor Side Member, Front LH
2015-06 → 2018-09 ended
NSP172 ¥6,700
58036-52040 Extension, Rear Floor Side Member, Front LH
2018-09 → 2022-07 ended
NSP172 ¥6,700
57801A — Reinforcement Sub-assy, Rear Floor Side Member, RH
57801-52160 Reinforcement Sub-assy, Rear Floor Side Member, RH
2015-06 → 2018-09 ended
NHP170,NSP17# ¥2,170
57801-52160 note Reinforcement Sub-assy, Rear Floor Side Member, RH
2015-06 → 2018-09 ended
NHP170,NSP170 06S ¥2,170
57801-52160 note Reinforcement Sub-assy, Rear Floor Side Member, RH
2015-06 → 2018-09 ended
NSP170 07S ¥2,170
57801-52160 note Reinforcement Sub-assy, Rear Floor Side Member, RH
2015-07 → 2018-09 ended
NHP170 07S ¥2,170
57801-52160 note Reinforcement Sub-assy, Rear Floor Side Member, RH
2018-09 → 2022-07 ended
NHP170 G ¥2,170
57801-52160 note Reinforcement Sub-assy, Rear Floor Side Member, RH
2018-09 → 2022-07 ended
NSP170 G,X ¥2,170
57801-52160 note Reinforcement Sub-assy, Rear Floor Side Member, RH
2018-09 → 2022-07 ended
NHP170,NSP170 GCERO ¥2,170
57801-52160 Reinforcement Sub-assy, Rear Floor Side Member, RH
2018-09 → 2022-07 ended
NHP170,NSP17# ¥2,170
57802A — Reinforcement Sub-assy, Rear Floor Side Member, LH
57802-52160 Reinforcement Sub-assy, Rear Floor Side Member, LH
2015-06 → 2018-09 ended
NHP170,NSP17# ¥2,240
57802-52160 note Reinforcement Sub-assy, Rear Floor Side Member, LH
2015-06 → 2018-09 ended
NHP170,NSP170 06S ¥2,240
57802-52160 note Reinforcement Sub-assy, Rear Floor Side Member, LH
2015-06 → 2018-09 ended
NSP170 07S ¥2,240
57802-52160 note Reinforcement Sub-assy, Rear Floor Side Member, LH
2015-07 → 2018-09 ended
NHP170 07S ¥2,240
57802-52160 Reinforcement Sub-assy, Rear Floor Side Member, LH
2018-09 → 2022-07 ended
NHP170,NSP17# ¥2,240
57802-52160 note Reinforcement Sub-assy, Rear Floor Side Member, LH
2018-09 → 2022-07 ended
NHP170,NSP170 GCERO ¥2,240
57802-52160 note Reinforcement Sub-assy, Rear Floor Side Member, LH
2018-09 → 2022-07 ended
NSP170 G,X ¥2,240
57802-52160 note Reinforcement Sub-assy, Rear Floor Side Member, LH
2018-09 → 2022-07 ended
NHP170 G ¥2,240
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
