Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

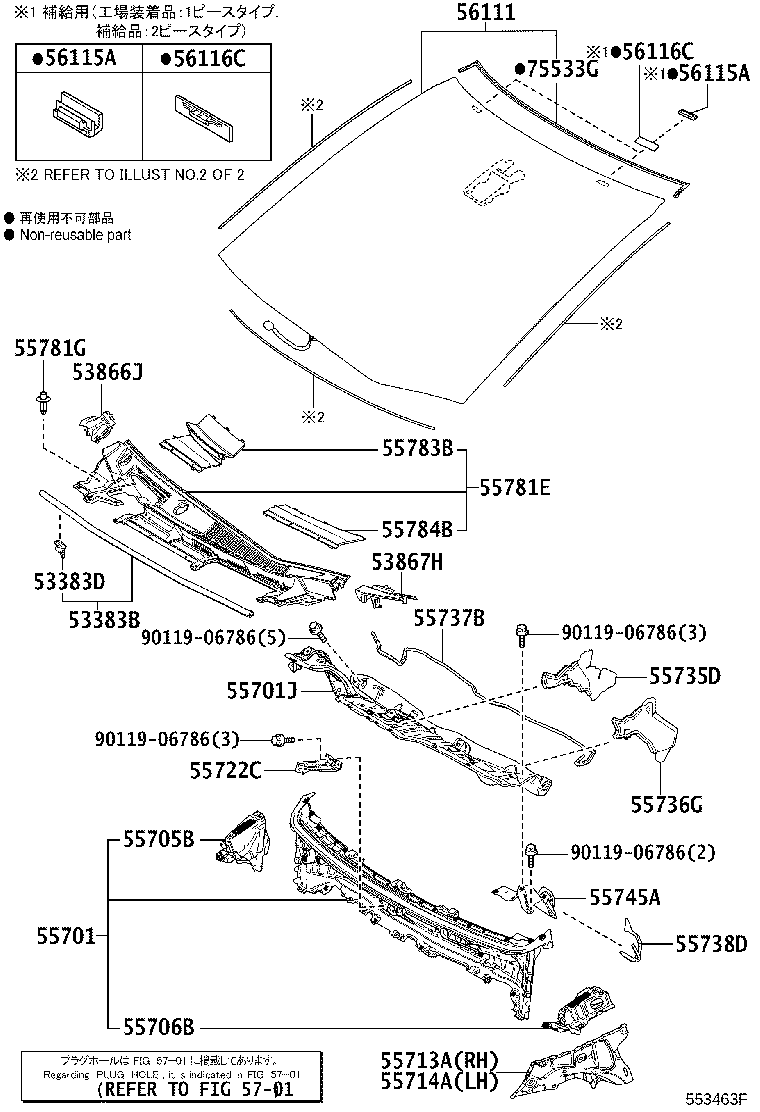

Exploded illustration 553463F 53383B — SEAL, HOOD TO COWL TOP (3 parts) 53383D — CLIP(FOR HOOD TO COWL TOP SEAL) (5 parts) 53866J — SEAL, FRONT FENDER TO COWL SIDE, RH (2 parts) 53867H — SEAL, FRONT FENDER TO COWL SIDE, LH (2 parts) 55701 — PANEL SUB-ASSY, COWL (2 parts) 55701J — PANEL SUB-ASSY, COWL TOP, OUTER (6 parts) 55705B — PANEL SUB-ASSY, COWL TOP SIDE, RH (2 parts) 55706B — PANEL SUB-ASSY, COWL TOP SIDE, LH (2 parts) 55713A — PANEL, COWL TOP SIDE, RH (2 parts) 55714A — PANEL, COWL TOP SIDE, LH (2 parts) 55722C — BRACE, COWL TOP TO COWL, INNER (2 parts) 55735D — SEAL, FRONT AIR SHUTTER, RH (2 parts) 55736G — SEAL, FRONT AIR SHUTTER, LH (2 parts) 55737B — SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1 (3 parts) 55738D — SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2 (2 parts) 55745A — REINFORCEMENT, COWL TOP, INNER (2 parts) 55781E — LOUVER SUB-ASSY, COWL TOP VENTILATOR (12 parts) 55781G — CLIP, COWL TOP VENTILATOR LOUVER (3 parts) 55783B — LOUVER, COWL TOP VENTILATOR, CENTER NO.1 (6 parts) 55784B — LOUVER, COWL TOP VENTILATOR, CENTER NO.2 (3 parts) 56111 — GLASS, WINDSHIELD (12 parts) 56115A — STOPPER, WINDSHIELD GLASS, NO.1 (2 parts) 56116C — STOPPER, WINDSHIELD GLASS, NO.2 (2 parts) 75533G — MOULDING, WINDSHIELD, OUTSIDE (2 parts) 9011906786 — not listed in this catalogue 9011906786 — not listed in this catalogue 9011906786 — not listed in this catalogue 9011906786 — not listed in this catalogue 5701 — not listed in this catalogue 56116C — STOPPER, WINDSHIELD GLASS, NO.2 (2 parts) 56115A — STOPPER, WINDSHIELD GLASS, NO.1 (2 parts)
553463F · 26 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
83 parts on this figure
Part number Description Fitment Price
53383B — Seal, Hood TO Cowl Top
53383-52160 Seal, Hood TO Cowl Top
2015-06 → 2017-10 ended
NCP175,NHP170,NSP17# ¥820
53383-52161 Seal, Hood TO Cowl Top
2017-10 → 2018-09 ended
NCP175,NHP170,NSP17# ¥680
53383-52161 Seal, Hood TO Cowl Top
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥680
53383D — Clip(FOR HOOD TO COWL TOP SEAL)
67867-12150 Clip(FOR HOOD TO COWL TOP SEAL)
2015-06 → 2017-10 ended
NCP175,NHP170,NSP17# ¥100
67867-12150 note Clip(FOR HOOD TO COWL TOP SEAL)
2017-10 → 2018-09 ended
NCP175,NHP170,NSP17# ¥100
67867-50100 note Clip(FOR HOOD TO COWL TOP SEAL)
2017-10 → 2018-09 ended
NCP175,NHP170,NSP17# ¥100
67867-12150 note Clip(FOR HOOD TO COWL TOP SEAL)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥100
67867-50100 note Clip(FOR HOOD TO COWL TOP SEAL)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥100
53866J — Seal, Front Fender TO Cowl Side, RH
53866-52150 Seal, Front Fender TO Cowl Side, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥860
53866-52150 Seal, Front Fender TO Cowl Side, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥860
53867H — Seal, Front Fender TO Cowl Side, LH
53867-52170 Seal, Front Fender TO Cowl Side, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥740
53867-52170 Seal, Front Fender TO Cowl Side, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥740
55701 — Panel Sub-assy, Cowl
55700-52400 Panel Sub-assy, Cowl
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥15,600
55700-52400 Panel Sub-assy, Cowl
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥15,600
55701J — Panel Sub-assy, Cowl Top, Outer
55701-52340 Panel Sub-assy, Cowl Top, Outer
2015-06 → 2015-09 ended
NCP175,NSP17# ¥15,700
55701-52341 Panel Sub-assy, Cowl Top, Outer
2015-10 → 2018-09 ended
NCP175,NSP17# ¥10,900
55701-52350 Panel Sub-assy, Cowl Top, Outer
2015-07 → 2015-09 ended
NHP170 ¥15,700
55701-52351 Panel Sub-assy, Cowl Top, Outer
2015-10 → 2018-09 ended
NHP170 ¥10,900
55701-52341 Panel Sub-assy, Cowl Top, Outer
2018-09 → 2022-07 ended
NCP175,NSP17# ¥10,900
55701-52351 Panel Sub-assy, Cowl Top, Outer
2018-09 → 2022-07 ended
NHP170 ¥10,900
55705B — Panel Sub-assy, Cowl Top Side, RH
55705-52170 Panel Sub-assy, Cowl Top Side, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,710
55705-52170 Panel Sub-assy, Cowl Top Side, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,710
55706B — Panel Sub-assy, Cowl Top Side, LH
55706-52170 Panel Sub-assy, Cowl Top Side, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,710
55706-52170 Panel Sub-assy, Cowl Top Side, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,710
55713A — Panel, Cowl Top Side, RH
55713-52170 Panel, Cowl Top Side, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥3,020
55713-52170 Panel, Cowl Top Side, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥3,020
55714A — Panel, Cowl Top Side, LH
55714-52170 Panel, Cowl Top Side, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥3,000
55714-52170 Panel, Cowl Top Side, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥3,000
55722C — Brace, Cowl Top TO Cowl, Inner
55722-52090 Brace, Cowl Top TO Cowl, Inner
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,600
55722-52090 Brace, Cowl Top TO Cowl, Inner
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,600
55735D — Seal, Front Air Shutter, RH
55735-52130 Seal, Front Air Shutter, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥650
55735-52130 Seal, Front Air Shutter, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥650
55736G — Seal, Front Air Shutter, LH
55736-52080 Seal, Front Air Shutter, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥660
55736-52080 Seal, Front Air Shutter, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥660
55737B — Seal, Heater Air Duct Splash Shield, NO.1
55737-52220 Seal, Heater Air Duct Splash Shield, NO.1
2015-06 → 2015-10 ended
NCP175,NHP170,NSP17# ¥980
55737-52221 Seal, Heater Air Duct Splash Shield, NO.1
2015-10 → 2018-09 ended
NCP175,NHP170,NSP17# ¥670
55737-52221 Seal, Heater Air Duct Splash Shield, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥670
55738D — Seal, Heater Air Duct Splash Shield, NO.2
55737-52230 Seal, Heater Air Duct Splash Shield, NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥220
55737-52230 Seal, Heater Air Duct Splash Shield, NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥220
55745A — Reinforcement, Cowl Top, Inner
55746-52140 Reinforcement, Cowl Top, Inner
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,710
55746-52140 Reinforcement, Cowl Top, Inner
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,710
55781E — Louver Sub-assy, Cowl Top Ventilator
55708-52410 Louver Sub-assy, Cowl Top Ventilator
2015-06 → 2016-03 ended
NCP175,NSP17# ¥14,600
55708-52411 Louver Sub-assy, Cowl Top Ventilator
2016-04 → 2017-10 ended
NCP175,NSP17# ¥12,100
55708-52412 Louver Sub-assy, Cowl Top Ventilator
2017-10 → 2018-09 ended
NCP175,NSP17# ¥10,100
55708-52420 note Louver Sub-assy, Cowl Top Ventilator
2015-06 → 2016-03 ended
NCP175,NSP17# ¥16,100
55708-52421 note Louver Sub-assy, Cowl Top Ventilator
2016-04 → 2017-10 ended
NCP175,NSP17# ¥13,400
55708-52422 note Louver Sub-assy, Cowl Top Ventilator
2017-10 → 2018-09 ended
NCP175,NSP17# ¥11,200
55708-52560 Louver Sub-assy, Cowl Top Ventilator
2015-06 → 2018-09 ended
NHP170 ¥10,700
55708-52570 note Louver Sub-assy, Cowl Top Ventilator
2015-06 → 2018-09 ended
NHP170 ¥11,800
55708-52412 Louver Sub-assy, Cowl Top Ventilator
2018-09 → 2022-07 ended
NCP175,NSP17# ¥10,100
55708-52422 note Louver Sub-assy, Cowl Top Ventilator
2018-09 → 2022-07 ended
NCP175,NSP17# ¥11,200
55708-52560 Louver Sub-assy, Cowl Top Ventilator
2018-09 → 2022-07 ended
NHP170 ¥10,700
55708-52570 note Louver Sub-assy, Cowl Top Ventilator
2018-09 → 2022-07 ended
NHP170 ¥11,800
55781G — Clip, Cowl Top Ventilator Louver
90467-07076-C0 note Clip, Cowl Top Ventilator Louver
2015-06 → 2017-02 ended
NCP175,NHP170,NSP17# ¥80
90467-07076-C7 note Clip, Cowl Top Ventilator Louver
2017-03 → 2018-09 ended
NCP175,NHP170,NSP17# ¥80
90467-07076-C7 note Clip, Cowl Top Ventilator Louver
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥80
55783B — Louver, Cowl Top Ventilator, Center NO.1
55783-52350 Louver, Cowl Top Ventilator, Center NO.1
2015-06 → 2016-03 ended
NCP175,NSP17# ¥3,480
55783-52351 Louver, Cowl Top Ventilator, Center NO.1
2016-04 → 2017-10 ended
NCP175,NSP17# ¥2,900
55783-52352 Louver, Cowl Top Ventilator, Center NO.1
2017-10 → 2018-09 ended
NCP175,NSP17# ¥2,410
55783-52420 Louver, Cowl Top Ventilator, Center NO.1
2015-06 → 2018-09 ended
NHP170 ¥3,200
55783-52352 Louver, Cowl Top Ventilator, Center NO.1
2018-09 → 2022-07 ended
NCP175,NSP17# ¥2,410
55783-52420 Louver, Cowl Top Ventilator, Center NO.1
2018-09 → 2022-07 ended
NHP170 ¥3,200
55784B — Louver, Cowl Top Ventilator, Center NO.2
55784-52140 Louver, Cowl Top Ventilator, Center NO.2
2015-06 → 2016-03 ended
NCP175,NHP170,NSP17# ¥2,470
55784-52141 Louver, Cowl Top Ventilator, Center NO.2
2016-04 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,710
55784-52141 Louver, Cowl Top Ventilator, Center NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,710
56111 — Glass, Windshield
56101-52840 Glass, Windshield
2015-07 → 2018-09 ended
NHP170 —
56101-52860 note Glass, Windshield
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# —
56101-52880 note Glass, Windshield
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# —
56101-52A00 note Glass, Windshield
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# —
56101-52A80 Glass, Windshield
2015-06 → 2018-09 ended
NCP175,NSP17# —
56101-52840 Glass, Windshield
2018-09 → 2022-07 ended
NHP170 FNBSX,X —
56101-52880 note Glass, Windshield
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X —
56101-52A80 Glass, Windshield
2018-09 → 2022-07 ended
NCP175,NSP17# FNBSX,WKX,X —
56101-52E80 Glass, Windshield
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥107,000
56101-52E80 note Glass, Windshield
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥107,000
56101-52E90 note Glass, Windshield
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG —
56101-52E90 note Glass, Windshield
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X —
56115A — Stopper, Windshield Glass, NO.1
56115-30100 Stopper, Windshield Glass, NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥130
56115-30100 Stopper, Windshield Glass, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥130
56116C — Stopper, Windshield Glass, NO.2
56116-22050 Stopper, Windshield Glass, NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥120
56116-22050 Stopper, Windshield Glass, NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥120
75533G — Moulding, Windshield, Outside
75533-52280 Moulding, Windshield, Outside
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,110
75533-52280 Moulding, Windshield, Outside
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,110
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
