Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

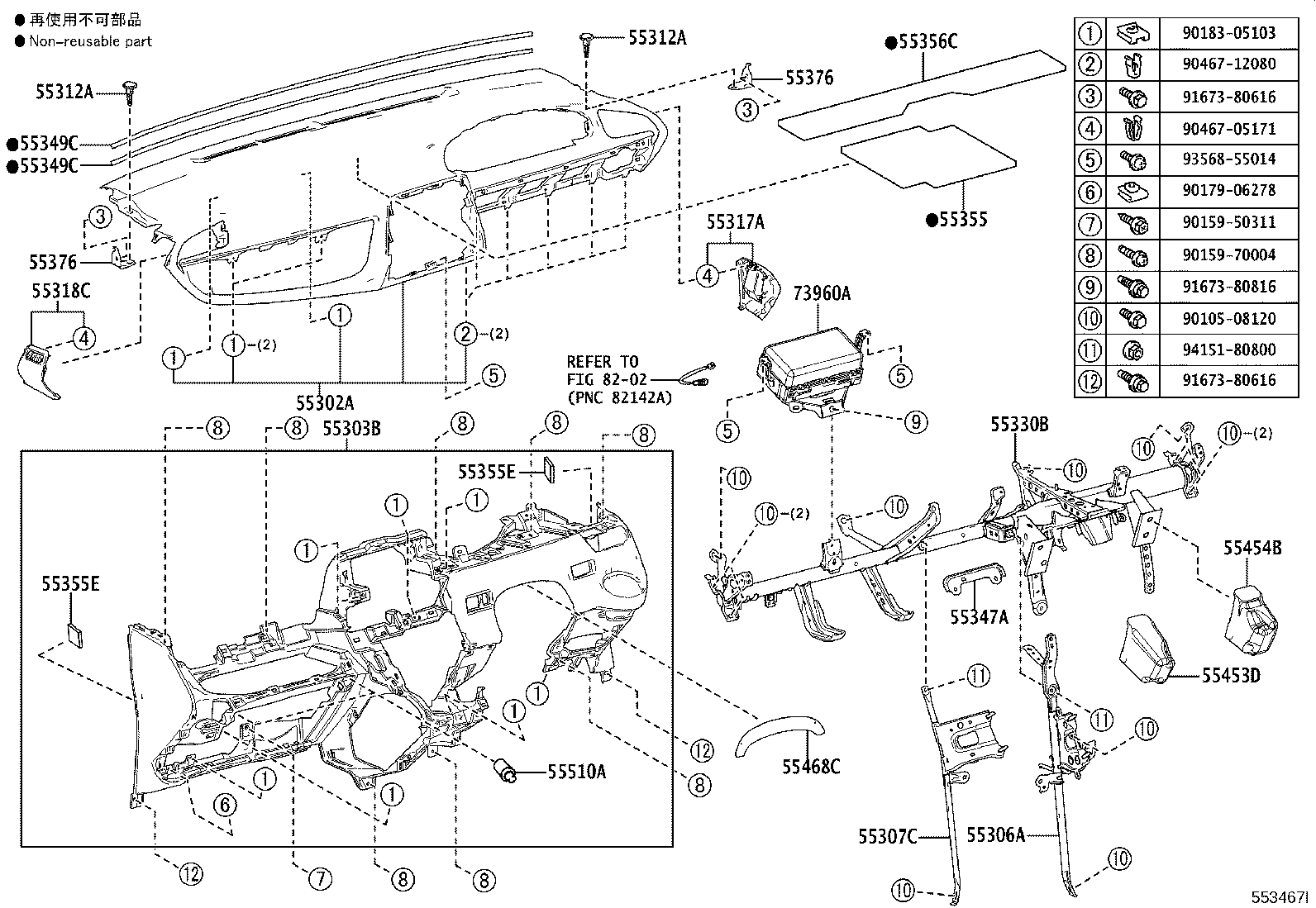

Exploded illustration 553467I 9010508120 — not listed in this catalogue 9167380816 — not listed in this catalogue 9017906278 — not listed in this catalogue 9015950311 — not listed in this catalogue 9356855014 — not listed in this catalogue 9018305103 — not listed in this catalogue 9015970004 — not listed in this catalogue 9167380616 — not listed in this catalogue 9046712080 — not listed in this catalogue 9415180800 — not listed in this catalogue 55302A — PANEL SUB-ASSY, INSTRUMENT, UPPER (5 parts) 55303B — PANEL SUB-ASSY, INSTRUMENT, LOWER (5 parts) 55312A — CLIP, INSTRUMENT PANEL (2 parts) 55312A — CLIP, INSTRUMENT PANEL (2 parts) 55349C — CUSHION, INSTRUMENT PANEL (2 parts) 55349C — CUSHION, INSTRUMENT PANEL (2 parts) 55376 — BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 (2 parts) 55510A — CUSHION(FOR GLOVE COMPARTMENT DOOR) (3 parts) 55376 — BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 (2 parts) 55468C — SEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1 (2 parts) 55330B — REINFORCEMENT ASSY, INSTRUMENT PANEL (2 parts) 73960A — AIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR (2 parts) 55355 — CUSHION, INSTRUMENT PANEL, NO.1 (2 parts) 55356C — CUSHION, INSTRUMENT PANEL, NO.2 (2 parts) 55454B — PAD, INSTRUMENT PANEL SAFETY, NO.2 (2 parts) 55453D — PAD, INSTRUMENT PANEL SAFETY, NO.1 (2 parts) 55306A — BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 (2 parts) 55347A — BRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1 (2 parts) 9167380616 — not listed in this catalogue 55307C — BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 (2 parts) 55355E — CUSHION, INSTRUMENT PANEL (2 parts) 55355E — CUSHION, INSTRUMENT PANEL (2 parts) 55318C — PANEL, INSTRUMENT SIDE, LH (5 parts) 55317A — PANEL, INSTRUMENT SIDE, RH (5 parts) 9046705171 — not listed in this catalogue 8202 — not listed in this catalogue
553467I · 23 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
51 parts on this figure
Part number Description Fitment Price
55302A — Panel Sub-assy, Instrument, Upper
55302-52200-C0 note Panel Sub-assy, Instrument, Upper
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥25,300
55302-52200-C0 note Panel Sub-assy, Instrument, Upper
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥25,300
55302-52200-C0 note Panel Sub-assy, Instrument, Upper
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥25,300
55302-52200-C0 note Panel Sub-assy, Instrument, Upper
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥25,300
55302-52200-C0 note Panel Sub-assy, Instrument, Upper
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,FNGCR,GCERO ¥25,300
55303B — Panel Sub-assy, Instrument, Lower
55303-52330-A0 note Panel Sub-assy, Instrument, Lower
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥19,000
55303-52330-C0 note Panel Sub-assy, Instrument, Lower
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥19,000
55303-52330-A0 note Panel Sub-assy, Instrument, Lower
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,WKG,WKX,X ¥19,000
55303-52330-C0 note Panel Sub-assy, Instrument, Lower
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥19,000
55303-52330-C0 note Panel Sub-assy, Instrument, Lower
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,FNGCR,GCERO,WKG,WKX,X ¥19,000
55306A — Brace Sub-assy, Instrument Panel, NO.1
55306-52330 Brace Sub-assy, Instrument Panel, NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥3,730
55306-52330 Brace Sub-assy, Instrument Panel, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥3,730
55307C — Brace Sub-assy, Instrument Panel, NO.2
55307-52080 Brace Sub-assy, Instrument Panel, NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,360
55307-52080 Brace Sub-assy, Instrument Panel, NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,360
55312A — Clip, Instrument Panel
52161-16010 Clip, Instrument Panel
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥120
52161-16010 Clip, Instrument Panel
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥120
55317A — Panel, Instrument Side, RH
55317-52070-C0 note Panel, Instrument Side, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,690
55317-52070-C0 note Panel, Instrument Side, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥1,690
55317-52070-C0 note Panel, Instrument Side, RH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥1,690
55317-52070-C0 note Panel, Instrument Side, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥1,690
55317-52070-C0 note Panel, Instrument Side, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,FNGCR,GCERO ¥1,690
55318C — Panel, Instrument Side, LH
55318-52150-C0 note Panel, Instrument Side, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,570
55318-52150-C0 note Panel, Instrument Side, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,FNGCR,GCERO ¥1,570
55318-52150-C0 note Panel, Instrument Side, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥1,570
55318-52150-C0 note Panel, Instrument Side, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥1,570
55318-52150-C0 note Panel, Instrument Side, LH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥1,570
55330B — Reinforcement Assy, Instrument Panel
55330-52760 Reinforcement Assy, Instrument Panel
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥17,100
55330-52761 Reinforcement Assy, Instrument Panel
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥14,200
55347A — Bracket, Instrument Panel Brace Mounting, NO.1
55347-52130 Bracket, Instrument Panel Brace Mounting, NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥410
55347-52130 Bracket, Instrument Panel Brace Mounting, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥410
55349C — Cushion, Instrument Panel
55349-52260 Cushion, Instrument Panel
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥970
55349-52260 Cushion, Instrument Panel
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥970
55355 — Cushion, Instrument Panel, NO.1
55355-52240 Cushion, Instrument Panel, NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥710
55355-52240 Cushion, Instrument Panel, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥710
55355E — Cushion, Instrument Panel
55355-53050 Cushion, Instrument Panel
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥60
55355-53050 Cushion, Instrument Panel
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥60
55356C — Cushion, Instrument Panel, NO.2
55356-52270 Cushion, Instrument Panel, NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥550
55356-52270 Cushion, Instrument Panel, NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥550
55376 — Bracket, Instrument Panel Mounting, NO.1
55376-12160 Bracket, Instrument Panel Mounting, NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥200
55376-12160 Bracket, Instrument Panel Mounting, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥200
55453D — Pad, Instrument Panel Safety, NO.1
55453-52170 Pad, Instrument Panel Safety, NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,540
55453-52170 Pad, Instrument Panel Safety, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,540
55454B — Pad, Instrument Panel Safety, NO.2
55454-52170 Pad, Instrument Panel Safety, NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,450
55454-52170 Pad, Instrument Panel Safety, NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,450
55468C — Seal, Instrument Cluster Finish Panel, NO.1
55468-52160 Seal, Instrument Cluster Finish Panel, NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥240
55468-52160 Seal, Instrument Cluster Finish Panel, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥240
55510A — Cushion(FOR GLOVE COMPARTMENT DOOR)
55557-52030 Cushion(FOR GLOVE COMPARTMENT DOOR)
2016-11 → 2018-09 ended
NCP175,NHP170,NSP17# ¥200
55557-78010 Cushion(FOR GLOVE COMPARTMENT DOOR)
2015-06 → 2016-10 ended
NCP175,NHP170,NSP17# ¥260
55557-52030 Cushion(FOR GLOVE COMPARTMENT DOOR)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥200
73960A — Airbag Assy, Instrument Panel Passenger W/O Door
73960-52240 Airbag Assy, Instrument Panel Passenger W/O Door
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥83,200
73960-52240 Airbag Assy, Instrument Panel Passenger W/O Door
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥83,200
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
