Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

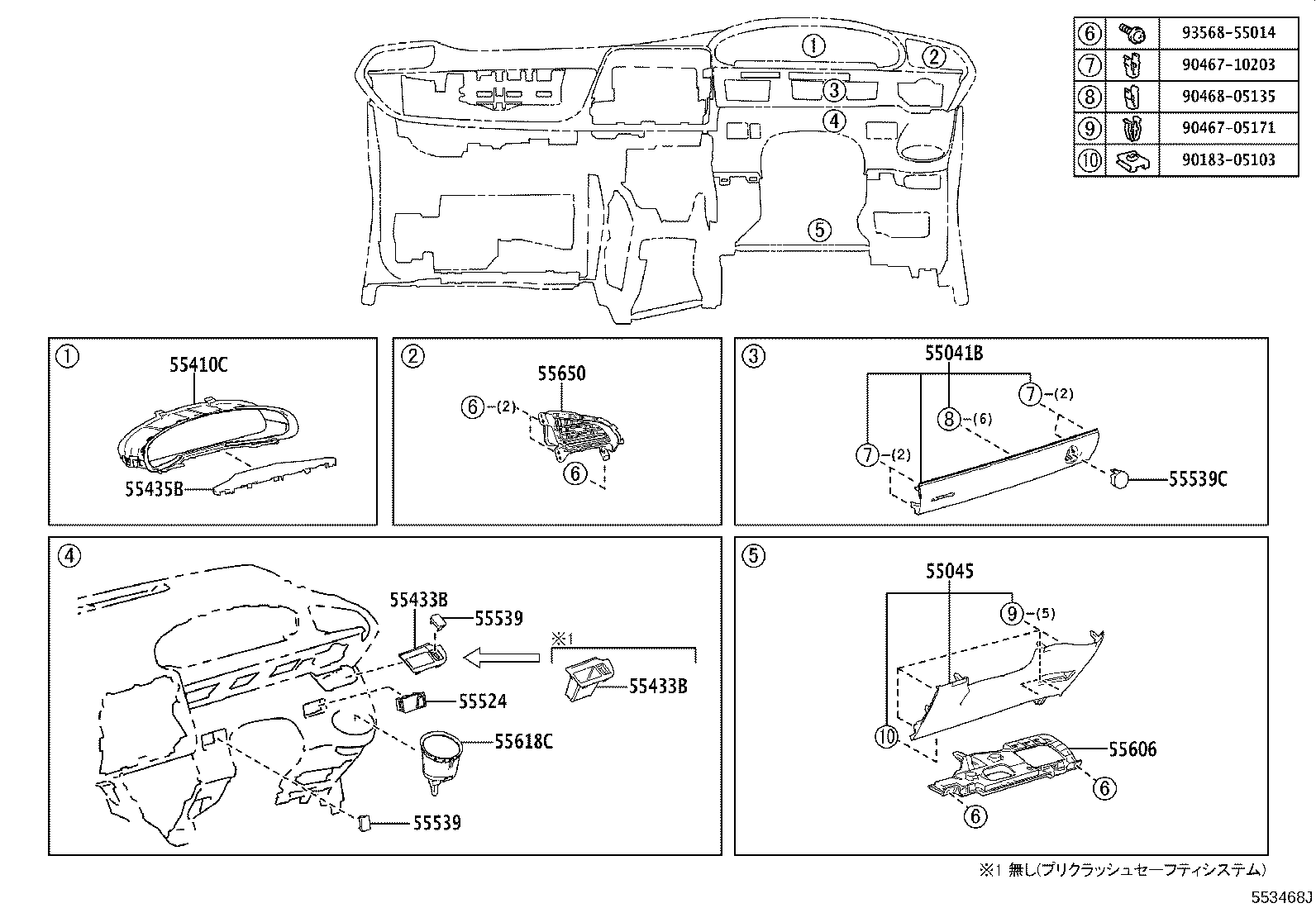

Exploded illustration 553468J 55435B — CLUSTER, METER HOOD, NO.1 (5 parts) 55410C — PANEL ASSY, INSTRUMENT CLUSTER FINISH (5 parts) 55650 — REGISTER ASSY, INSTRUMENT PANEL, NO.1 (8 parts) 55041B — DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1 (10 parts) 55539 — COVER, SPARE SWITCH HOLE (32 parts) 55539C — COVER, SPARE SWITCH HOLE (8 parts) 55618C — HOLDER, INSTRUMENT PANEL CUP (9 parts) 55045 — PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER (5 parts) 55606 — COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 (2 parts) 9018305103 — not listed in this catalogue 9356855014 — not listed in this catalogue 9046805135 — not listed in this catalogue 9046710203 — not listed in this catalogue 9046705171 — not listed in this catalogue 55524 — COVER, SWITCH BACE HOLE (1 parts) 55433B — PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 (21 parts) 55539 — COVER, SPARE SWITCH HOLE (32 parts) 55433B — PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 (21 parts)
553468J · 13 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
106 parts on this figure
Part number Description Fitment Price
55041B — Door Sub-assy, Instrument Panel Box, NO.1
55041-52120-C0 note Door Sub-assy, Instrument Panel Box, NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥4,500
55041-52120-C0 note Door Sub-assy, Instrument Panel Box, NO.1
2018-09 → 2019-10 ended
NCP175,NHP170,NSP170 G ¥4,500
55041-52120-C0 note Door Sub-assy, Instrument Panel Box, NO.1
2019-10 → 2022-07 ended
NHP170,NSP170 FNBSG ¥4,500
55041-52120-C0 note Door Sub-assy, Instrument Panel Box, NO.1
2019-10 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥4,500
55041-52120-C0 note Door Sub-assy, Instrument Panel Box, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,FNGCR,GCERO ¥4,500
55041-52120-C0 note Door Sub-assy, Instrument Panel Box, NO.1
2018-09 → 2019-10 ended
NHP170,NSP170 FNBSG ¥4,500
55041-52120-C0 note Door Sub-assy, Instrument Panel Box, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥4,500
55041-52120-C1 note Door Sub-assy, Instrument Panel Box, NO.1
2020-01 → 2022-06 ended
NCP175,NHP170,NSP170 FNBSG,G ¥4,500
55041-52120-C1 note Door Sub-assy, Instrument Panel Box, NO.1
2019-10 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥4,500
55041-52120-C1 note Door Sub-assy, Instrument Panel Box, NO.1
2019-10 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥4,500
55045 — Panel Sub-assy, Instrument Panel Finish, Lower
55045-52050-A0 note Panel Sub-assy, Instrument Panel Finish, Lower
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥6,000
55045-52050-C0 note Panel Sub-assy, Instrument Panel Finish, Lower
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥6,000
55045-52050-A0 note Panel Sub-assy, Instrument Panel Finish, Lower
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,WKG,WKX,X ¥6,000
55045-52050-C0 note Panel Sub-assy, Instrument Panel Finish, Lower
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥6,000
55045-52050-C0 note Panel Sub-assy, Instrument Panel Finish, Lower
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,FNGCR,GCERO,WKG,WKX,X ¥6,000
55410C — Panel Assy, Instrument Cluster Finish
55410-52310-C3 note Panel Assy, Instrument Cluster Finish
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥6,400
55410-52310-C3 note Panel Assy, Instrument Cluster Finish
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥6,400
55410-52310-C3 note Panel Assy, Instrument Cluster Finish
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,FNGCR,GCERO ¥6,400
55410-52310-C3 note Panel Assy, Instrument Cluster Finish
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥6,400
55410-52310-C3 note Panel Assy, Instrument Cluster Finish
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥6,400
55433B — Panel, Instrument Panel Finish, Lower NO.2
55433-52130-A0 note Panel, Instrument Panel Finish, Lower NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,070
55433-52130-A0 note Panel, Instrument Panel Finish, Lower NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,070
55433-52130-C0 note Panel, Instrument Panel Finish, Lower NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,070
55433-52130-C0 note Panel, Instrument Panel Finish, Lower NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,070
55433-52150-A0 note Panel, Instrument Panel Finish, Lower NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,610
55433-52150-C0 note Panel, Instrument Panel Finish, Lower NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,610
55433-52130-A0 note Panel, Instrument Panel Finish, Lower NO.2
2018-09 → 2021-06 ended
NCP175,NHP170,NSP17# WKX,X ¥1,070
55433-52130-A0 note Panel, Instrument Panel Finish, Lower NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKX,X ¥1,070
55433-52130-A0 note Panel, Instrument Panel Finish, Lower NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKX,X ¥1,070
55433-52130-A0 note Panel, Instrument Panel Finish, Lower NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,WKG ¥1,070
55433-52130-A0 note Panel, Instrument Panel Finish, Lower NO.2
2018-09 → 2021-06 ended
NCP175,NHP170,NSP17# WKX,X ¥1,070
55433-52130-A0 note Panel, Instrument Panel Finish, Lower NO.2
2018-09 → 2021-06 ended
NCP175,NHP170,NSP17# WKX,X ¥1,070
55433-52130-C0 note Panel, Instrument Panel Finish, Lower NO.2
2018-09 → 2021-06 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥1,070
55433-52130-C0 note Panel, Instrument Panel Finish, Lower NO.2
2018-09 → 2021-06 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥1,070
55433-52130-C0 note Panel, Instrument Panel Finish, Lower NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥1,070
55433-52130-C0 note Panel, Instrument Panel Finish, Lower NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNGCR,GCERO,WKG ¥1,070
55433-52130-C0 note Panel, Instrument Panel Finish, Lower NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥1,070
55433-52130-C0 note Panel, Instrument Panel Finish, Lower NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥1,070
55433-52130-C0 note Panel, Instrument Panel Finish, Lower NO.2
2018-09 → 2021-06 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥1,070
55433-52150-A0 note Panel, Instrument Panel Finish, Lower NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKX,X ¥1,610
55433-52150-C0 note Panel, Instrument Panel Finish, Lower NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥1,610
55435B — Cluster, Meter Hood, NO.1
55435-52130-C0 note Cluster, Meter Hood, NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,160
55435-52130-C0 note Cluster, Meter Hood, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥2,160
55435-52130-C0 note Cluster, Meter Hood, NO.1
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥2,160
55435-52130-C0 note Cluster, Meter Hood, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥2,160
55435-52130-C0 note Cluster, Meter Hood, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,FNGCR,GCERO ¥2,160
55524 — Cover, Switch Bace Hole
55524-52040-C0 note Cover, Switch Bace Hole
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥570
55539 — Cover, Spare Switch Hole
55539-52060-A8 note Cover, Spare Switch Hole
2015-12 → 2018-09 ended
NHP170 07S G ¥240
55539-52060-A8 note Cover, Spare Switch Hole
2015-12 → 2018-09 ended
NSP172 ¥240
55539-52060-A8 note Cover, Spare Switch Hole
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥240
55539-52060-A8 note Cover, Spare Switch Hole
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥240
55539-52060-A8 note Cover, Spare Switch Hole
2015-07 → 2018-09 ended
NHP170 G ¥240
55539-52060-A8 note Cover, Spare Switch Hole
2015-06 → 2018-09 ended
NSP172 X ¥240
55539-52060-C0 note Cover, Spare Switch Hole
2015-06 → 2017-01 ended
NCP175,NHP170,NSP17# ¥300
55539-52060-C0 note Cover, Spare Switch Hole
2015-07 → 2015-12 ended
NHP170 07S G ¥300
55539-52060-C0 note Cover, Spare Switch Hole
2015-06 → 2015-12 ended
NSP172 X ¥300
55539-52060-C0 note Cover, Spare Switch Hole
2015-06 → 2015-12 ended
NSP172 X;NHP170 07S G ¥300
55539-52060-C0 note Cover, Spare Switch Hole
2015-06 → 2015-12 ended
NSP172 X;NHP170 07S G ¥300
55539-52060-C4 note Cover, Spare Switch Hole
2017-01 → 2018-09 ended
NCP175,NHP170,NSP17# ¥220
55539-52060-A8 note Cover, Spare Switch Hole
2020-06 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥240
55539-52060-A8 note Cover, Spare Switch Hole
2020-06 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥240
55539-52060-A8 note Cover, Spare Switch Hole
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,WKG,WKX,X ¥240
55539-52060-A8 note Cover, Spare Switch Hole
2020-06 → 2022-07 ended
NSP172 WKG ¥240
55539-52060-A8 note Cover, Spare Switch Hole
2018-09 → 2020-06 ended
NSP172 WKX ¥240
55539-52060-A8 note Cover, Spare Switch Hole
2018-09 → 2020-06 ended
NSP172 ¥240
55539-52060-A8 note Cover, Spare Switch Hole
2018-09 → 2020-06 ended
NSP172 WKX ¥240
55539-52060-A8 note Cover, Spare Switch Hole
2018-09 → 2020-06 ended
NCP175,NHP170,NSP170 G,X ¥240
55539-52060-A8 note Cover, Spare Switch Hole
2018-09 → 2020-06 ended
NCP175,NHP170,NSP170 G,X ¥240
55539-52060-C4 note Cover, Spare Switch Hole
2020-06 → 2022-07 ended
NSP172 WKG ¥220
55539-52060-C4 note Cover, Spare Switch Hole
2020-06 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥220
55539-52060-C4 note Cover, Spare Switch Hole
2020-06 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥220
55539-52060-C4 note Cover, Spare Switch Hole
2018-09 → 2020-06 ended
NSP172 WKX ¥220
55539-52060-C4 note Cover, Spare Switch Hole
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,FNGCR,GCERO,WKG,WKX,X ¥220
55539-52060-C4 note Cover, Spare Switch Hole
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥220
55539-52060-C4 note Cover, Spare Switch Hole
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥220
55539-52060-C4 note Cover, Spare Switch Hole
2018-09 → 2020-06 ended
NSP172 WKX ¥220
55539-52060-C4 note Cover, Spare Switch Hole
2018-09 → 2020-06 ended
NSP172 ¥220
55539-52060-C4 note Cover, Spare Switch Hole
2018-09 → 2020-06 ended
NCP175,NHP170,NSP170 G,X ¥220
55539-52060-C4 note Cover, Spare Switch Hole
2018-09 → 2020-06 ended
NCP175,NHP170,NSP170 G,X ¥220
55539C — Cover, Spare Switch Hole
55539-52040-C0 note Cover, Spare Switch Hole
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥340
55539-52040-C0 note Cover, Spare Switch Hole
2015-06 → 2018-09 ended
NSP172 X ¥340
55539-52040-C0 note Cover, Spare Switch Hole
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥340
55539-52040-C0 note Cover, Spare Switch Hole
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKX,X ¥340
55539-52040-C0 note Cover, Spare Switch Hole
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX ¥340
55539-52040-C0 note Cover, Spare Switch Hole
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 X ¥340
55539-52040-C0 note Cover, Spare Switch Hole
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX ¥340
55539-52040-C0 note Cover, Spare Switch Hole
2018-09 → 2022-07 ended
NSP172 WKX ¥340
55606 — Cover Sub-assy, Instrument Panel Under, NO.1
55606-52080 Cover Sub-assy, Instrument Panel Under, NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,820
55606-52080 Cover Sub-assy, Instrument Panel Under, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,820
55618C — Holder, Instrument Panel Cup
55618-52100-A2 note Holder, Instrument Panel Cup
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥2,220
55618-52100-C2 note Holder, Instrument Panel Cup
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥2,220
55618-52110-A2 note Holder, Instrument Panel Cup
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥1,490
55618-52110-C2 note Holder, Instrument Panel Cup
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥1,490
55618-52100-A2 note Holder, Instrument Panel Cup
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,WKG ¥2,220
55618-52100-C2 note Holder, Instrument Panel Cup
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥2,220
55618-52100-C2 note Holder, Instrument Panel Cup
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNGCR,GCERO,WKG ¥2,220
55618-52110-A2 note Holder, Instrument Panel Cup
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKX,X ¥1,490
55618-52110-C2 note Holder, Instrument Panel Cup
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥1,490
55650 — Register Assy, Instrument Panel, NO.1
55650-52390-B2 note Register Assy, Instrument Panel, NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥5,800
55650-52400-C1 note Register Assy, Instrument Panel, NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥5,700
55650-52390-B2 note Register Assy, Instrument Panel, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥5,800
55650-52390-B2 note Register Assy, Instrument Panel, NO.1
2018-09 → 2022-07 ended
NSP172 WKG ¥5,800
55650-52390-B2 note Register Assy, Instrument Panel, NO.1
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥5,800
55650-52390-B2 note Register Assy, Instrument Panel, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥5,800
55650-52400-C1 note Register Assy, Instrument Panel, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKX,X ¥5,700
55650-52400-C1 note Register Assy, Instrument Panel, NO.1
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX ¥5,700
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
