Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

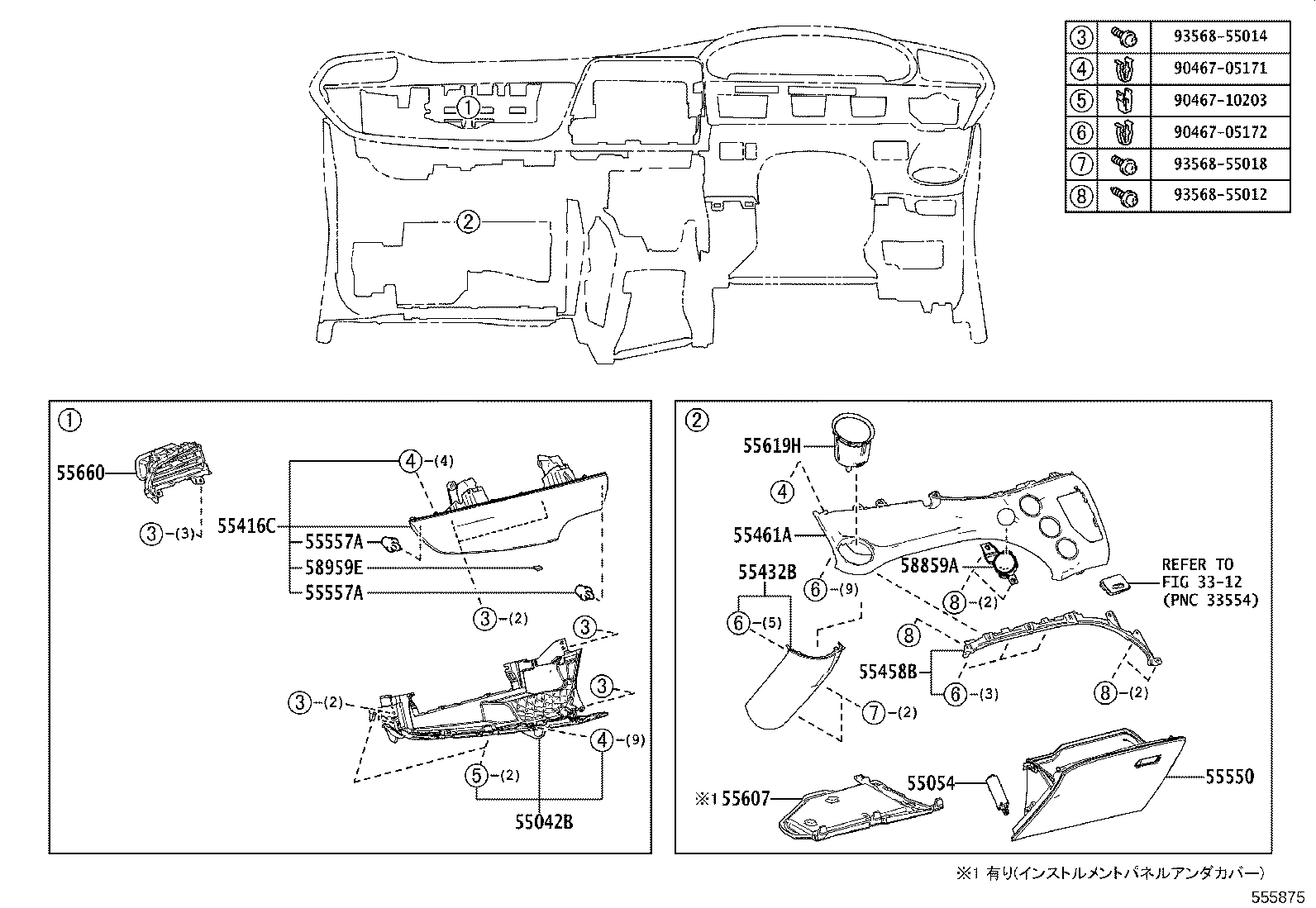

Exploded illustration 555875 9356855012 — not listed in this catalogue 9356855014 — not listed in this catalogue 9046710203 — not listed in this catalogue 9046705171 — not listed in this catalogue 9356855018 — not listed in this catalogue 9046705172 — not listed in this catalogue 58959E — CUSHION, CONSOLE COMPARTMENT DOOR (2 parts) 55416C — RETAINER, INSTRUMENT CLUSTER FINISH PANEL (11 parts) 55557A — CUSHION, GLOVE COMPARTMENT DOOR CHECK (2 parts) 55557A — CUSHION, GLOVE COMPARTMENT DOOR CHECK (2 parts) 55042B — DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.2 (10 parts) 55432B — PANEL, INSTRUMENT PANEL FINISH, LOWER (5 parts) 55550 — DOOR ASSY, GLOVE COMPARTMENT (5 parts) 55607 — COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 (4 parts) 55461A — ORNAMENT, INSTRUMENT PANEL (9 parts) 55054 — STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR (2 parts) 55458B — COVER, INSTRUMENT, LWR (5 parts) 55619H — HOLDER, INSTRUMENT PANEL CUP, NO.2 (9 parts) 58859A — HOOK, CONSOLE BOX HOLDER (5 parts) 55660 — REGISTER ASSY, INSTRUMENT PANEL, NO.2 (8 parts) 3312 — not listed in this catalogue
555875 · 14 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
77 parts on this figure
Part number Description Fitment Price
55042B — Door Sub-assy, Instrument Panel Box, NO.2
55042-52090-C0 note Door Sub-assy, Instrument Panel Box, NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥8,000
55042-52090-C0 note Door Sub-assy, Instrument Panel Box, NO.2
2018-09 → 2019-10 ended
NCP175,NHP170,NSP170 G ¥8,000
55042-52090-C0 note Door Sub-assy, Instrument Panel Box, NO.2
2019-10 → 2022-07 ended
NHP170,NSP170 FNBSG ¥8,000
55042-52090-C0 note Door Sub-assy, Instrument Panel Box, NO.2
2019-10 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥8,000
55042-52090-C0 note Door Sub-assy, Instrument Panel Box, NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,FNGCR,GCERO ¥8,000
55042-52090-C0 note Door Sub-assy, Instrument Panel Box, NO.2
2018-09 → 2019-10 ended
NHP170,NSP170 FNBSG ¥8,000
55042-52090-C0 note Door Sub-assy, Instrument Panel Box, NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥8,000
55042-52090-C1 note Door Sub-assy, Instrument Panel Box, NO.2
2020-01 → 2022-06 ended
NCP175,NHP170,NSP170 FNBSG,G ¥8,000
55042-52090-C1 note Door Sub-assy, Instrument Panel Box, NO.2
2019-10 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥8,000
55042-52090-C1 note Door Sub-assy, Instrument Panel Box, NO.2
2019-10 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥8,000
55054 — Stopper Sub-assy, Glove Compartment Door
55054-47010 Stopper Sub-assy, Glove Compartment Door
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,050
55054-47010 Stopper Sub-assy, Glove Compartment Door
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,050
55416C — Retainer, Instrument Cluster Finish Panel
55416-52200-C0 note Retainer, Instrument Cluster Finish Panel
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥9,100
55416-52200-C0 note Retainer, Instrument Cluster Finish Panel
2018-09 → 2019-10 ended
NCP175,NHP170,NSP170 G ¥9,100
55416-52200-C0 note Retainer, Instrument Cluster Finish Panel
2018-09 → 2019-10 ended
NHP170,NSP170 FNBSG ¥9,100
55416-52200-C0 note Retainer, Instrument Cluster Finish Panel
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥9,100
55416-52200-C0 note Retainer, Instrument Cluster Finish Panel
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,FNGCR,GCERO ¥9,100
55416-52200-C0 note Retainer, Instrument Cluster Finish Panel
2019-10 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥9,100
55416-52200-C0 note Retainer, Instrument Cluster Finish Panel
2019-10 → 2022-07 ended
NHP170,NSP170 FNBSG ¥9,100
55416-52200-C1 note Retainer, Instrument Cluster Finish Panel
2019-10 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥9,100
55416-52200-C1 note Retainer, Instrument Cluster Finish Panel
2019-10 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥9,100
55416-52200-C1 note Retainer, Instrument Cluster Finish Panel
2020-01 → 2022-06 ended
NCP175,NHP170,NSP170 FNBSG,G ¥9,100
55416-52200-C1 note Retainer, Instrument Cluster Finish Panel
2019-10 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥9,100
55432B — Panel, Instrument Panel Finish, Lower
55432-52130-A0 note Panel, Instrument Panel Finish, Lower
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥3,210
55432-52130-C0 note Panel, Instrument Panel Finish, Lower
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥3,210
55432-52130-A0 note Panel, Instrument Panel Finish, Lower
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,WKG,WKX,X ¥3,210
55432-52130-C0 note Panel, Instrument Panel Finish, Lower
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥3,210
55432-52130-C0 note Panel, Instrument Panel Finish, Lower
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,FNGCR,GCERO,WKG,WKX,X ¥3,210
55458B — Cover, Instrument, Lwr
55458-52070-A0 note Cover, Instrument, Lwr
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,160
55458-52070-C0 note Cover, Instrument, Lwr
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,160
55458-52070-A0 note Cover, Instrument, Lwr
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,WKG,WKX,X ¥2,160
55458-52070-C0 note Cover, Instrument, Lwr
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥2,160
55458-52070-C0 note Cover, Instrument, Lwr
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,FNGCR,GCERO,WKG,WKX,X ¥2,160
55461A — Ornament, Instrument Panel
55461-52150-A0 note Ornament, Instrument Panel
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥8,000
55461-52150-C0 note Ornament, Instrument Panel
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥8,000
55461-52190-A0 note Ornament, Instrument Panel
2015-06 → 2018-09 ended
NHP170;NCP175,NSP17# G ¥8,000
55461-52190-C0 note Ornament, Instrument Panel
2015-06 → 2018-09 ended
NHP170;NCP175,NSP17# G ¥8,000
55461-52150-A0 note Ornament, Instrument Panel
2018-09 → 2022-07 ended
NCP175,NSP17# WKX,X ¥8,000
55461-52150-C0 note Ornament, Instrument Panel
2018-09 → 2022-07 ended
NCP175,NSP17# FNBSX,WKX,X ¥8,000
55461-52190-A0 note Ornament, Instrument Panel
2018-09 → 2022-07 ended
NHP170 G,X;NCP175,NSP17# G,WKG ¥8,000
55461-52190-C0 note Ornament, Instrument Panel
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥8,000
55461-52190-C0 note Ornament, Instrument Panel
2018-09 → 2022-07 ended
NHP170 FNBSX,FNGCR,GCERO,X;NCP175,NSP17# FNGCR,GCERO,WKG ¥8,000
55550 — Door Assy, Glove Compartment
55550-52370-A0 note Door Assy, Glove Compartment
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥9,900
55550-52370-C0 note Door Assy, Glove Compartment
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥9,900
55550-52370-A0 note Door Assy, Glove Compartment
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,WKG,WKX,X ¥9,900
55550-52370-C0 note Door Assy, Glove Compartment
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥9,900
55550-52370-C0 note Door Assy, Glove Compartment
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,FNGCR,GCERO,WKG,WKX,X ¥9,900
55557A — Cushion, Glove Compartment Door Check
55557-53030 Cushion, Glove Compartment Door Check
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥140
55557-53030 Cushion, Glove Compartment Door Check
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥140
55607 — Cover Sub-assy, Instrument Panel Under, NO.2
55607-52080 Cover Sub-assy, Instrument Panel Under, NO.2
2015-07 → 2018-09 ended
NHP170 ¥2,890
55607-52080 note Cover Sub-assy, Instrument Panel Under, NO.2
2015-06 → 2018-09 ended
NSP17# ¥2,890
55607-52080 Cover Sub-assy, Instrument Panel Under, NO.2
2018-09 → 2022-07 ended
NHP170 ¥2,890
55607-52080 note Cover Sub-assy, Instrument Panel Under, NO.2
2018-09 → 2022-07 ended
NSP17# ¥2,890
55619H — Holder, Instrument Panel Cup, NO.2
55619-52060-A2 note Holder, Instrument Panel Cup, NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥2,300
55619-52060-C2 note Holder, Instrument Panel Cup, NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥2,300
55619-52070-A2 note Holder, Instrument Panel Cup, NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥1,570
55619-52070-C2 note Holder, Instrument Panel Cup, NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥1,570
55619-52060-A2 note Holder, Instrument Panel Cup, NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,WKG ¥2,300
55619-52060-C2 note Holder, Instrument Panel Cup, NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥2,300
55619-52060-C2 note Holder, Instrument Panel Cup, NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNGCR,GCERO,WKG ¥2,300
55619-52070-A2 note Holder, Instrument Panel Cup, NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKX,X ¥1,570
55619-52070-C2 note Holder, Instrument Panel Cup, NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥1,570
55660 — Register Assy, Instrument Panel, NO.2
55660-52160-B2 note Register Assy, Instrument Panel, NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥5,800
55660-52170-C1 note Register Assy, Instrument Panel, NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥5,700
55660-52160-B2 note Register Assy, Instrument Panel, NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥5,800
55660-52160-B2 note Register Assy, Instrument Panel, NO.2
2018-09 → 2022-07 ended
NSP172 WKG ¥5,800
55660-52160-B2 note Register Assy, Instrument Panel, NO.2
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥5,800
55660-52160-B2 note Register Assy, Instrument Panel, NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥5,800
55660-52170-C1 note Register Assy, Instrument Panel, NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKX,X ¥5,700
55660-52170-C1 note Register Assy, Instrument Panel, NO.2
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX ¥5,700
58859A — Hook, Console Box Holder
58859-52020-A0 note Hook, Console Box Holder
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥780
58859-52020-C0 note Hook, Console Box Holder
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥780
58859-52020-A0 note Hook, Console Box Holder
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,WKG,WKX,X ¥780
58859-52020-C0 note Hook, Console Box Holder
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥780
58859-52020-C0 note Hook, Console Box Holder
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,FNGCR,GCERO,WKG,WKX,X ¥780
58959E — Cushion, Console Compartment Door
58959-60030 Cushion, Console Compartment Door
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥110
58959-60030 Cushion, Console Compartment Door
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥110
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
