Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

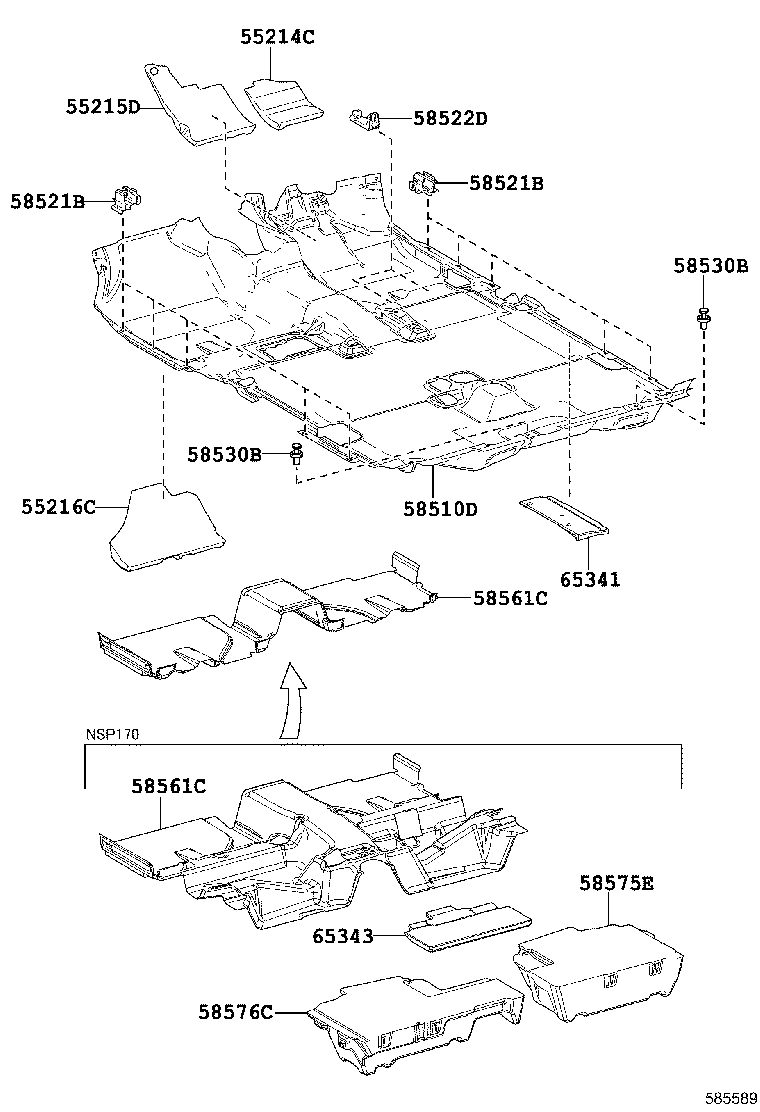

Exploded illustration 585589 55216C — PAD, DASH PANEL INSULATOR, NO.4 (2 parts) 58521B — HOOK, FLOOR CARPET (2 parts) 58522D — HOOK, FLOOR CARPET, NO.2 (2 parts) 55214C — PAD, DASH PANEL INSULATOR, NO.2 (2 parts) 55215D — PAD, DASH PANEL INSULATOR, NO.3 (2 parts) 58575E — PAD, FRONT FLOOR, REAR NO.1 (2 parts) 58576C — PAD, FRONT FLOOR, REAR NO.2 (4 parts) 65343 — BOARD, FLOOR, NO.3 (2 parts) 58521B — HOOK, FLOOR CARPET (2 parts) 58561C — SILENCER, FRONT FLOOR, NO.1 (8 parts) 58561C — SILENCER, FRONT FLOOR, NO.1 (8 parts) 58510D — CARPET ASSY, FLOOR, FRONT (46 parts) 58530B — CLIP(FOR FRONT FLOOR CARPET) (2 parts) 65341 — BOARD, FLOOR, NO.1 (2 parts) 58530B — CLIP(FOR FRONT FLOOR CARPET) (2 parts)
585589 · 15 callouts Full size ↗
76 parts on this figure
Part number Description Fitment Price
55214C — Pad, Dash Panel Insulator, NO.2
55214-52180 Pad, Dash Panel Insulator, NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥750
55214-52180 Pad, Dash Panel Insulator, NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥750
55215D — Pad, Dash Panel Insulator, NO.3
55215-52150 Pad, Dash Panel Insulator, NO.3
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,190
55215-52150 Pad, Dash Panel Insulator, NO.3
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,190
55216C — Pad, Dash Panel Insulator, NO.4
55216-52010 Pad, Dash Panel Insulator, NO.4
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,490
55216-52010 Pad, Dash Panel Insulator, NO.4
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,490
58510D — Carpet Assy, Floor, Front
58510-52N80-B0 note Carpet Assy, Floor, Front
2015-06 → 2018-09 ended
NSP172 X ¥26,500
58510-52N80-B0 note Carpet Assy, Floor, Front
2015-06 → 2018-09 ended
NSP172 ¥26,500
58510-52N80-B0 note Carpet Assy, Floor, Front
2015-12 → 2018-09 ended
NSP172 X ¥26,500
58510-52N90-B0 note Carpet Assy, Floor, Front
2015-06 → 2018-09 ended
NSP172 ¥26,600
58510-52N90-B0 note Carpet Assy, Floor, Front
2015-06 → 2018-09 ended
NSP172 X ¥26,600
58510-52N90-B0 note Carpet Assy, Floor, Front
2015-12 → 2018-09 ended
NSP172 X ¥26,600
58510-52P00-B0 note Carpet Assy, Floor, Front
2015-06 → 2018-09 ended
NSP172 X ¥25,300
58510-52P10-B0 note Carpet Assy, Floor, Front
2015-06 → 2018-09 ended
NSP172 X ¥25,300
58510-52P20-B0 note Carpet Assy, Floor, Front
2015-06 → 2018-09 ended
NSP170 ¥36,400
58510-52P30-B0 note Carpet Assy, Floor, Front
2015-06 → 2018-09 ended
NSP170 ¥36,400
58510-52P50-B0 note Carpet Assy, Floor, Front
2015-07 → 2018-09 ended
NHP170 ¥41,200
58510-52P60-B0 note Carpet Assy, Floor, Front
2015-07 → 2018-09 ended
NHP170 ¥41,300
58510-52P70-B0 note Carpet Assy, Floor, Front
2015-06 → 2018-09 ended
NCP175 ¥37,200
58510-52P80-B0 note Carpet Assy, Floor, Front
2015-06 → 2018-09 ended
NCP175 ¥37,200
58510-52N80-B0 note Carpet Assy, Floor, Front
2018-09 → 2022-07 ended
NSP172 WKX ¥26,500
58510-52N80-B0 note Carpet Assy, Floor, Front
2018-09 → 2022-07 ended
NSP172 ¥26,500
58510-52N80-B0 note Carpet Assy, Floor, Front
2018-09 → 2022-07 ended
NSP172 WKX ¥26,500
58510-52N90-B0 note Carpet Assy, Floor, Front
2018-09 → 2022-07 ended
NSP172 ¥26,600
58510-52P00-B0 note Carpet Assy, Floor, Front
2018-09 → 2022-07 ended
NSP172 WKX ¥25,300
58510-52P10-B0 note Carpet Assy, Floor, Front
2018-09 → 2022-07 ended
NSP172 WKX ¥25,300
58510-52P20-B0 note Carpet Assy, Floor, Front
2018-09 → 2022-07 ended
NSP170 X ¥36,400
58510-52P20-B0 note Carpet Assy, Floor, Front
2018-09 → 2022-07 ended
NSP170 G ¥36,400
58510-52P20-B0 note Carpet Assy, Floor, Front
2018-09 → 2022-07 ended
NSP170 GCERO ¥36,400
58510-52P30-B0 note Carpet Assy, Floor, Front
2018-09 → 2022-07 ended
NSP170 GCERO ¥36,400
58510-52P30-B0 note Carpet Assy, Floor, Front
2018-09 → 2022-07 ended
NSP170 G ¥36,400
58510-52P30-B0 note Carpet Assy, Floor, Front
2018-09 → 2022-07 ended
NSP170 X ¥36,400
58510-52P50-B0 note Carpet Assy, Floor, Front
2018-09 → 2022-07 ended
NHP170 X ¥41,200
58510-52P50-B0 note Carpet Assy, Floor, Front
2018-09 → 2022-07 ended
NHP170 G ¥41,200
58510-52P50-B0 note Carpet Assy, Floor, Front
2018-09 → 2022-07 ended
NHP170 GCERO ¥41,200
58510-52P60-B0 note Carpet Assy, Floor, Front
2018-09 → 2022-07 ended
NHP170 X ¥41,300
58510-52P60-B0 note Carpet Assy, Floor, Front
2018-09 → 2022-07 ended
NHP170 G ¥41,300
58510-52P60-B0 note Carpet Assy, Floor, Front
2018-09 → 2022-07 ended
NHP170 GCERO ¥41,300
58510-52P70-B0 note Carpet Assy, Floor, Front
2018-09 → 2022-07 ended
NCP175 X ¥37,200
58510-52P70-B0 note Carpet Assy, Floor, Front
2018-09 → 2022-07 ended
NCP175 GCERO ¥37,200
58510-52P70-B0 note Carpet Assy, Floor, Front
2018-09 → 2022-07 ended
NCP175 G ¥37,200
58510-52P80-B0 note Carpet Assy, Floor, Front
2018-09 → 2022-07 ended
NCP175 X ¥37,200
58510-52P80-B0 note Carpet Assy, Floor, Front
2018-09 → 2022-07 ended
NCP175 GCERO ¥37,200
58510-52P80-B0 note Carpet Assy, Floor, Front
2018-09 → 2022-07 ended
NCP175 G ¥37,200
58510-52S70-B0 note Carpet Assy, Floor, Front
2018-09 → 2022-07 ended
NSP170 FNBSG ¥38,700
58510-52S70-B0 note Carpet Assy, Floor, Front
2018-09 → 2022-07 ended
NSP170 FNBSX,FNGCR ¥38,700
58510-52S80-B0 note Carpet Assy, Floor, Front
2018-09 → 2022-07 ended
NSP170 FNBSG ¥38,700
58510-52S80-B0 note Carpet Assy, Floor, Front
2018-09 → 2022-07 ended
NSP170 FNBSX,FNGCR ¥38,700
58510-52S90-B0 note Carpet Assy, Floor, Front
2018-09 → 2022-07 ended
NHP170 FNBSG ¥42,100
58510-52S90-B0 note Carpet Assy, Floor, Front
2018-09 → 2022-07 ended
NHP170 FNBSX,FNGCR ¥42,100
58510-52T00-B0 note Carpet Assy, Floor, Front
2018-09 → 2022-07 ended
NHP170 FNBSG ¥42,100
58510-52T00-B0 note Carpet Assy, Floor, Front
2018-09 → 2022-07 ended
NHP170 FNBSX,FNGCR ¥42,100
58521B — Hook, Floor Carpet
58521-12150 Hook, Floor Carpet
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥260
58521-12150 Hook, Floor Carpet
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥260
58522D — Hook, Floor Carpet, NO.2
58522-52030 Hook, Floor Carpet, NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥380
58522-52030 Hook, Floor Carpet, NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥380
58530B — Clip(FOR FRONT FLOOR CARPET)
90467-07215 Clip(FOR FRONT FLOOR CARPET)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥80
90467-07215 Clip(FOR FRONT FLOOR CARPET)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 ¥80
58561C — Silencer, Front Floor, NO.1
58561-52290 Silencer, Front Floor, NO.1
2015-06 → 2018-09 ended
NSP172 ¥5,900
58561-52310 Silencer, Front Floor, NO.1
2015-06 → 2018-09 ended
NSP170 ¥6,300
58561-52330 Silencer, Front Floor, NO.1
2015-07 → 2018-09 ended
NHP170 ¥3,480
58561-52350 Silencer, Front Floor, NO.1
2015-06 → 2018-09 ended
NCP175 ¥6,300
58561-52290 Silencer, Front Floor, NO.1
2018-09 → 2022-07 ended
NSP172 ¥5,900
58561-52310 Silencer, Front Floor, NO.1
2018-09 → 2022-07 ended
NSP170 ¥6,300
58561-52330 Silencer, Front Floor, NO.1
2018-09 → 2022-07 ended
NHP170 ¥3,480
58561-52350 Silencer, Front Floor, NO.1
2018-09 → 2022-07 ended
NCP175 ¥6,300
58575E — Pad, Front Floor, Rear NO.1
58575-52010 Pad, Front Floor, Rear NO.1
2015-06 → 2018-09 ended
NCP175,NSP17# ¥7,800
58575-52010 Pad, Front Floor, Rear NO.1
2018-09 → 2022-07 ended
NCP175,NSP17# ¥7,800
58576C — Pad, Front Floor, Rear NO.2
58576-52010 Pad, Front Floor, Rear NO.2
2015-06 → 2018-09 ended
NSP17# ¥7,800
58577-52010 Pad, Front Floor, Rear NO.2
2015-06 → 2018-09 ended
NCP175 ¥7,000
58576-52010 Pad, Front Floor, Rear NO.2
2018-09 → 2022-07 ended
NSP17# ¥7,800
58577-52010 Pad, Front Floor, Rear NO.2
2018-09 → 2022-07 ended
NCP175 ¥7,000
65341 — Board, Floor, NO.1
65341-52090-C0 note Board, Floor, NO.1
2015-07 → 2018-09 ended
NHP170 ¥4,040
65341-52090-C0 note Board, Floor, NO.1
2018-09 → 2022-07 ended
NHP170 ¥4,040
65343 — Board, Floor, NO.3
65343-52050 Board, Floor, NO.3
2015-06 → 2018-09 ended
NSP17# ¥4,180
65343-52050 Board, Floor, NO.3
2018-09 → 2022-07 ended
NSP17# ¥4,180
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
