Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

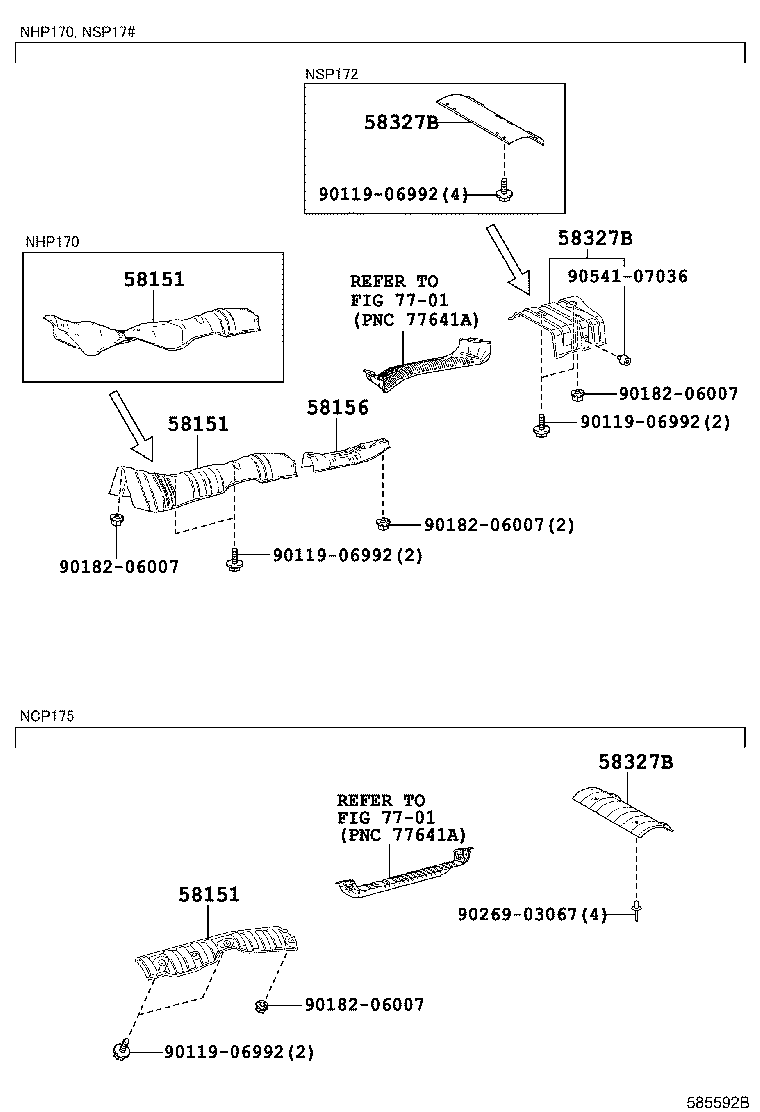

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58151 — Insulator, Front Floor Heat, NO.1 | ||||
| 58041-52030 |
Insulator, Front Floor Heat, NO.1
2015-07 → 2018-09
ended
|
NHP170 | ¥3,920 | |
| 58151-52071 |
Insulator, Front Floor Heat, NO.1
2015-06 → 2018-09
ended
|
NCP175 | ¥1,600 | |
| 58153-52130 |
Insulator, Front Floor Heat, NO.1
2015-06 → 2018-09
ended
|
NSP17# | ¥3,330 | |
| 58041-52030 |
Insulator, Front Floor Heat, NO.1
2018-09 → 2022-07
ended
|
NHP170 | ¥3,920 | |
| 58151-52071 |
Insulator, Front Floor Heat, NO.1
2018-09 → 2022-07
ended
|
NCP175 | ¥1,600 | |
| 58153-52130 |
Insulator, Front Floor Heat, NO.1
2018-09 → 2022-07
ended
|
NSP17# | ¥3,330 | |
| 58156 — Insulator, Front Floor Heat, NO.4 | ||||
| 58156-52030 |
Insulator, Front Floor Heat, NO.4
2015-06 → 2018-09
ended
|
NHP170,NSP17# | ¥1,440 | |
| 58156-52030 |
Insulator, Front Floor Heat, NO.4
2018-09 → 2022-07
ended
|
NHP170,NSP17# | ¥1,440 | |
| 58327B — Insulator, Main Muffler Heat | ||||
| 58327-52020 |
Insulator, Main Muffler Heat
2015-06 → 2018-09
ended
|
NCP175 | ¥2,900 | |
| 58327-52100 |
Insulator, Main Muffler Heat
2015-06 → 2018-09
ended
|
NHP170,NSP170 | ¥2,700 | |
| 58327-52160 |
Insulator, Main Muffler Heat
2015-06 → 2018-09
ended
|
NSP172 | ¥4,770 | |
| 58327-52020 |
Insulator, Main Muffler Heat
2018-09 → 2022-07
ended
|
NCP175 | ¥2,900 | |
| 58327-52100 |
Insulator, Main Muffler Heat
2018-09 → 2022-07
ended
|
NHP170,NSP170 | ¥2,700 | |
| 58327-52160 |
Insulator, Main Muffler Heat
2018-09 → 2022-07
ended
|
NSP172 | ¥4,770 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
